Rong-Electric MA200SH5S 5V 40A 200W LED Power Supply
$ 6.80
Rong-Electric MA200SH5S LED power supply, listed with 200W output power, 5V DC, 0–40A output and 200–240VAC rated input. The original PDF is labeled MA200SH5; confirm that the specification covers the supplied MA200SH5S version before installation.
9913 in stock
MA200SH5S power supply for LED screens
The Rong-Electric MA200SH5S is listed as a 200W LED display power supply with a 5V DC output and a 0–40A output current range. Its product table specifies a 200–240VAC rated input.
The original description lists input undervoltage protection, output current limiting and short-circuit protection. The parameters below preserve the original MA200SH5S listing values.
MA200SH5S product parameters
| Parameter | Listed value / source note |
|---|---|
| Listed product model | Rong-Electric MA200SH5S |
| Output power | 200W |
| Rated input voltage | 200–240VAC |
| Output voltage | 5.0V DC |
| Output current range | 0–40A |
| Regulation accuracy | ±2% |
| Ripple and noise | ≤150mVp-p; test conditions are not specified in the original product table |
| Efficiency statement | 87.0% or above in the original description; exact-model test conditions require confirmation |
| Protection features | Input undervoltage, output current limiting and output short-circuit protection |
| Linked specification model | MA200SH5 (without the final S), dated December 4, 2015 |
Specification download: check the model suffix
The linked PDF is labeled MA200SH5, while this product is listed as MA200SH5S. The original download link is preserved below. It does not by itself establish that the two versions share all specifications or are interchangeable.
The original 87.0% efficiency claim has no test conditions in the listing. Confirm those conditions, mounting dimensions and temperature limits using documentation that explicitly covers the supplied MA200SH5S version.
Frequently asked questions
What are the MA200SH5S output ratings?
The original MA200SH5S product table lists 5V DC, a 0–40A output current range and 200W output power. Check these against the supplied unit’s nameplate before connection.
Can MA200SH5S use 110V AC input?
The product table lists a 200–240VAC rated input. 110VAC is outside that stated range and should not be assumed compatible.
Does the PDF match the MA200SH5S model?
The retained download opens a document labeled MA200SH5, without the final S in this product’s name. It is provided as the original reference; confirm a specification that explicitly covers MA200SH5S before relying on additional dimensions, temperature limits or test conditions.
Are MA200SH5 and MA200SH5S interchangeable?
The available materials do not establish interchangeability. Compare the exact model suffix, electrical ratings, terminals, mounting arrangement and cooling requirements before replacement.
What should I confirm before ordering this LED power supply?
Confirm the MA200SH5S model and nameplate, 200–240VAC input, 5V output, required current, mounting dimensions and terminal arrangement. Ask for the matching specification to verify thermal limits and efficiency conditions.

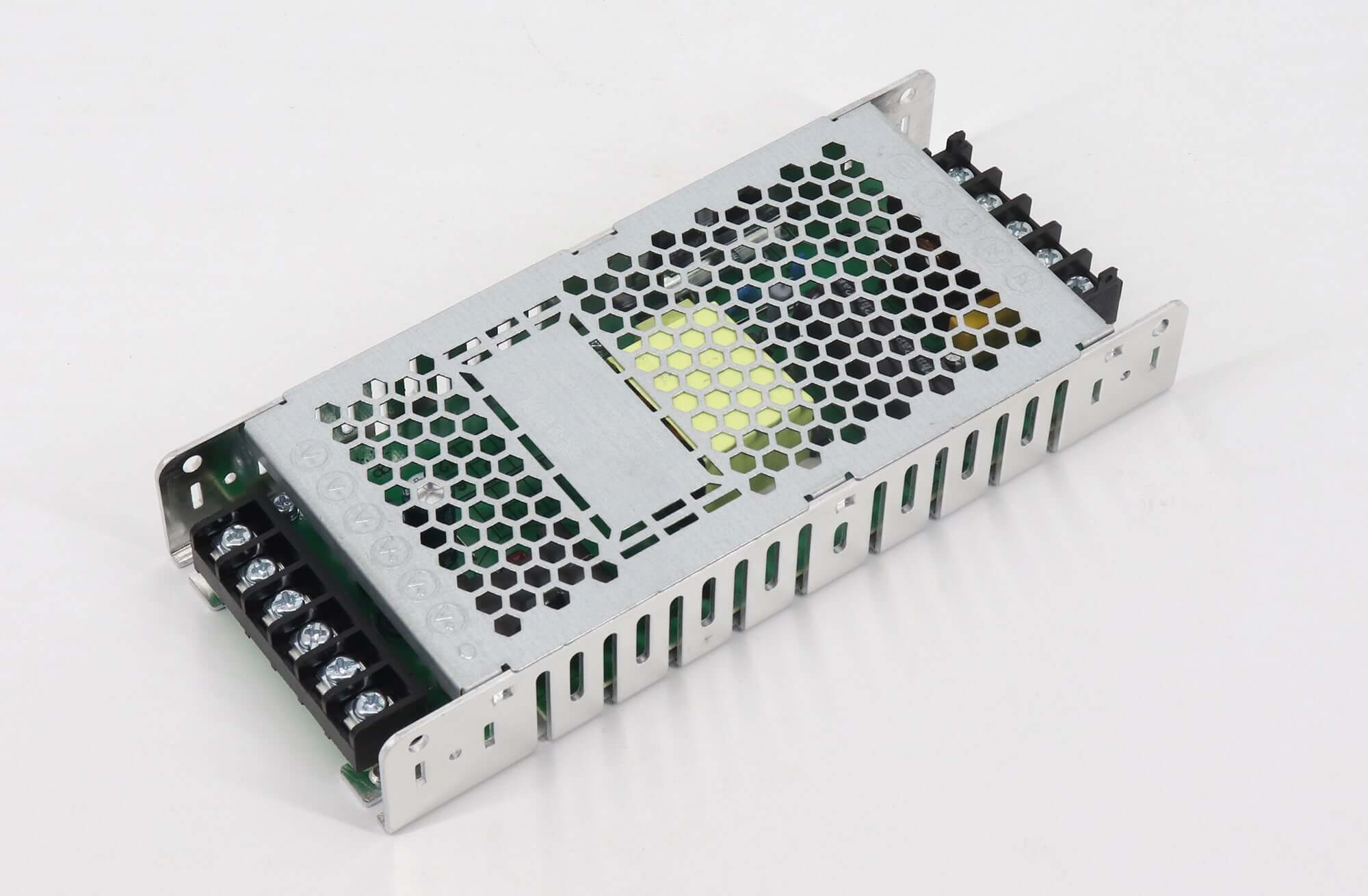

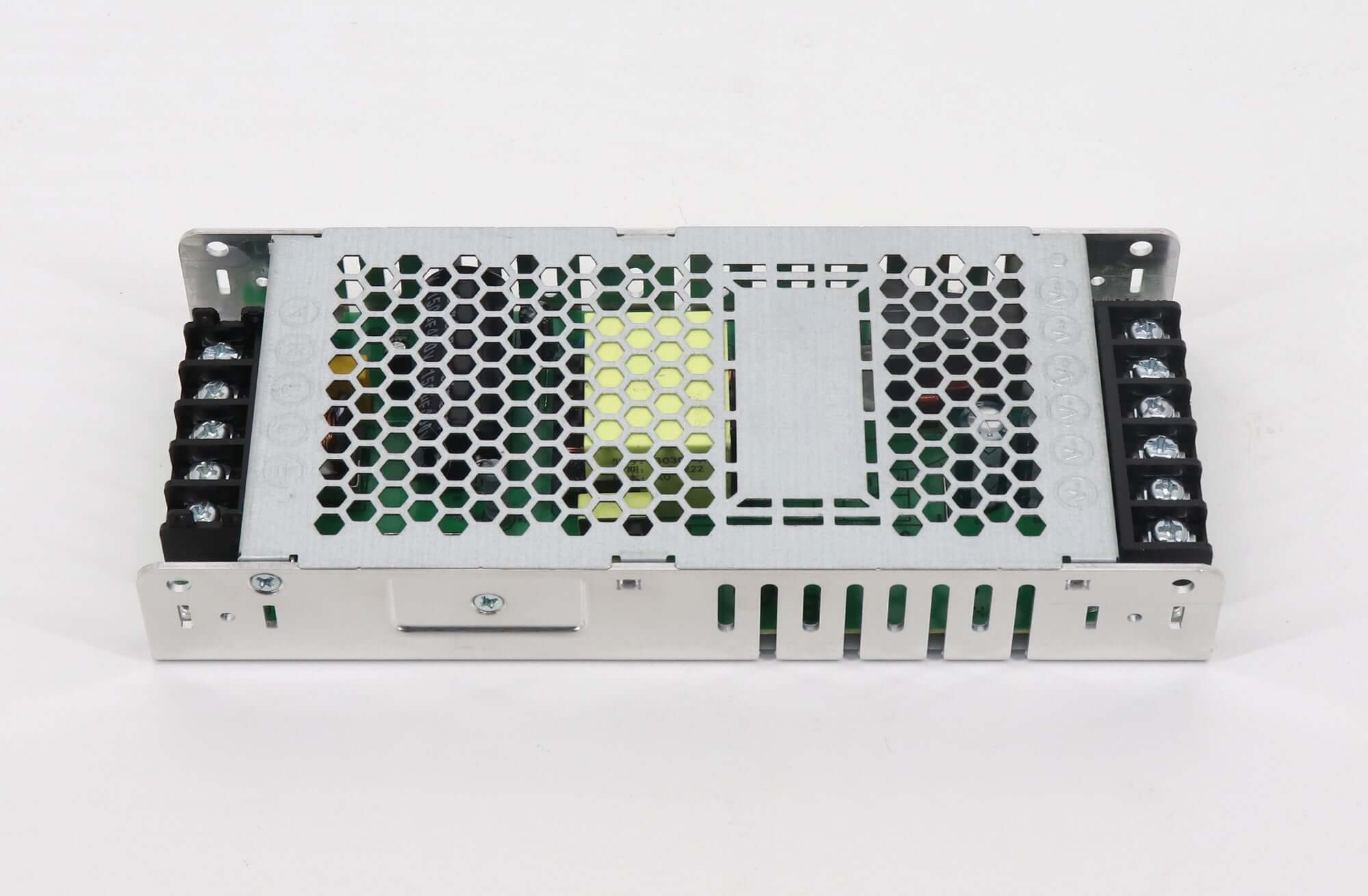

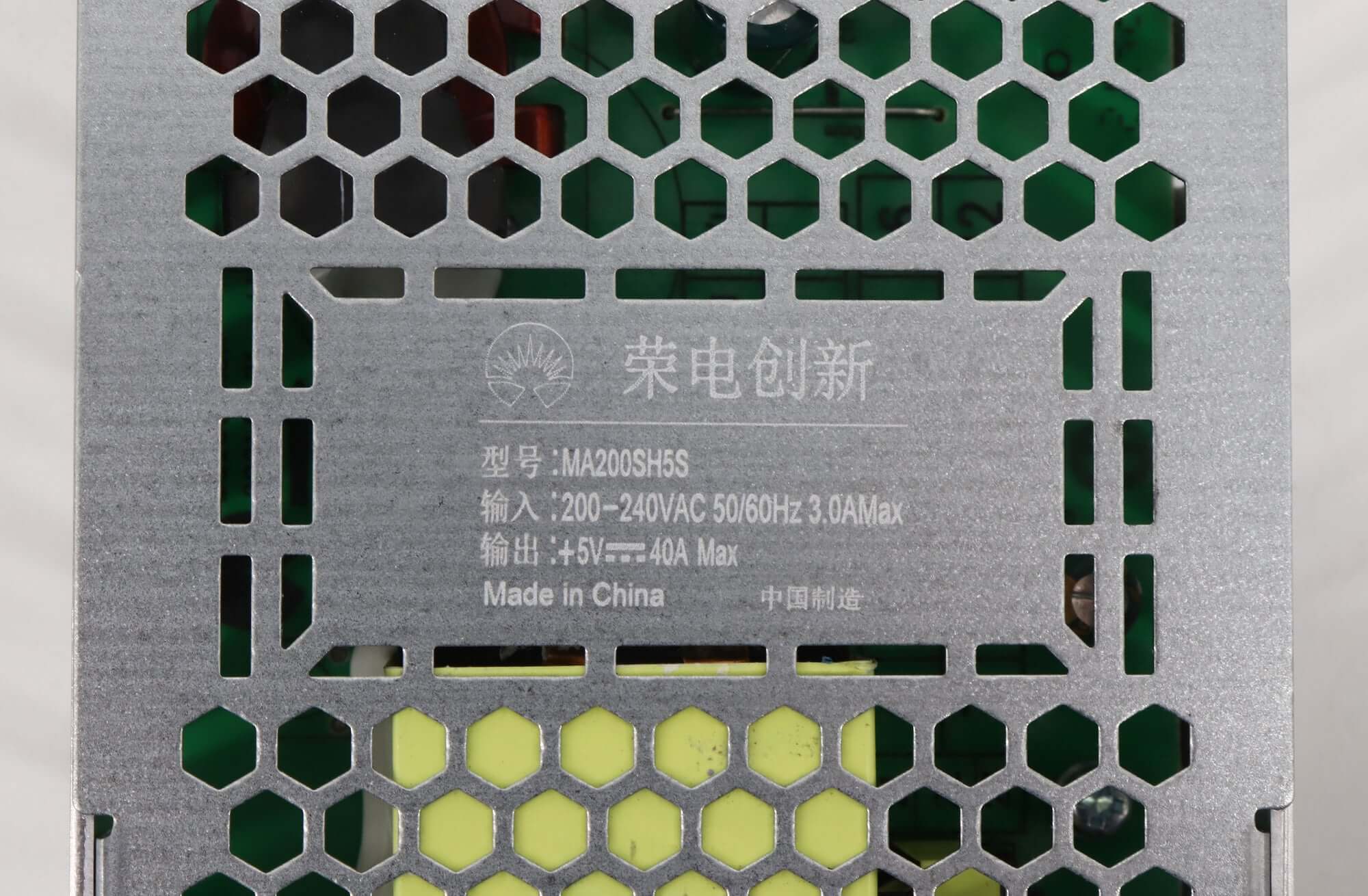

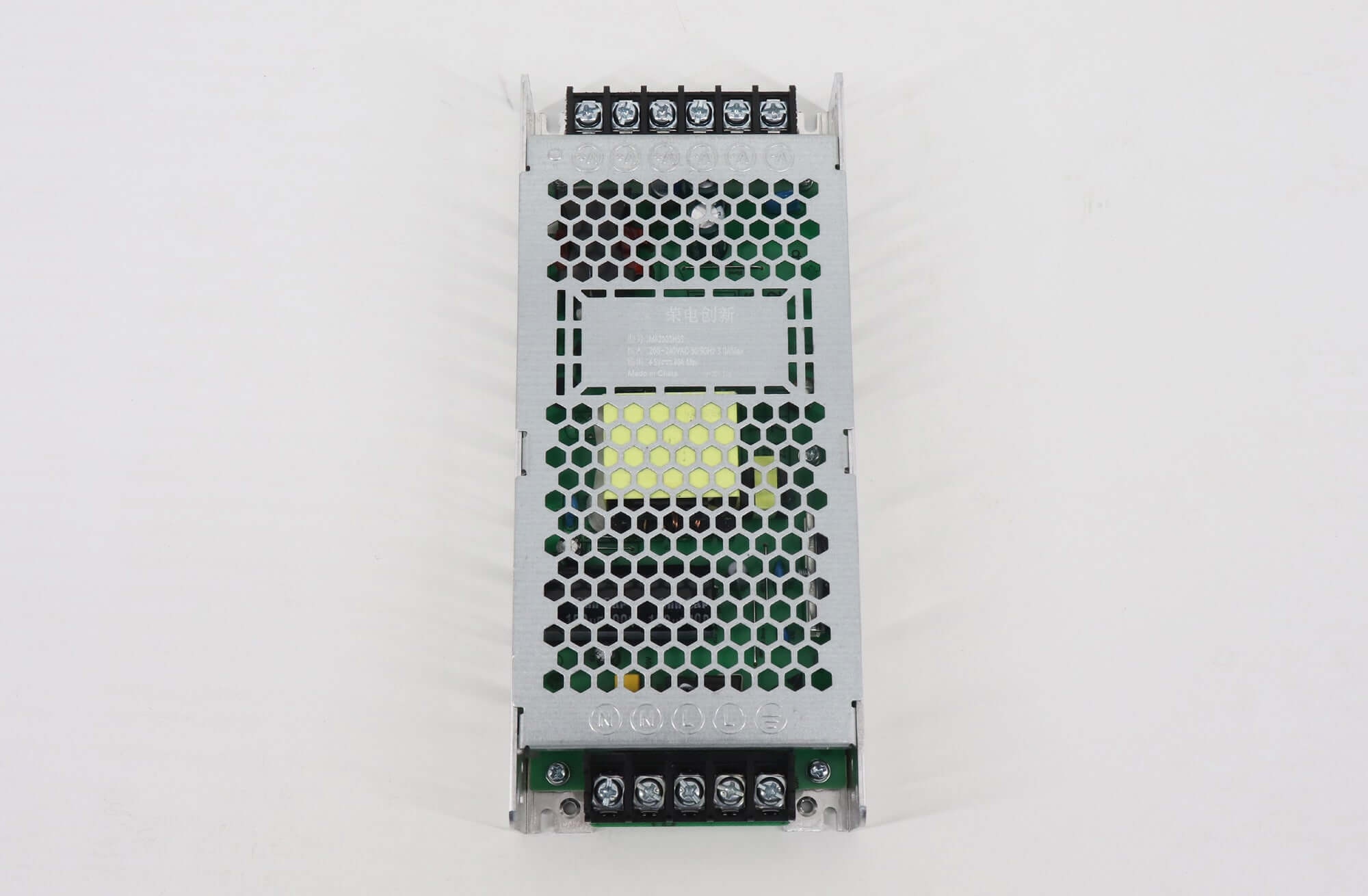

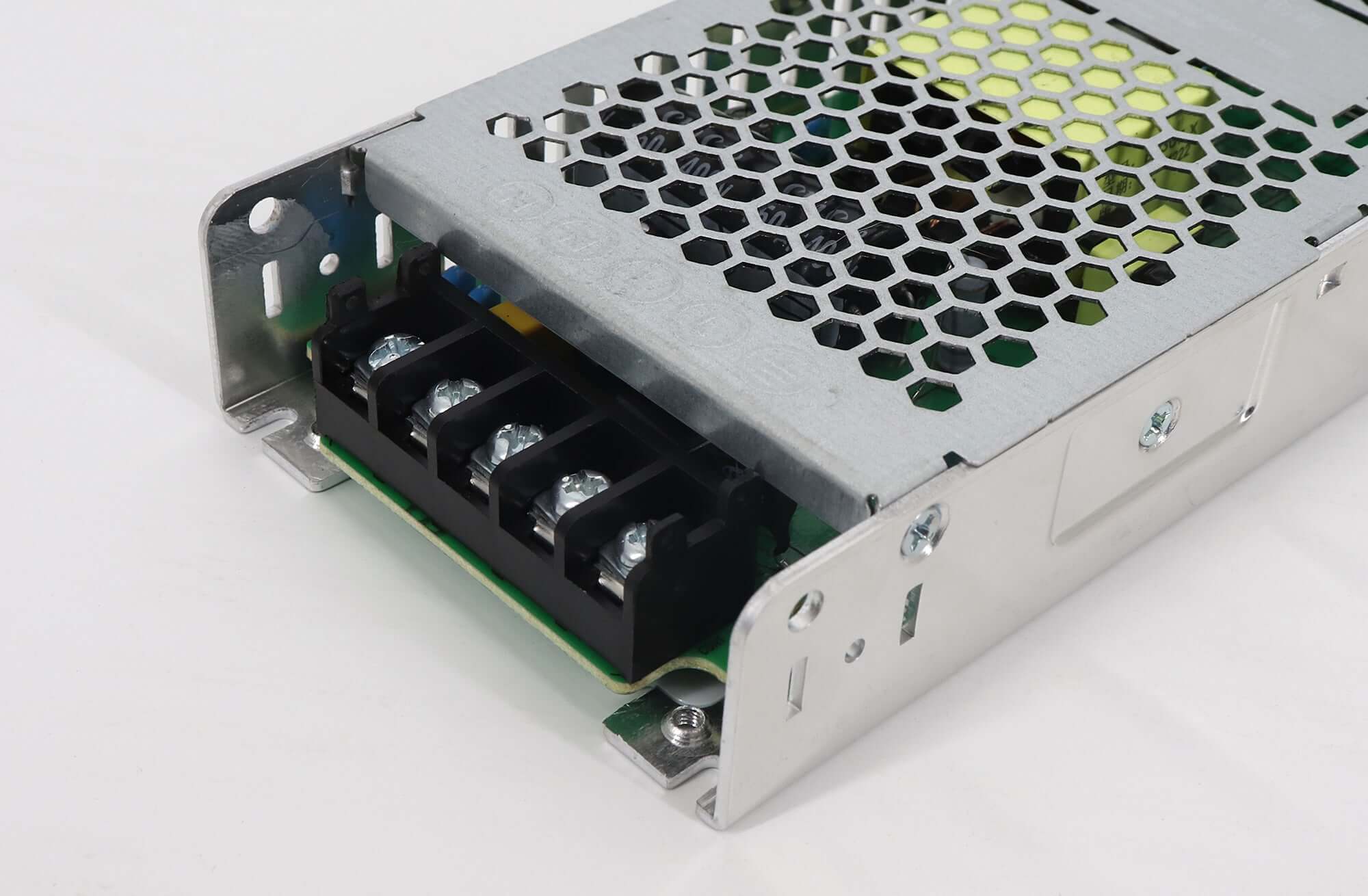

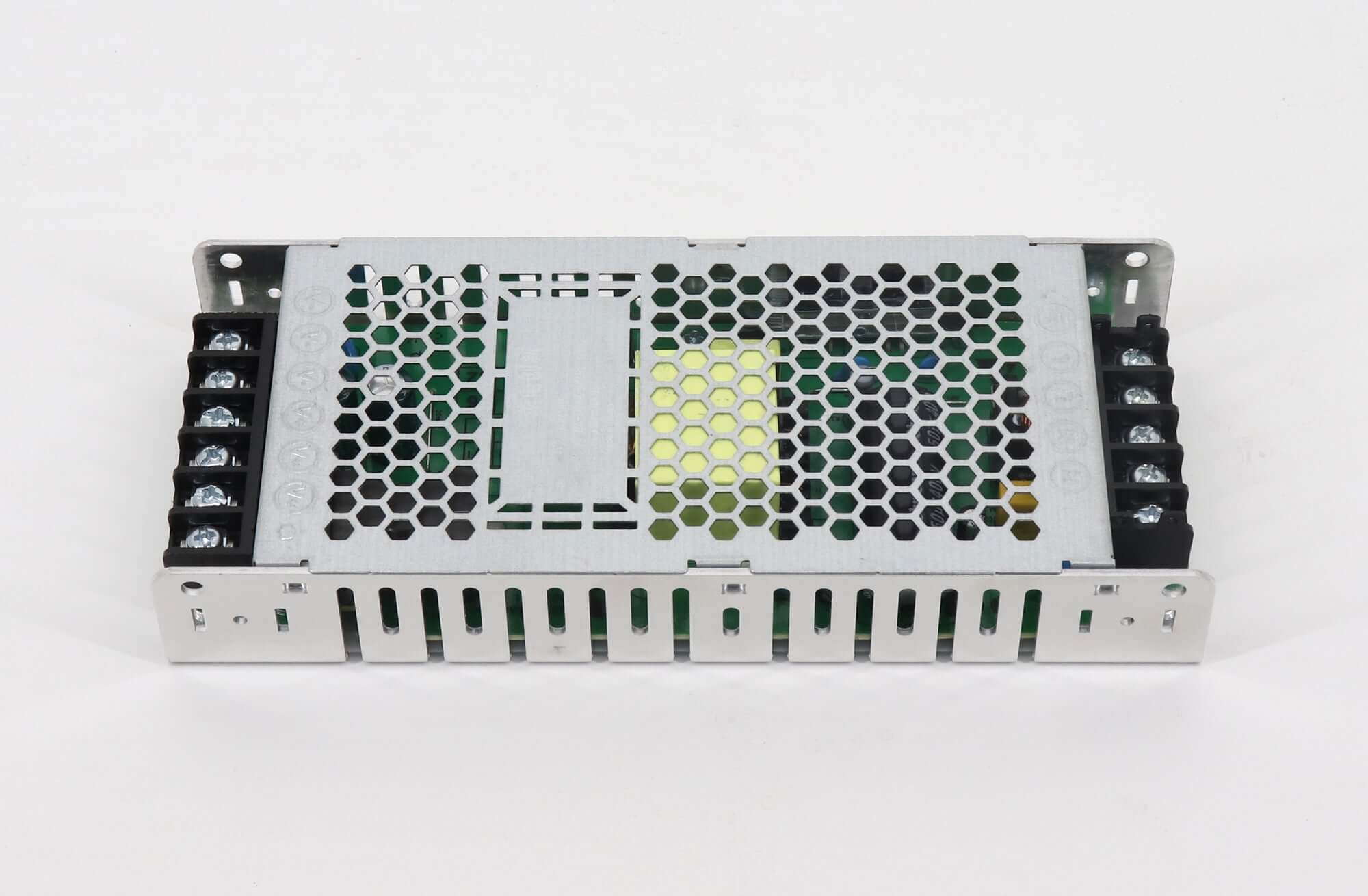

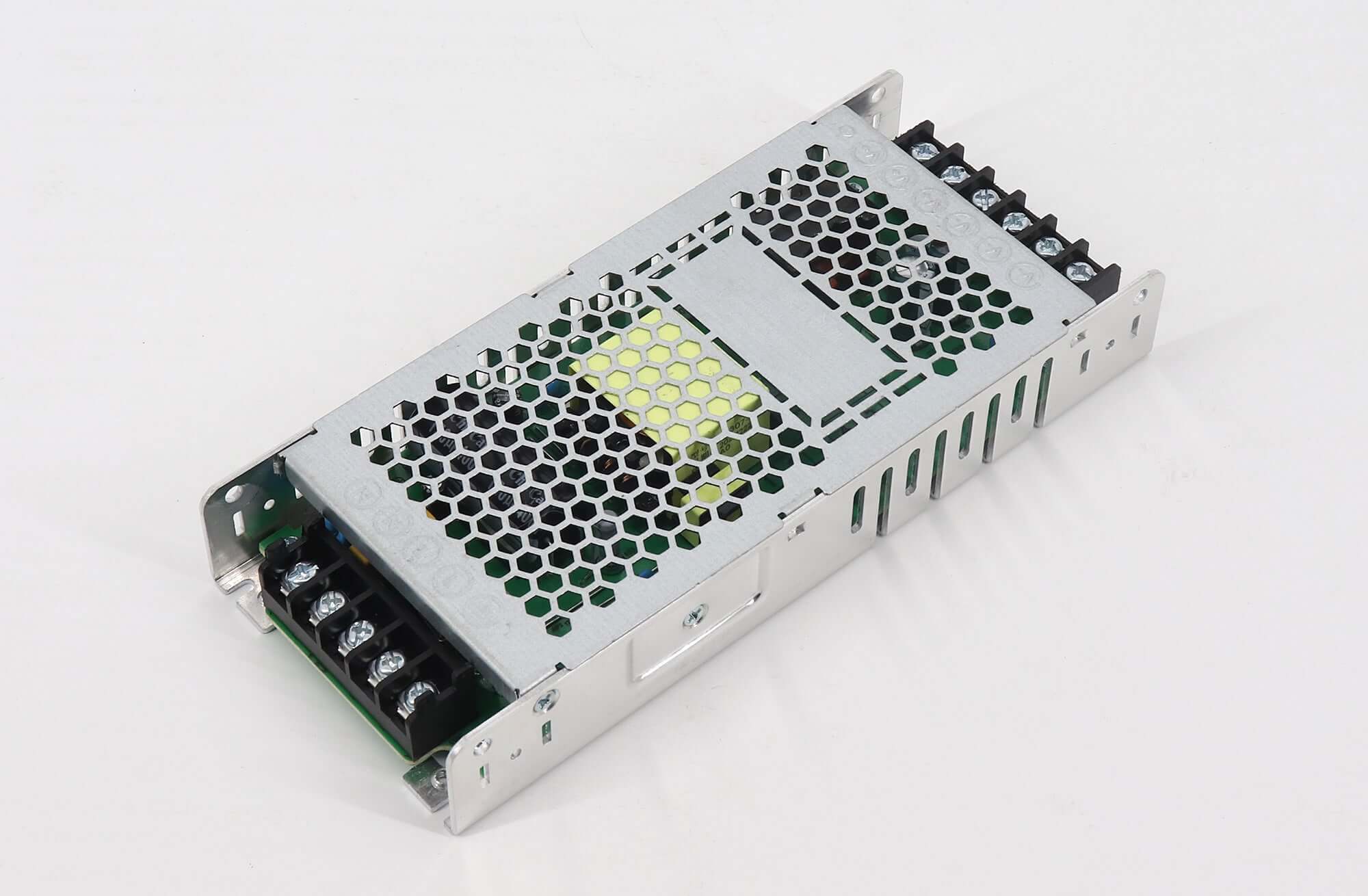

Product images and original PDF download
Download Specification
Rong-Electric MA200SH5S LED Screen Power Supply Specification
| Weight | 0.6 kg |
|---|
