The 4 mm pitch determines pixel spacing. For cabinet fit, also check the LED package and the board depth. The table below gives the SMD1921 listing values.
Technical specifications
LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
| Red | SMD1921 | 450-600mcd | 120°/120° | 620-625nm | 25℃,20mA | |
| Green | SMD1921 | 1000-1400mcd | 120°/120° | 516-530nm | 25℃,20mA | |
| Blue | SMD1921 | 200-400mcd | 120°/120° | 465-475nm | 25℃,20mA | |
Module Parameter | ||||||
| Pixel Pitch | 4mm | |||||
|---|---|---|---|---|---|---|
| Pixel configuration | SMD1921 | |||||
| Density | 62,500 pixels/㎡(real pixel) | |||||
| Module Resolution | 64pixel(L) * 32pixel(H) | |||||
| Module Dimension | 256mm(L) * 128mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/8 duty | |||||
| Module Mask | Pure black mask—high contrast screen | |||||
Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥6,000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥4m | |||||
| Gray Grade | 16,384 levels for each color | |||||
| Display Color | 4.39 Trillion Colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 30W | |||||
| Control System | ||||||
| Correction Scale Level | 12bits | |||||
| Frame Frequency | ≥60Hz | |||||
| Screen Refresh Frequency | ≥1,920Hz | |||||
| Gamma Correction | -5.0~5.0 | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); 20KM(optical fiber cable) | |||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20~+60 ºC | |||||
| Stored Temperature | -30~+70 ºC | |||||
| Working Humidity | 10%~90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Working Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out of Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.

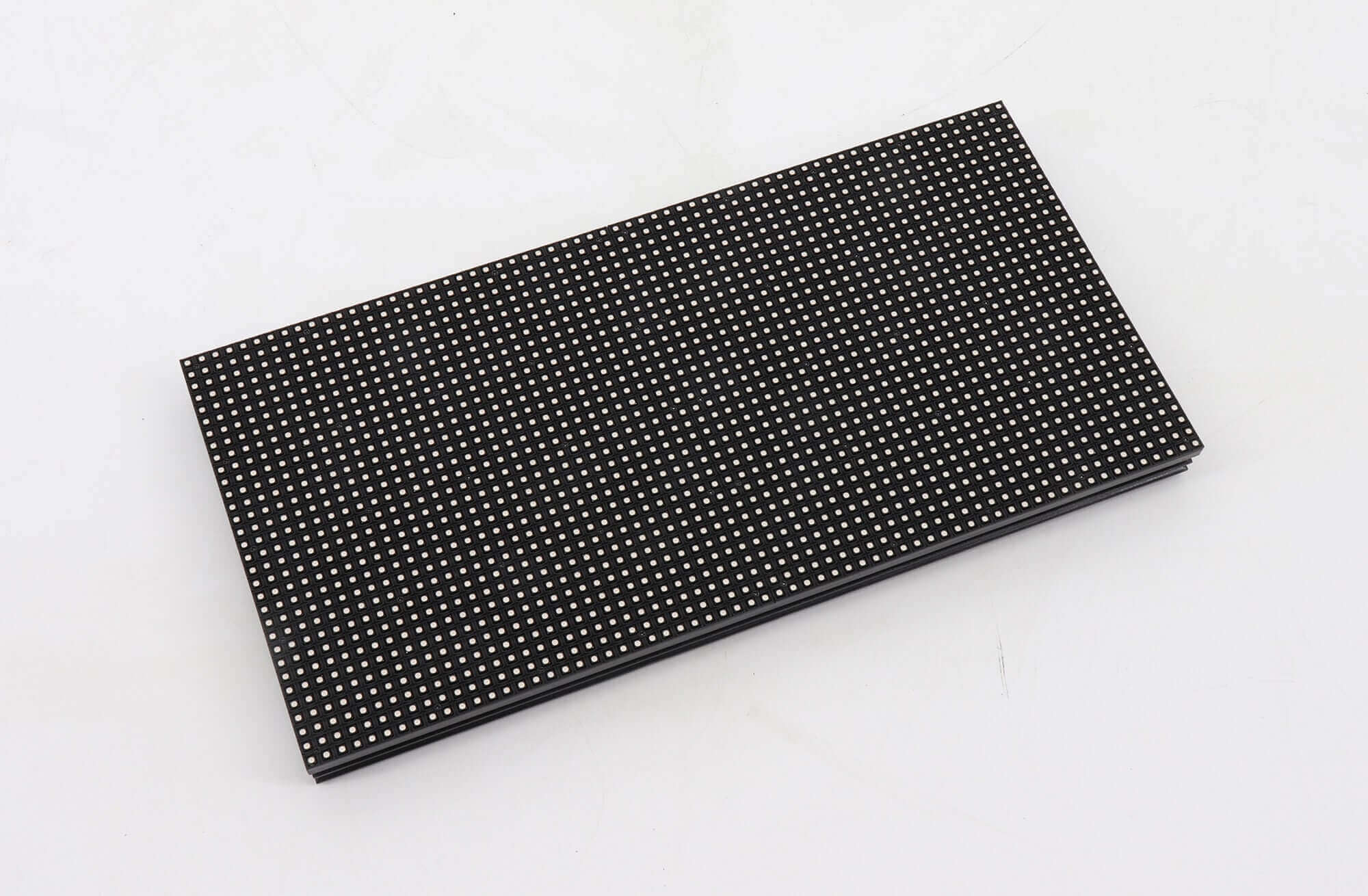

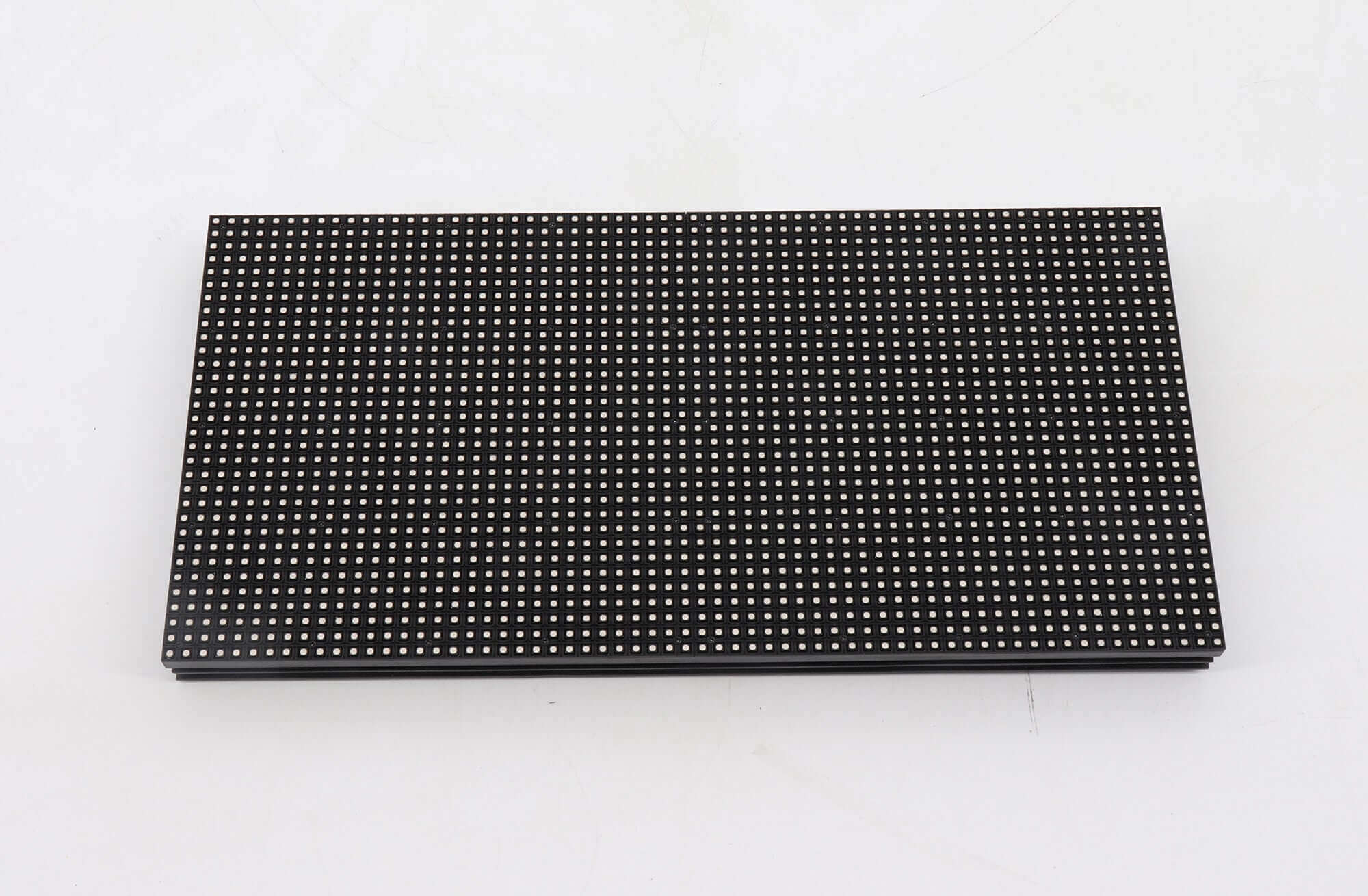

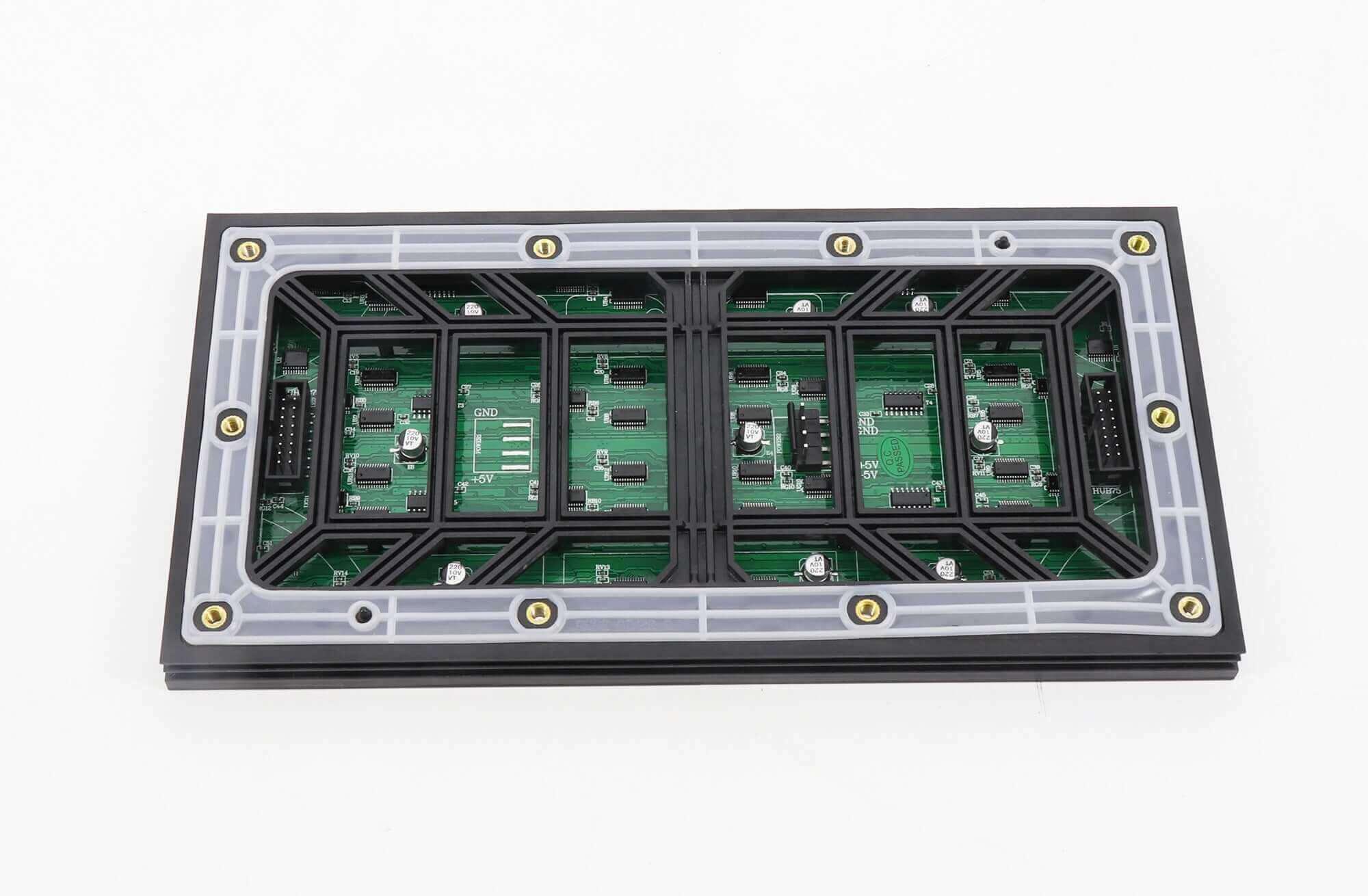

Product documentation and photos


Download the P4-O8S-SMD2525-64×32 variant specification (PDF)
Frequently asked questions
Which P4 LED screen specification does the download cover?
The PDF identifies P4-O8S-SMD2525-64×32. It shares the 256 × 128 mm footprint with this listing but specifies a different LED package and depth.
Is the module 18 mm or 25 mm deep?
The SMD1921 product table gives 18 mm. The linked SMD2525 specification gives 25 mm. Match the supplied board to its drawing before setting cabinet clearances.
What resolution does one P4 module add to the screen?
This size adds 64 pixel columns and 32 rows. Its listed brightness is at least 6000 cd/m².
