P6 Outdoor LED Module, 192 × 192 mm, SMD2727
$ 11.40

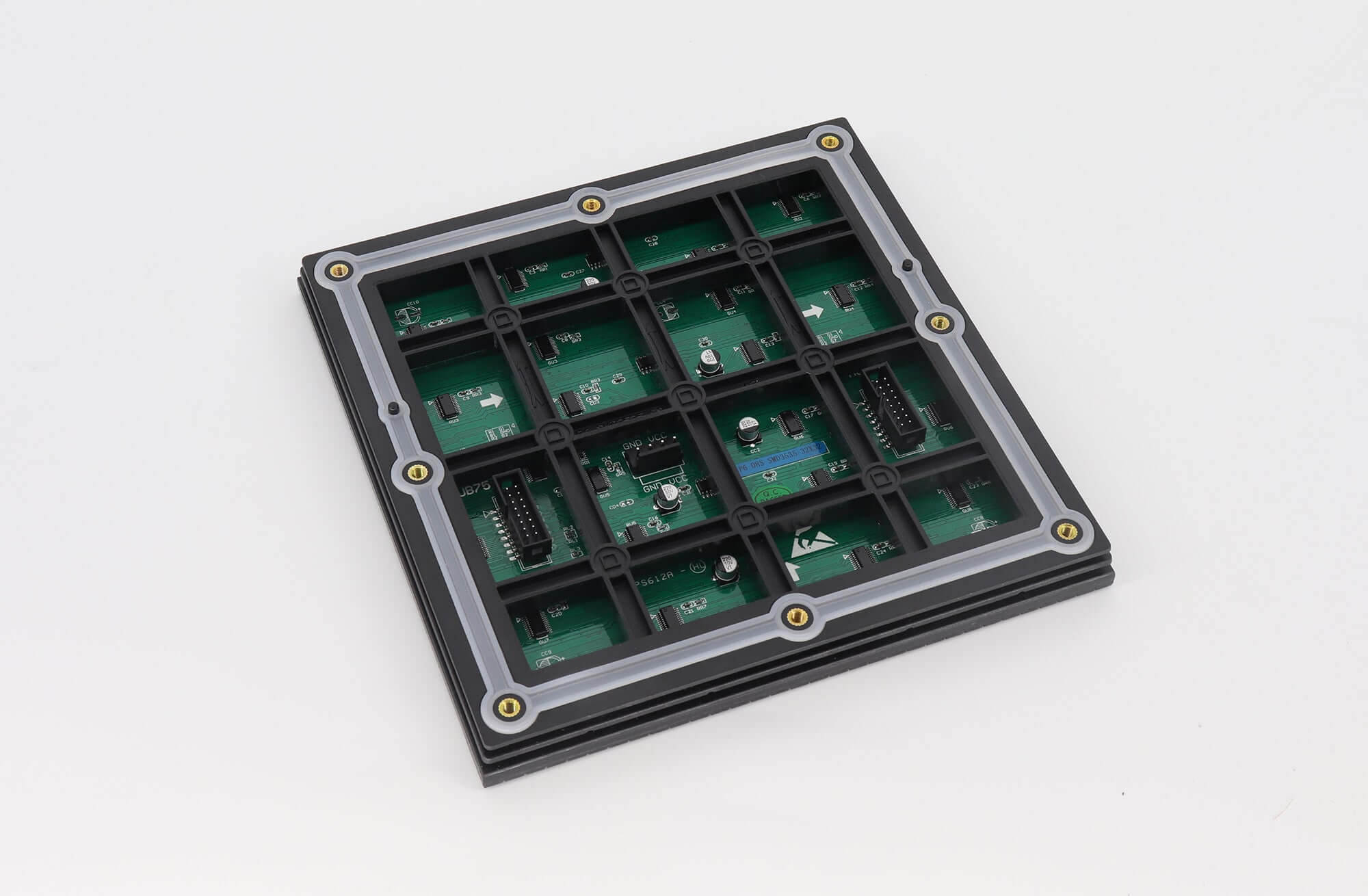

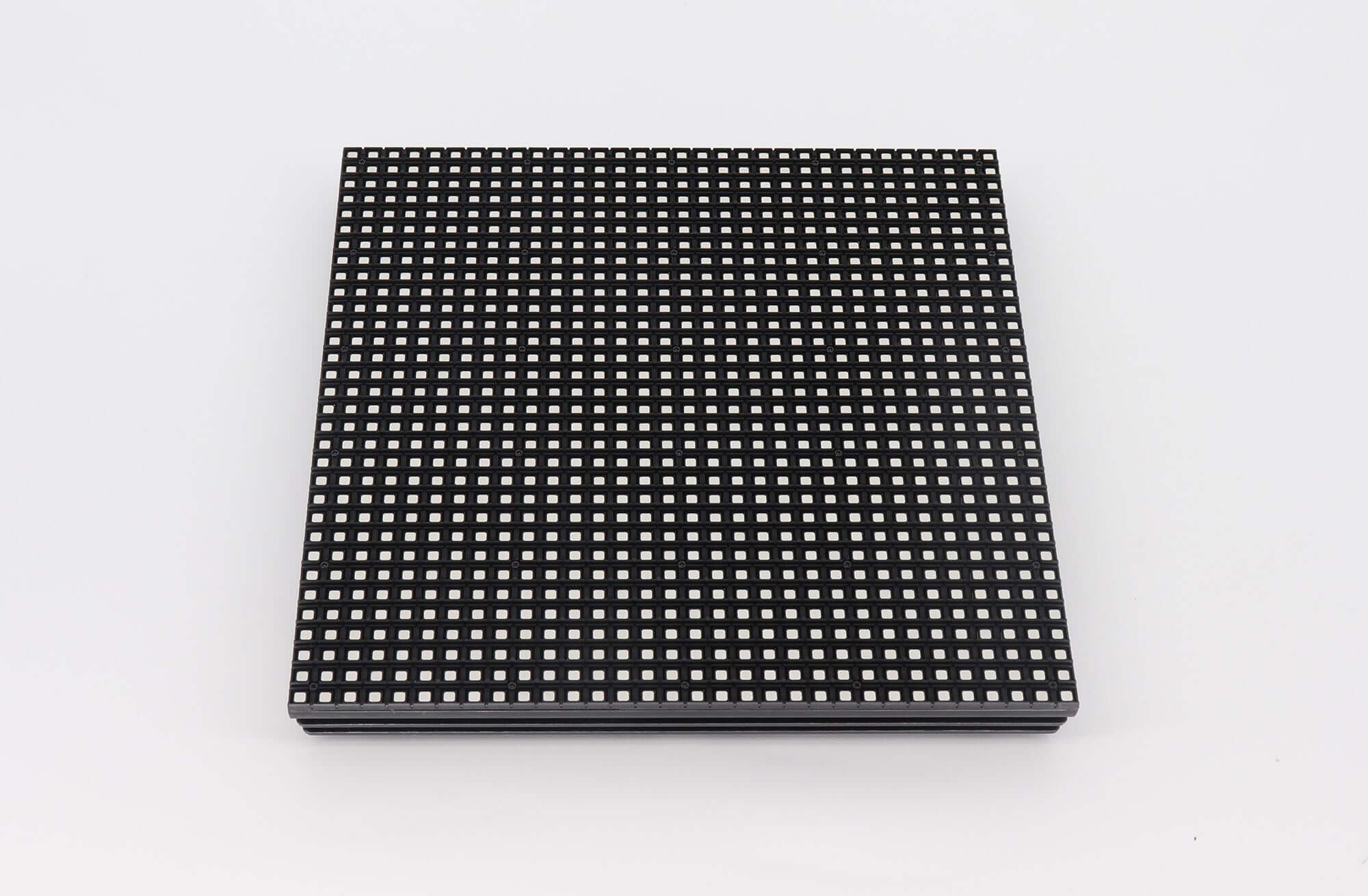

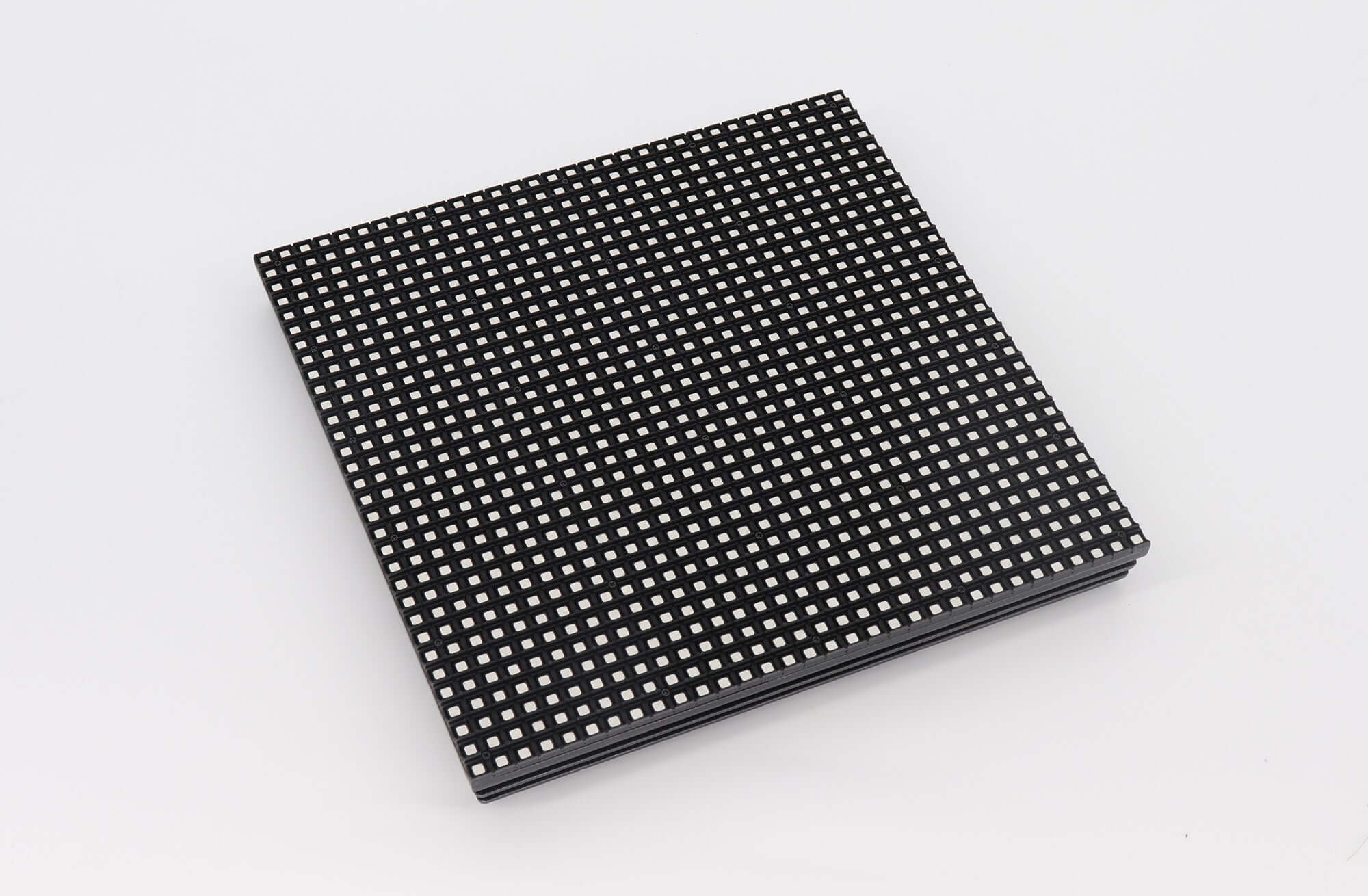

A 192 × 192 mm outdoor P6 module with 32 × 32 pixels. The product listing and model-specific PDF both identify SMD2727 and give a maximum consumption of 30 W.
9947 in stock
Check the PCB revision before configuring this module. The product table gives 1/8 duty, brightness of at least 6500 cd/m² and a 120° viewing angle. The PDF for P6-O8S-SMD2727-32×32 gives 1/6 duty, at least 6000 cd/m² and 140° horizontal and vertical viewing angles. The table below preserves the listing values. Its lamp subsection is labeled SMD2525 and should not be used as the SMD2727 lamp specification.
Technical specifications
LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
| Red | SMD2525 | 800-1100mcd | 120 | 620-625nm | 25℃,20mA | |
| Green | 1600-2250mcd | 120 | 515-530nm | 25℃,20mA | ||
| Blue | 350-500mcd | 120 | 465-475nm | 25℃,20mA | ||
Module Parameter | ||||||
| Pixel Pitch | 6mm | |||||
|---|---|---|---|---|---|---|
| Pixel configuration | SMD2727 Black | |||||
| Density | 27,778 pixels/㎡(real pixel) | |||||
| Module Resolution | 32pixel(L) * 32pixel(H) | |||||
| Module Dimension | 192mm(L) * 192mm(H) * 25mm(D) | |||||
| Driving Mode | Constant current, 1/8 duty | |||||
| Module Mask | Pure black mask—high contrast screen | |||||
Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥6,500 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥6m | |||||
| Gray Grade | 16,384 levels for each color | |||||
| Display Color | 4.39 Trillion Colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 30W | |||||
| Control System | ||||||
| Correction Scale Level | 12bits | |||||
| Frame Frequency | ≥60Hz | |||||
| Screen Refresh Frequency | ≥1,920Hz | |||||
| Gamma Correction | -5.0～5.0 | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); 20KM(optical fiber cable) | |||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Stored Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Working Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out of Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.
Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
Which LED package does the model-specific PDF identify?
The document cover and module table identify SMD2727. The separate lamp section in the original listing carries the SMD2525 label.
Should the receiver use 1/8 or 1/6 scan?
The listing and PDF give different drive settings. Match the PCB revision to the supplier’s configuration file before assigning the scan mode.
What board size and power rating do both sources give?
Both identify a 192 × 192 mm module, 32 × 32 pixels and 30 W maximum power consumption.
