NovaStar VX600 All-in-One LED Controller | Specs & Manual
Original price was: $ 970.00.$ 900.00Current price is: $ 900.00.
All-in-one LED controller with a 3.9-million-pixel load, six Ethernet outputs, three layers and Video Controller/Fiber Converter/Bypass modes.
This model is listed as discontinued. Recommended alternative: NovaStar VX600 Pro.
1151 in stock
VX600 Video Processing and LED Control
Product status: this listing marks the VX600 as discontinued and recommends the NovaStar VX600 Pro as an alternative. The specifications and original downloads below remain available for existing VX600 systems.
The NovaStar VX600 combines video processing and LED sending with six Gigabit Ethernet outputs and a total load up to 3.9 million pixels. It supports Video Controller, Fiber Converter and Bypass modes. NovaLCT, V-Can and the front-panel controls provide access to screen setup, layers, presets and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum LED load | 3.9 million pixels |
| Maximum output width / height | 10,240 / 8192 pixels; subject to the total load limit |
| LED outputs | 6 × Gigabit Ethernet |
| HDMI inputs | 2 × HDMI 1.3; up to 1920 × 1200 at 60 Hz; loop output on HDMI 1.3-1 |
| DVI input | 1; up to 1920 × 1200 at 60 Hz; loop output |
| 3G-SDI input | 1; up to 1920 × 1080 at 60 Hz; loop output and deinterlacing |
| Optical ports | 2 × 10G; OPT 1 adaptive input/output, OPT 2 output copy or backup |
| HDMI output | 1 × HDMI 1.3 for monitoring or video output |
| Layers / presets | 3 layers / up to 10 user-defined presets |
| Control connections | Ethernet, USB Type B, USB Type A for cascading; Genlock IN/LOOP |
| Power input / rated power | 100–240 V AC, 1.6 A, 50/60 Hz / 28 W |
| Operating environment | −10°C to +45°C; 20% RH to 90% RH, non-condensing |
| Storage environment | −20°C to +70°C; 10% RH to 95% RH, non-condensing |
| Dimensions / net weight | 483.6 × 351.2 × 50.1 mm / 4 kg |
Scaling, Layers and Synchronization
The controller supports stepless output scaling, full-screen display and input cropping. Layer size, position and priority can be adjusted. A mosaic source can combine two 2K × 1K at 60 Hz inputs through OPT 1, but only the main layer can use it; PIP 1 and PIP 2 cannot open while that mosaic source is used.
Up to four units can cascade for image mosaic. Output timing can follow an input source or external Genlock. The specified delay of 20 lines from input to receiving card requires both low latency and Bypass mode to be enabled.
Fiber, Audio and Connector Notes
When connected to a fiber converter, OPT 1 acts as an output; when connected to a video processor, it acts as an input. Its input capacity is one 4K × 1K at 60 Hz source or two 2K × 1K at 60 Hz sources. OPT 2 copies or backs up the six Ethernet outputs.
HDMI input can carry audio. Audio output through a multifunction card uses Ethernet port 1 or 2. Backup options include devices, Ethernet ports and input sources.
Document revision note: the original V1.1.0 PDF describes HDMI/DVI interlaced input support. The later V1.3.1 specification corrects those connector descriptions to no interlaced input support; 3G-SDI supports deinterlacing. Use the later connector guidance for signal planning.

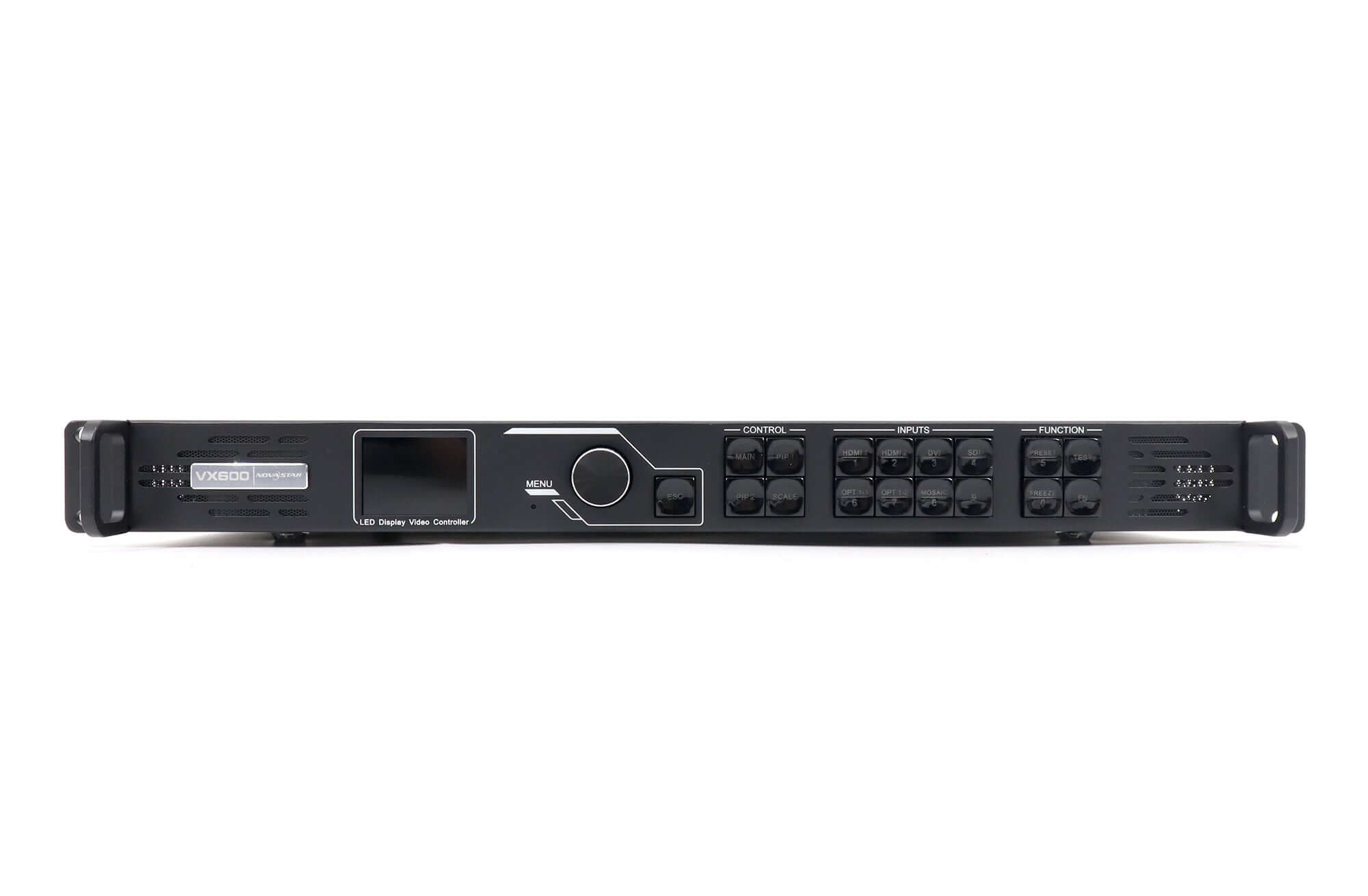

Front-Panel Operation
The LCD displays device status and menus. Rotate the knob to choose items or values and press it to confirm; ESC returns or cancels. The control area opens and edits layers, while SCALE fills the screen with the lowest-priority layer. PRESET, TEST, Freeze and the configurable FN button provide direct access to common tasks.

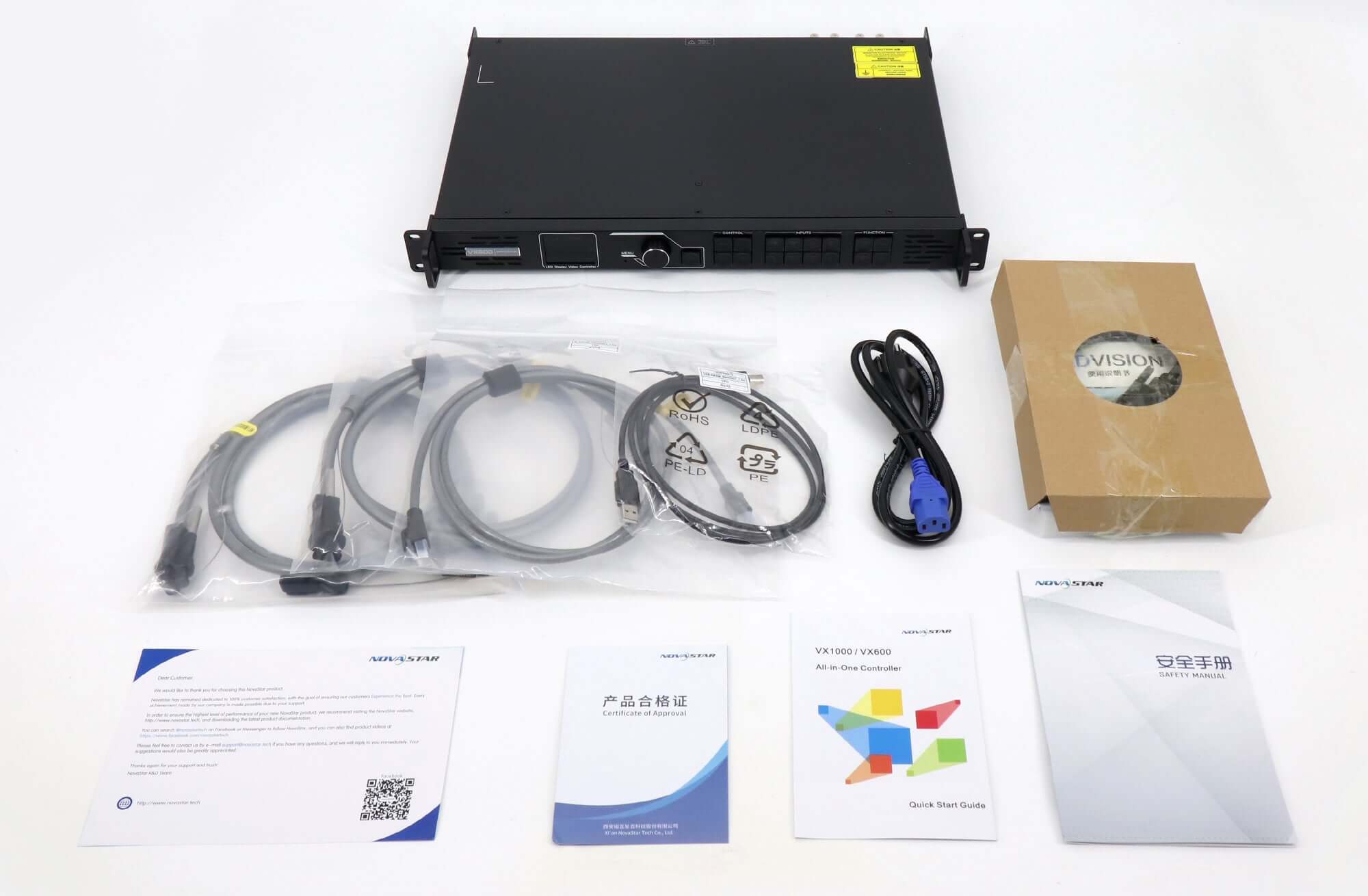

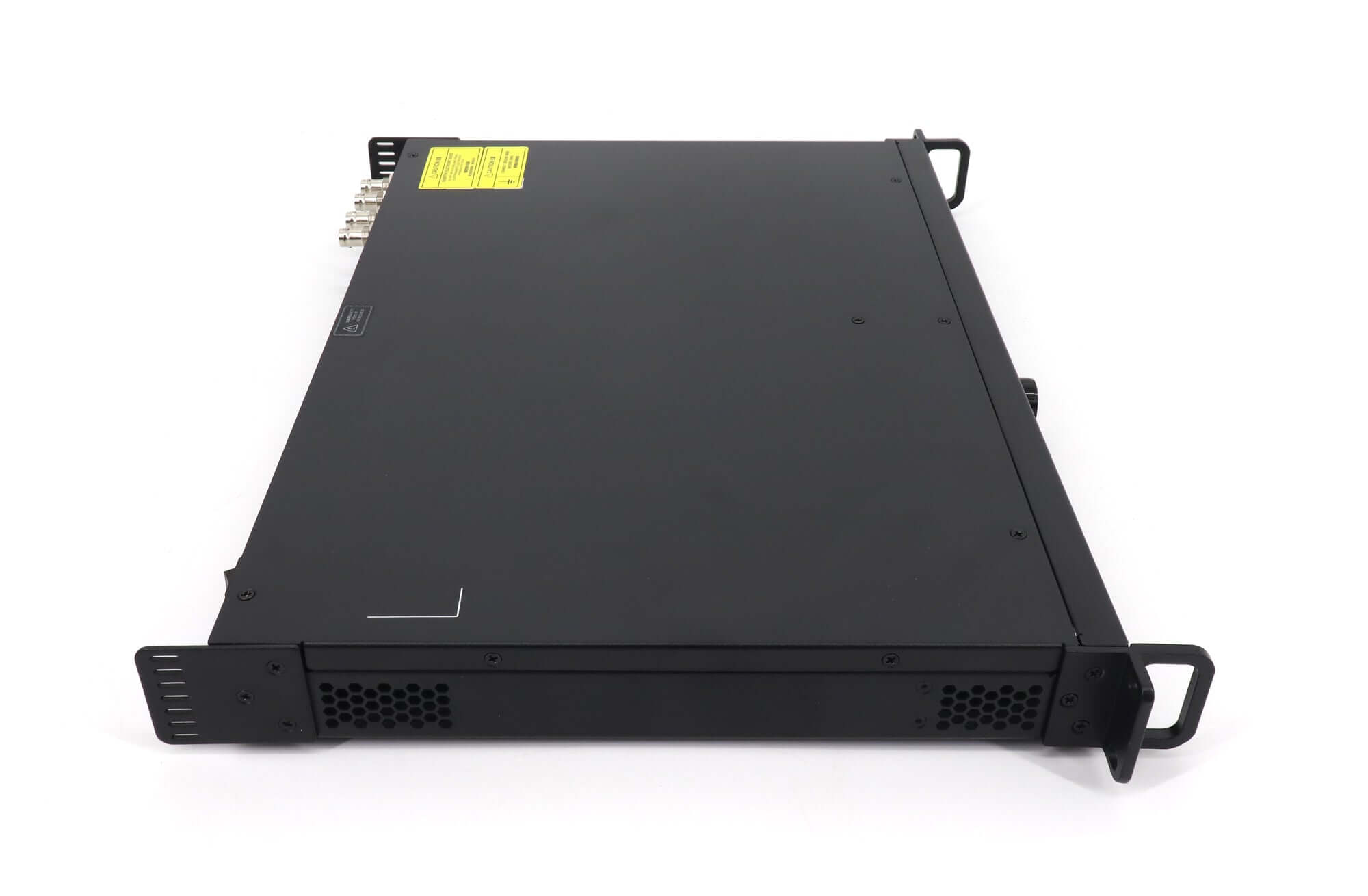

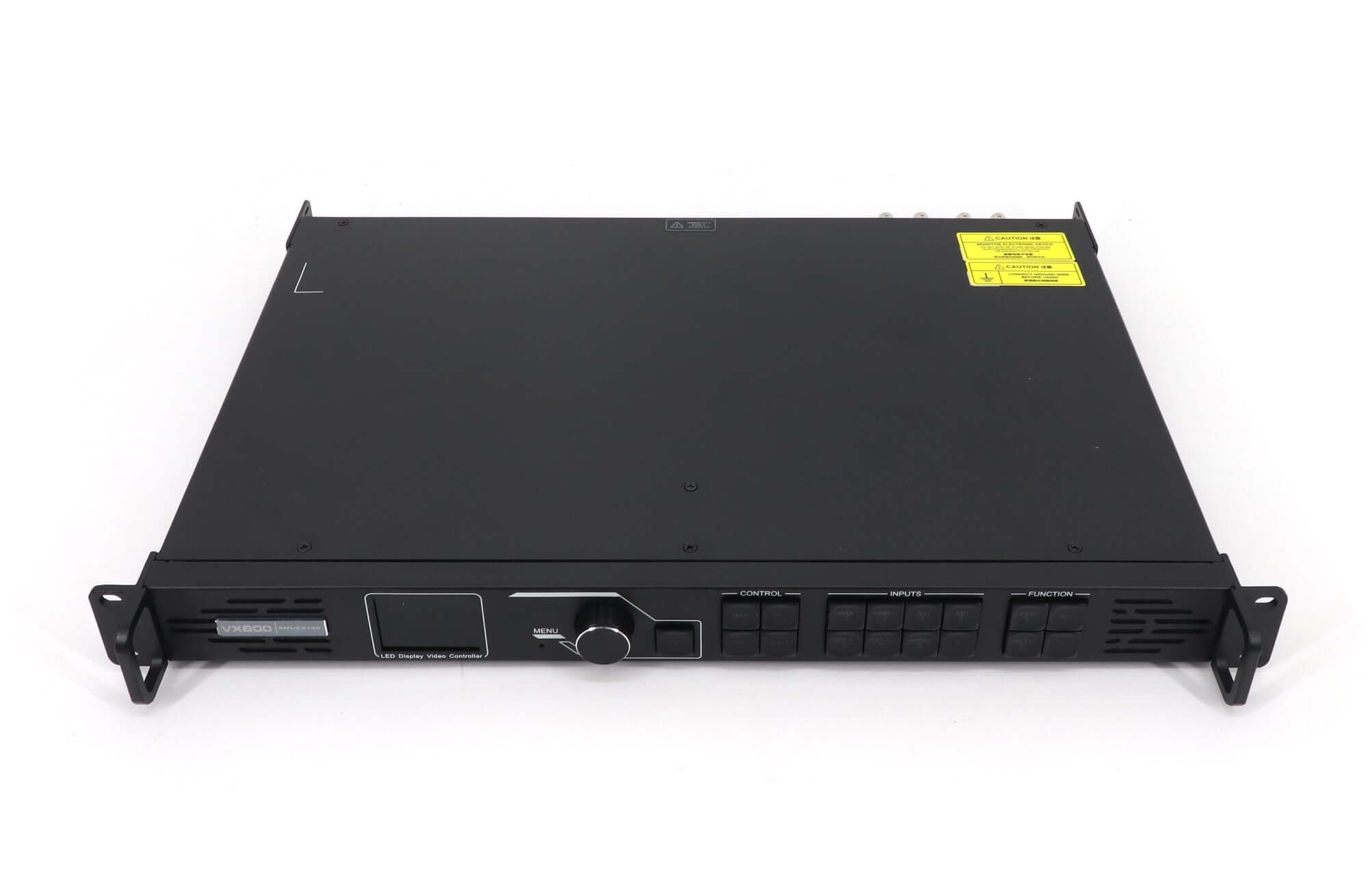

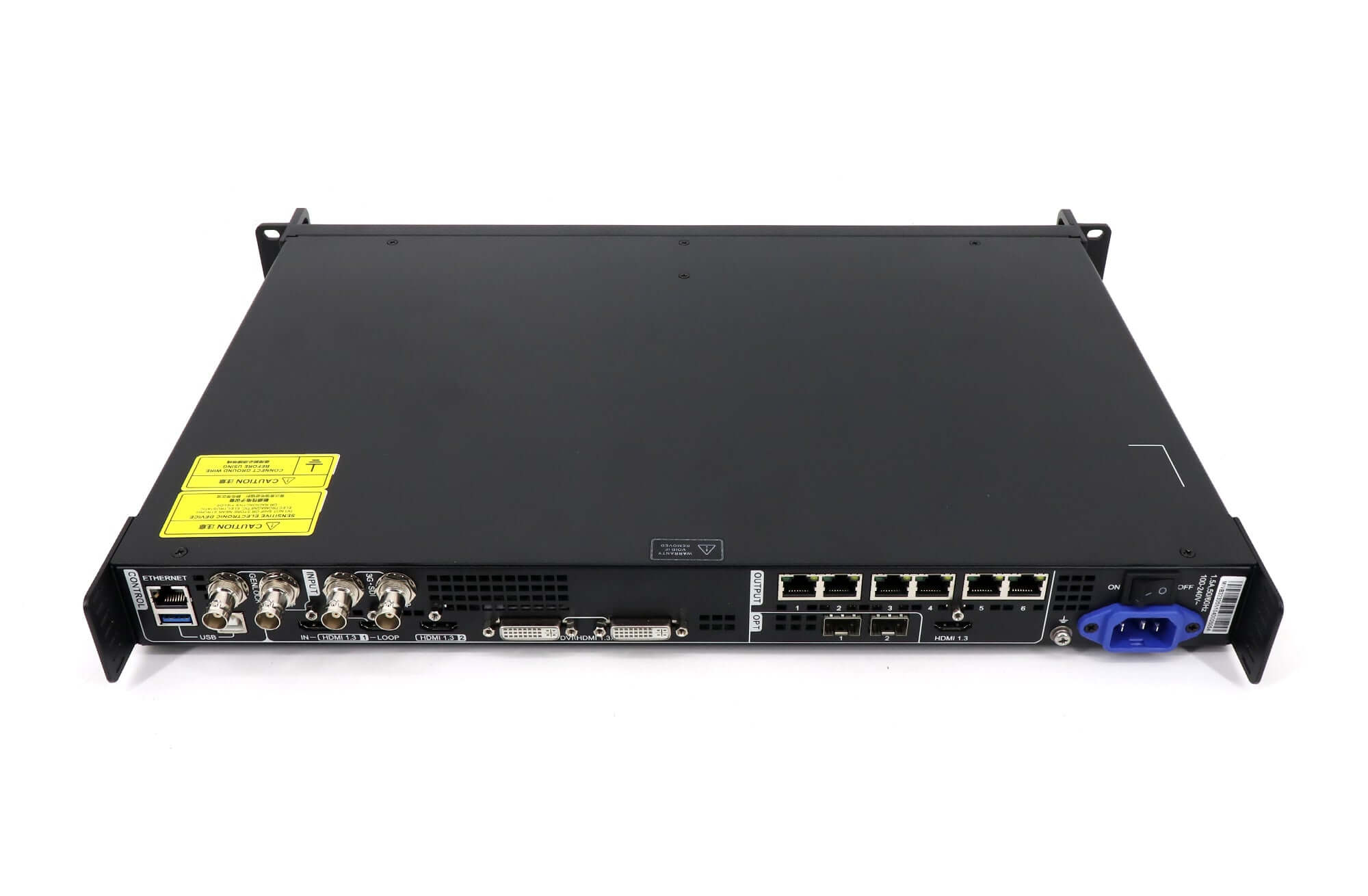

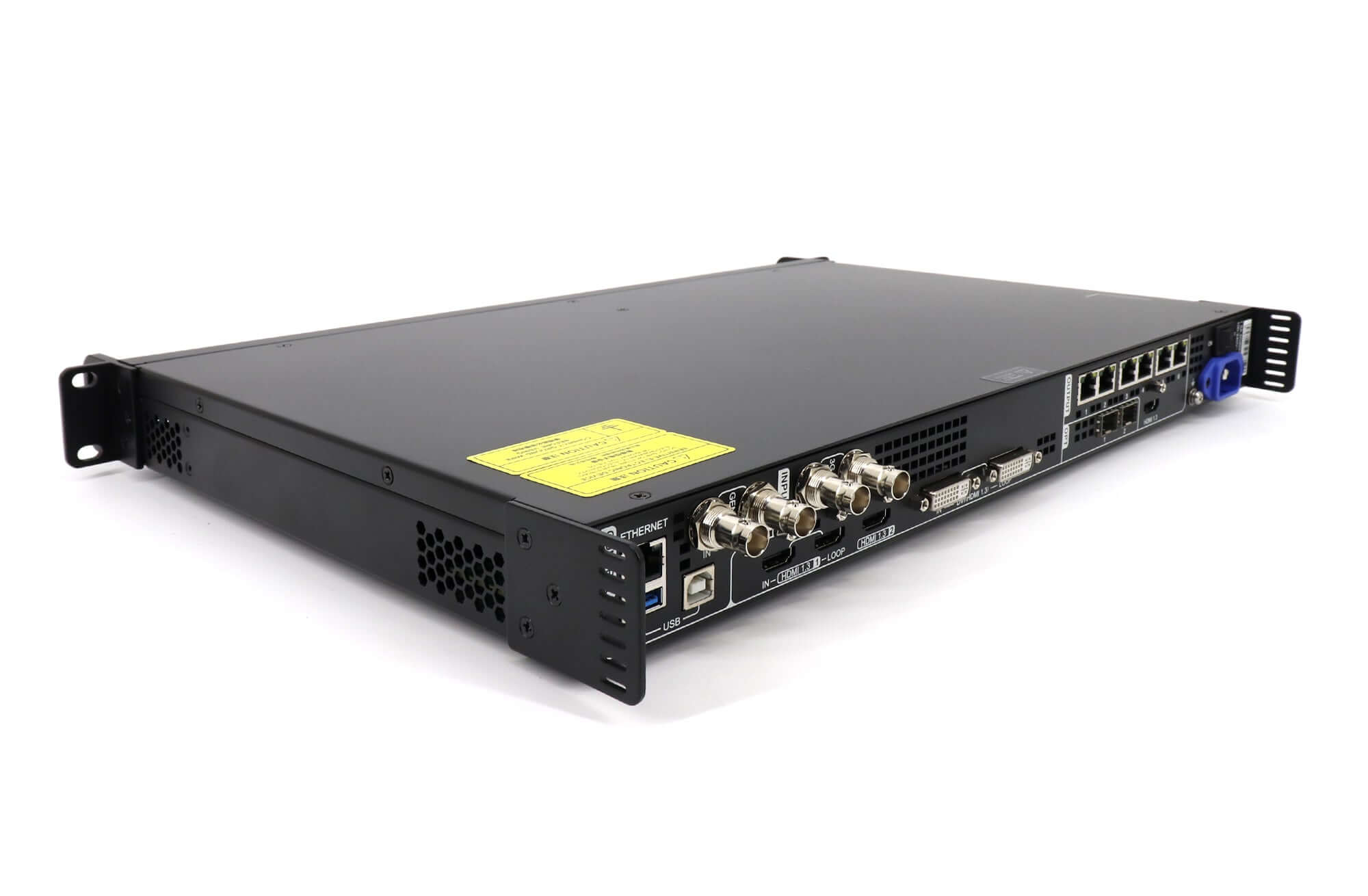

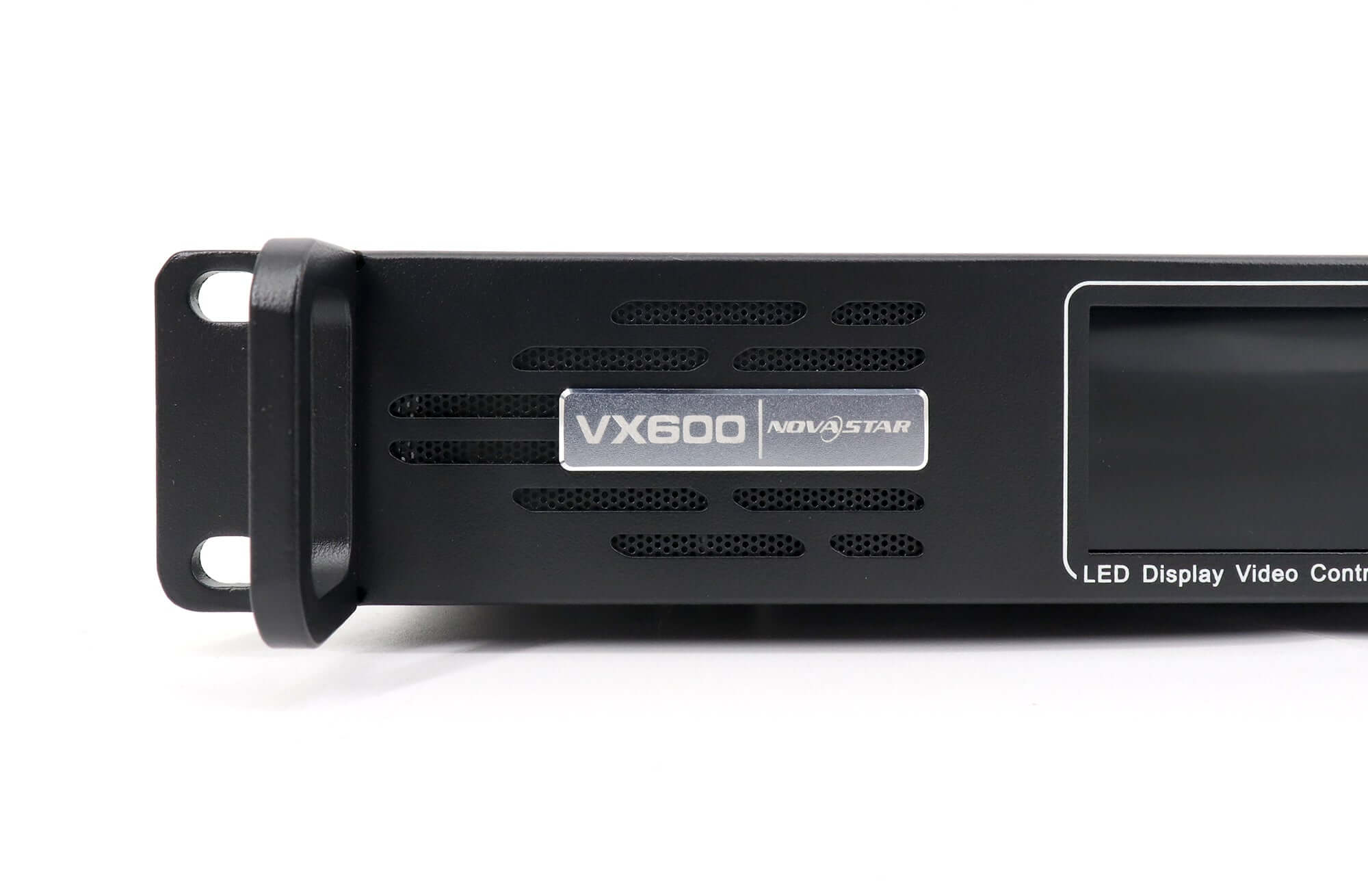

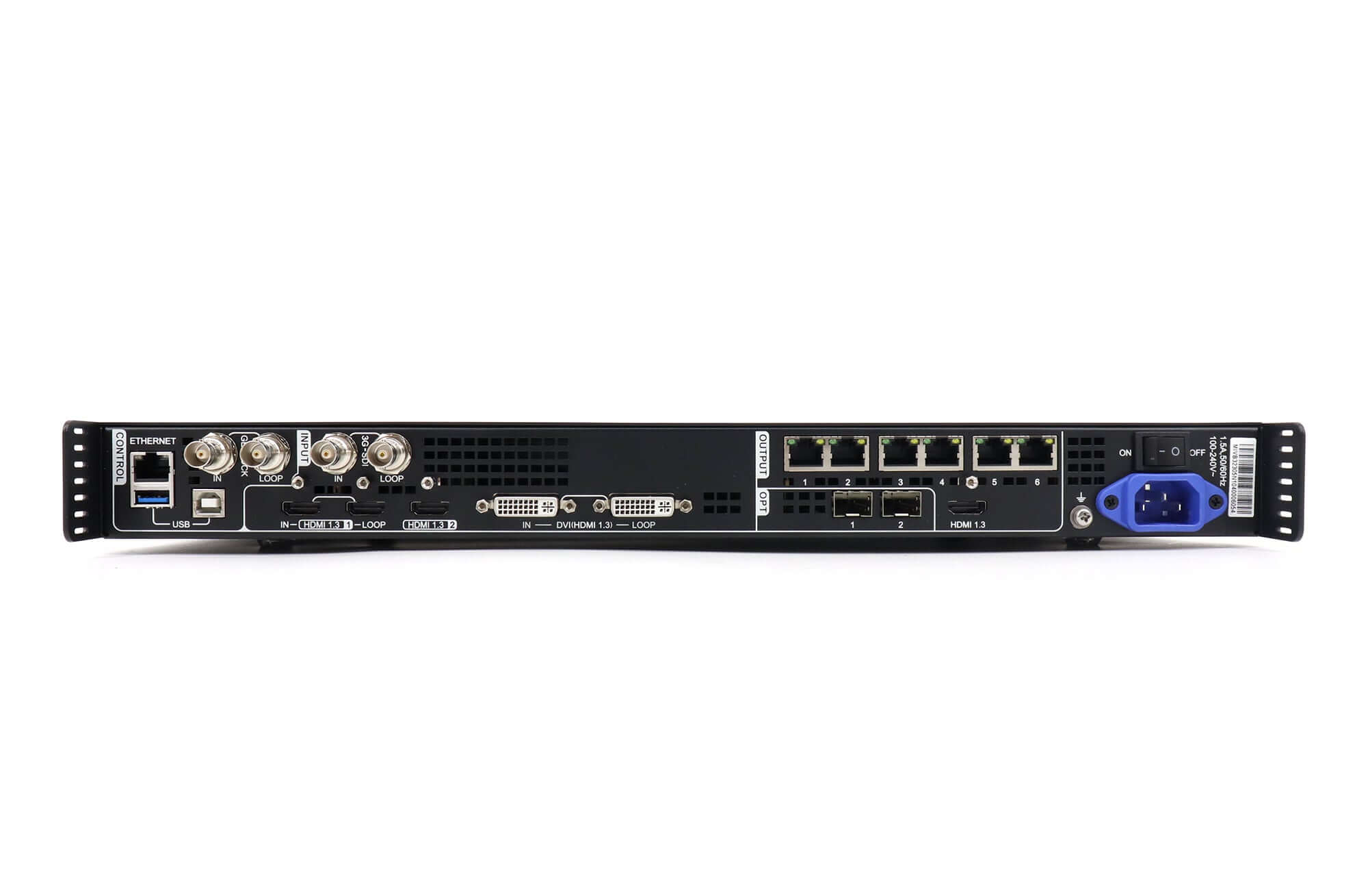

Original Product Images
Specifications and User Manual
- Original VX600 specification V1.1.0 (PDF)
- VX600 specification V1.3.1 (PDF)
- Original VX600 user manual V1.0.0 (PDF)
Frequently Asked Questions
Is VX600 still available for new installations?
This product listing marks VX600 as discontinued and recommends VX600 Pro. Check the linked replacement page and confirm project requirements before choosing an alternative; this page retains VX600 reference specifications and manuals.
How many pixels can VX600 control?
The total load is up to 3.9 million pixels across six Gigabit Ethernet outputs. Maximum width is 10,240 pixels and maximum height is 8192 pixels, but both dimensions remain subject to the total pixel limit.
Can VX600 use three layers with an OPT mosaic source?
No. Although three layers are supported, an OPT mosaic source can be used only on the main layer. PIP 1 and PIP 2 cannot open while the main layer uses that source.
What is required for the specified low-latency operation?
Both the low-latency function and Bypass mode must be enabled to reach the specified 20-line delay from input to receiving card.
Which software controls VX600?
NovaLCT and V-Can support operations such as screen configuration, Ethernet backup, layer and preset management, and firmware updates. The device can also be operated with its front-panel knob and buttons.
