NovaStar VX4U All-in-One LED Video Controller
$ 1,018.00
The VX4U combines LED display control and video processing in one unit. Its four LED Ethernet outputs provide a combined loading capacity of 2.3 million pixels.

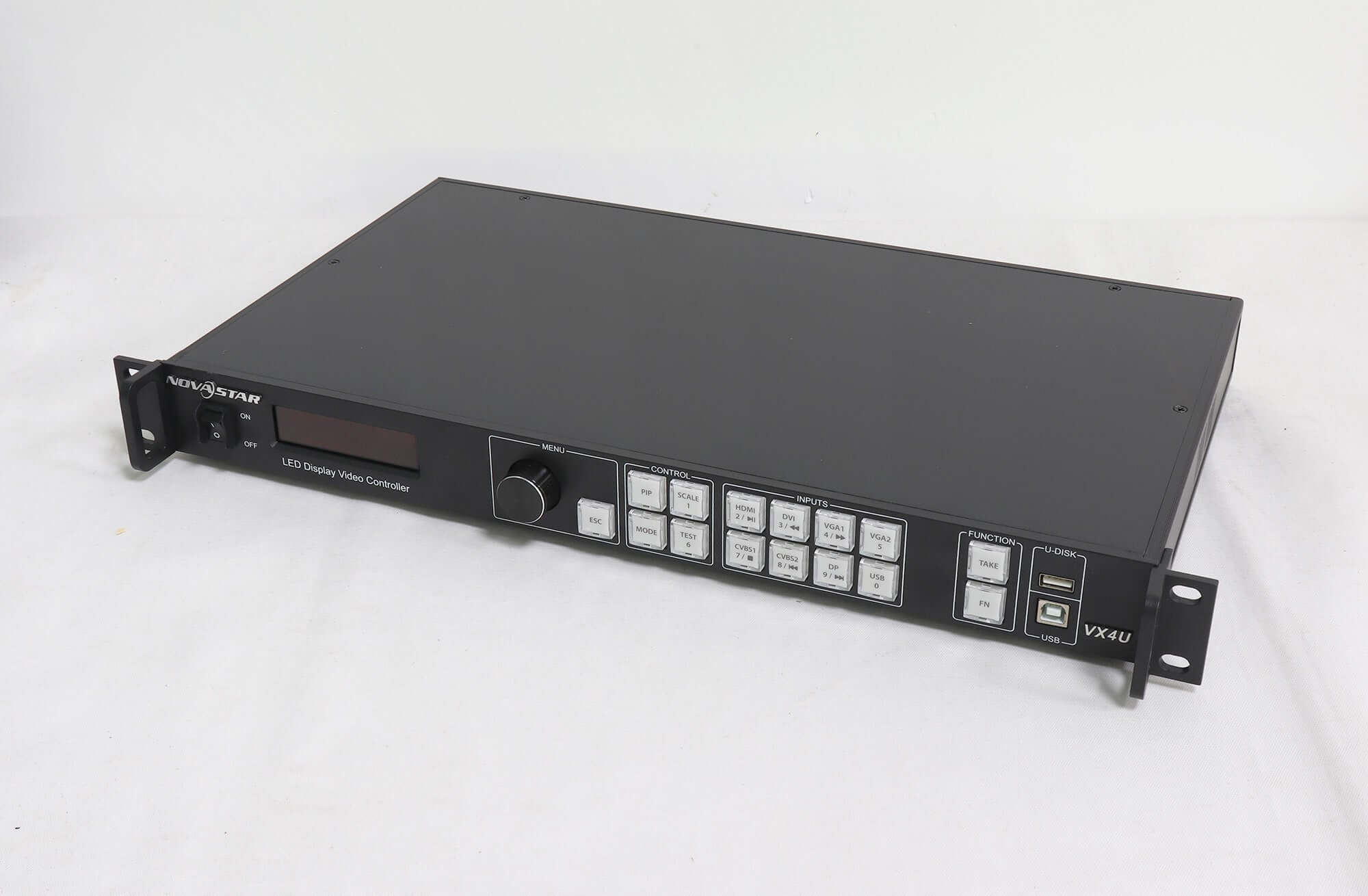

For live sources, the VX4U can scale the image and switch inputs with a cut or fade. A front USB Type-A port accepts a media drive, while the Type-B USB connection is used for PC control. The front panel also provides PIP, scale and test-pattern shortcuts.
Product details
| Parameter | Specification |
|---|---|
| Model | NovaStar VX4U |
| LED output | 4 Ethernet ports; 2.3 million pixels total |
| Video inputs | HDMI, DVI, DisplayPort, USB, 2 × VGA and 2 × CVBS |
| Maximum supported input resolution | 1920 × 1200 at 60 Hz |
| Maximum horizontal output resolution | 3840 pixels |
| Loop output | DVI |
| Supply | 100–240 V AC, 50/60 Hz |
| Power consumption | 25 W |
| Dimensions | 482.6 × 250 × 45 mm |
Download the module specification (PDF)
Frequently asked questions
Can the VX4U play video without a PC source?
The USB media input accepts a USB drive. Check both file container and codec in the specification before preparing playback files.
Is 3840 pixels the total LED loading capacity?
3840 is the maximum horizontal output dimension. The total LED load across all four ports is 2.3 million pixels. Both limits apply when designing the screen.
Can any two inputs be used for picture in picture?
The manual includes a source compatibility matrix. Check the intended main and inset combination in that table before assigning the inputs.
Where is the VX4U connection diagram?

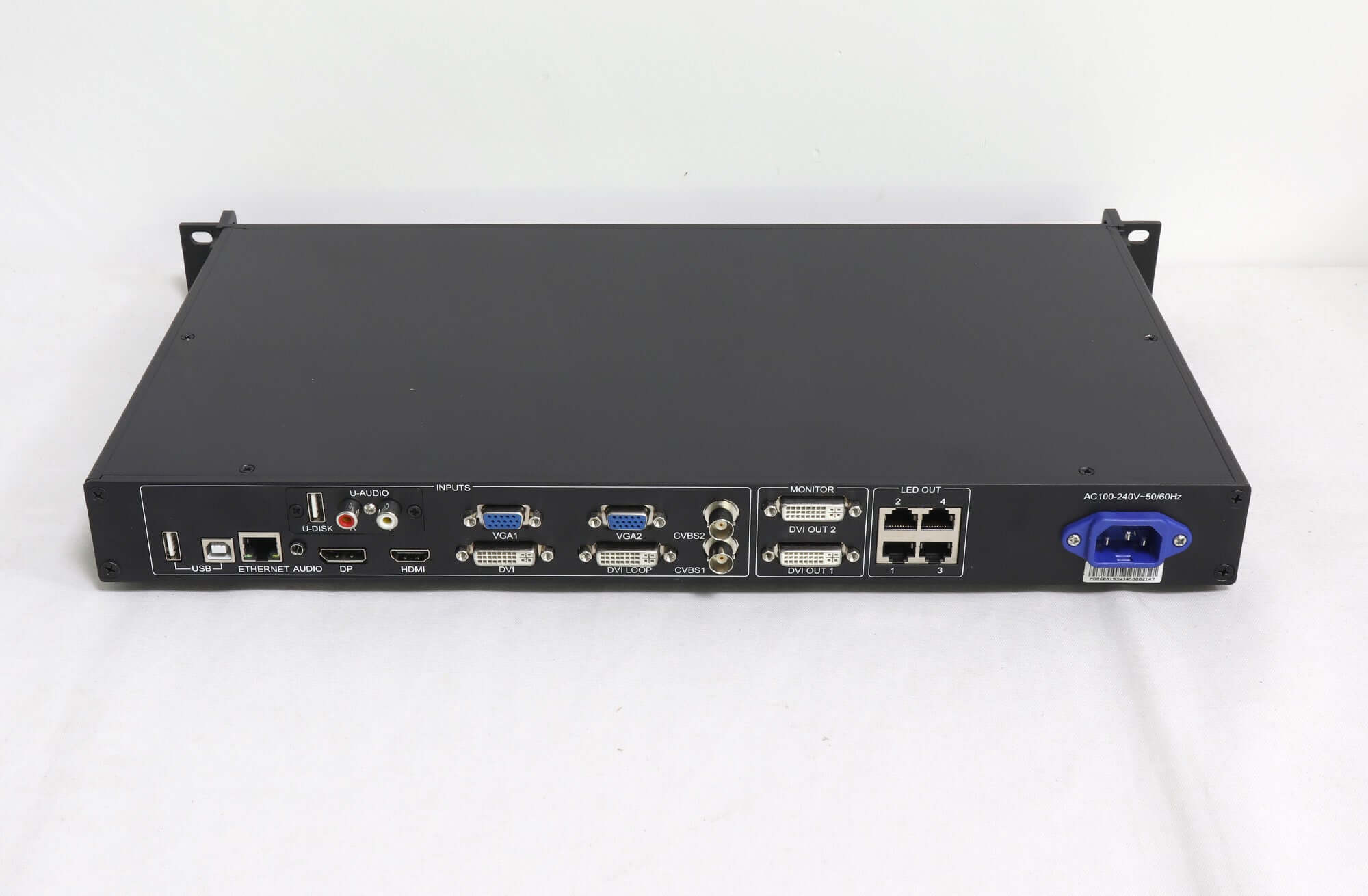

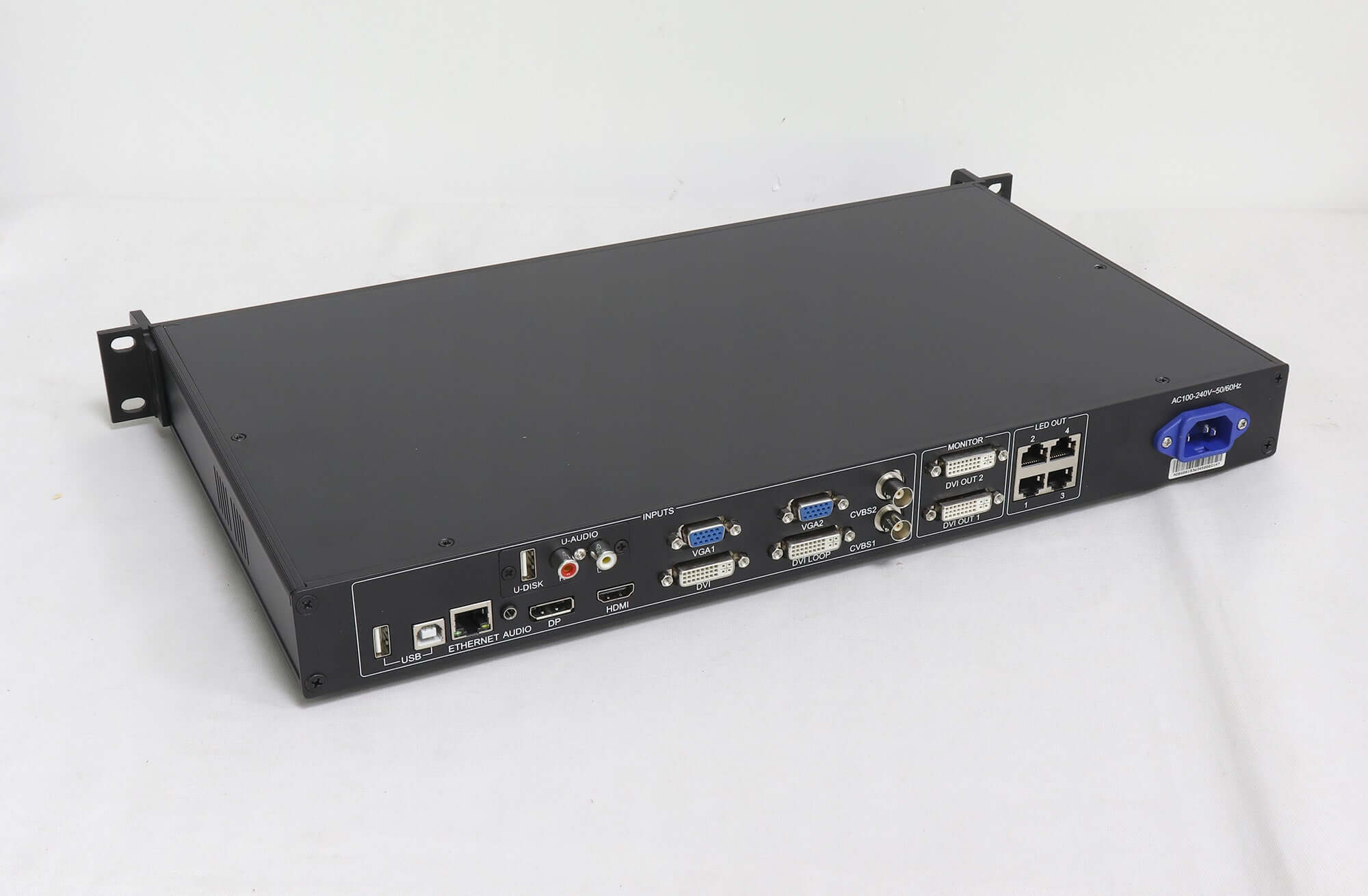

The downloadable NovaStar VX4U specification, revision 1.0.2, contains front and rear panel diagrams and a separate table of input and output specifications.
| Weight | 9.09 kg |
|---|
