NovaStar TCC80 Asynchronous LED Control Card | 8 HUB75E
$ 72.00
NovaStar TCC80 asynchronous full-color LED control card with integrated sending and receiving, 8 HUB75E connectors, Wi-Fi and USB playback. Supports 512 × 320 at 60 Hz with 8-bit depth; 4G is available through a separately purchased module.
10000 in stock
NovaStar TCC80 Asynchronous LED Display Control Card
The NovaStar TCC80 combines sending and receiving functions on one control card for small full-color LED displays. Its 8 standard HUB75E connectors connect to LED modules, while content can be published and screens controlled from a computer, phone or tablet.
Typical applications include storefront signs, vehicle-mounted displays, community information screens, lamp-post displays, shelf displays and cube displays. Ethernet, Wi-Fi and optional 4G provide different ways to connect the card for content publishing and monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| LED module outputs | 8 × standard HUB75E |
| Maximum loading resolution | 512 × 320 at 60 Hz, 8-bit depth; PWM and general driver ICs, including ICN1065 and ICN1063 |
| Maximum width / height condition | 2048 pixels; the specification states load capacity must remain within 160,000 pixels for this condition |
| Data groups | Up to 16 parallel RGB groups or 48 serial groups; serial data expansion is not supported |
| Processor | Quad-core, 1.4 GHz |
| RAM / storage | 1 GB / 32 GB |
| Video playback | 1 × 1080p, 2 × 720p, 2 × 480p or 4 × 360p videos |
| Control ports | 1 × USB 2.0 Type A; 1 × USB 2.0 Type C; 1 × Fast Ethernet; 1 × RS485 |
| Audio output | 1 × 3.5 mm; audio input is not supported |
| Wi-Fi | 2.4 GHz; AP and Sta modes can operate simultaneously |
| 4G connectivity | Supported through a separately purchased 4G module |
| Input voltage / maximum power | 4.75 V to 5.25 V / 5.25 W |
| Operating environment | −20°C to +70°C; 0% RH to 80% RH, non-condensing |
| Storage environment | −20°C to +80°C; 0% RH to 80% RH, non-condensing |
| Dimensions / net weight | 189.0 × 51.0 × 18.4 mm / 83.4 g |
| Protection rating | IP20; protect the card from water intrusion |
Loading note: The specification lists 512 × 320 at 60 Hz and separately limits the 2048-pixel width/height condition to 160,000 pixels. These statements are reproduced with their conditions; do not assume that 2048 × 2048 is supported. Confirm a nonstandard cabinet layout before ordering.
Content Publishing and Playback
Use the Type C USB connection or Fast Ethernet port to publish content and control the screen from a computer. The Type A USB port supports firmware upgrades, USB playback and storage expansion. Supported drives range from 2 GB to 128 GB and use FAT32 or NTFS; each file must be larger than 0 KB and smaller than 4 GB.
The built-in Wi-Fi hotspot provides a local connection, and Wi-Fi Sta connects the card to a wireless network. With suitable cloud publishing and monitoring platforms and an Internet connection, screens can be managed remotely. The RS485 connector supports a light sensor, temperature and humidity sensor, or other supported modules.
Optional 4G and Multi-Screen Synchronization
The TCC80 ships without a 4G module. GPS positioning and GPS time synchronization require both a 4G module and a GPS antenna. Multi-screen synchronous playback supports NTP or GPS timing; enabling synchronous playback halves the device’s decoding capability.
Display Adjustment and Maintenance
Display functions include color management for Rec.709, DCI-P3, Rec.2020 and custom gamuts, 18bit+, individual RGB gamma adjustment, rotation in 90° increments, and display of 3-color 16-point serial input. Individual gamma adjustment requires NovaLCT and a controller supporting that function.
Temperature and voltage monitoring, firmware and configuration readback, and Mapping 1.0 assist with setup and maintenance. Dual program backup and dual backup of configuration parameters provide recovery options.

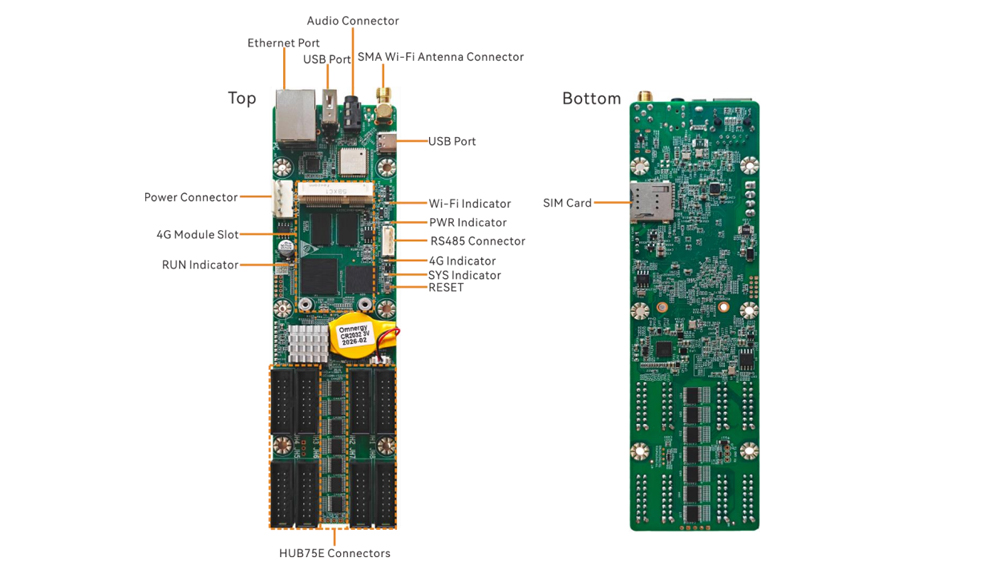

Product Image and PDF Download
Download the NovaStar TCC80 Control Card Specification (PDF)
Frequently Asked Questions
Does the TCC80 combine sending and receiving functions?
Yes. Both functions are integrated on the card, which has 8 HUB75E connectors for LED modules and supports content publishing from a computer, mobile phone or tablet.
Is a 4G module included with the NovaStar TCC80?
No. The specification states that the TCC80 ships without a 4G module. Purchase the module separately if needed; GPS positioning and timing also require a GPS antenna.
Can the TCC80 play content from a USB drive?
Yes. Its USB Type A port supports USB playback, upgrades and storage expansion. Use a 2 GB to 128 GB FAT32 or NTFS drive, with each file larger than 0 KB and smaller than 4 GB.
Can several TCC80-controlled screens play in sync?
Yes, using NTP or GPS time synchronization. Enabling synchronized playback halves decoding capability. GPS timing requires the optional 4G module and a GPS antenna.
What screen resolution can the TCC80 control?
The specification lists 512 × 320 at 60 Hz and 8-bit depth for PWM and general driver ICs. It separately permits a maximum width or height of 2048 pixels with total load kept within 160,000 pixels. Check the applicable layout condition rather than multiplying the maximum width and height.
