MON300 monitoring card for LED display cabinets
The NovaStar MON300 is a monitoring accessory for LED screen engineering projects. Its Rev2.1.0 specification identifies the MRV320 receiving card as the companion device. It collects cabinet-condition information; confirm this pairing and the required HUB before adding it to an existing control system.
| Parameter | Specification |
|---|---|
| Companion receiving card | MRV320 |
| Power-supply voltage detection | 8 channels |
| Fan-speed detection | 4 channels |
| Cabinet temperature and humidity | Supported; no extra sensing module required for these two functions |
| Cabinet door status | Open/closed detection |
| LED open/short-circuit detection | Requires support from the LED driver IC |
| Ribbon-cable fault detection | Supported |
| Monitoring HUB requirement | Required for LED-status inspection and ribbon-cable detection |
| Parameter | Specification |
|---|---|
| Rated voltage | 4.5 V minimum; 5.0 V typical; 5.5 V maximum |
| Rated current | 0.12 A minimum; 0.15 A typical; 0.20 A maximum |
| Working temperature | −20 to +60 °C |
| Working humidity | 0%–95% |
| Board thickness | Approximately 1.6 mm |
| Overall thickness | Approximately 22.5 mm, including components |
What is needed for cabinet fault detection?
Temperature and humidity detection do not require an extra sensing module. LED open/short-circuit inspection depends on a compatible driver IC, and both LED-status inspection and flat-cable fault detection need a monitoring-card HUB. Check these requirements separately rather than assuming every monitoring function works with the card alone.
The specification contains interface definitions for 16-group and 20-group data modes and connection diagrams for the monitoring HUB. Use the diagram matching the installation. The document also instructs against applying conformal coating to the monitoring card surface because it can disable humidity monitoring.

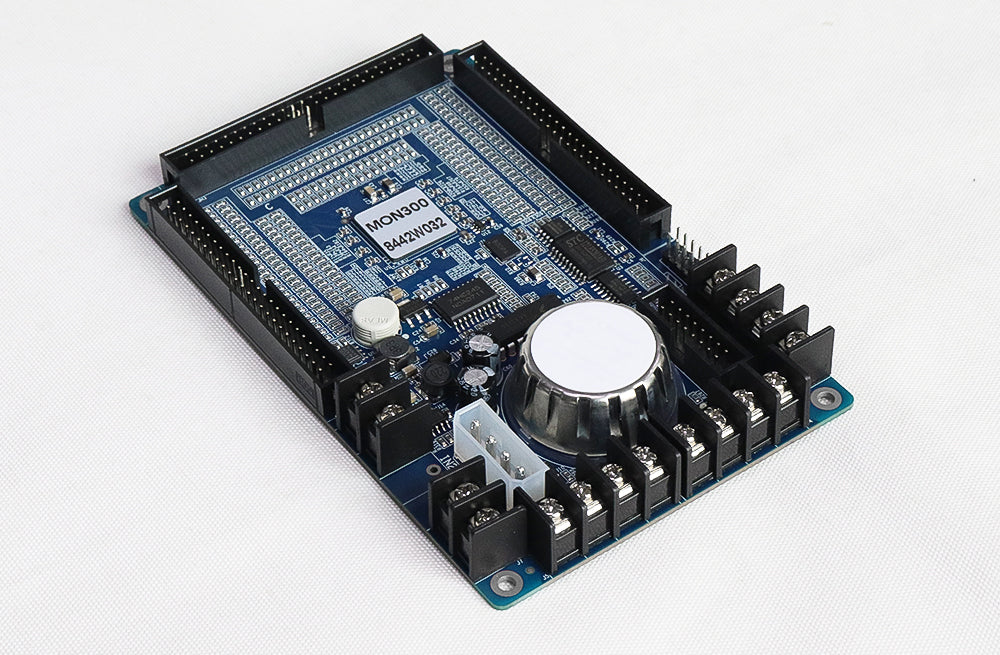

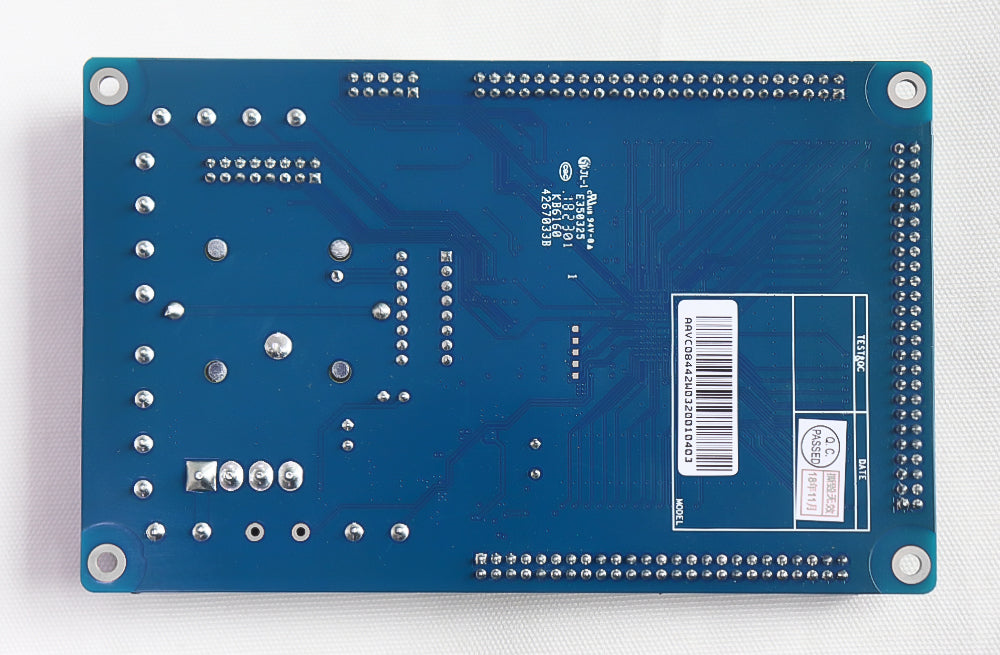

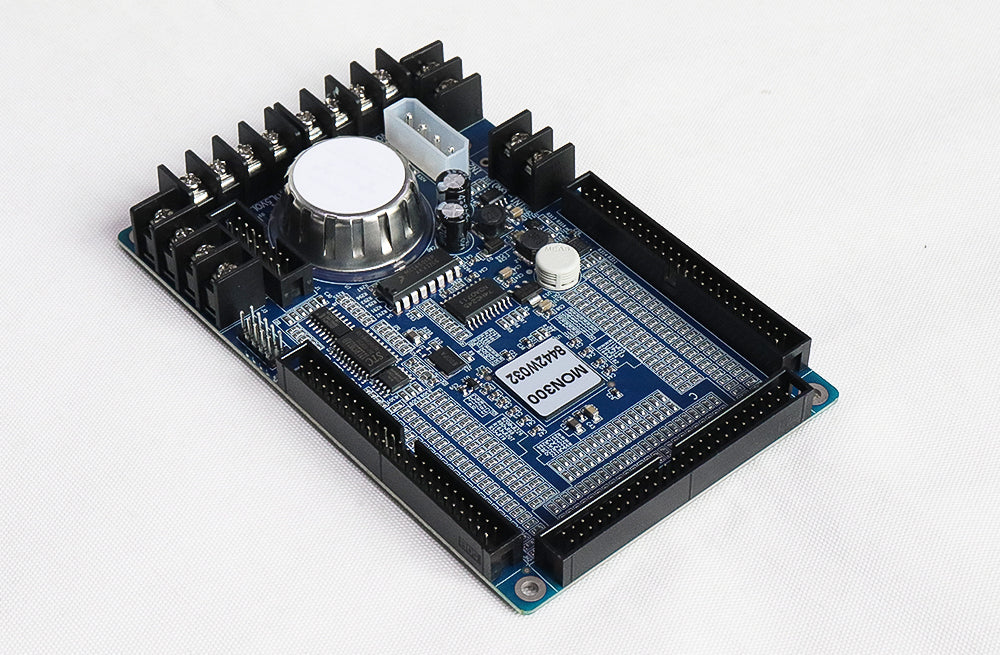

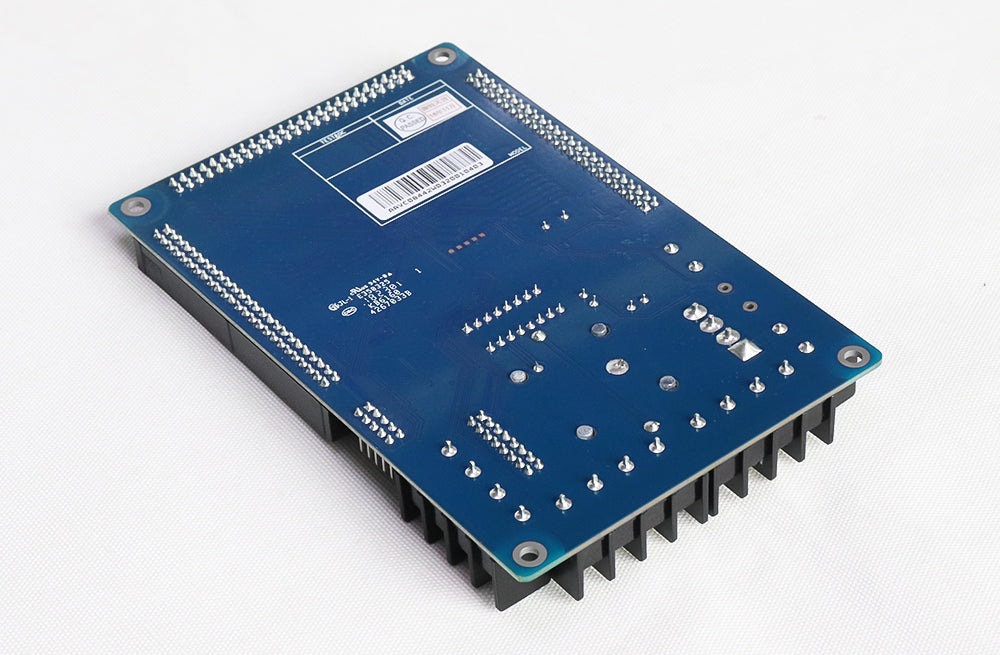

Product images


Download specification
MON300 monitoring card specifications — Rev2.1.0 (PDF)
Frequently Asked Questions
Which receiving card is specified for the MON300?
The Rev2.1.0 manufacturer specification states that the MON300 is used with the MRV320 receiving card. Compatibility with other receiving-card models is not established by that document.
How many power supplies and fans can the MON300 monitor?
It provides eight voltage-detection channels and four fan-speed detection channels. These are monitoring channels, not a statement that the card powers or controls eight supplies or four fans.
Do I need extra sensors for cabinet temperature and humidity?
The specification states that cabinet temperature and humidity detection do not need an additional sensing module. Follow the applicable installation diagram for the remaining connections.
Can it detect faulty LEDs and ribbon cables without a HUB?
No. A monitoring-card HUB is required for LED-status inspection and flat-cable detection. LED open/short-circuit detection also requires a driver IC that supports the function.
Can the monitoring board be coated for moisture protection?
The Rev2.1.0 specification says not to paint the monitoring-card surface with conformal coating, as this can disable humidity monitoring. Check the installation conditions and follow the manufacturer’s board-protection instructions.
