NovaStar LCB2K LCD Multimedia Player | HDMI Signage
$ 98.00
The NovaStar LCB2K plays media on LCD signage through HDMI, with output up to 1920 × 1080 at 60 Hz in the linked V1.0.2 specification. It supports USB content import, Ethernet and Wi-Fi control. The original listing’s 32 GB storage claim differs from the PDF’s 16 GB; confirm the supplied configuration.
9998 in stock
NovaStar LCB2K LCD Signage Player
The LCB2K is a compact NovaStar multimedia player for LCD screens used in advertising, digital signage and commercial displays. It outputs content over HDMI and can be managed through a computer, mobile phone or tablet using the supported control system.
Its ability to decode 4K video should not be confused with 4K HDMI output. The linked NovaStar LCB2K Specifications V1.0.2, dated January 5, 2024, specifies a maximum HDMI output of 1920 × 1080 at 60 Hz.
| Parameter | Specification |
|---|---|
| HDMI output | 1 × HDMI; up to 1920 × 1080 at 60 Hz; adaptive playback window based on the LCD display’s EDID |
| Video playback | 1 × 4K, 2 × 1080p or 4 × 720p videos; alternative playback configurations |
| Synchronized playback | Limited to 1 × 1080p video |
| Processor / RAM | Quad-core processor at 1.3 GHz; 1 GB RAM |
| Internal storage | 16 GB in the linked V1.0.2 specification; the original product listing states 32 GB, so the supplied capacity requires confirmation |
| USB connections | 1 × USB 3.0 Type A for imported content, firmware upgrades and storage extension; 1 × USB Type C for computer-based publishing and control |
| USB file systems | Ext4 and FAT32 supported; exFAT and FAT16 not supported |
| Network | 1 × Fast Ethernet (100 Mbps) port; Wi-Fi AP/STA switching; optional 4G module |
| Audio | Stereo audio output; internal-source sample rate fixed at 48 kHz |
| Power | 12 V DC, 2 A; maximum power consumption 18 W |
| Operating conditions | −20°C to +60°C; 0–80% RH, non-condensing |
| Storage conditions | −40°C to +80°C; 0–80% RH, non-condensing |
| Dimensions / net weight | 123.0 × 89.0 × 29.5 mm; 255.4 g |
Content Publishing and Network Setup
Use the USB Type-A port to import and play content or extend storage. The Type-C connection provides a direct link to the control computer. The Ethernet port connects the player to a computer, LAN or public network for content publishing and screen control.
In AP mode, a terminal connects to the player’s Wi-Fi hotspot; in STA mode, the player joins a router’s network. V1.0.2 directs users to the product’s SSID label for the default hotspot password. When several network connections are available, priority is wired Ethernet, then Wi-Fi, then 4G.
Configuration Checks
The original listing states 32 GB storage and a manually adjustable custom output mode. The linked V1.0.2 PDF states 16 GB and documents adaptive HDMI output up to 1080p at 60 Hz. These differences remain unresolved for the supplied unit; confirm storage capacity and available output settings before ordering.
A 4G module is purchased separately. Synchronized playback supports NTP; GPS requires the specified 4G module, and RF synchronization requires the specified RF module. The synchronized-playback limit is one 1080p video, even though ordinary playback can decode a 4K video.
Frequently Asked Questions
Does the NovaStar LCB2K have 4K HDMI output?
The linked V1.0.2 specification lists HDMI output up to 1920 × 1080 at 60 Hz. It supports decoding a 4K video, which is a separate capability from the output resolution.
Does LCB2K have 16 GB or 32 GB storage?
The original listing states 32 GB, while the linked manufacturer V1.0.2 PDF states 16 GB in both its feature list and parameter table. Confirm the capacity of the supplied unit before purchasing; neither value should be assumed from the product name alone.
Can I play content from a USB drive?
Yes. The USB 3.0 Type-A port supports playback of imported content, firmware upgrades and storage extension. V1.0.2 lists Ext4 and FAT32 support and excludes exFAT and FAT16.
Can LCB2K connect through Wi-Fi or 4G?
It supports Wi-Fi AP and STA modes. A 4G module is optional and is not included as standard. Check the module and network requirements for the installation.
How many videos can LCB2K play simultaneously?
The linked PDF lists one 4K video, two 1080p videos or four 720p videos for ordinary playback. Synchronized playback across screens is limited to one 1080p video.

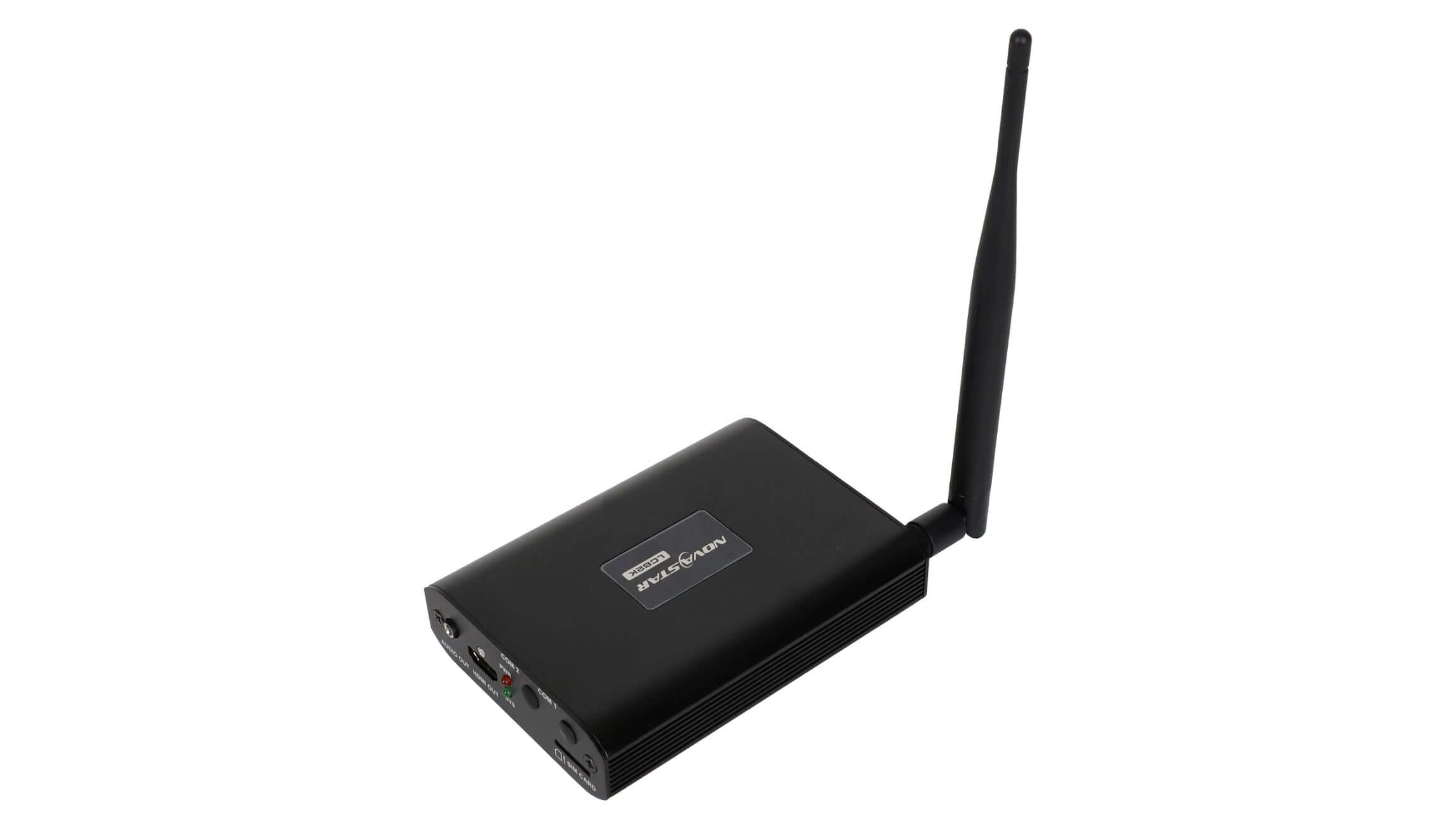

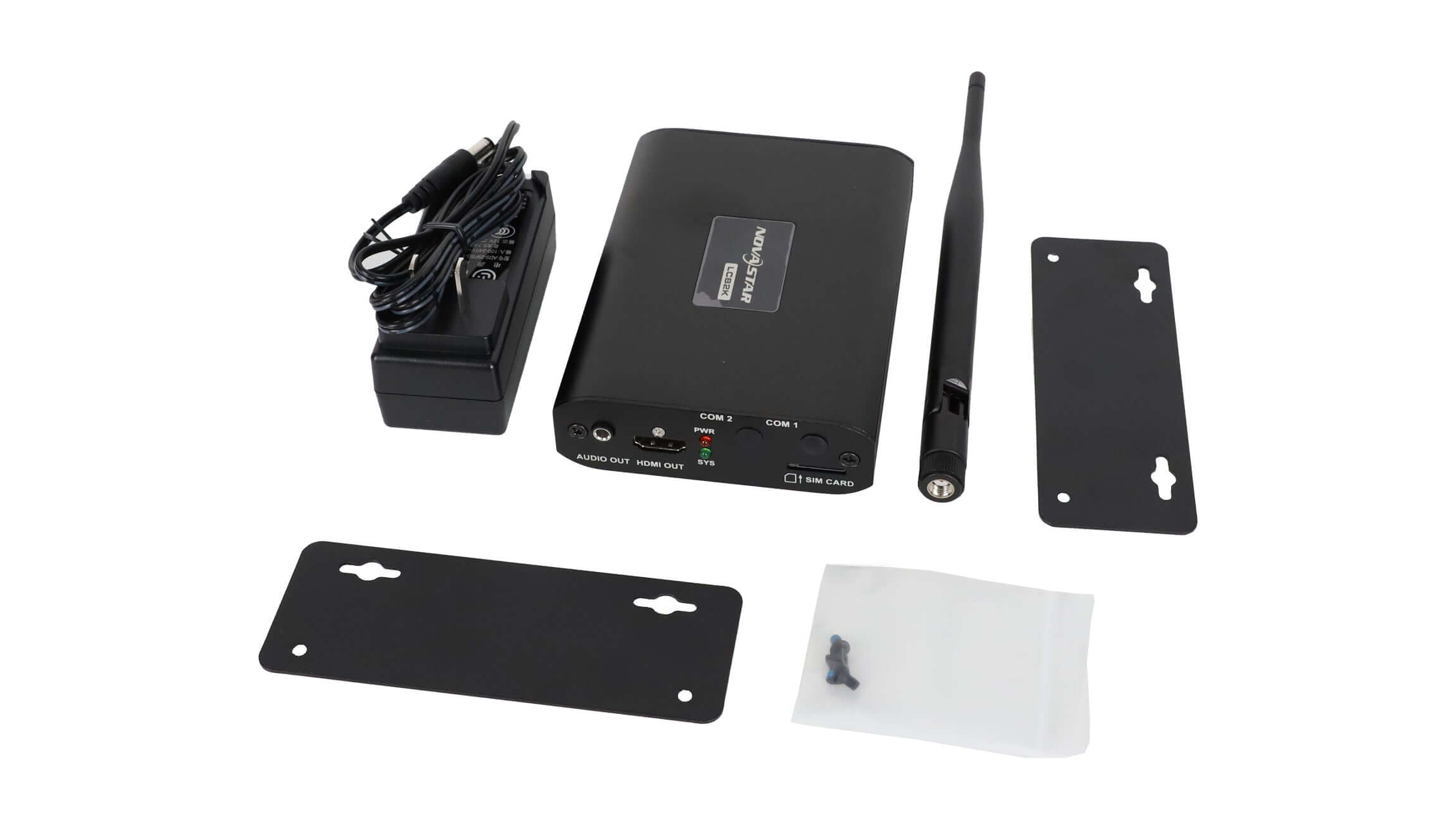

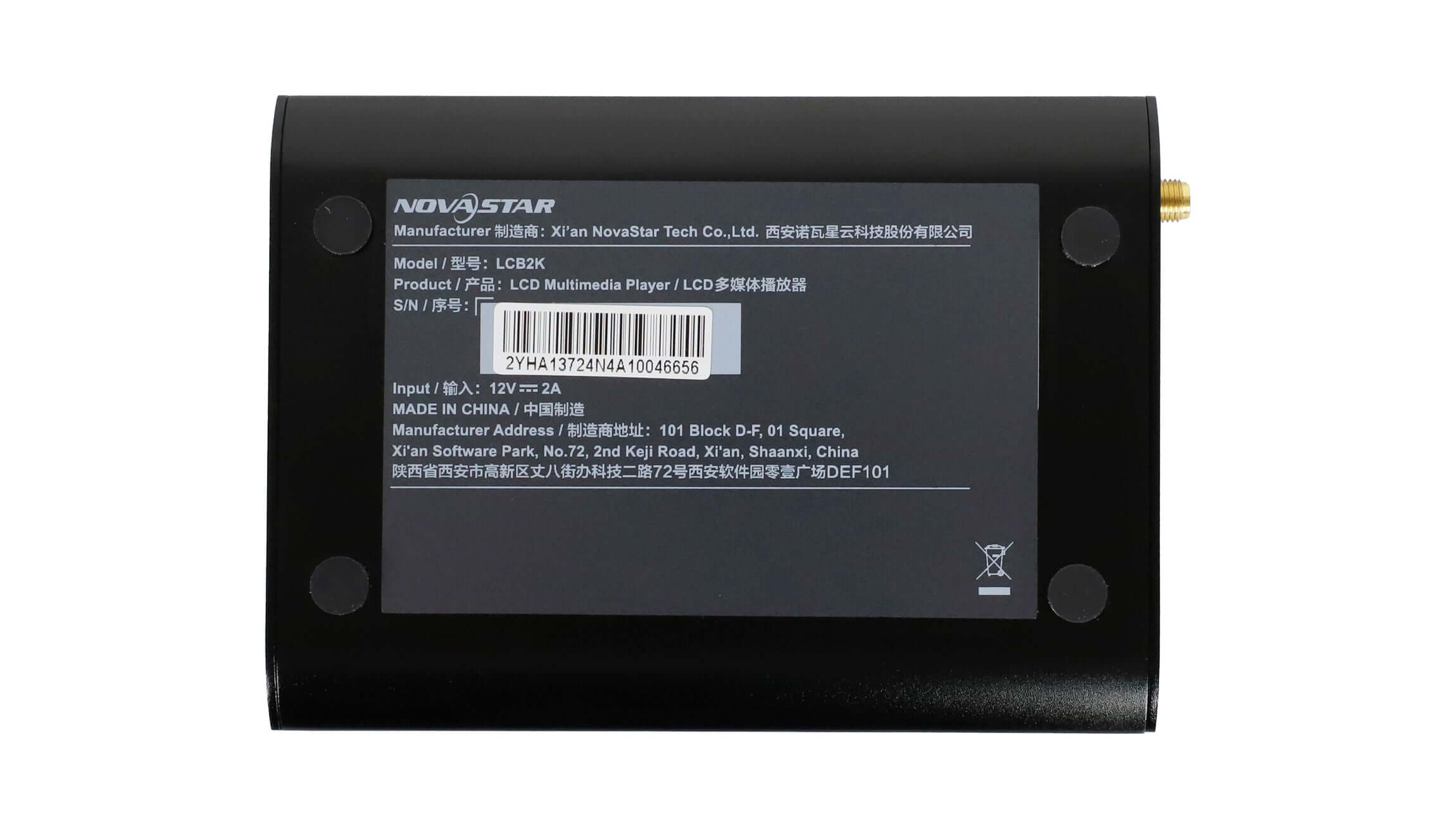

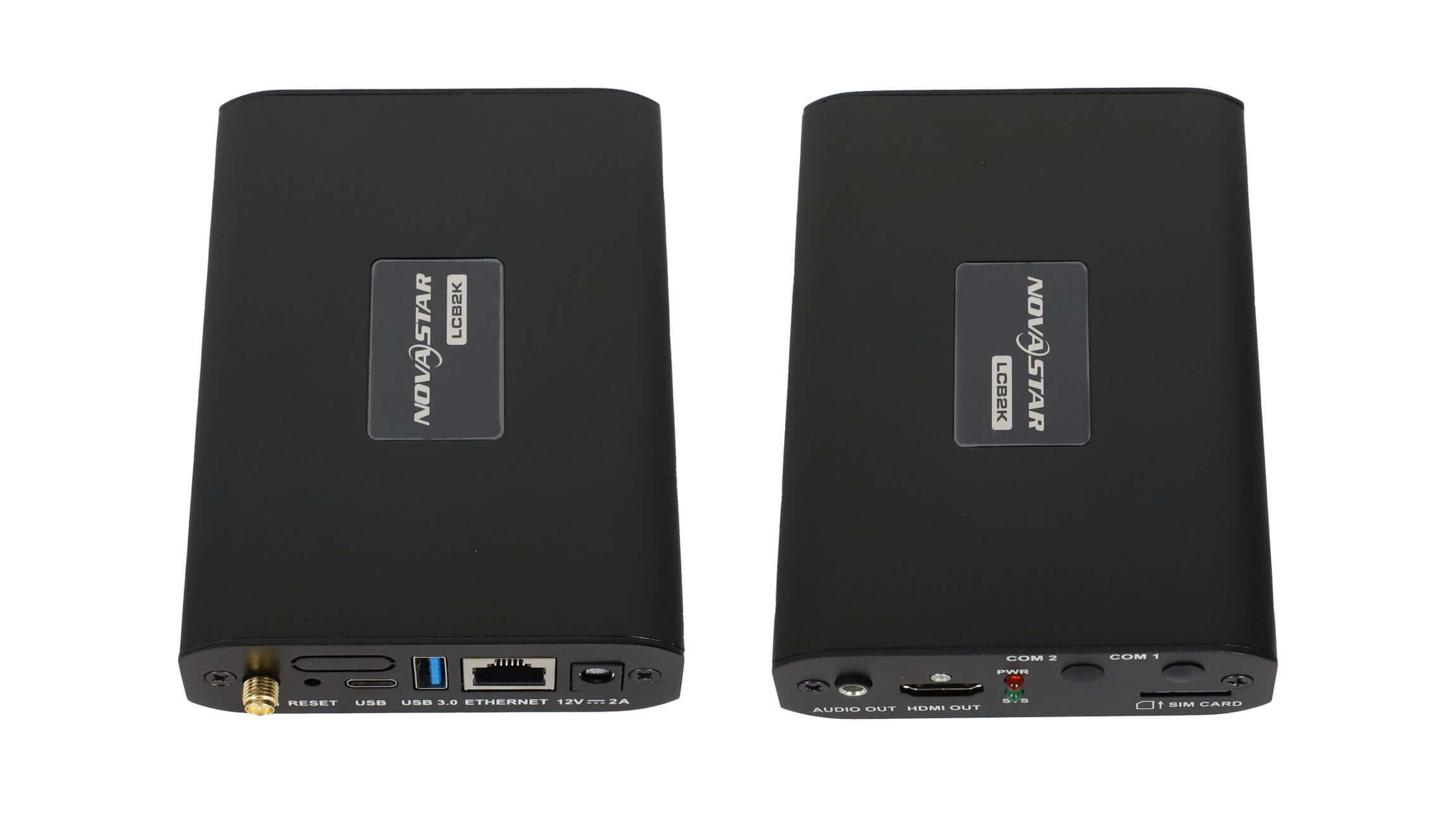

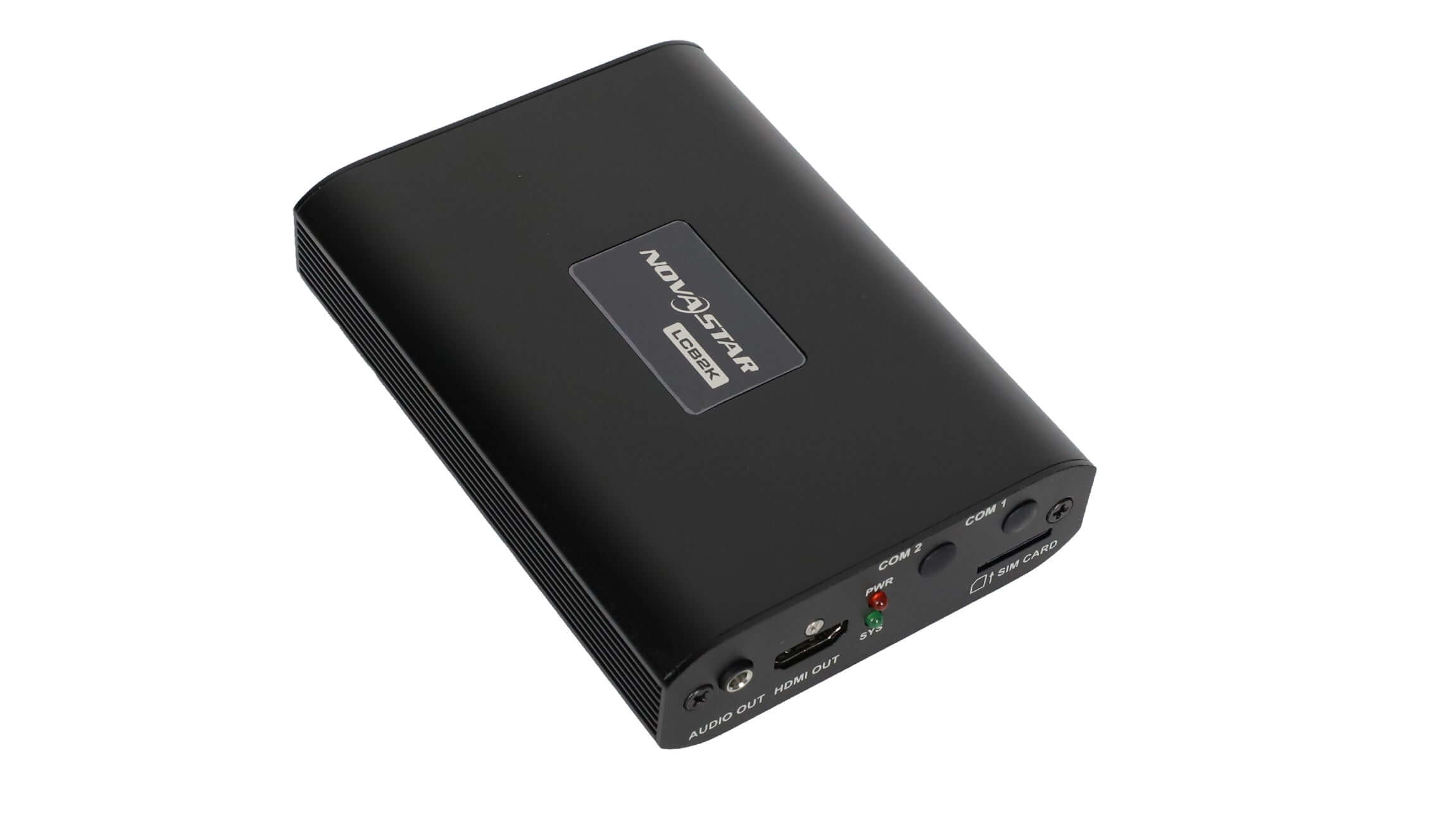

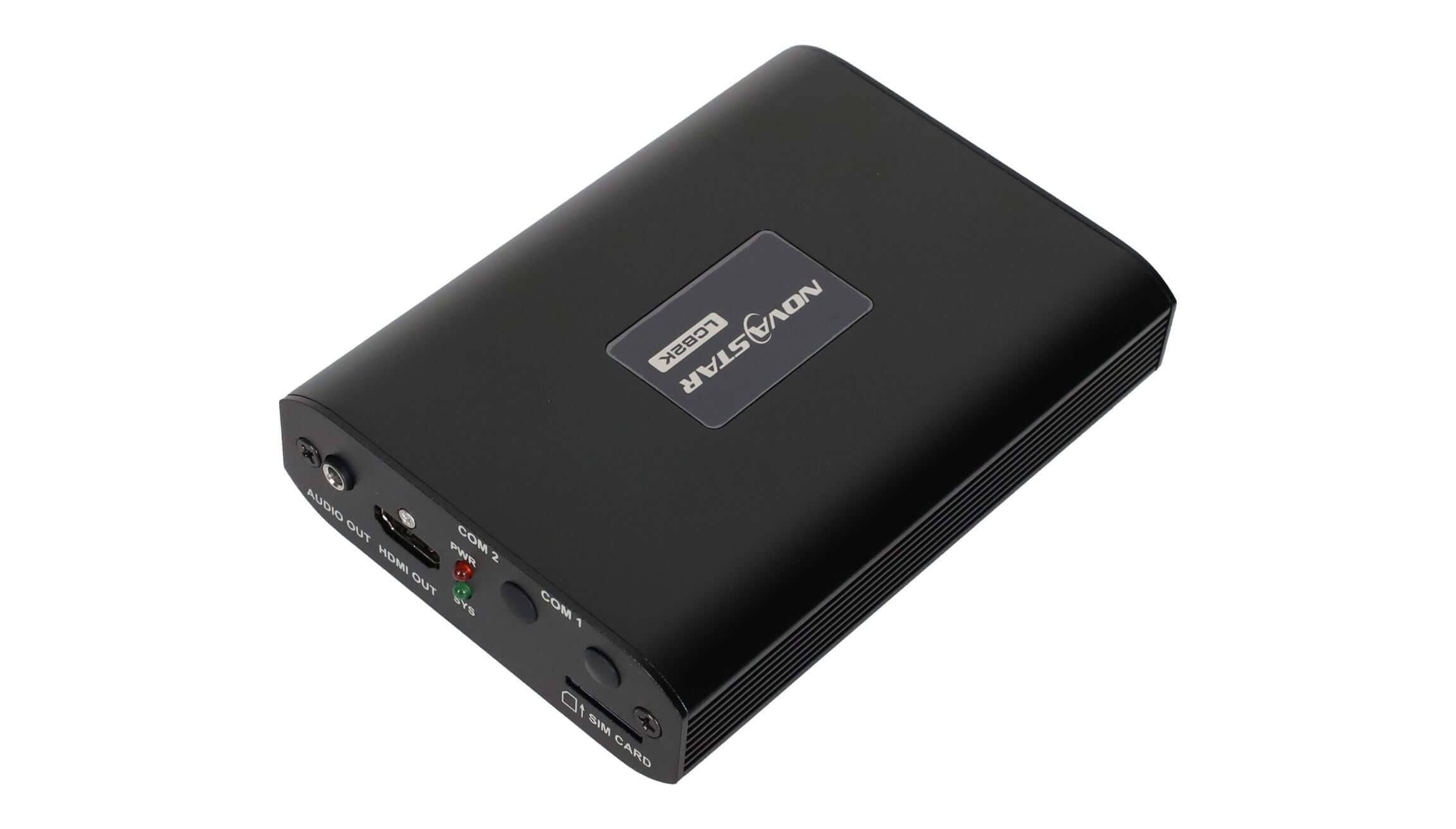

Product Images
Specification Download
| Weight | 2 kg |
|---|
