NovaStar CVT8-5G Fiber Converter | CVT8-5GS & CVT8-5GM
Price range: $ 2,194.00 through $ 2,671.00
The NovaStar CVT8-5G converts between optical and electrical signals for long-distance LED display connections. It provides one 40Gbps optical port and eight 5Gbps Ethernet ports, with CVT8-5GS single-mode and CVT8-5GM multimode versions using different fiber types and connectors.

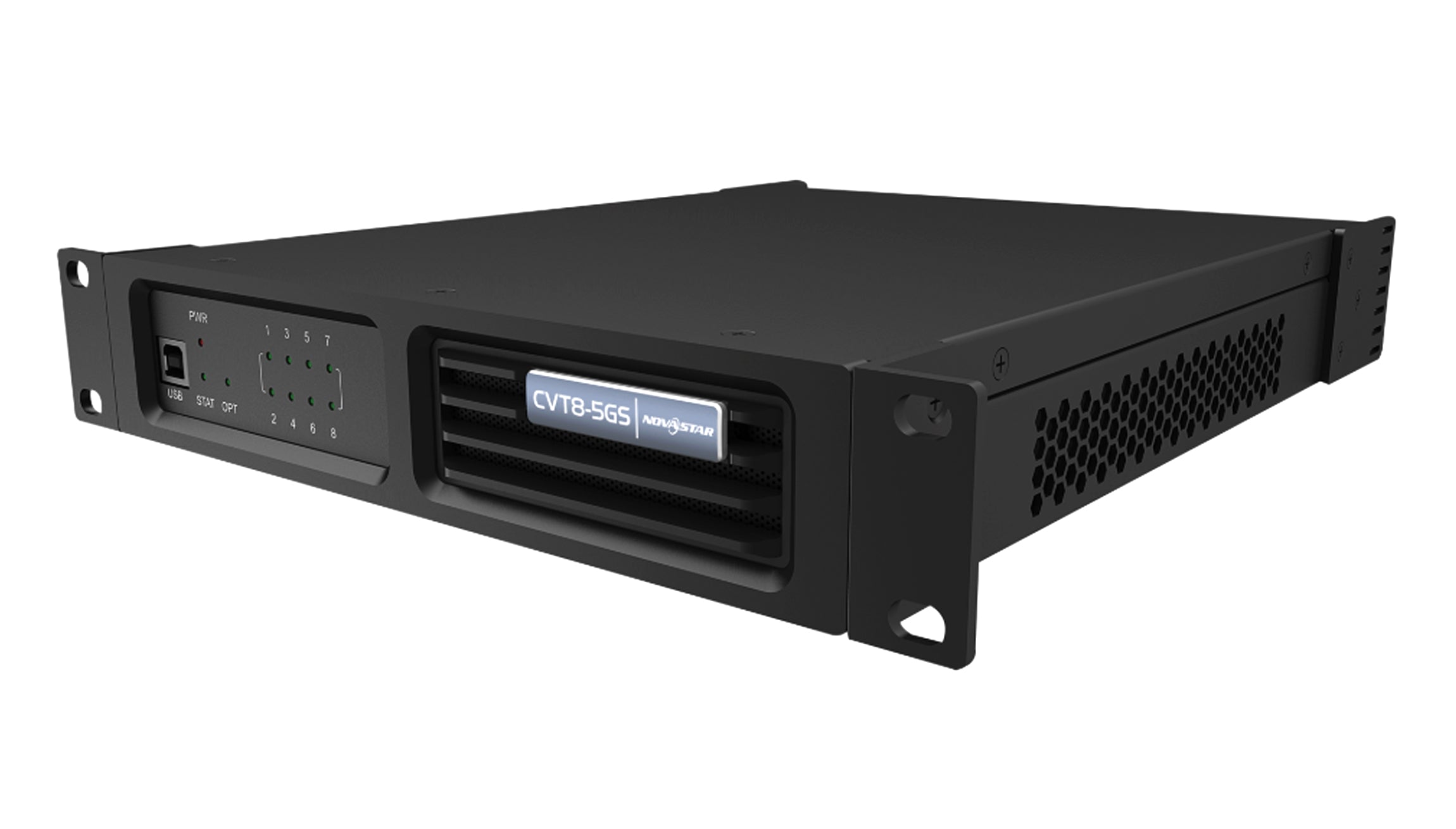

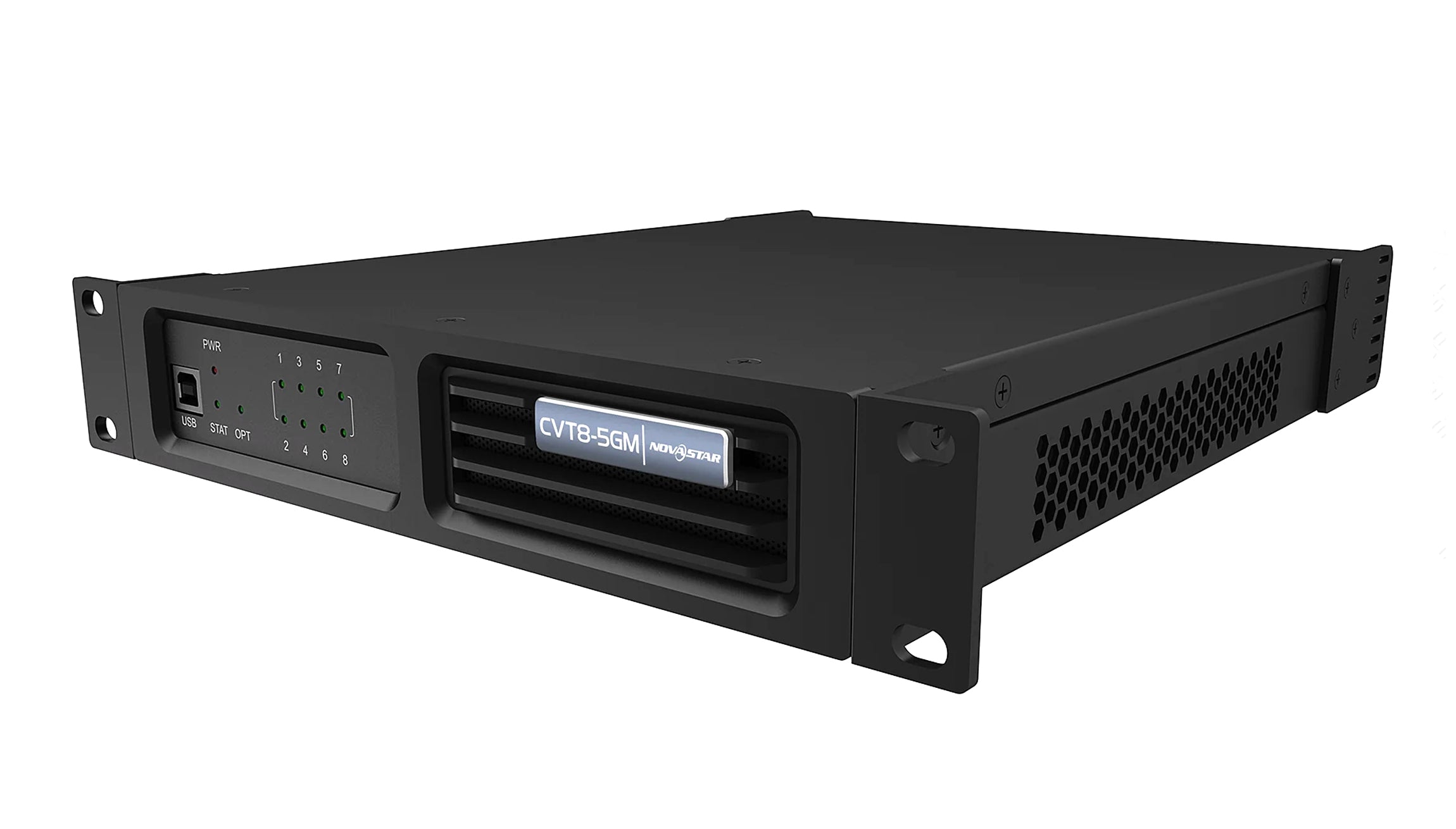

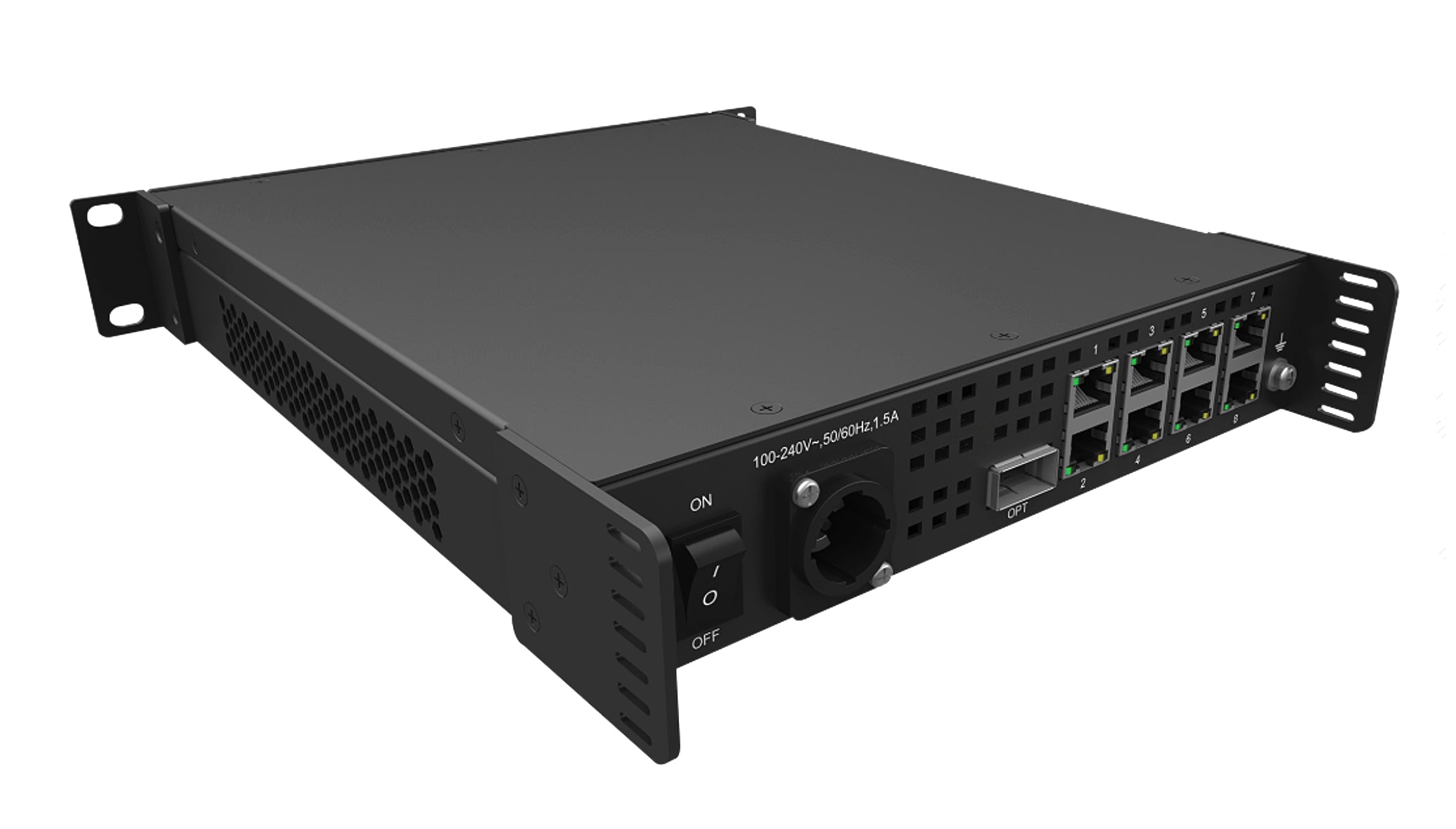

CVT8-5G LED Screen Fiber Converter
The NovaStar CVT8-5G links a sending device and LED display through optical-to-electrical signal conversion. It supports full-duplex transmission through one 40Gbps optical port and eight 5G BaseT Ethernet ports. Select the CVT8-5GS or CVT8-5GM version to match the optical module, cable and required distance.
CVT8-5GS vs CVT8-5GM
| Parameter | CVT8-5GS | CVT8-5GM |
|---|---|---|
| Mode | Single-mode | Multimode |
| Specified transmission distance | 10 km | 100 m |
| Optical wavelength | 1310 nm | 850 nm |
| Fiber type | OS1 / OS2, twin-core | OM3, 8-core |
| Fiber diameter | 9/125 μm | 50/125 μm |
| Connector | LC | MPO |
| Insertion loss | ≤0.3 dB | ≤0.1 dB |
| Return loss | ≥45 dB | ≥50 dB |
| Optical module | 40 Gbit/s, hot-swappable | 40 Gbit/s, hot-swappable |
These are the model-specific values in NovaStar’s V1.0.0 specification dated July 10, 2022. A single-mode LC cable and a multimode MPO cable are not interchangeable; match the complete optical connection at both ends.
| Parameter | Specification |
|---|---|
| Optical / Ethernet ports | 1 × 40Gbps optical; 8 × 5Gbps Ethernet |
| Control port | 1 × USB Type-B |
| Power supply | 100–240 V AC, 50/60 Hz, 1.5 A |
| Rated power consumption | 33 W |
| Dimensions | 254.3 × 50.6 × 290.0 mm |
| Net weight | 2.26 kg |
| Operating conditions | −20°C to +55°C; 10–80% RH, non-condensing |
| Storage conditions | −20°C to +70°C; 10–95% RH, non-condensing |

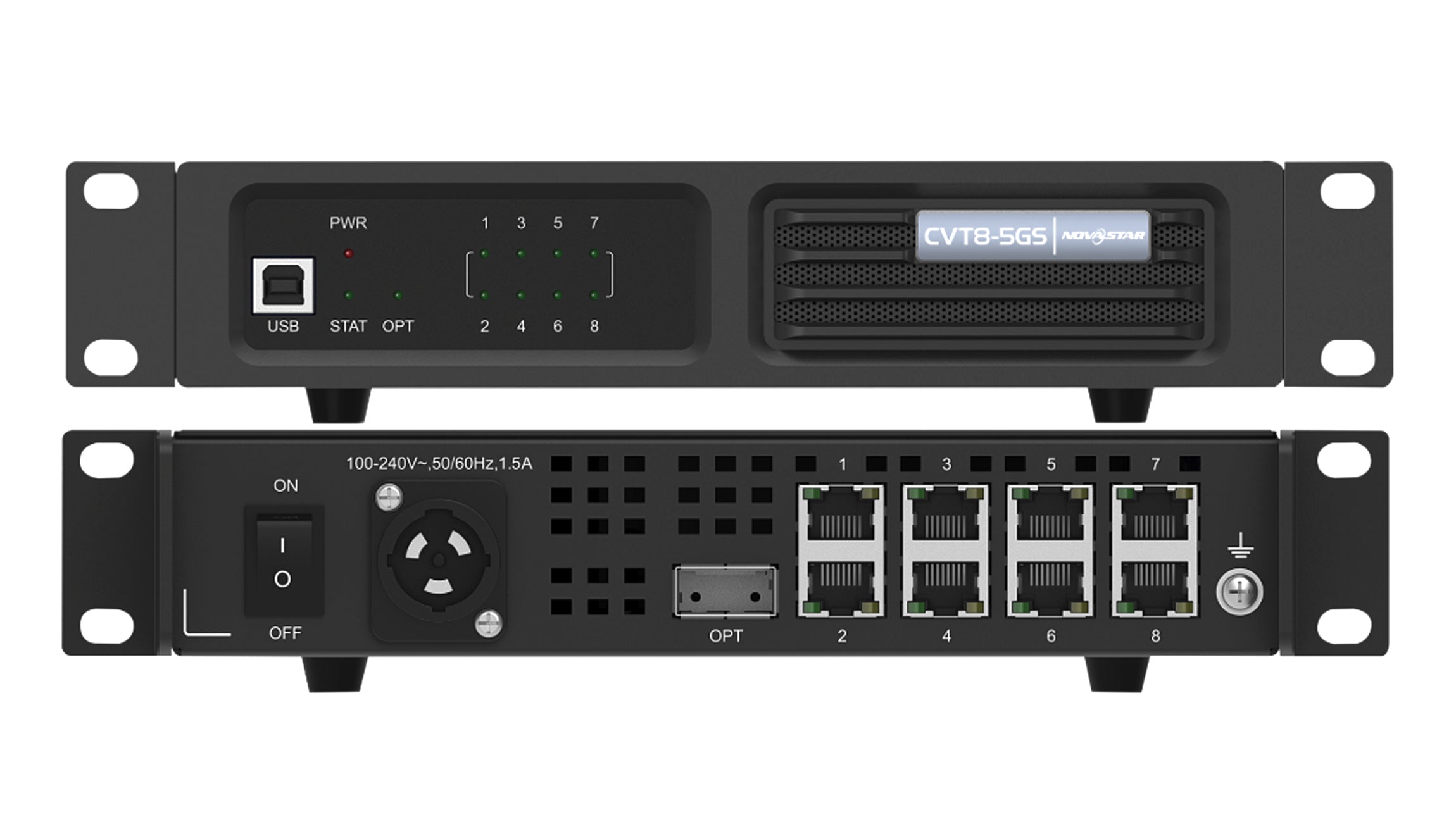

USB Control and Connection Indicators
The USB Type-B port connects to a control computer running NovaLCT V5.4.0 or later for program upgrades. It is not a cascading port. The PWR indicator stays on with normal power, STAT flashes during normal operation, and OPT1 stays on when the fiber connection is normal. Ethernet indicators identify cable connection and data activity.
Installation and Optical Modules
The converter supports horizontal, suspended and rack installation. The original assembly diagram shows two converters, or one converter with a connecting piece, combined for installation in a standard 19-inch rack. Follow that diagram and the mounting requirements in the PDF.
The specification lists two 40G optical modules in the accessory set, including one for the controller. Confirm that the supplied model and modules match the planned connection. The optical module is hot-swappable; the PowerCON power connector must not be connected while live.
Frequently Asked Questions
What is the difference between CVT8-5GS and CVT8-5GM?
CVT8-5GS is the 1310 nm single-mode version specified for 10 km with OS1/OS2 twin-core LC fiber. CVT8-5GM is the 850 nm multimode version specified for 100 m with OM3 8-core MPO fiber.
How many Ethernet ports does CVT8-5G have?
It has eight 5G BaseT Ethernet ports, each supporting bandwidth up to 5 Gbit/s, plus one optical port supporting up to 40 Gbit/s.
Can I use USB to cascade CVT8-5G converters?
No. The USB Type-B port is for program upgrades from a control computer running NovaLCT V5.4.0 or later. The specification explicitly excludes USB cascading.
Are optical modules included in the specification’s accessory list?
Yes. V1.0.0 lists two 40G optical modules, with one intended for the controller. Verify the supplied model and optical-module configuration before ordering.
Can the optical module and power connector both be hot-plugged?
No. The optical module is documented as hot-swappable, but the PowerCON power connector must not be plugged in while live. Follow the installation instructions in the original PDF.
Product Images
CVT8-5G Specification Download
Download CVT8-5G specifications V1.0.0 — CVT8-5GS and CVT8-5GM
