MEAN WELL LRS-75-24 24V 3.2A Enclosed Power Supply
$ 9.00
MEAN WELL LRS-75-24 is a compact 24V, 3.2A single-output power supply rated at 76.8W. It accepts 85–264VAC input and uses free-air convection cooling.
10000 in stock
LRS-75-24 compact 24V power supply
The MEAN WELL LRS-75-24 supplies a single 24V DC output for compatible LED equipment and other DC loads. The specific 24V model is rated at 3.2A and 76.8W. Its 99 × 97 × 30mm enclosure provides a compact mounting footprint.
Electrical and mechanical specifications
| Parameter | Specification |
|---|---|
| Rated output | 24V DC, 3.2A |
| Rated power | 76.8W |
| Voltage adjustment | 21.6–28.8V |
| AC input | 85–264VAC, 47–63Hz |
| Typical efficiency | 90% |
| Maximum ripple and noise | 150mVp-p; datasheet test conditions apply |
| Dimensions (L × W × H) | 99 × 97 × 30mm |
| Working temperature | −30°C to +70°C; apply derating curve |
| Cooling | Free-air convection |
| Protection functions | Short circuit, overload and overvoltage |
Choosing a supply for a 24V load
Use the actual load current and ambient temperature to check capacity. The output adjustment range allows the voltage to be set within the load’s permitted range; it should not be used to exceed that equipment’s voltage specification.
The fanless supply needs ventilation around its enclosure. Compare the terminal layout and mounting holes in the PDF before replacing an existing power supply, even when both units are rated at 24V.
Frequently asked questions
What are the current and power ratings of the LRS-75-24?
This model is rated at 3.2A and 76.8W at a nominal output of 24V DC.
Is the LRS-75-24 output adjustable?
Yes. The specified range is 21.6–28.8V. Keep the setting within the connected load’s permitted voltage range.
Does the power supply include a fan?
No. It is cooled by free-air convection and requires ventilation in the final equipment.
Can it replace an LRS-50-24?
Check the load requirement, enclosure dimensions, mounting and terminal layout before replacement. The model names alone do not establish mechanical or electrical compatibility.

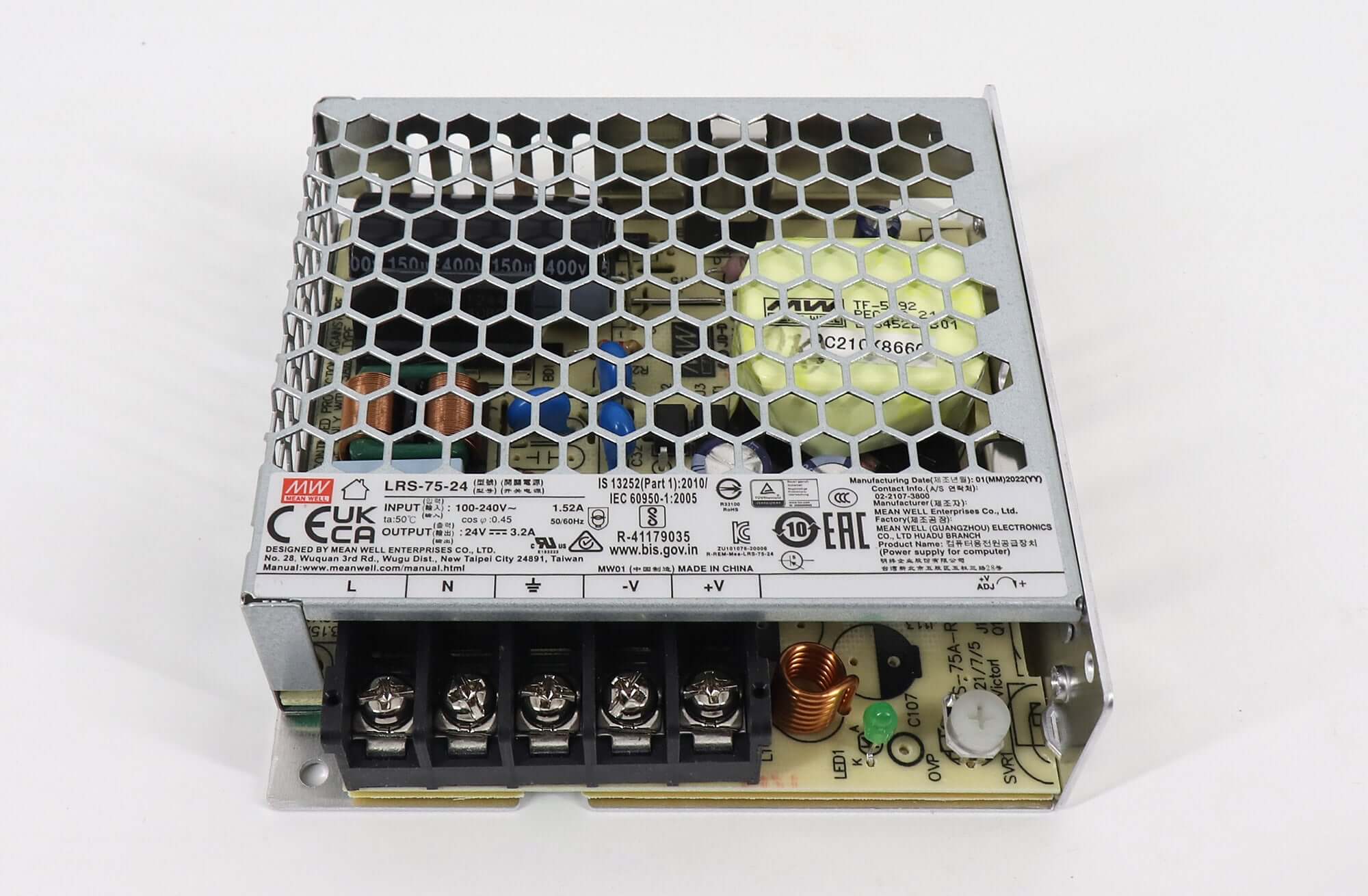

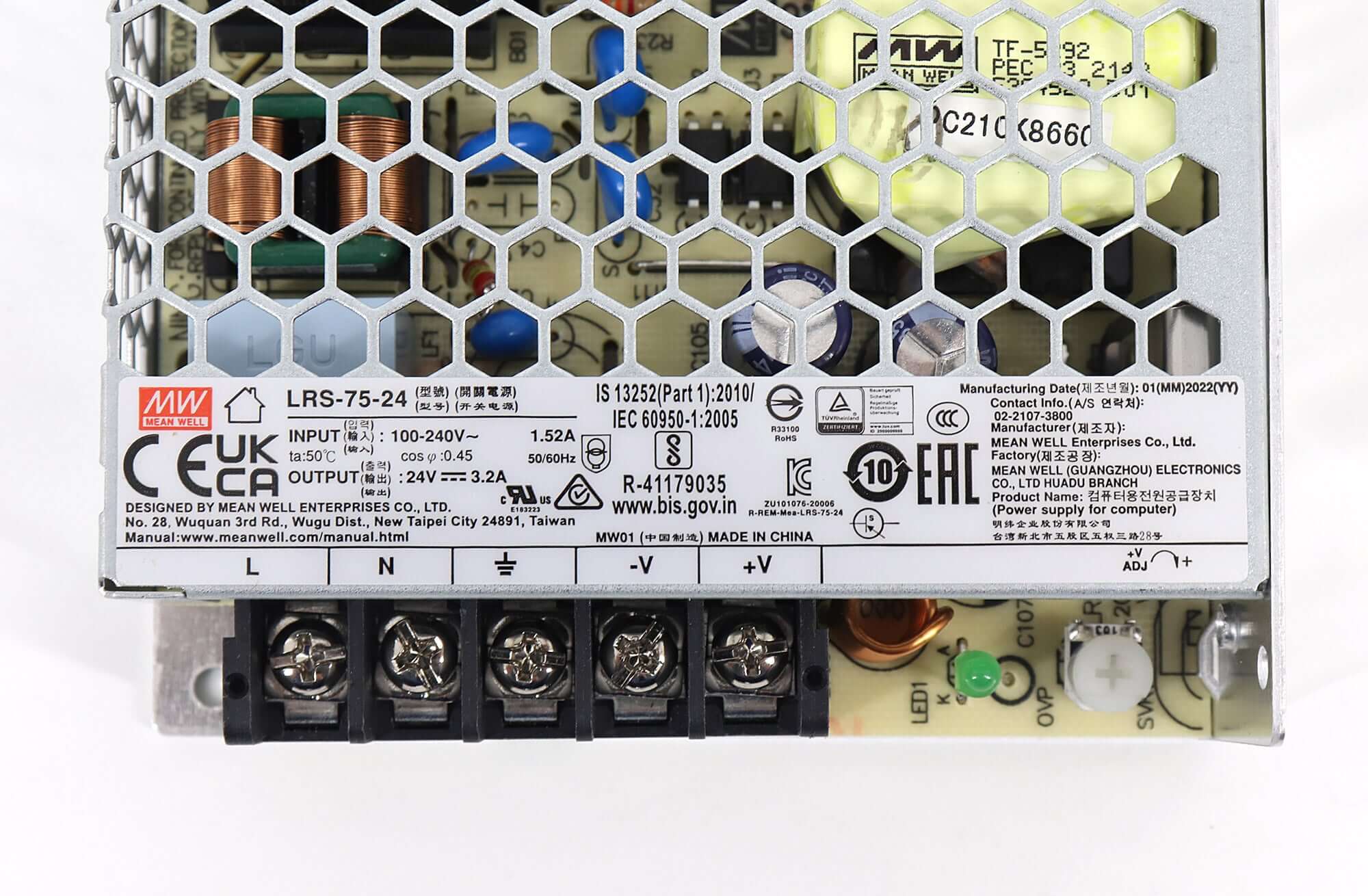

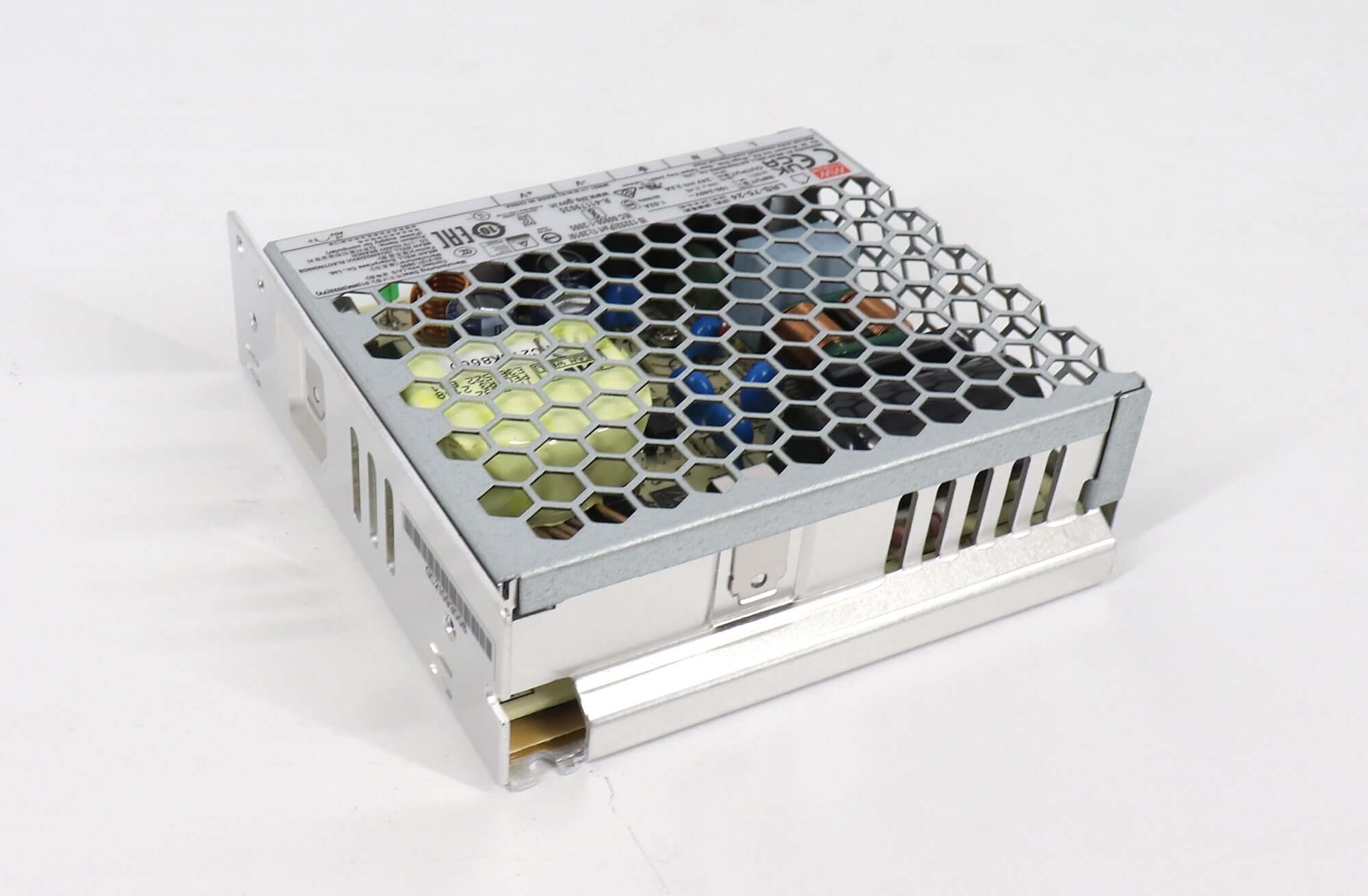

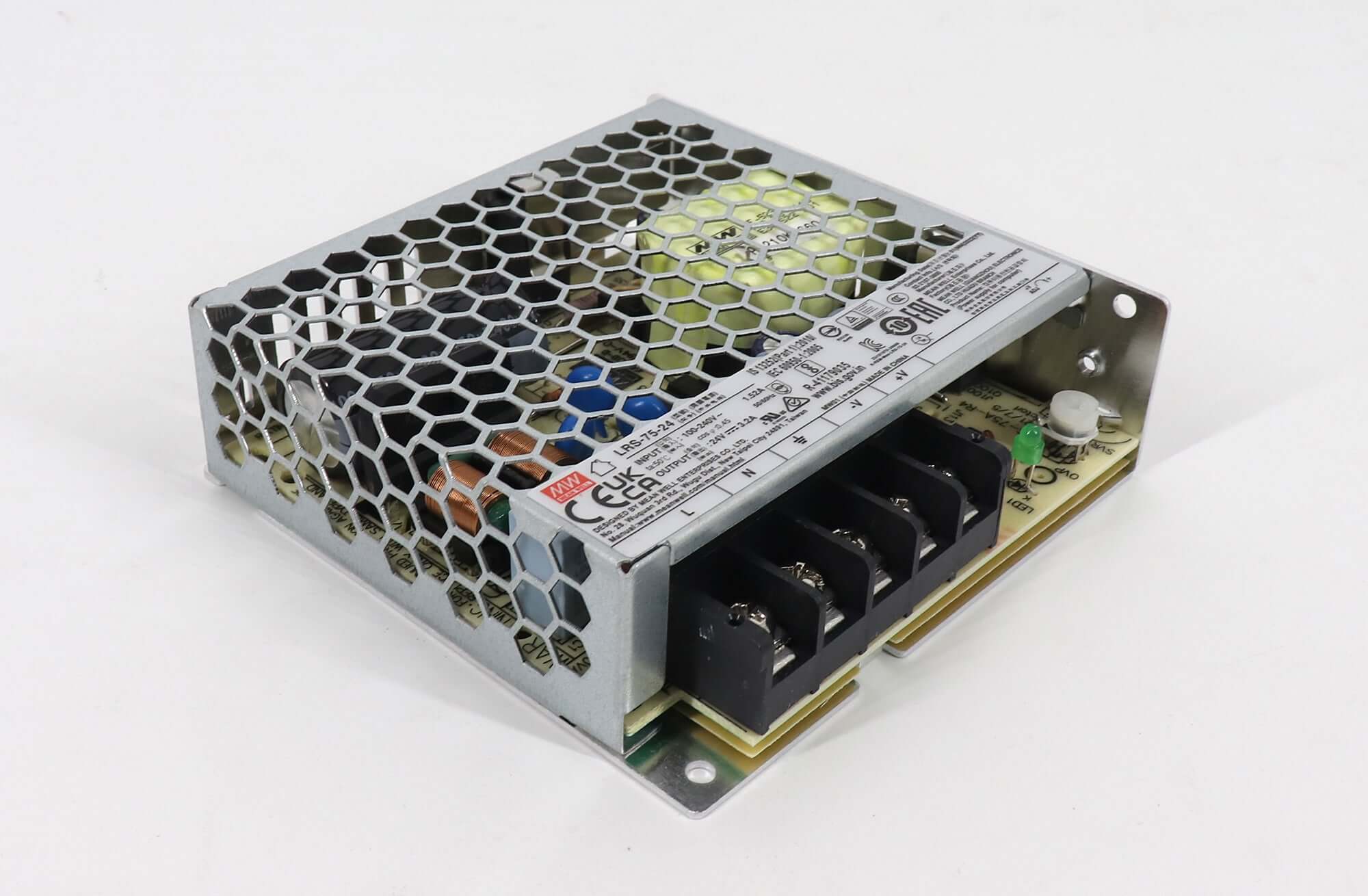

Product images and specification download
Meanwell LRS-75-24 LED Display Screen Power Supply Specification
| Weight | 0.29 kg |
|---|
