MEAN WELL LPV-60-12 / LPV-60-24 60W IP67 Power Supply
$ 10.00
Choose MEAN WELL LPV-60-12 for 12V, 5A output or LPV-60-24 for 24V, 2.5A output. Both are rated at 60W and use a fully encapsulated IP67 plastic case with free-air convection cooling.
LPV-60 constant-voltage power supply options
The MEAN WELL LPV-60-12 and LPV-60-24 are 60W constant-voltage supplies for compatible LED-related equipment, including decoration and advertising devices within the manufacturer’s application conditions. Select the output voltage that matches the load: 12V and 24V versions are not interchangeable.
Compare LPV-60-12 and LPV-60-24
| Parameter | LPV-60-12 | LPV-60-24 |
|---|---|---|
| Rated output voltage | 12V DC | 24V DC |
| Rated current | 5A | 2.5A |
| Rated power | 60W | 60W |
| Typical efficiency | 83% | 86% |
| Maximum ripple and noise | 120mVp-p | 150mVp-p |
| AC input | 90–264VAC, 47–63Hz | 90–264VAC, 47–63Hz |
| Dimensions (L × W × H) | 162.5 × 42.5 × 32mm | 162.5 × 42.5 × 32mm |
| Working temperature | −30°C to +70°C; apply derating | −30°C to +70°C; apply derating |
| Enclosure | Fully encapsulated plastic case, IP67 | Fully encapsulated plastic case, IP67 |
| Cooling | Free-air convection | Free-air convection |
Load and installation requirements
Use a load designed for constant-voltage operation at the chosen output voltage. Check the combined load current and derating curve rather than selecting by wattage alone. The ripple figures above use the measurement conditions stated in the datasheet.
The IP67 enclosure rating does not remove the need to follow the installation notes. The manufacturer calls for sheltered outdoor use without direct sunlight and cautions against immersion exceeding 30 minutes. Review the full application notes in the PDF before integrating the supply.
Frequently asked questions
Should I choose LPV-60-12 or LPV-60-24?
Choose LPV-60-12 for a compatible 12V load and LPV-60-24 for a compatible 24V load. Their rated currents are 5A and 2.5A respectively.
Are both models rated at 60W?
Yes. Each model has a 60W rated output, with different voltage and current ratings.
Is the LPV-60 a constant-current LED driver?
The specification describes a constant-voltage design. Check that the connected LED equipment is designed for the selected constant-voltage output.
Can an IP67 LPV-60 be installed anywhere outdoors?
No. Follow the manufacturer’s sheltered-installation and sunlight guidance, protect the connections and review the IP-rating conditions in the specification.

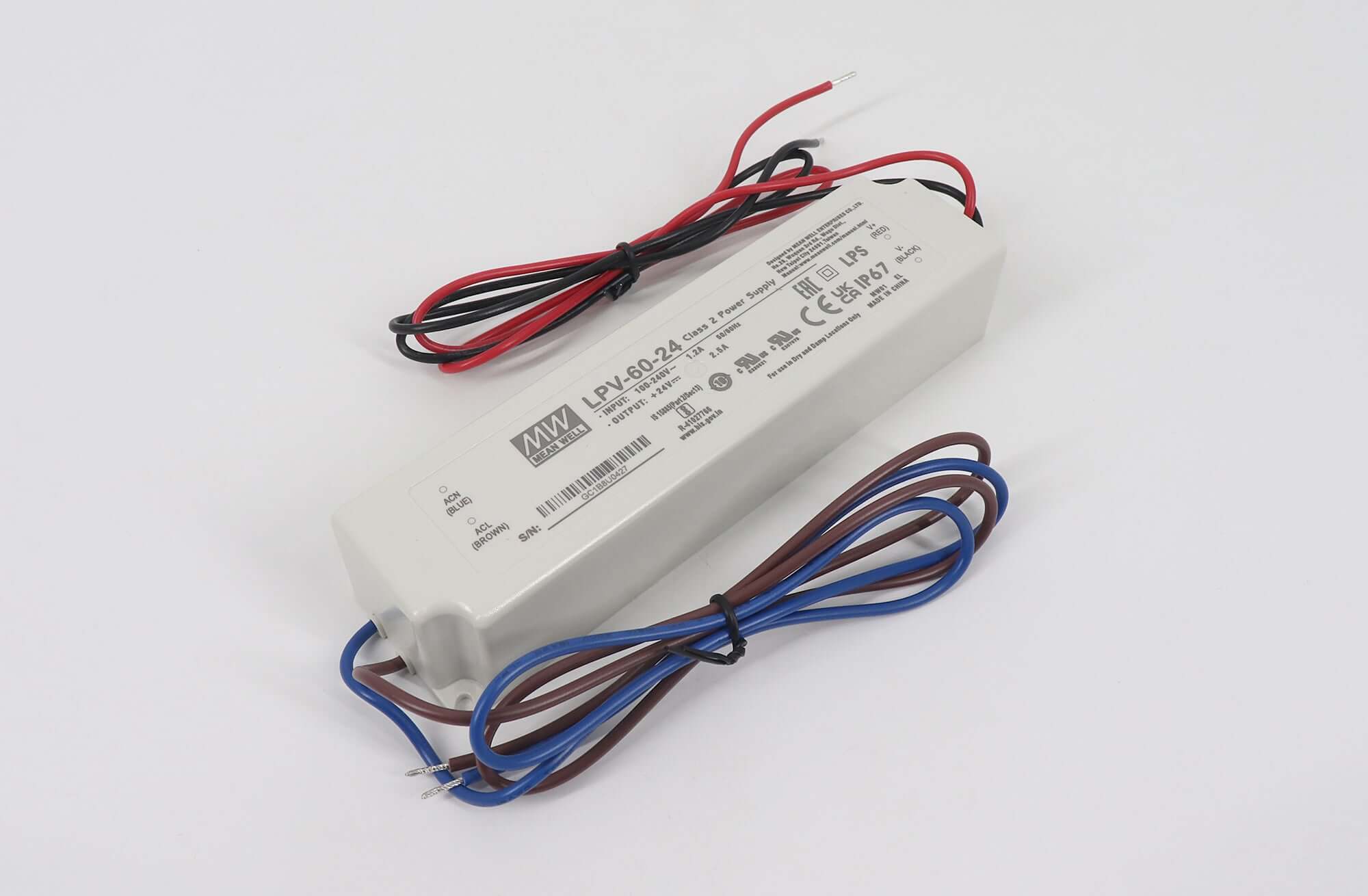

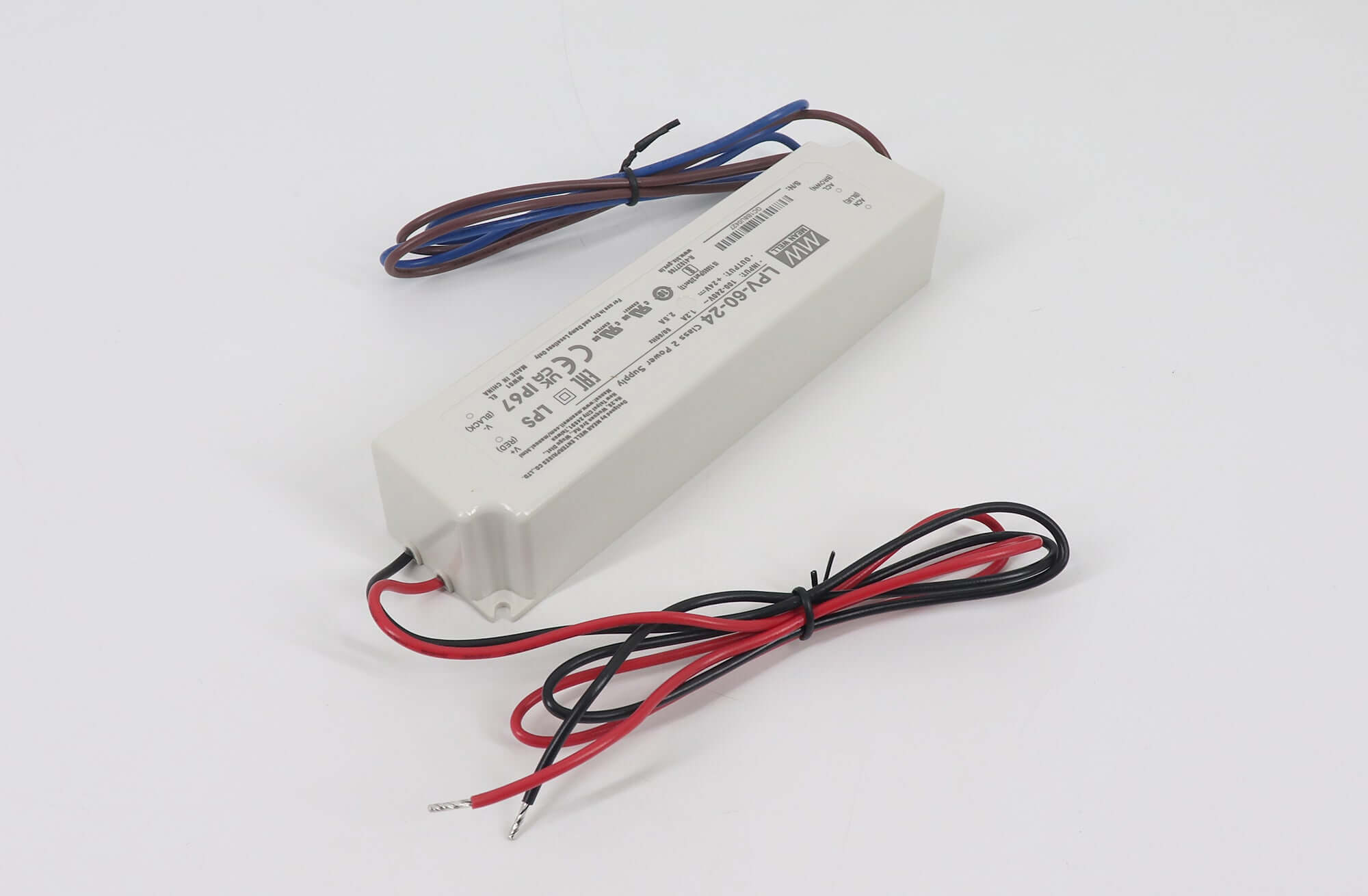

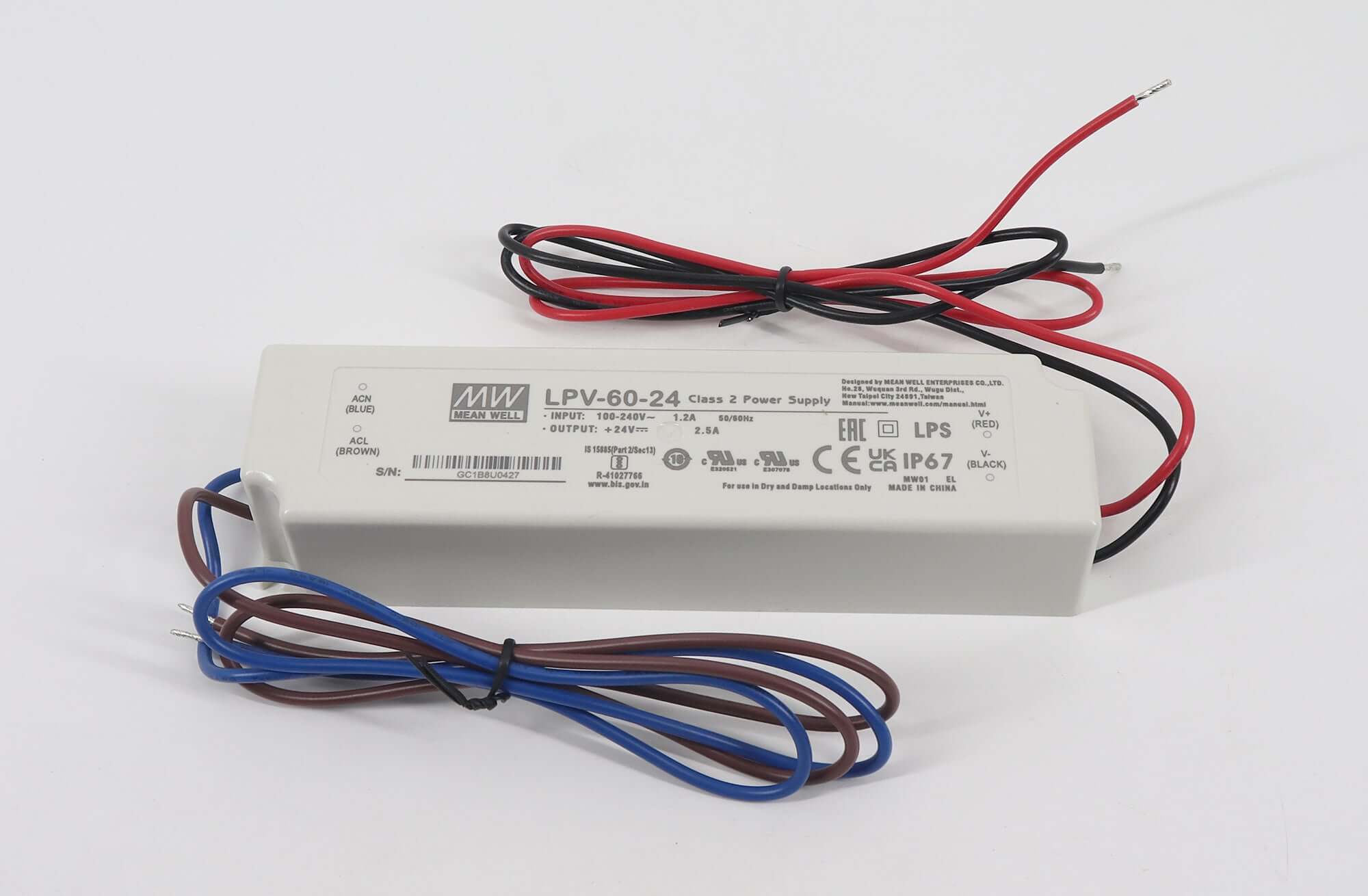

Product images and specification download
Meanwell LPV-60-12 / LPV-60-24 Lighting Power Supply Specification
