Lumen C-Power7200 4GB LED Video Controller
$ 125.00
Discontinued — no longer available.
Lumen C-Power7200 4GB asynchronous LED video controller.
- Maximum 640 × 480-pixel display
- Hardware video decoding and stereo audio
- Up to 512 programs
- Up to 10 windows per program
Out of stock
Lumen C-Power7200 controller overview
The Lumen C-Power7200 is an asynchronous video controller with hardware video decoding, DDR3 RAM and stereo audio output. This product listing identifies the 4GB model. Its original family specification also lists other memory versions, which are separated below for comparison.
Lumen C-Power7200 capacity and memory
| Item | Specification |
|---|---|
| Maximum display size | 640 × 480 pixels |

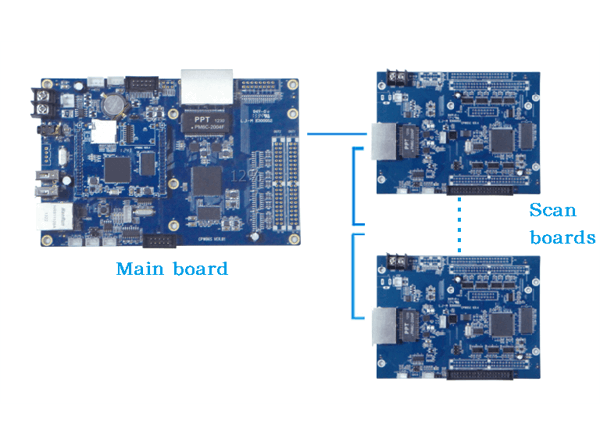

| Scan boards | Up to 254 scan boards per main board; the original specification associates additional scan boards with higher refresh performance |
| Grayscale | 256 to 64K levels |
| Listed product memory | 4GB, as identified by this product listing |
| Family memory versions | 256MB, 4GB and 8GB; capacity depends on the hardware version |
| Program storage | Multiple video programs; up to 512 programs |
| Playback windows | Up to 10 windows per program, with different content formats in each window |
| Font storage | 128MB font-library space; up to 8 different libraries stored and displayed simultaneously |
| Software | LedCenter V5.2.0 or above |
Programs, text and scheduling
- Hardware decoding of mainstream video formats including MP4, AVI and MPEG.
- Animation in SWF and GIF formats, pictures, text, clocks and temperature content.
- Text editing with adjustable language, font and size.
- Transparent text and clock content over pictures or video.
- More than 60 text and picture effects, including snowfall, mosaic, sliding zebra and fan opening.
- Menu-based hierarchical program management.
- Scheduled playback by week, hour and minute.
- RTC management with digital and analog clocks.
- External environmental sensors and temperature programs; 32-level brightness adjustment with an external sensor.
- Font libraries for English, simplified/traditional Chinese, Japanese, Korean and other languages; font-library editing and update tools described in the original specification.
Connections and system options
| Item | Specification |
|---|---|
| Ethernet | TCP/IP; adaptive 10M/100M network interface |
| USB | Data updates through a USB flash drive |
| Serial | RS232/RS485; maximum baud rate 115200 |
| Module setup | Intelligent parameter-setting tool for indoor and outdoor LED screen configurations; confirm the specific module mapping |
| Infrared / keyboard | Program-list editing and display control |
| External wireless options | GPRS/CDMA, ZigBee and RF communication components |
| Development resources | Customized-development interface and manual; demonstration program and source code |
| Other version | A “Wireless information issue” version is described in the family specification |
Specification download
Lumen C-Power7200 specification
Frequently asked questions
Q1Is every C-Power7200 fitted with 4GB?
This product listing identifies a 4GB model. The original family table also lists 256MB and 8GB versions, so check the exact hardware version.
Q2How many programs and windows are supported?
The original specification lists up to 512 programs and up to ten playback windows in each program, with different formats supported in separate windows.
Q3How can content be updated?
The listed standard interfaces are adaptive 10M/100M TCP/IP Ethernet, USB flash-drive updates and RS232/RS485 serial communication up to 115200 baud. Wireless communication uses the applicable external components.
Discuss your replacement requirements
Send the full model code, existing hardware details and project requirements through LED Mall’s contact page. Review the shipping policy and returns policy when planning an alternative order.
| Weight | 0.5 kg |
|---|
