LISTEN LS-F301 Multifunction LED Controller
$ 105.00
Connect an LS-Q2 or LS-Q3 player to screen power control and compatible environmental sensors with the LISTEN LS-F301 multifunction controller.
1000 in stock

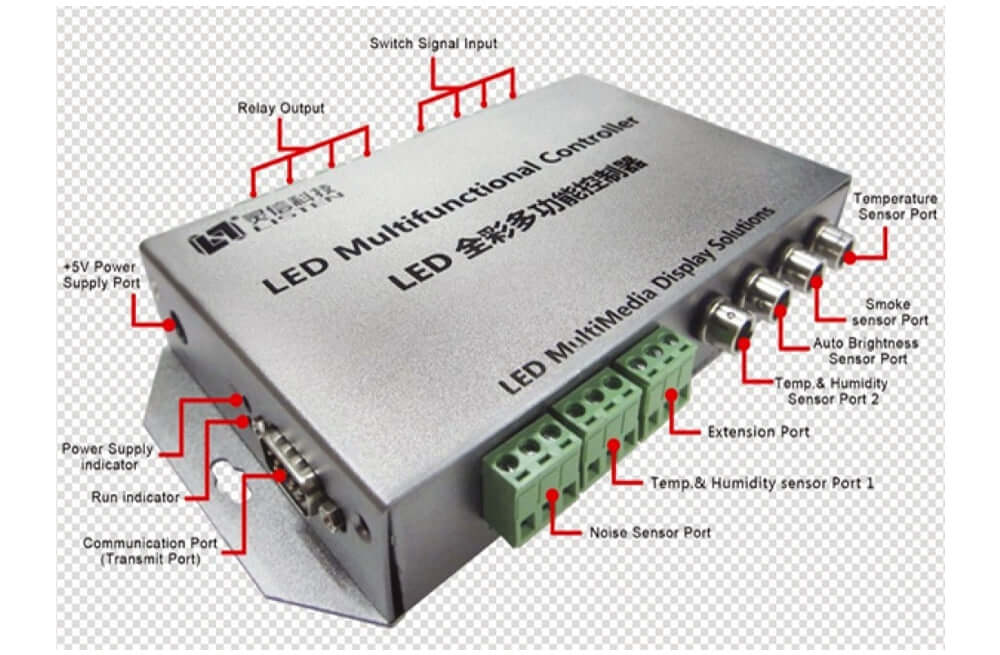

The LS-F301 provides relay control and sensor connections for a compatible LISTEN player. Select the sensor module for the measurement you need; the controller provides the connection and does not replace that sensor.
Technical specifications
| Parameter | Specification |
|---|---|
| Player compatibility | LS-Q2 and LS-Q3 |
| Power input | +5 V |
| Player communication | Serial cable, pins 2, 3 and 5 wired straight through |
| Sensor connections | Noise, temperature/humidity, brightness, smoke and temperature |
| Listed sensor examples | LS-F111 noise module, LS-F101 temperature/humidity module, LS-F211 brightness sensor and LS-F202 temperature sensor |
| Relay contact load | 3 A at 250 VAC or 3 A at 30 VDC |
LISTEN LS-F301 Multi-functional LED Controller Specification
Frequently asked questions
Can the LS-F301 switch the screen on and off remotely?
Yes. Remote screen power control is one of its functions; the relay output provides a control interface for the external circuit.
Does it measure brightness without a sensor?
Connect the compatible LS-F211 brightness sensor to collect ambient light data for brightness control.
What do the PWR and RUN indicators show?
PWR stays lit when power is connected. RUN flashes during normal operation.
| Weight | 0.5 kg |
|---|
