Linsn RV926 LED Receiving Card with 16 HUB75 Connectors
$ 17.70
Linsn RV926 receiving card with 16 HUB75 connectors, 32 RGB data groups, pixel calibration and RCG readback for LED display cabinets.

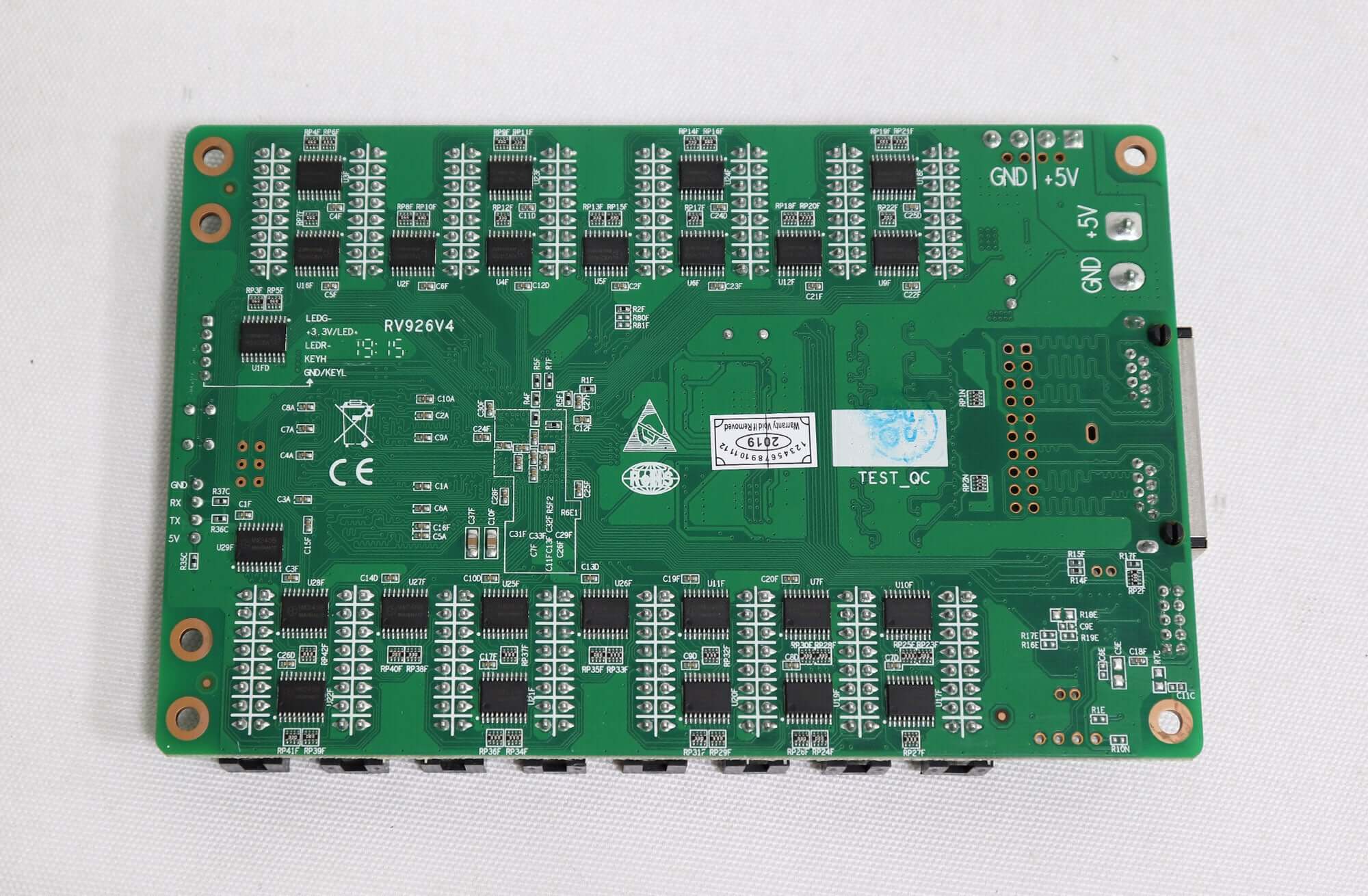

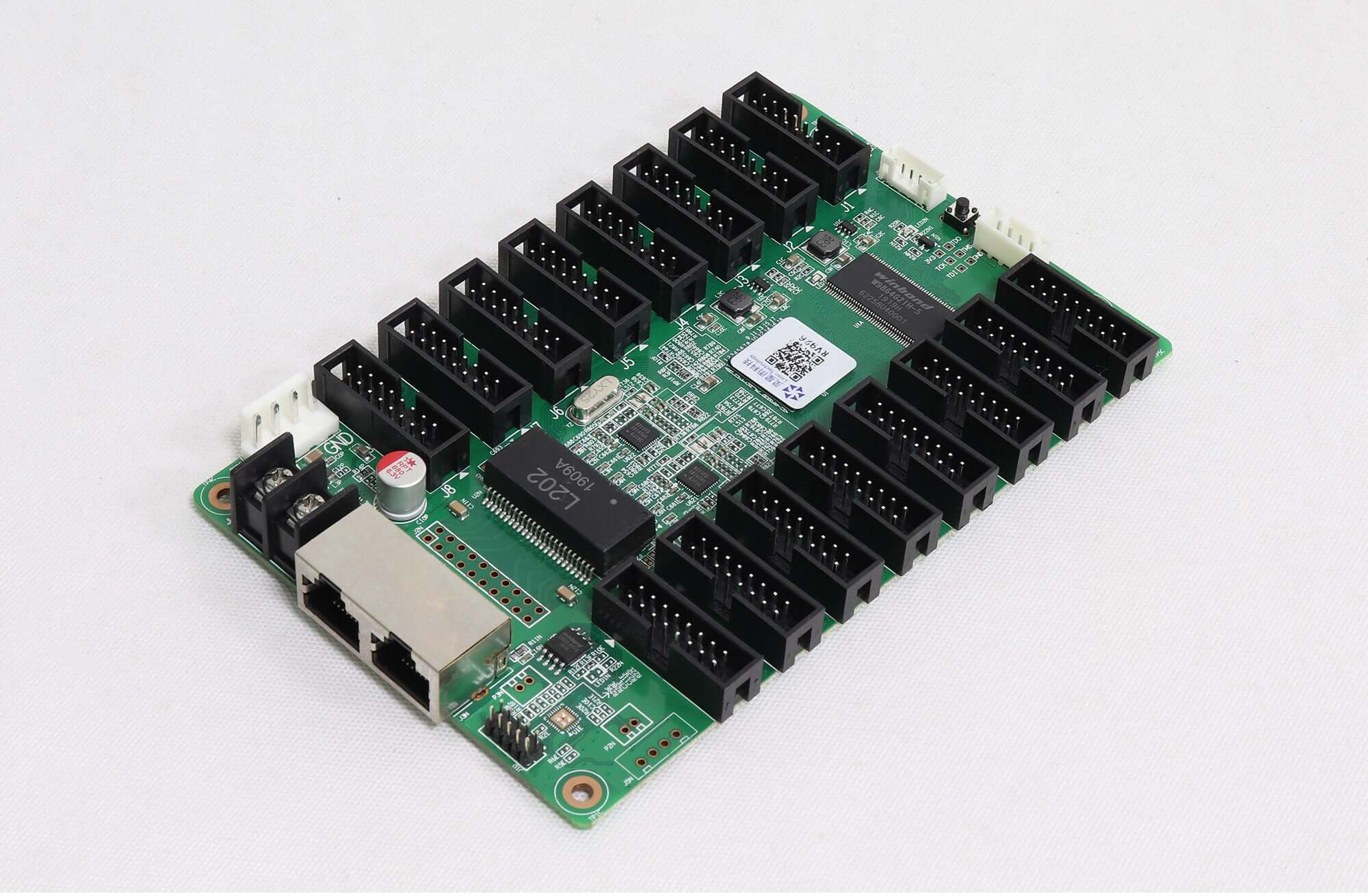

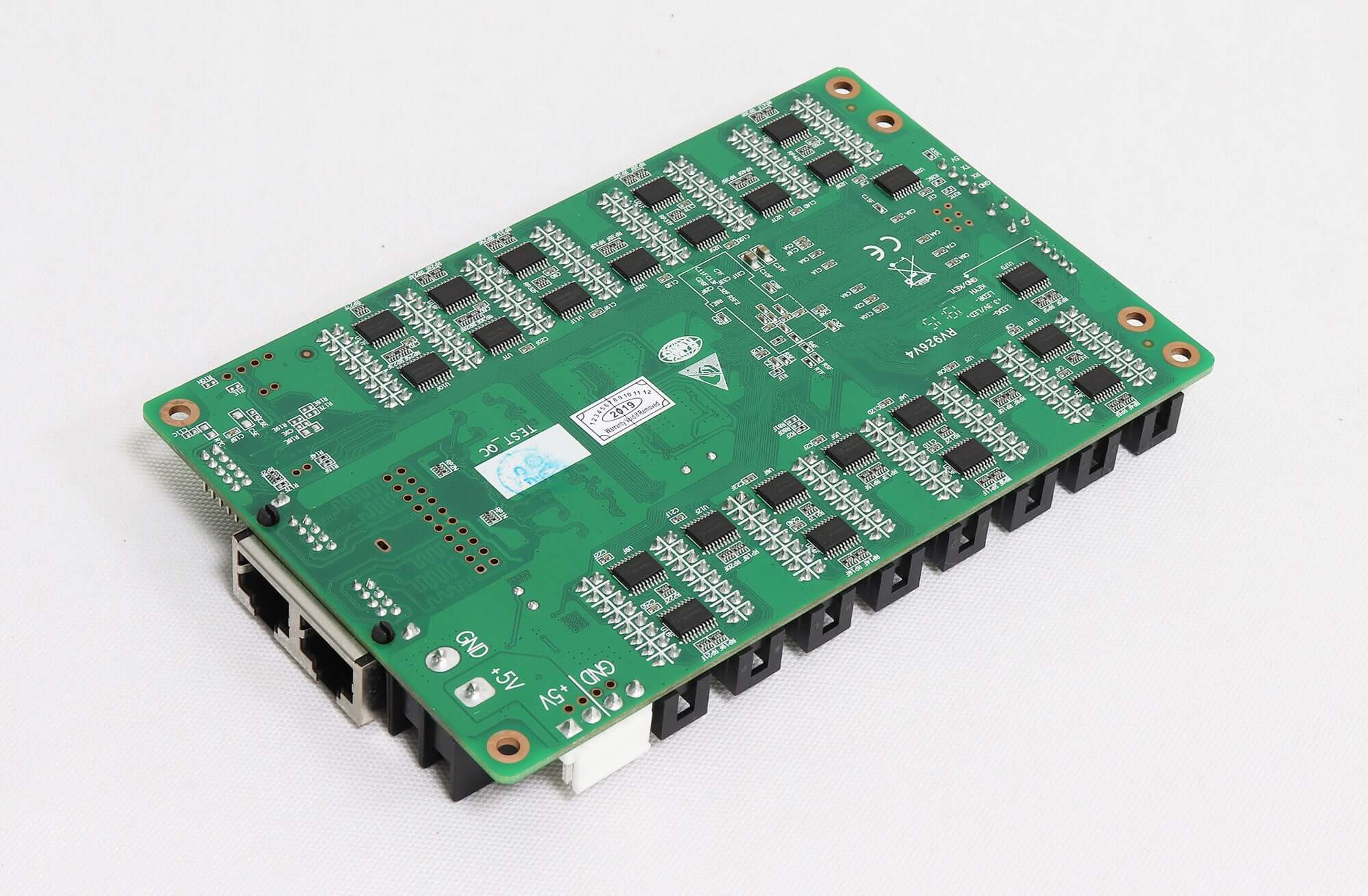

The Linsn RV926 is an LED receiving card with 16 onboard HUB75 connectors. It connects to compatible LED modules without an additional HUB75 adapter board. Use the module scan mode, driver IC and cabinet wiring to confirm the receiving-card configuration.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | RV926 |
| Module connectors | 16 × 16-pin HUB75 |
| Scan support | Up to 1/32 scan |
| Maximum listed load | 256 × 1024 or 512 × 512 pixels |
| Data output | 32 RGB groups |
| Decoding | 138 and 595 serial decoding |
| Calibration | Pixel-by-pixel brightness and color; single-card color-space conversion |
| Configuration and diagnostics | RCG readback; network cable bit-error-rate test |
Linsn Technology RV926 Receiving Card LED Display Specification
Frequently asked questions
Does the RV926 need a separate HUB75 board?
No. It has 16 onboard HUB75 connectors for compatible modules. Confirm the module pinout and scan mode before connecting it.
What pixel load does the RV926 support?
The specification lists 256 × 1024 or 512 × 512 pixels. Check the module design and operating settings when configuring the actual cabinet.
Can I read back the receiver configuration?
Yes. The RV926 supports RCG file readback and a network cable bit-error-rate test for configuration and troubleshooting.
| Weight | 0.35 kg |
|---|
