Linsn Mini908M Compact BTB LED Receiving Card
$ 14.00
Linsn Mini908M 70 × 45 mm receiving card uses a BTB connector and supports 24 RGB parallel groups, 64 serial groups and pixel calibration.
9999 in stock

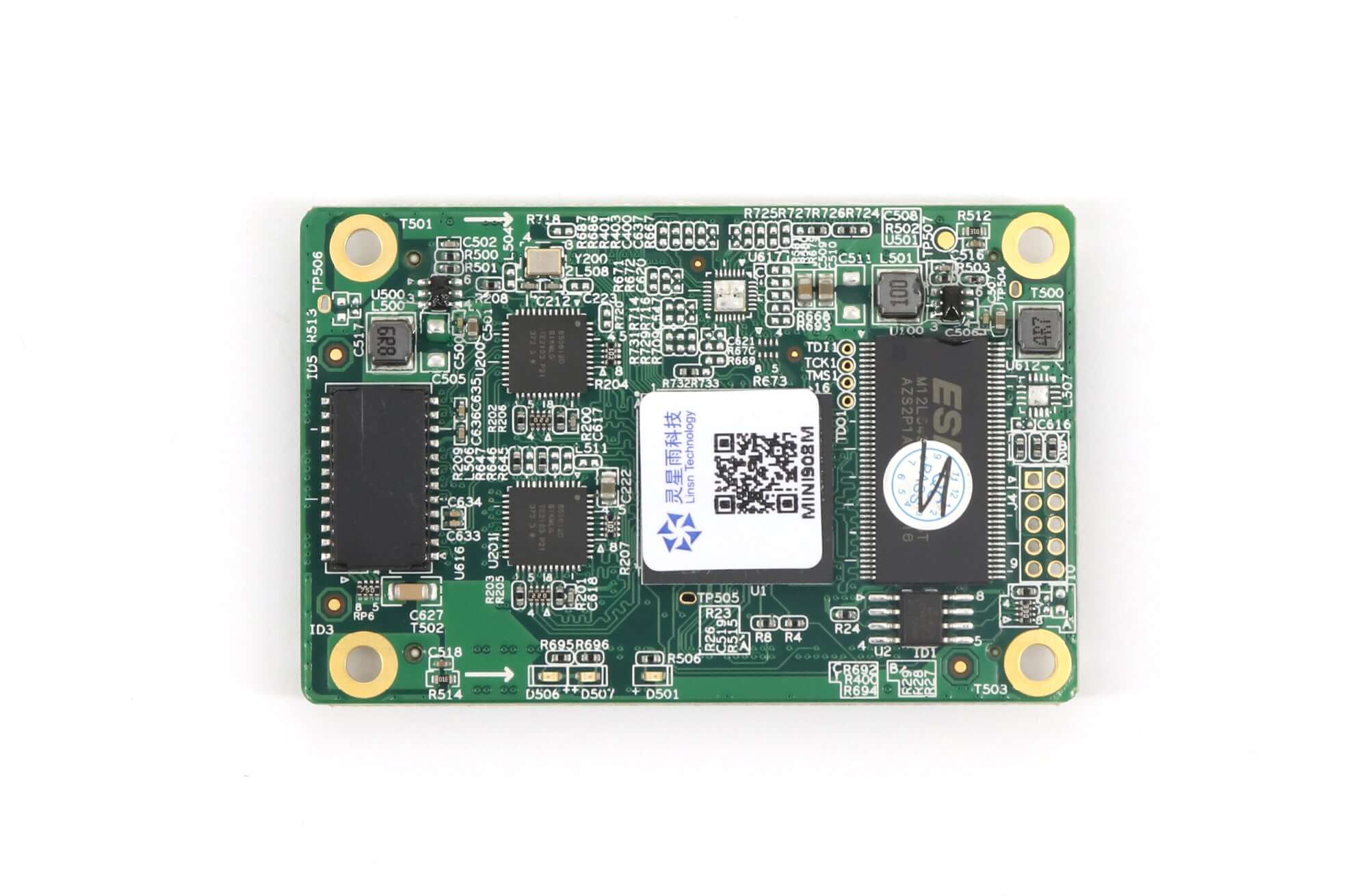

The Linsn Mini908M is a compact LED receiving card with a high-density board-to-board connector for integration into a compatible cabinet circuit. It supports parallel and serial data modes, configuration readback and pixel brightness and color calibration. A matching adapter or cabinet board is essential; BTB describes the connector arrangement, not universal compatibility.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Mini908M |
| Dimensions | 70 × 45 mm |

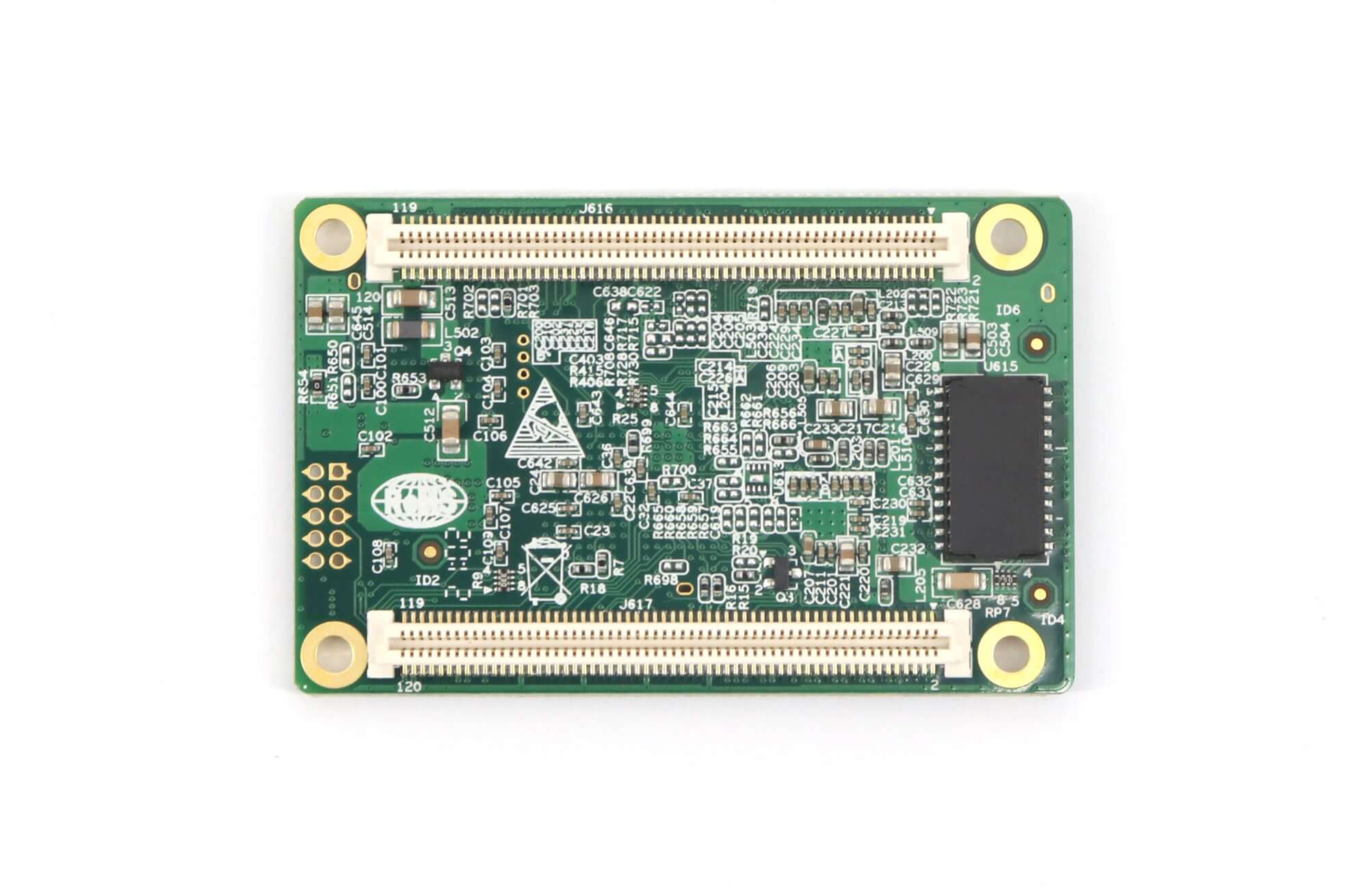

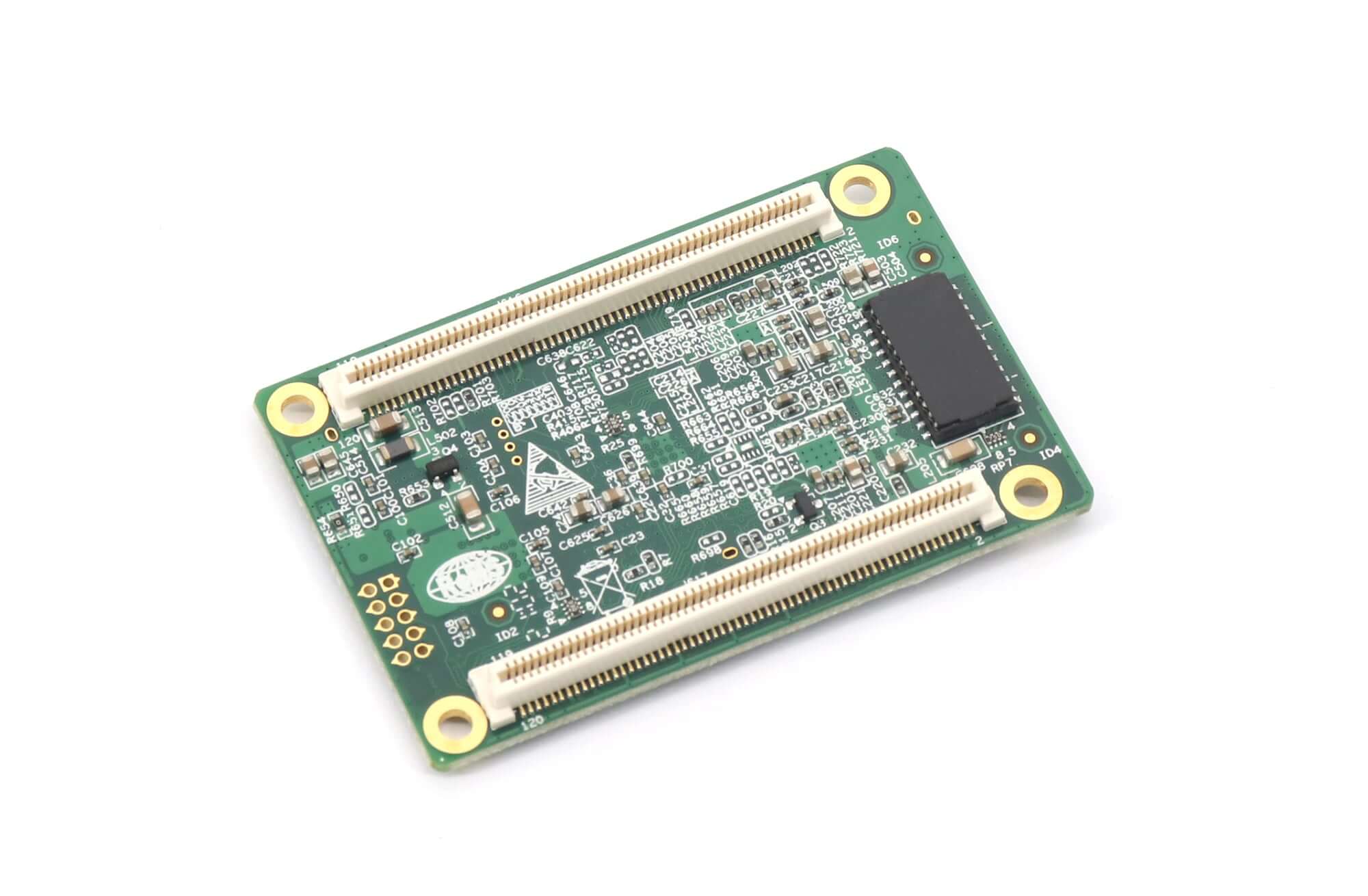

| Connection | High-density BTB connector |
| Data output | 24 parallel RGB groups; 64 serial groups |
| Maximum listed load | 1024 × 256 pixels |
| Scan support | Up to 1/32 scan; 595 and other serial decoding |
| Processing | 18-bit signal processing; up to 18-bit grayscale per RGB channel |
| Source color | 12-bit requires a compatible ninth-generation sending card |
| Calibration / configuration | Pixel brightness and color; color-space conversion; configuration readback |
| Backup / detection | Dual receiver and dual power backup support; pixel fault detection requires a dedicated chip |
LINSN MINI908M LED Receiver Card Specification
Frequently asked questions
What size is the Mini908M?
The listed board dimensions are 70 × 45 mm. Check the BTB connector and mounting arrangement against the cabinet board.
Can Mini908M plug directly into a HUB75 module?
It uses a high-density BTB connector. A compatible cabinet board or adapter must provide the correct module interface and wiring.
Does Mini908M detect faulty pixels on every display?
No. The listed pixel fault detection function requires a dedicated compatible chip. Confirm support in the actual LED module design.
| Weight | 0.1 kg |
|---|
