Listen Vision LS-V312A Full-Color LED Receiving Card, 12 × HUB75E
$ 17.00

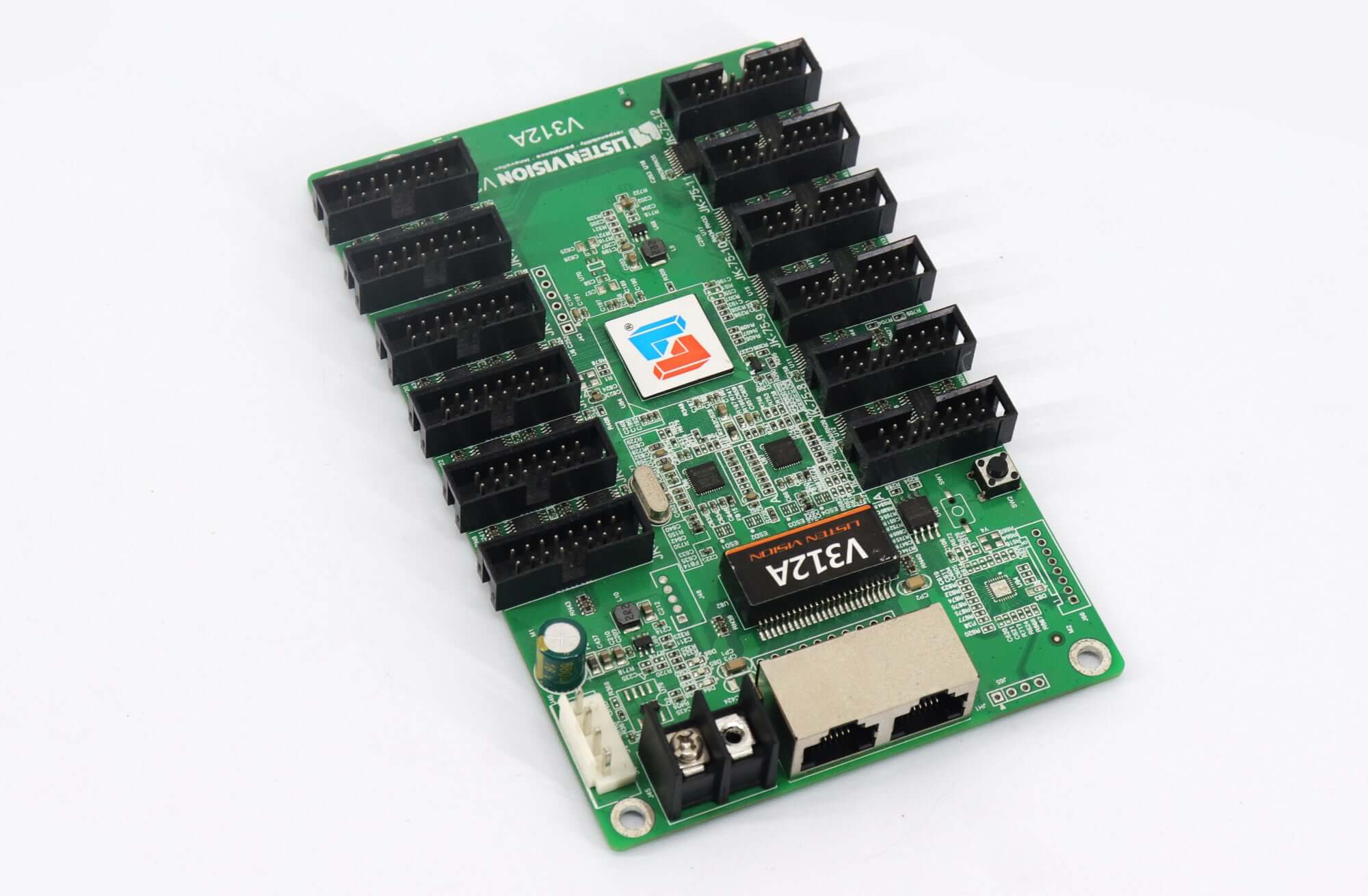

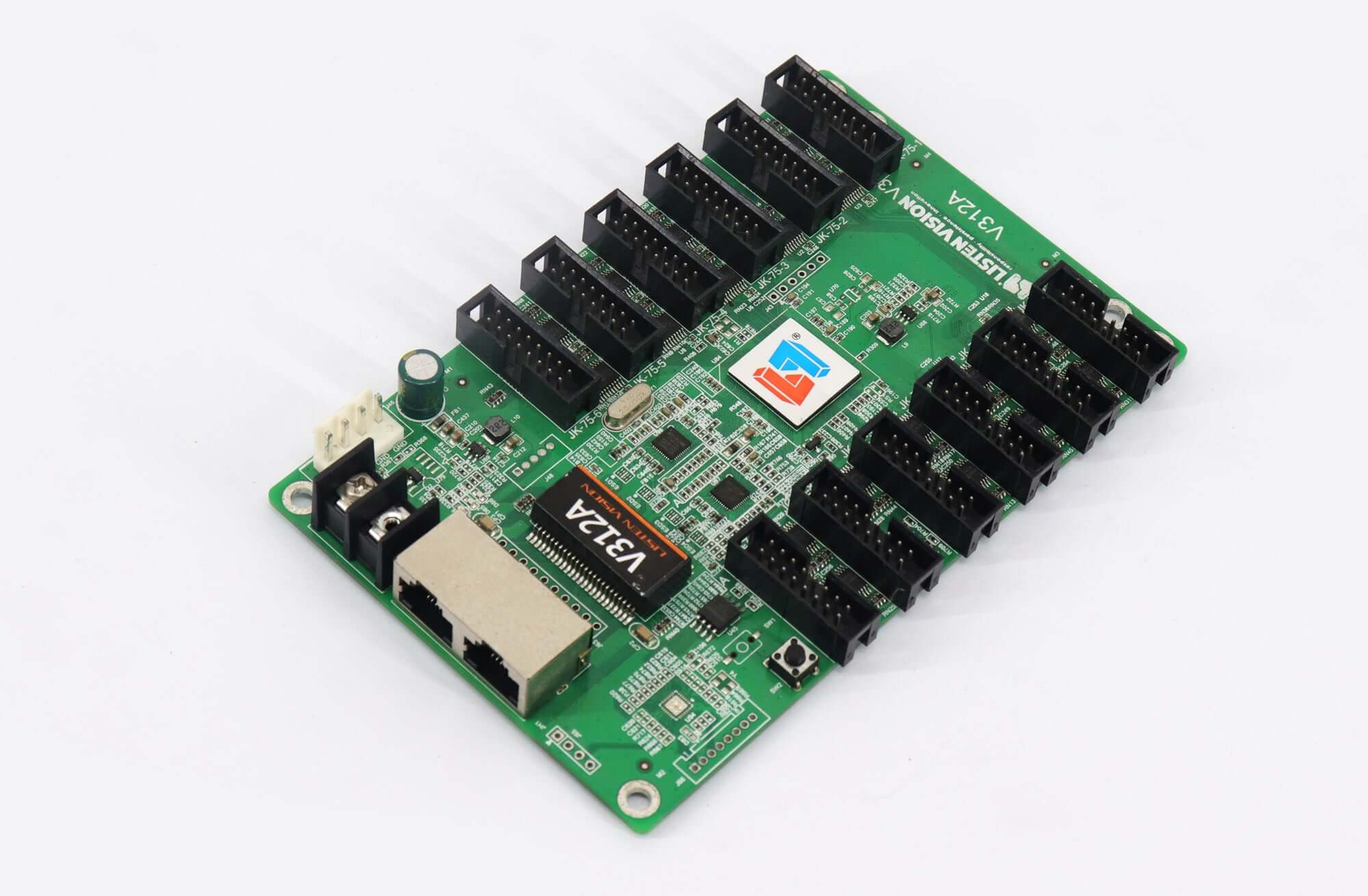

The Listen Vision LS-V312A connects LED modules through 12 onboard HUB75E ports. It supports static through 1/64 scan and runs from a 3.8–6 V supply.
9988 in stock
For replacement or cabinet setup, check the module scan, connector definition and receiver configuration together. The card supports configuration readback, individual or group updates, and adjustment of the RGB data group order.
Product details
| Parameter | Specification |
|---|---|
| Module ports | 12 × HUB75E |
| Power terminal | VH3.96-4WV |
| Supply range | 3.8–6 V |
| Operating temperature | −40 to 85 °C |
| Scan support | Static through 1/64 scan |
| Standard loading entry | 256 × 512 pixels |
| Module rotation | Multiples of 90° |
| Backup features | Dual network cable hot backup and dual program backup |
Download the product specification (PDF)
Frequently asked questions
How many HUB75E ports are on the LS-V312A?
The board diagram numbers the 12 module ports in two groups, 1–6 and 7–12.
What width should I use when planning a custom cabinet?
The standard loading entry gives 256 × 512 pixels and mentions a 256-pixel maximum width. A separate symmetric/asymmetric feature lists 512 pixels in width. Verify the applicable mode with your configuration before specifying a wider cabinet.
Can the receiving card configuration be read back?
Yes. The LS-V312A supports configuration-file readback and parameter updates for a single card or multiple cards.
| Weight | 0.3 kg |
|---|
