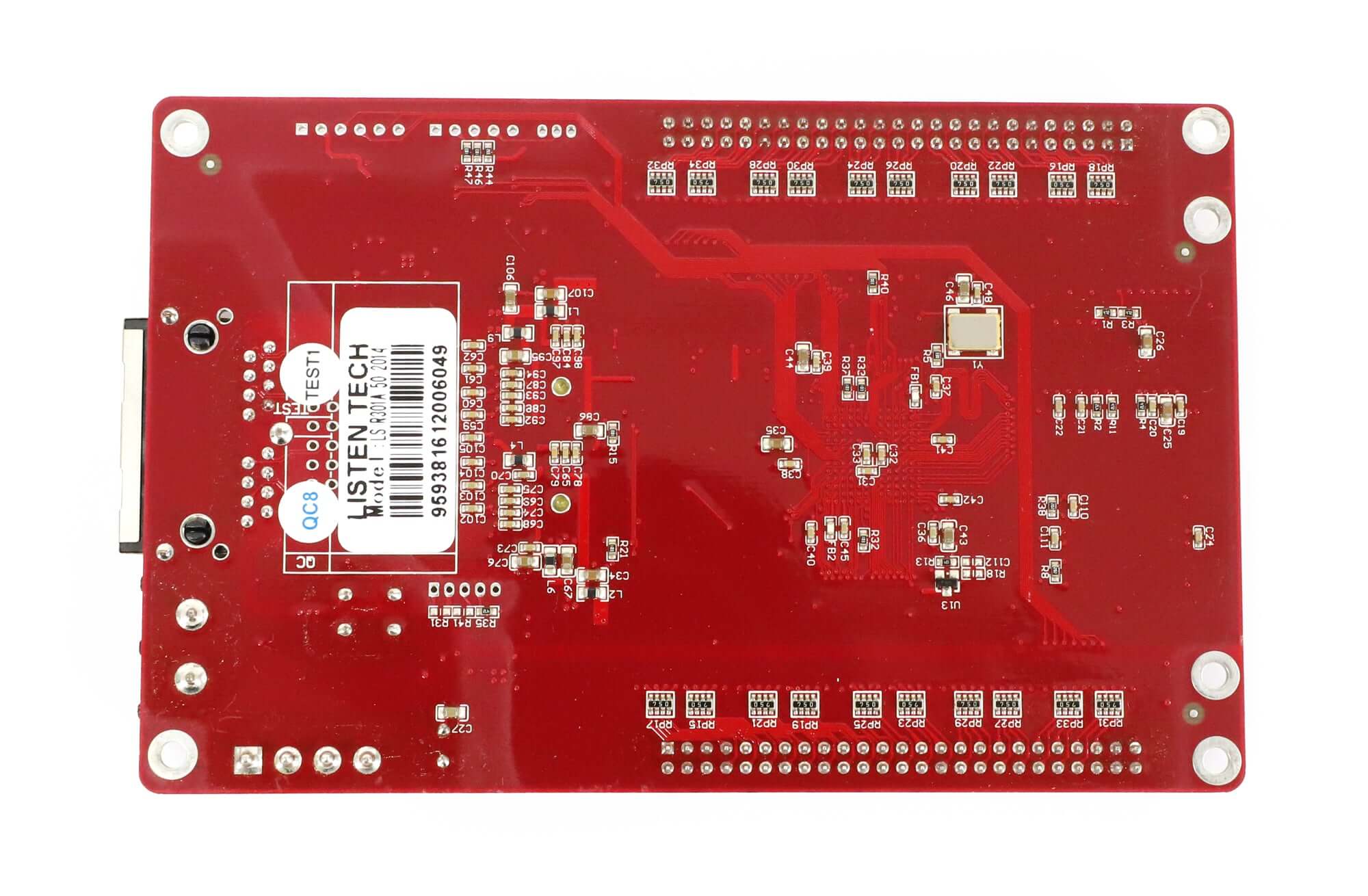

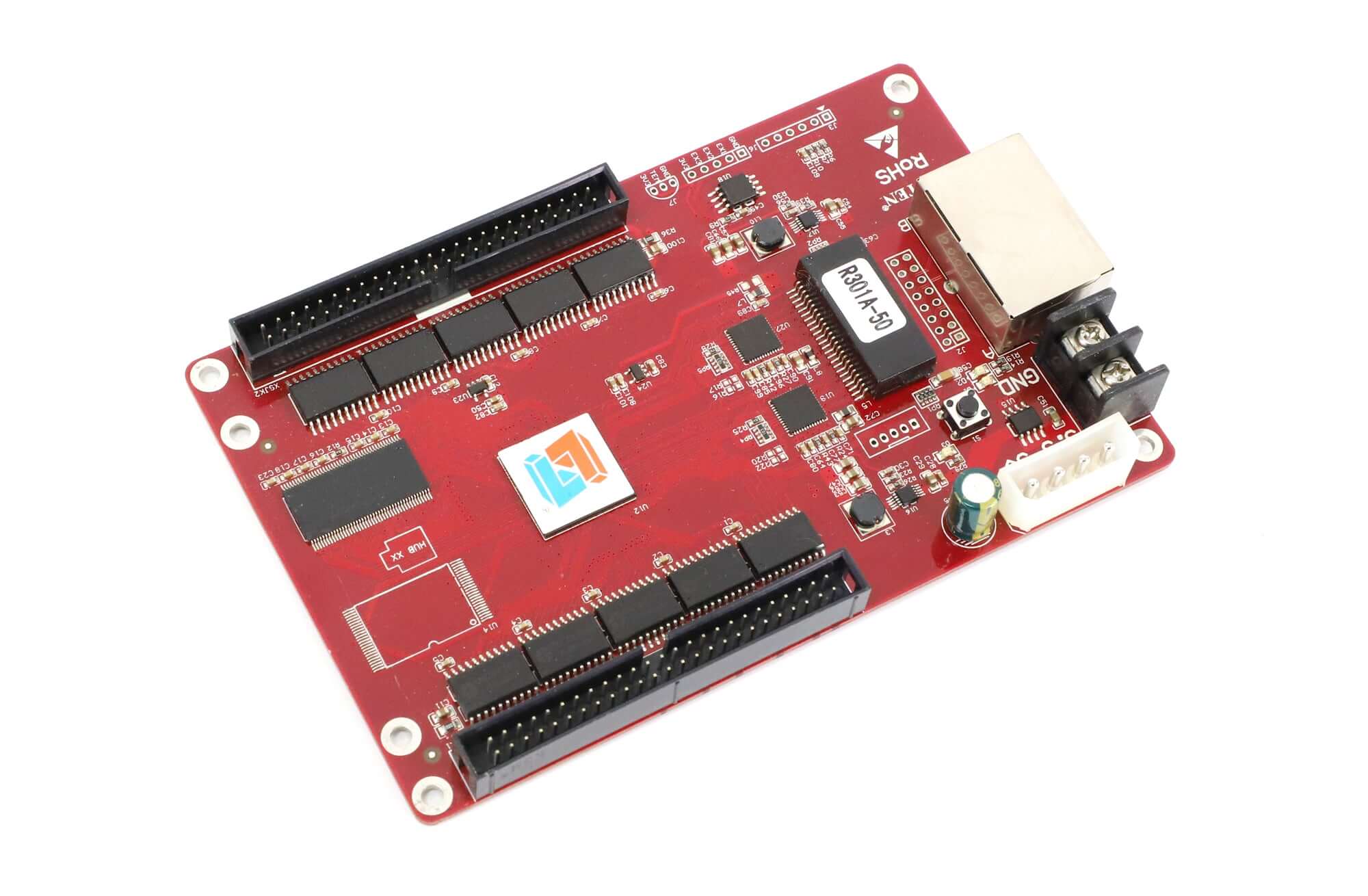

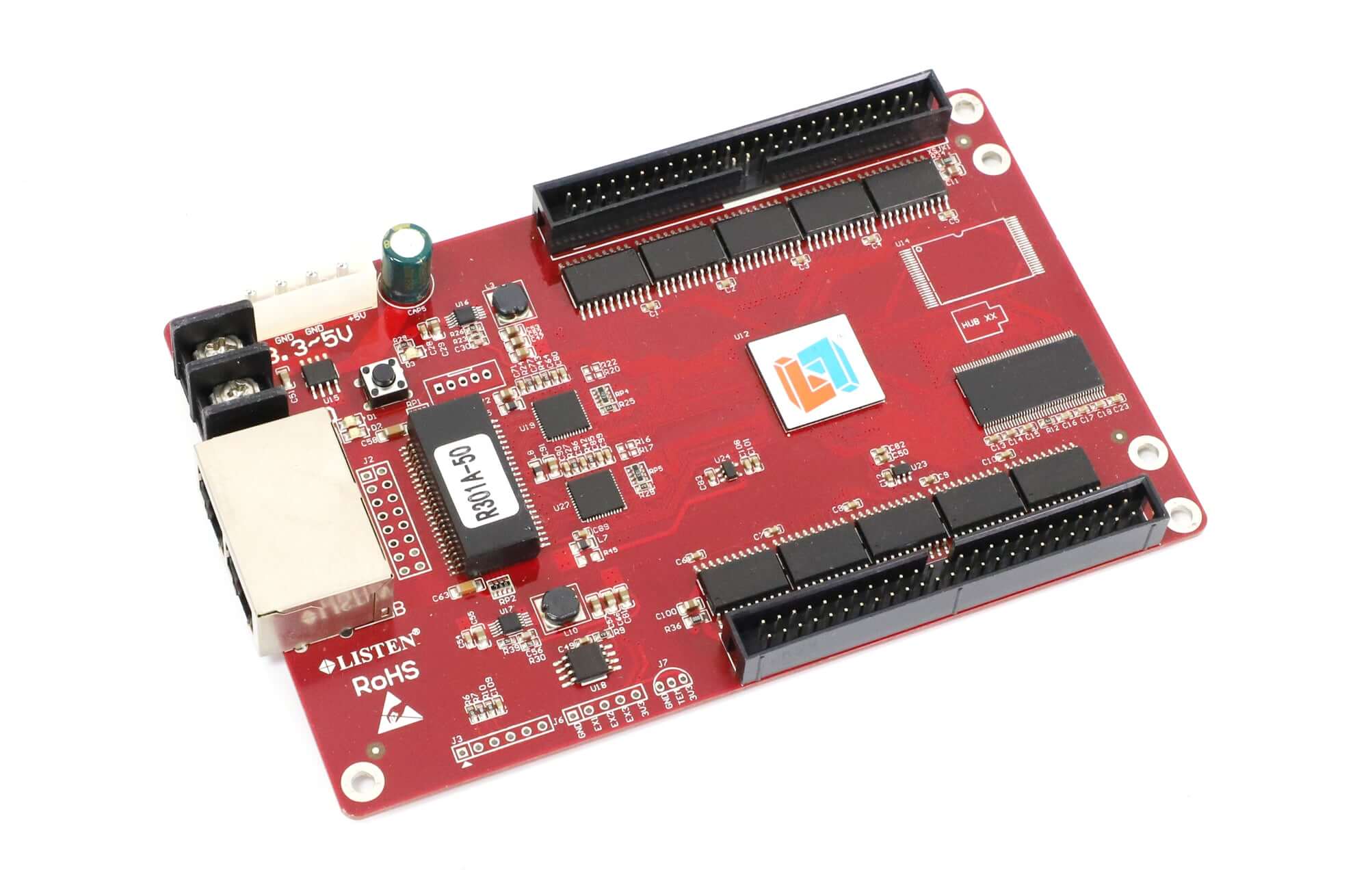

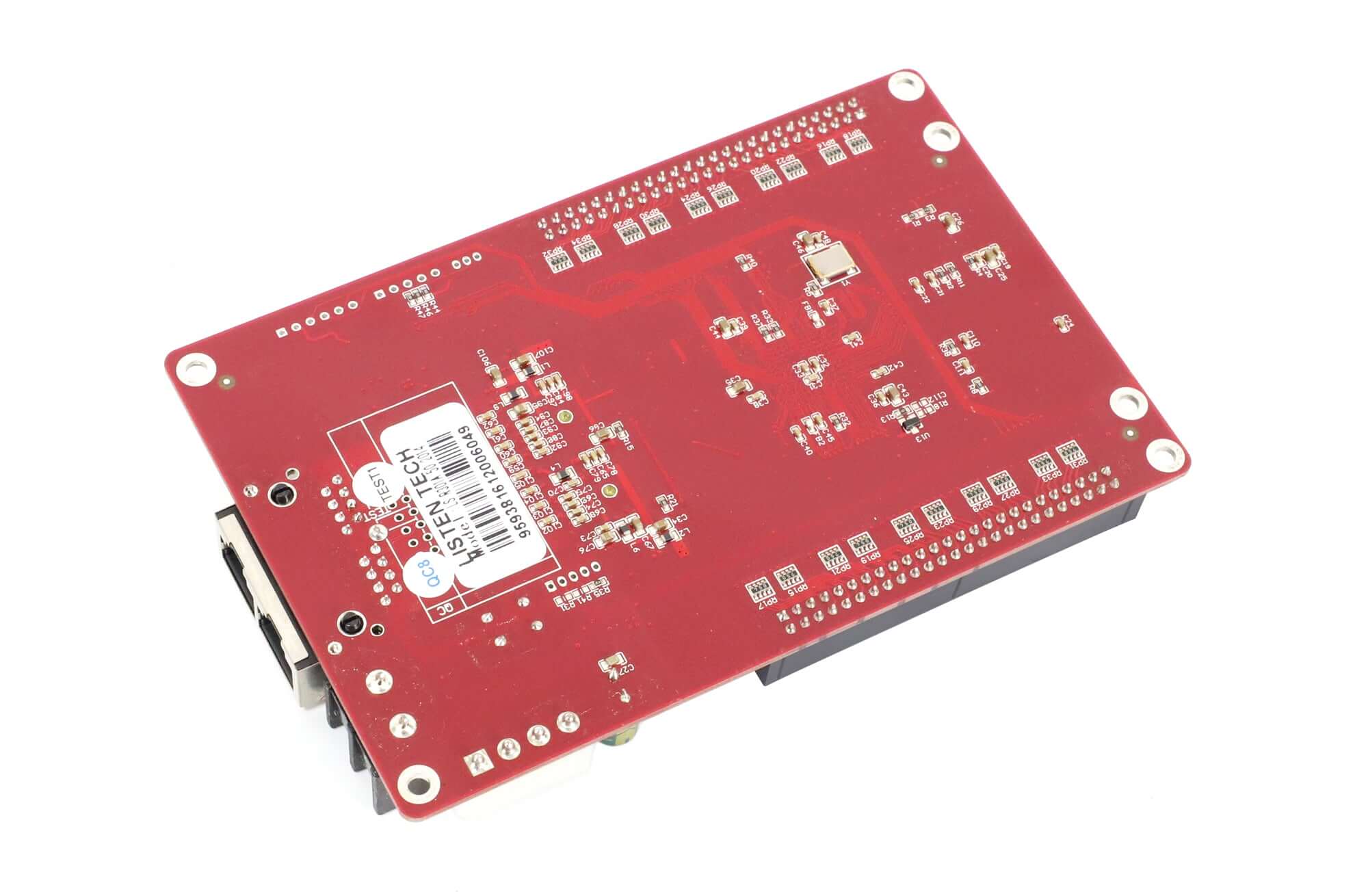

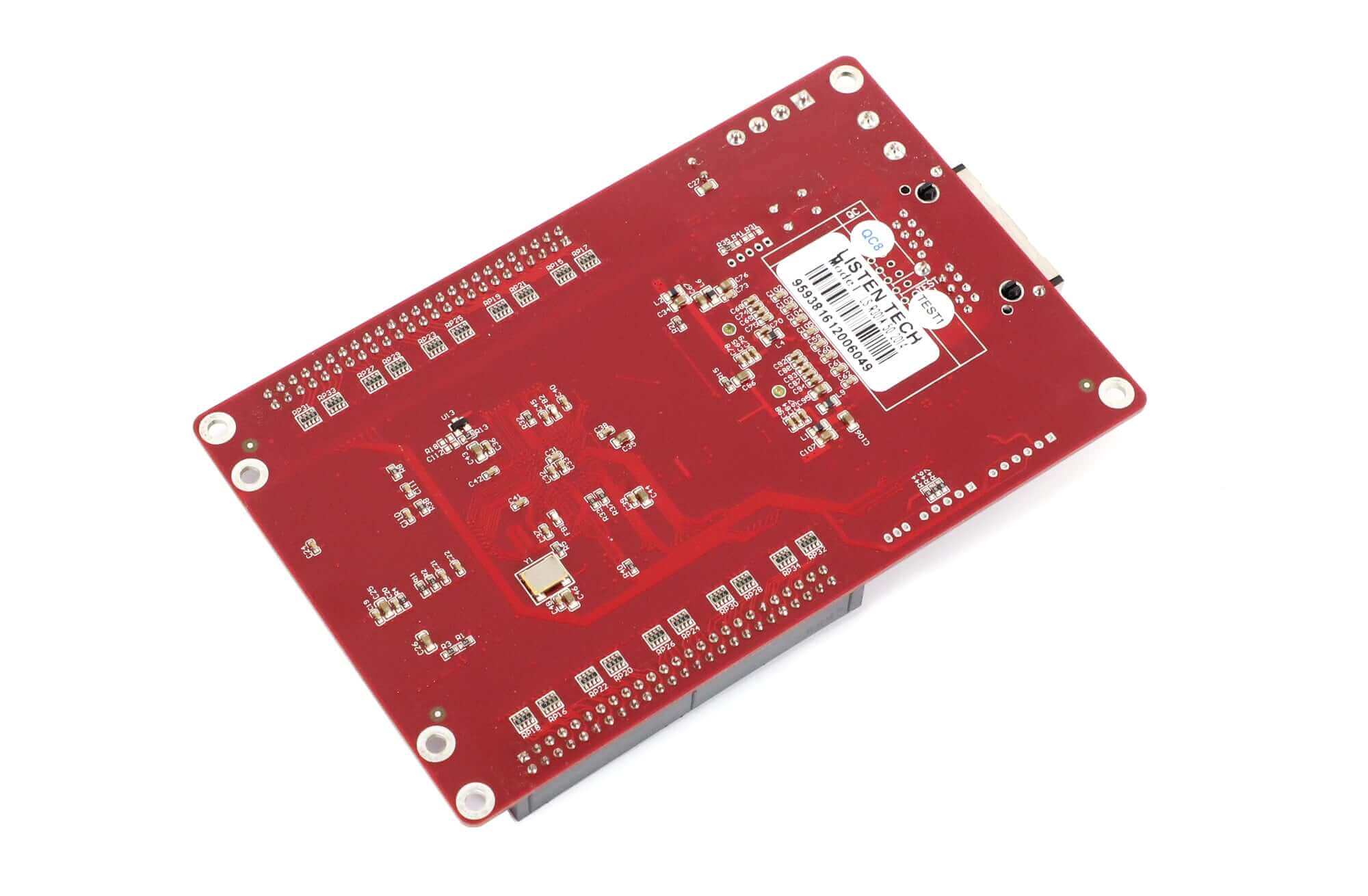

Listen LS-R301A Full-Color LED Receiving Card
$ 27.00
The LS-R301A performance table gives 256 × 128 pixels as a typical full-color load and 512 × 128 as the maximum listed load for one card.
9998 in stock
Read the typical and maximum columns separately when comparing a cabinet configuration. The original table also lists dropped-network detection and an OE polarity toggle.
Product details
| Parameter | Specification |
|---|---|
| Full-color area, typical / maximum | 256 × 128 / 512 × 128 pixels |
| Output data groups, typical / maximum | 16 / 16 |
| Gray levels, typical / maximum | 4096 / 65536 |
| Frequency, typical / maximum | 15 MHz / 32 MHz |
| Refresh rate, typical / maximum entry | 300 Hz / >4096 Hz |
| Listed brightness loss | 15–20% |
Frequently asked questions
Can a single R301A load 512 × 128 full-color pixels?
The product table gives 512 × 128 in its maximum column. The corresponding typical entry is 256 × 128.
Are 32 MHz and 4096 Hz the same specification?
They refer to separate rows. The frequency row lists 32 MHz maximum, while the refresh row gives a maximum-column entry above 4096 Hz.
How many gray levels does the table specify?
It gives 4096 as typical and 65536 in the maximum column. Check the intended module configuration when using the higher figure.
| Weight | 0.3 kg |
|---|
