Kystar G628 LED Receiving Card, 8 HUB320 Interfaces
$ 16.00
Kystar G628 LED receiving card with eight HUB320 interfaces and 32 RGB data groups. Supports point-by-point calibration, configuration readback, one-click repair and network diagnostics.
1000 in stock
G628 receiving card for LED modules
The Kystar G628 receives display data from the LED control system and converts it into control signals for LED modules. It provides eight HUB320 interfaces and 32 groups of RGB data, with configuration readback and a one-click repair function for installation and maintenance.
Technical specifications
| Parameter | Specification |
|---|---|
| Module interfaces | 8 × HUB320 |
| RGB data output | 32 groups |
| Driver support | General-purpose, PWM and dual-latch driver chips |
| Calibration | Point-by-point brightness and chromaticity correction; low-gray compensation |
| Configuration tools | Configuration readback; one-click repair |
| Diagnostics | Network communication status and cable connection sequence detection |
| Mapping | Arbitrary pixel extraction for special-shaped displays |
| Firmware protection | Program write protection |
Image adjustment and maintenance
Frequency-doubling and color-transformation functions support camera-facing display applications and color adjustment. Low-brightness grayscale processing and calibration help tune shadow detail and module consistency. Results depend on the connected modules, driver chips and display configuration.
Readback and repair tools simplify card replacement, while network diagnostics help check the data path. Confirm module pinout and driver compatibility before connecting the receiving card.
Frequently asked questions
What does the G628 receiving card do?
It receives LED display data and converts it into control signals for the connected LED modules.
How many HUB320 interfaces does it have?
The G628 provides eight HUB320 interfaces and outputs 32 groups of RGB data.
Does it support brightness and color calibration?
Yes. It supports point-by-point brightness and chromaticity correction, including low-gray compensation.
Can I read back the receiving-card configuration?
Yes. Configuration readback and one-click repair functions are listed for installation and maintenance.

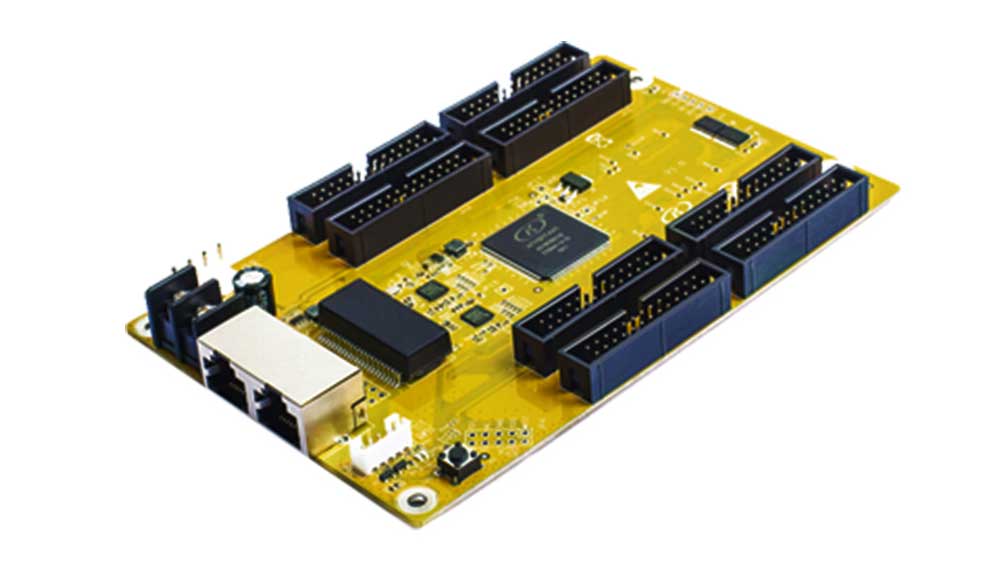

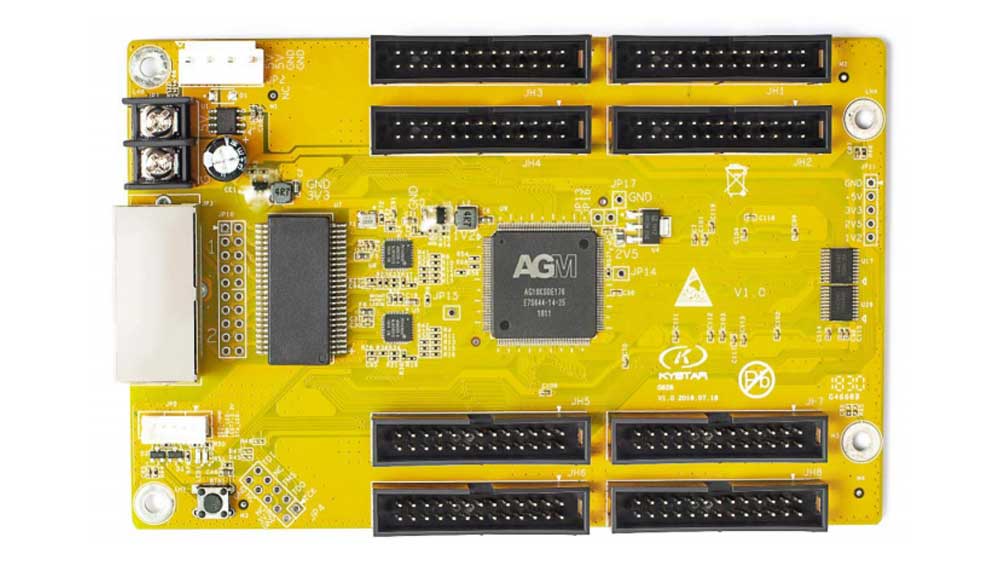

Product images and specification download
Download Specification:
Kystar G628 LED Display Screen Receiver Card Specification
| Weight | 0.3 kg |
|---|
