Huidu HD-C16H LED Display Asynchronous Controller

Overview

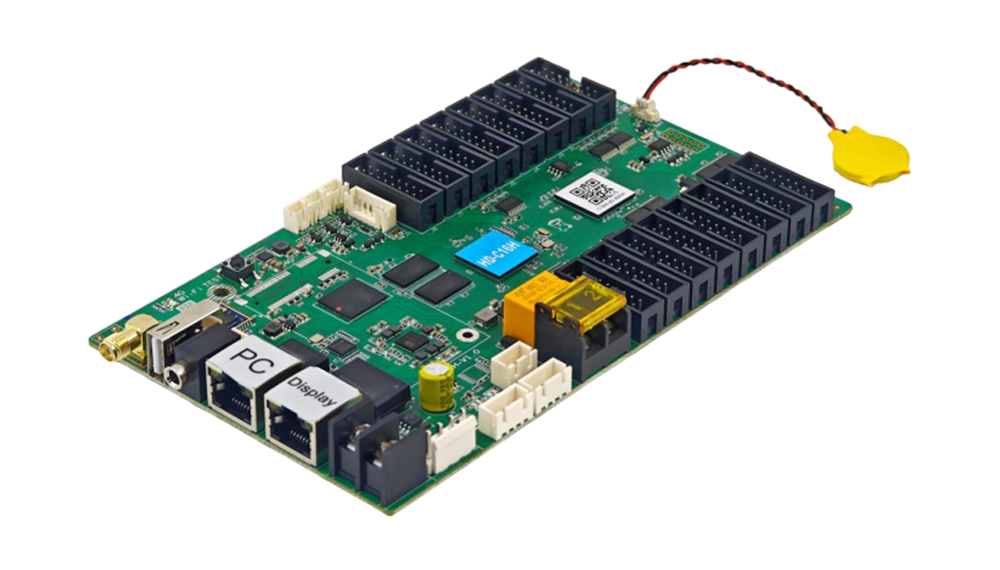

HD-C16H is an LED asynchronous full-colour control card that integrates sending, receiving and playing. The 16 HUB75E interfaces on board can directly drive the LED screen, and can also be cascaded with all the way Gigabit output network port and HD series receiver card, with a total loading capacity of up to 650,000 pixels; the motherboard is equipped with Wi-Fi as standard, which can operate in AP and STA modes simultaneously; it supports the communication methods of U-disk, Ethernet, and 4G, supports mobile APP – “LedArt” wireless control; It supports access to the “XiaoHui Cloud” platform to easily realize remote cluster management on the Internet; it supports various environmental monitoring sensors, and Supports various content formats including video, images, GIF, text, animated text, colorful fonts, documents, tables, clocks, and timers; stable system,smooth walking words, is widely used in intelligent light pole screen, door screen, car screen, community screen and other scenes.

Features:

Input：
1. Support 1 channel 100M communication network port, communicate with the other devices via TCP/UDP.
2. Support 1 channel USB communication interface, which can be used to update programs and expand capacity;
3. Support 2 universal sensor inputs and 1 single-temperature sensor input.
4. Support optional HDMI adapter small board, maximum support for 1920×1080 @60Hz input.
Output：
1. The maximum control range is 650,000 pixels, only C16H can load 260,000 pixels (Note: the actual bandwidth is related to the number of interfaces/module resolution), support for the widest 2048 pixels; cascade receiver card with 650,000 pixels, support for the widest support for 8192 pixels (width > 2048 discount), or support for the highest 3840 pixels (height > 2048 discount);
2. Support 1 channel Gigabit output network port, cascade HD receiver card display;
3. 16 HUB75E interfaces on board;
4. Support 1 channel TRS 3.5mm standard dual-channel audio output and 3PIN dual-channel audio output
interface.
Functions：
1. Comes with 2.4GHz Wi-Fi and supports mobile APP wireless control (support Wi-Fi AP, Wi-Fi STA mode switching and simultaneous switching on, recommended operating distance within 15M);
2. Onboard 1-channel relay (operating voltage: 4.6V-5.5V) can remotely control the power supply;
3. Video playback performance: 1-way 4K or 3-way 1080P or 8-way 720P or 16-way 360P;
4. Support 3 groups of CTRL function, switching detection, detecting 12V level input, controlling bright screen/black screen/switching programme;
5. Support 4G access to XiaoHui Cloud platform to realize remote management on the Internet (optional);
6. Support UART communication;
7. Supports 2 channel RS-232 or RS-485 communication.
