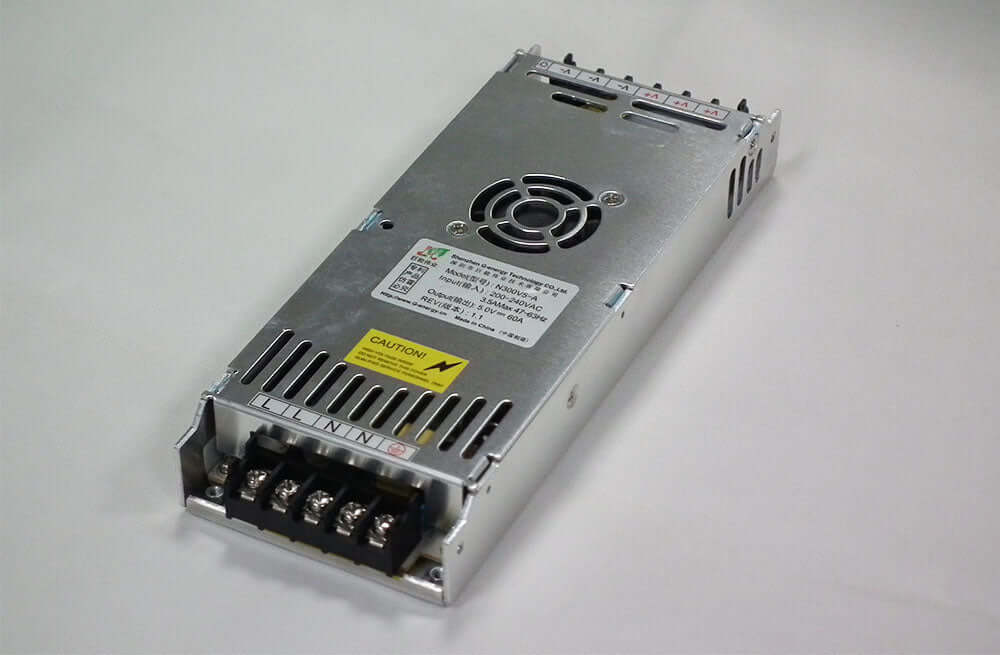

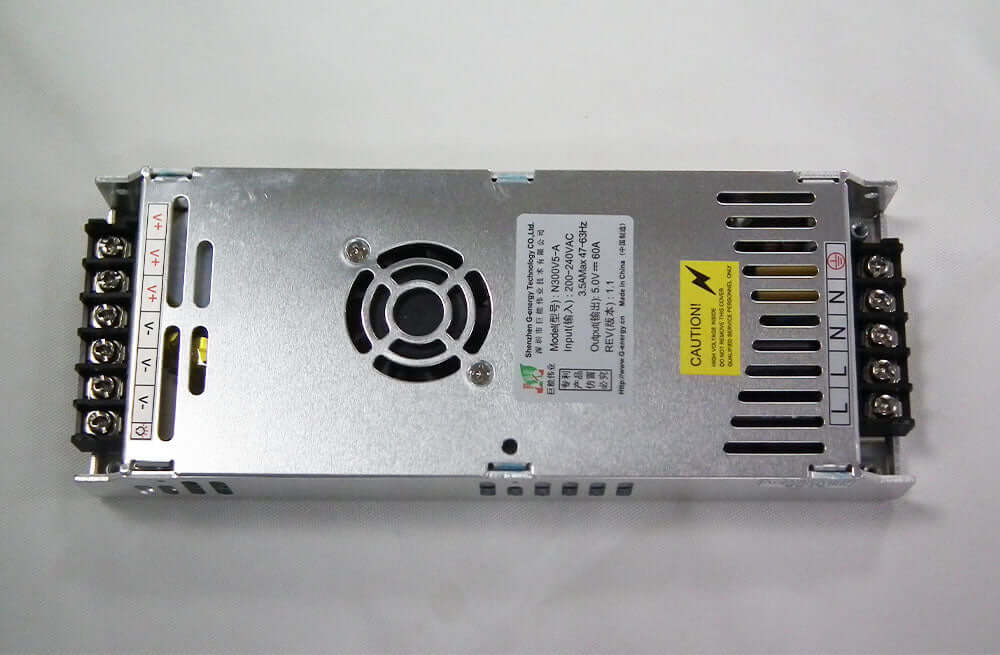

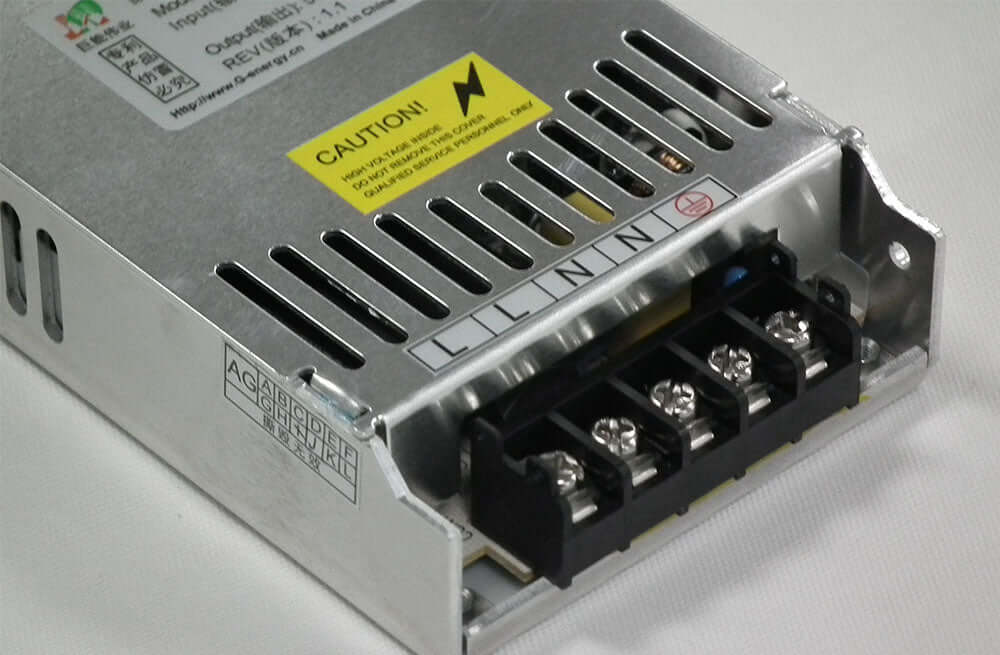

G-Energy N300V5-A 300 W LED Display Power Supply, 200–240 V AC
$ 15.20
The G-Energy N300V5-A accepts 200–240 V AC and supplies up to 300 W for an LED display. Its specified operating range is −30 to +60 °C.
9960 in stock
Match the cabinet’s AC feed to the specified voltage and frequency range. The N300V5-A uses air cooling, so allow for airflow around the installed supply.
Product details
| input voltage:200-240Vac,47-63Hz | Protection:undervoltage,Overload,Short circuit |
| Output power:300W Max | Working temperature:-30~+60℃ |
| Power factor:0.50@230Vac | Storage temperature:-40~+100℃ |
| Insulation voltage:I/P-O/P:3.0KVac | Safety standards:GB4943,EN60950 |
| I/P-FG:1.5KVac;O/P-FG:0.5KVac | Dissipate heat:Air cooling |
| Leakage current:0.30mA@230Vac | Size:212×83×30 |
Download the product specification (PDF)
Frequently asked questions
Will the N300V5-A run on a 120 V AC circuit?
120 V is outside the listed input range of 200–240 V AC at 47–63 Hz.
Which faults does the N300V5-A protect against?
The specification lists undervoltage, overload and short-circuit protection.
What temperature range applies during operation?
The working range is −30 to +60 °C. The separate storage range of −40 to +100 °C does not apply while the unit is powering a display.
| Weight | 1.03 kg |
|---|
