Colorlight C7 LED Media Player with HDMI Input
Original price was: $ 655.50.$ 580.90Current price is: $ 580.90.
Colorlight C7 1U LED media player for up to 2.3 million pixels, with HDMI input/loop output, LAN and dual-band Wi-Fi. Supports stored programs, cloud management and optional 4G/GPS.
10000 in stock
Colorlight C7 LED Media Player for Cloud-Managed Screens
The Colorlight C7 is a 1U LED media player with up to 2.3 million pixels of loading capacity. It combines stored-program playback with HDMI input and loop output, allowing operators to switch between asynchronous and synchronous display modes.
Local Playback and Remote Management
Manage programs through LAN, dual-band Wi-Fi or optional 4G. Colorlight Cloud supports device monitoring, scheduling, publishing to groups of screens and approval-based program release. In Wi-Fi AP mode, a phone, tablet or PC can manage programs and parameters locally.
The C7 supports 1080p video decoding and overlapping program windows. Its 8 GB internal storage includes 5 GB available to users, while USB storage supports plug-and-play content. HDMI loop output allows cascading between players. Optional GPS provides timing for multi-screen synchronization.
Technical Specifications
Based on the C7 Player Specification V1.0, dated August 19, 2017.
| Parameter | Specification |
|---|---|
| Maximum loading capacity | 2.3 million pixels |
| Maximum width / height | 4096 pixels / 2560 pixels; layout must remain within total loading capacity |
| Processor / graphics / RAM | 1.6 GHz dual-core CPU; 600 MHz quad-core GPU; 1 GB DDR3 |
| Video decoding | Up to 1080p HD |
| Internal storage | 8 GB total; 5 GB user-available |
| HDMI | Input and loop output |
| USB | 2 × USB 2.0; external USB storage up to 32 GB |
| LED data output | Gigabit Ethernet to receiving cards |
| Network access | 100M LAN; 2.4/5 GHz Wi-Fi with AP and station modes |
| Optional modules | 4G and GPS |
| Audio output | 3.5 mm TRS |
| Program layout | 4 video windows plus picture/text windows |
| Software | LEDVISION 5.0 or later |
| Chassis / weight | 1U / 2 kg |
| Power supply / rated power | AC 100–240 V / 20 W |
| Operating conditions | −25 to 80°C; 0–95% humidity, non-condensing |
Frequently Asked Questions
Can the C7 play content without a permanent PC connection?
It supports stored-program playback from internal storage and USB plug-and-play content. Programs can be updated through USB or the network.
Can I use HDMI input as well as stored programs?
Yes. The C7 has HDMI input and loop output, with a switch for synchronous and asynchronous display modes.
Are 4G and GPS included as standard?
The specification marks both 4G and GPS as options. Confirm these modules when ordering if mobile connectivity or GPS timing is required.
Can it drive a 4096 × 2560 screen?
Those are separate maximum width and height limits. The complete layout must also stay within the C7 total capacity of 2.3 million pixels.
How do I manage the C7 over Wi-Fi?
Use station mode to connect to a wireless network or AP mode for local program and parameter management from a compatible phone, tablet or PC.

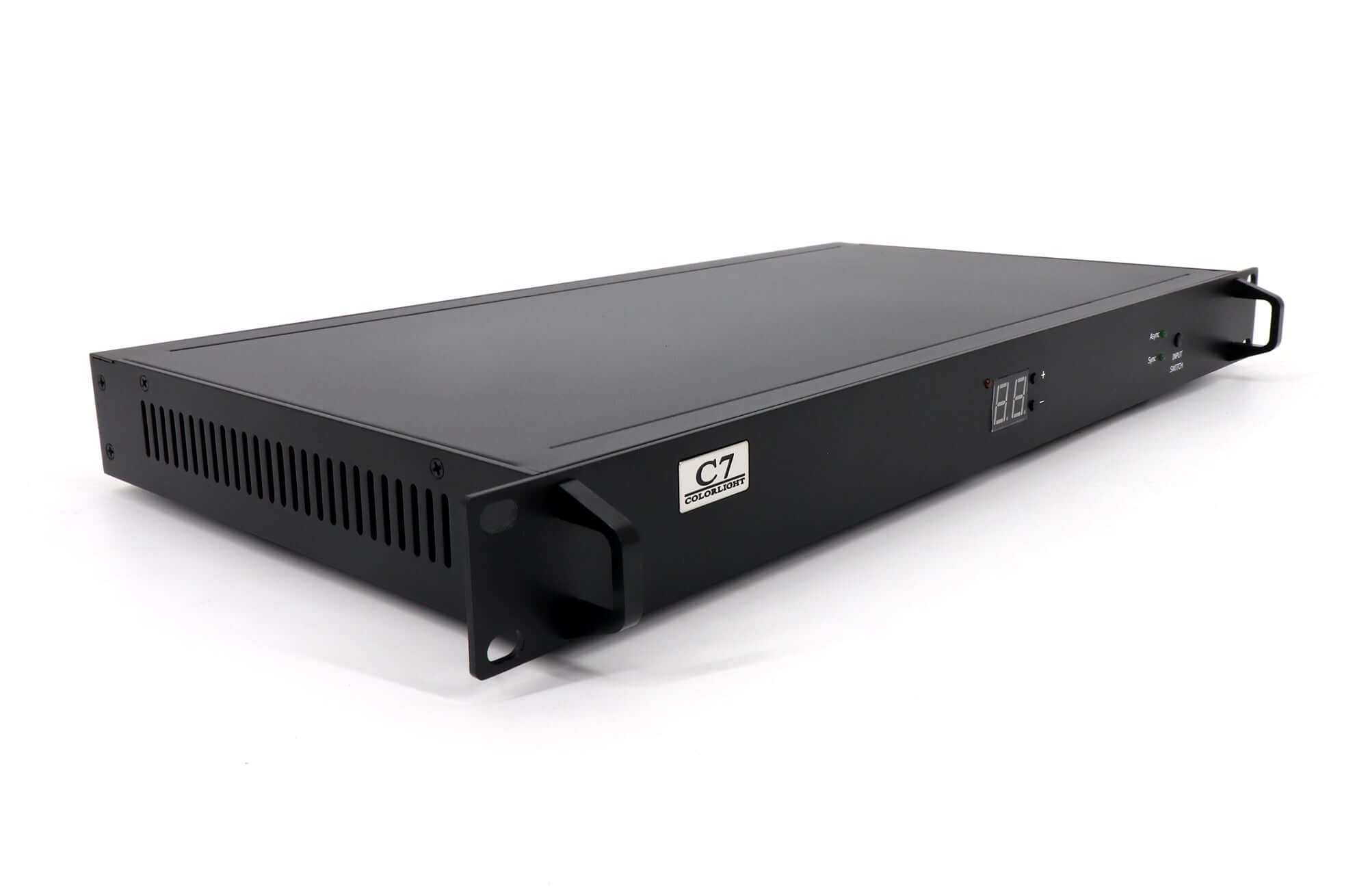

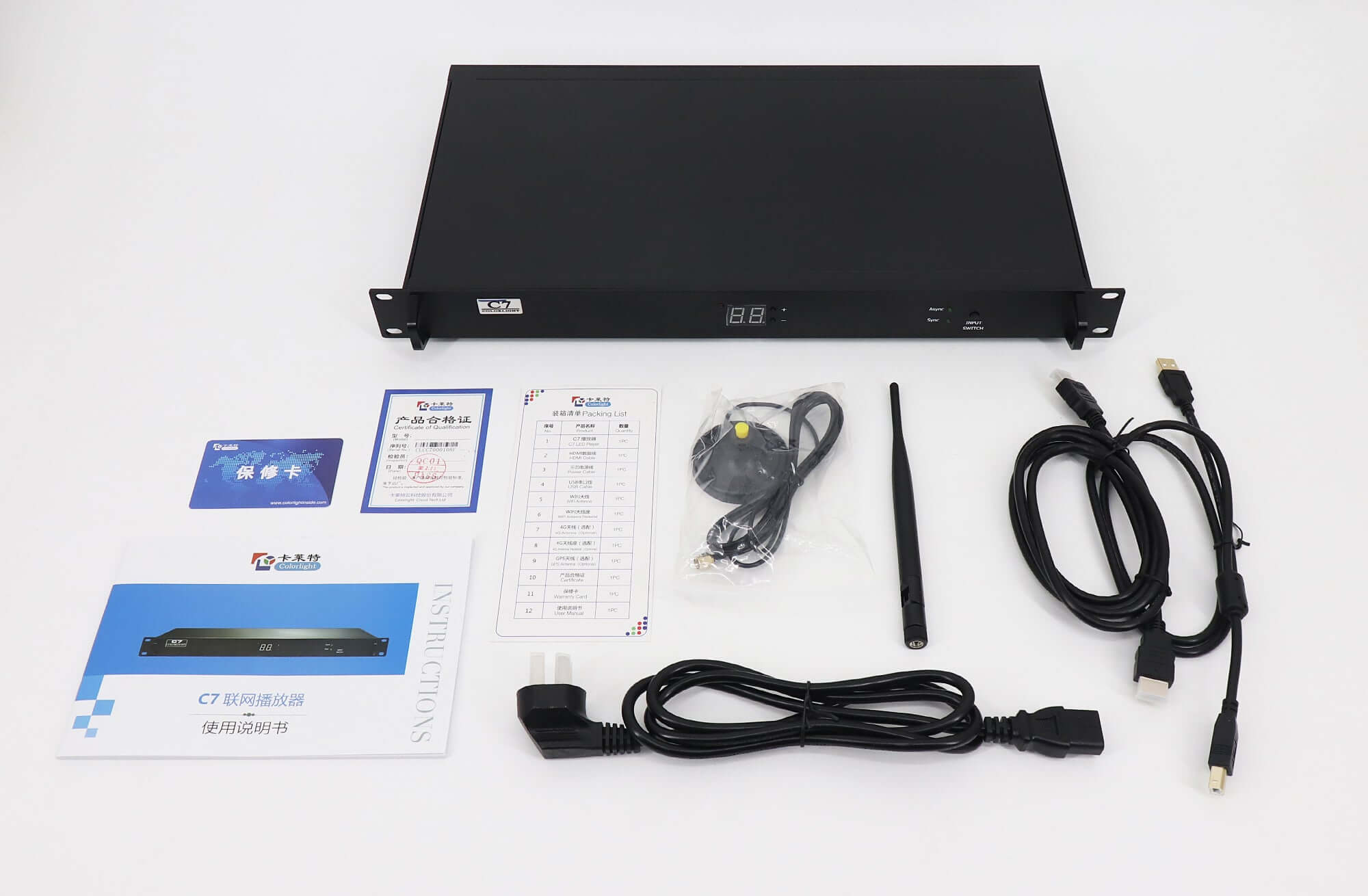

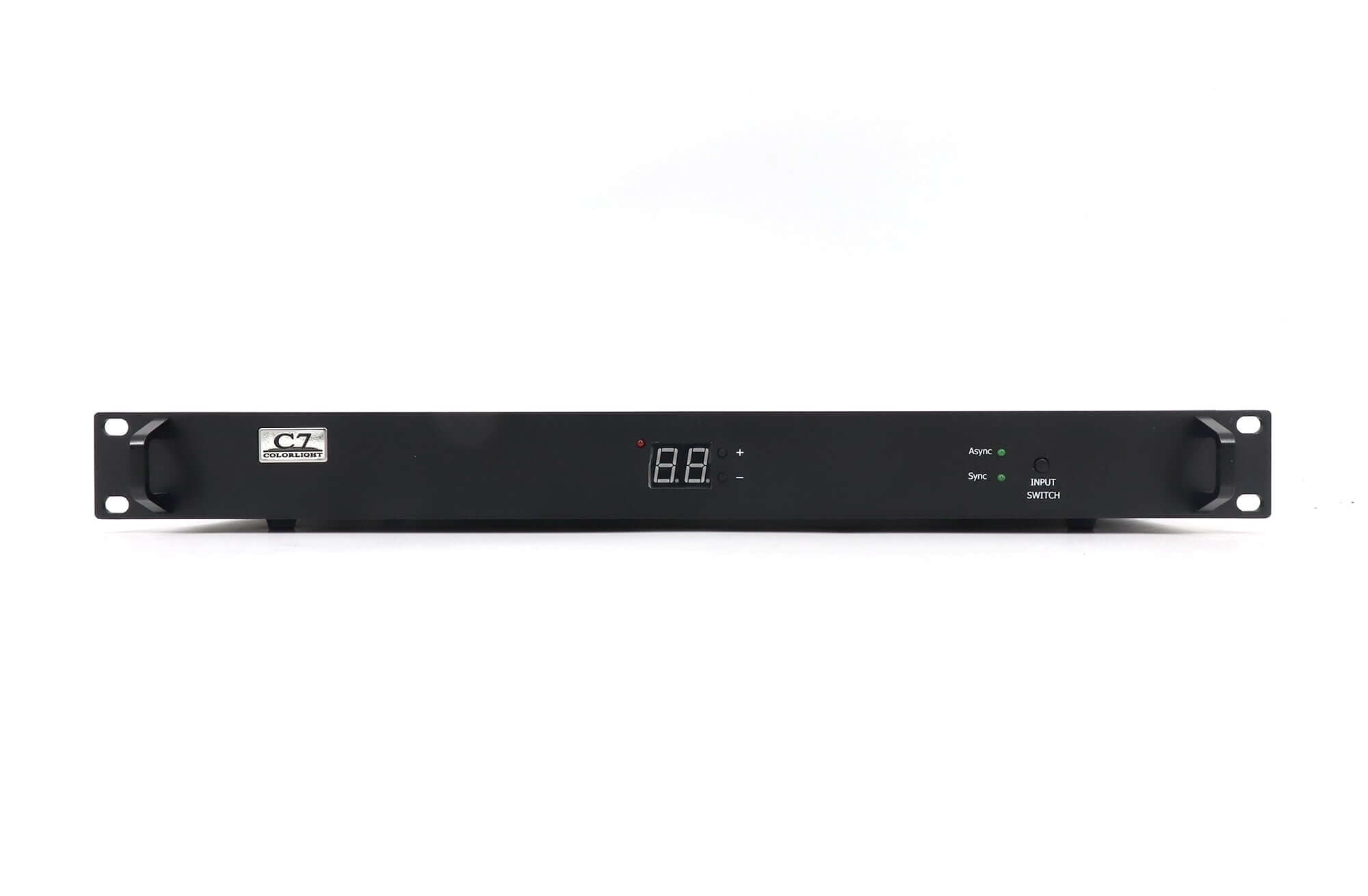

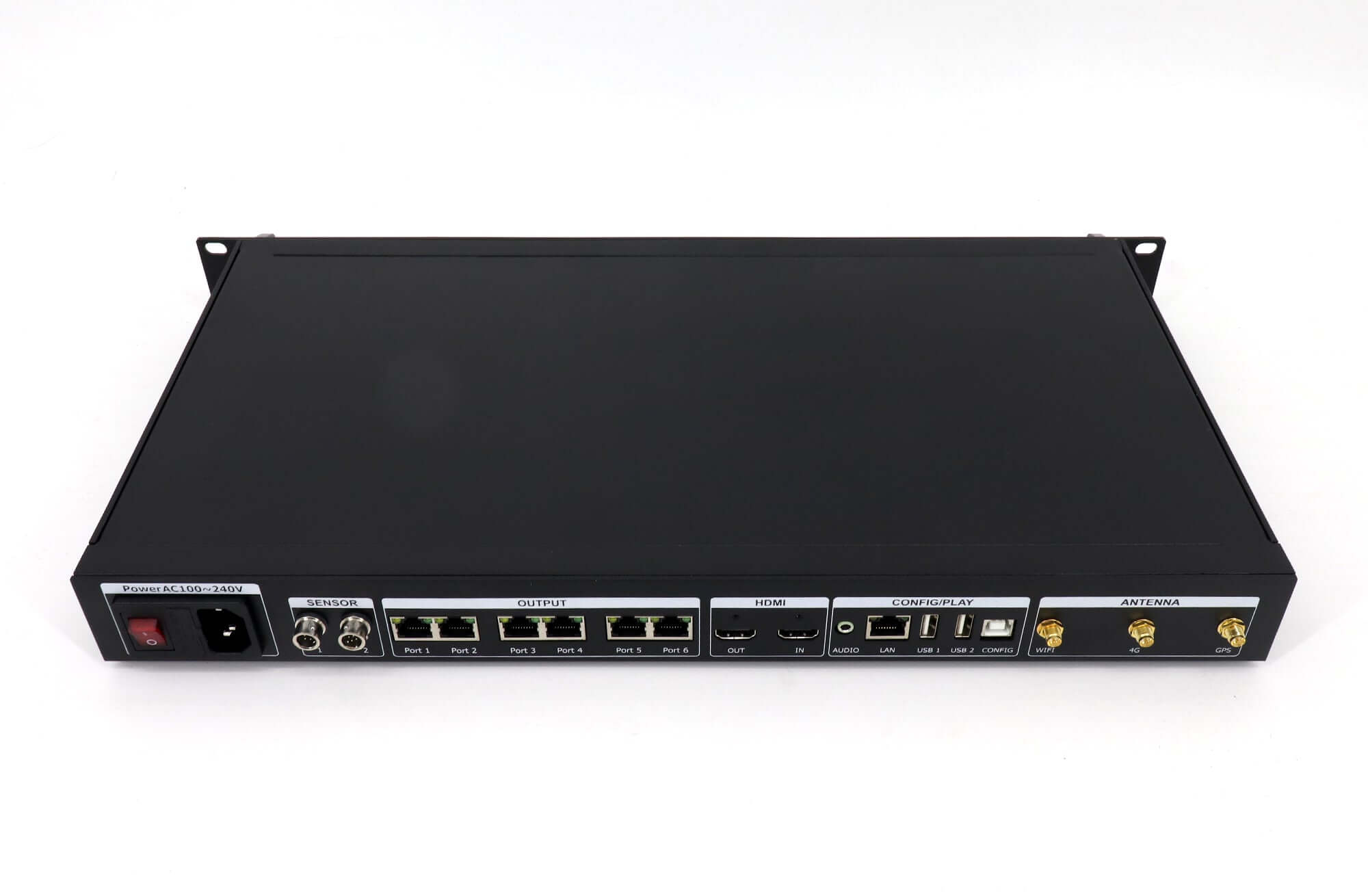

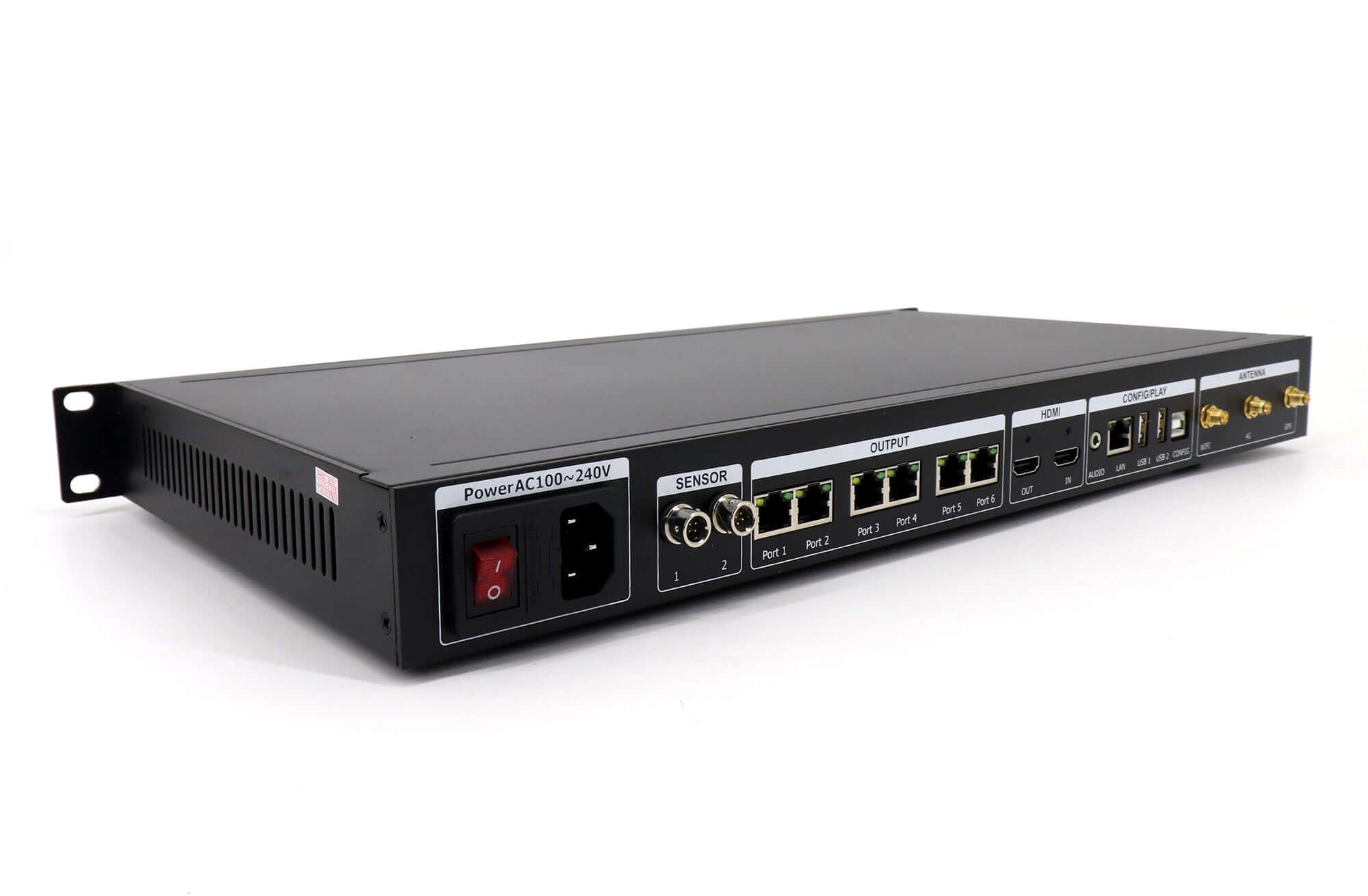

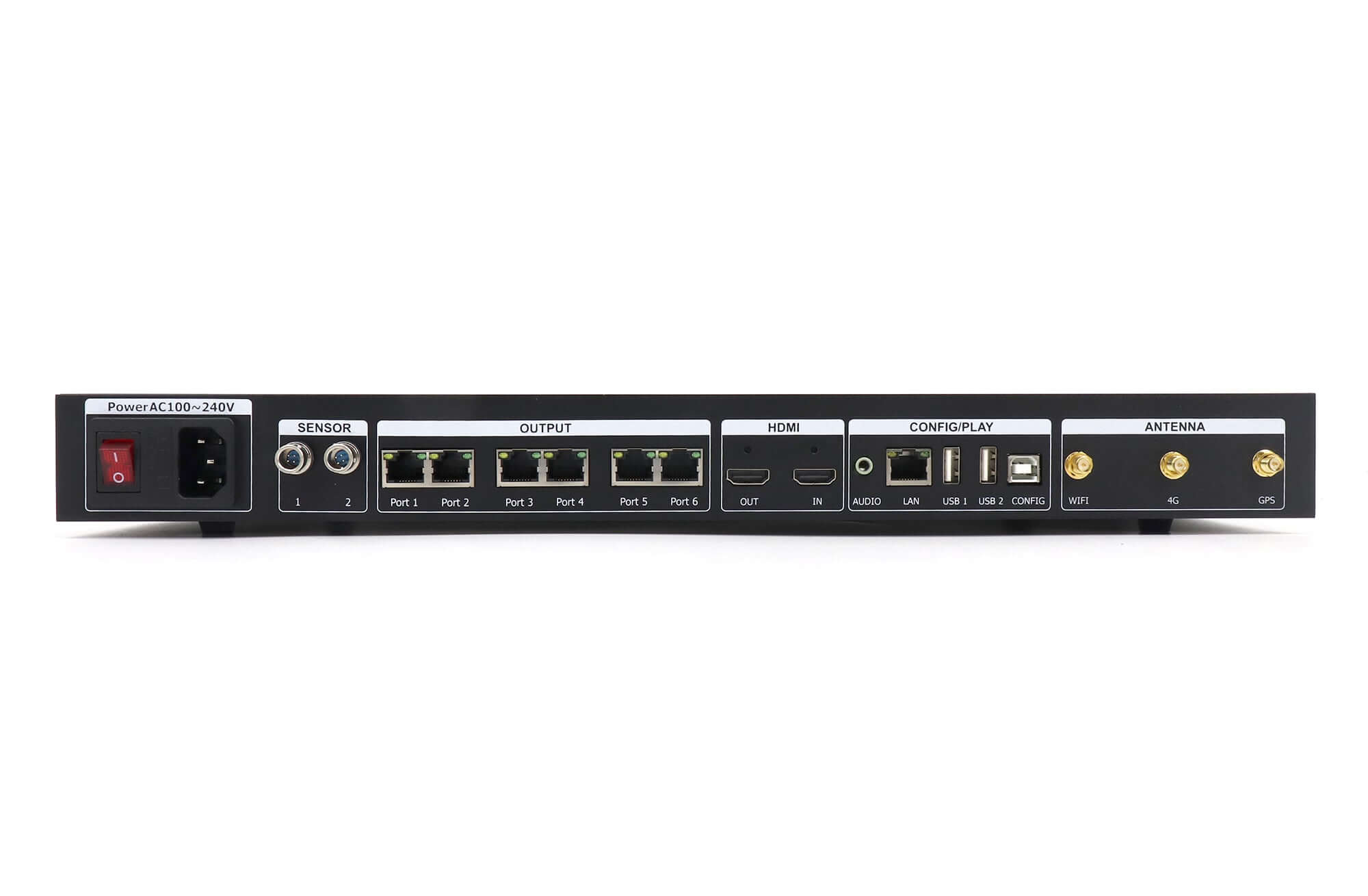

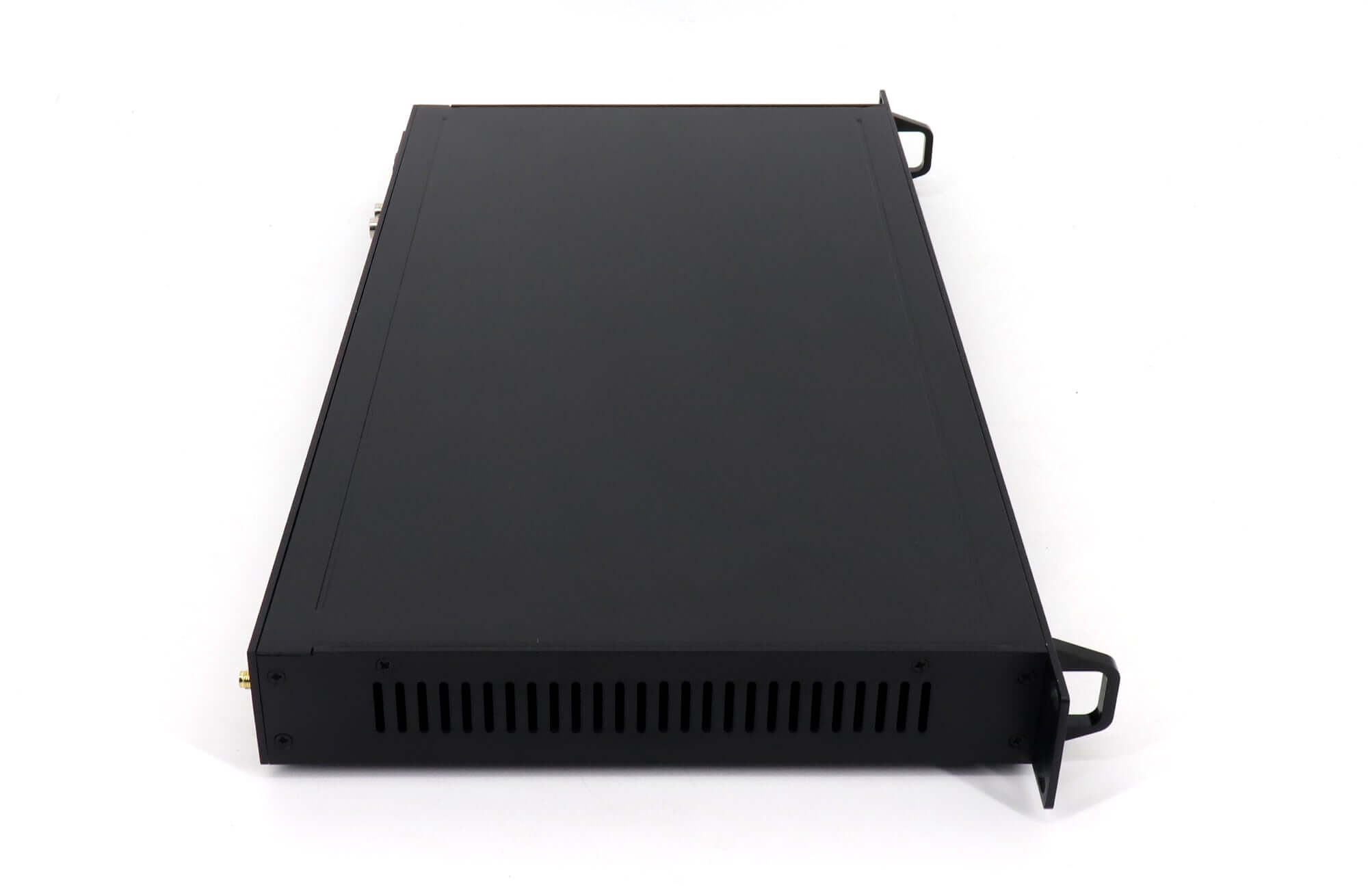

Hardware Connections and Product Images
