Colorlight X16 4K LED Display Controller with 16 Ethernet Outputs
Original price was: $ 1,689.00.$ 1,513.00Current price is: $ 1,513.00.
Colorlight X16 LED controller with 8.88-million-pixel capacity, 16 Gigabit Ethernet outputs, 4K HDMI input, seven-picture layouts and Genlock synchronization.
10000 in stock
Colorlight X16 4K LED Display Controller
The Colorlight X16 processes HDMI, DVI and SDI video sources and sends LED display data through 16 Gigabit Ethernet outputs. It supports 8.88 million pixels, 4K HDMI input and seven-picture layouts for installations that need several sources on one screen.
Source switching, scaling and synchronization
Switch between video sources and splice or scale the input images to fit the LED screen. Each of the seven pictures has adjustable size and position. Genlock input and loop output provide synchronization connections, while brightness and chromaticity controls help adjust the displayed image. The V1.0 specification also lists HDCP 2.2 support and improved grayscale performance at low brightness.
Use LAN for network control, USB IN for PC configuration and USB OUT to cascade another controller.
Standard and customized input boards
The standard X16 input-board configuration is one HDMI 2.0 plus four DVI inputs; the controller also has two 3G-SDI inputs. The specification separately lists X16B with eight DVI inputs and X16C with two HDMI 2.0 inputs as customized configurations. These alternatives should not be assumed to be installed in the standard X16.
Technical specifications
| Parameter | Specification |
|---|---|
| Loading capacity | 8.88 million pixels |
| Maximum screen width / height | 8192 pixels, within total loading capacity |
| LED outputs | 16 × Gigabit Ethernet (RJ45) |
| Standard video inputs | 1 × HDMI 2.0; 4 × DVI; 2 × 3G-SDI |
| HDMI maximum input | 4096 × 2160 at 60 Hz |
| DVI maximum input | 1920 × 1200 at 60 Hz |
| SDI input | 1920 × 1080p |
| Picture layout | 7 pictures; freely adjustable size and position |
| Synchronization | Genlock input and Genlock loop output |
| Control connections | LAN; USB IN; USB OUT |
| Enclosure | 2U standard box |
| Input voltage | AC 100–240 V |
| Rated power consumption | 80 W |
| Working temperature | −20°C to 60°C |
| Weight | 6.8 kg |

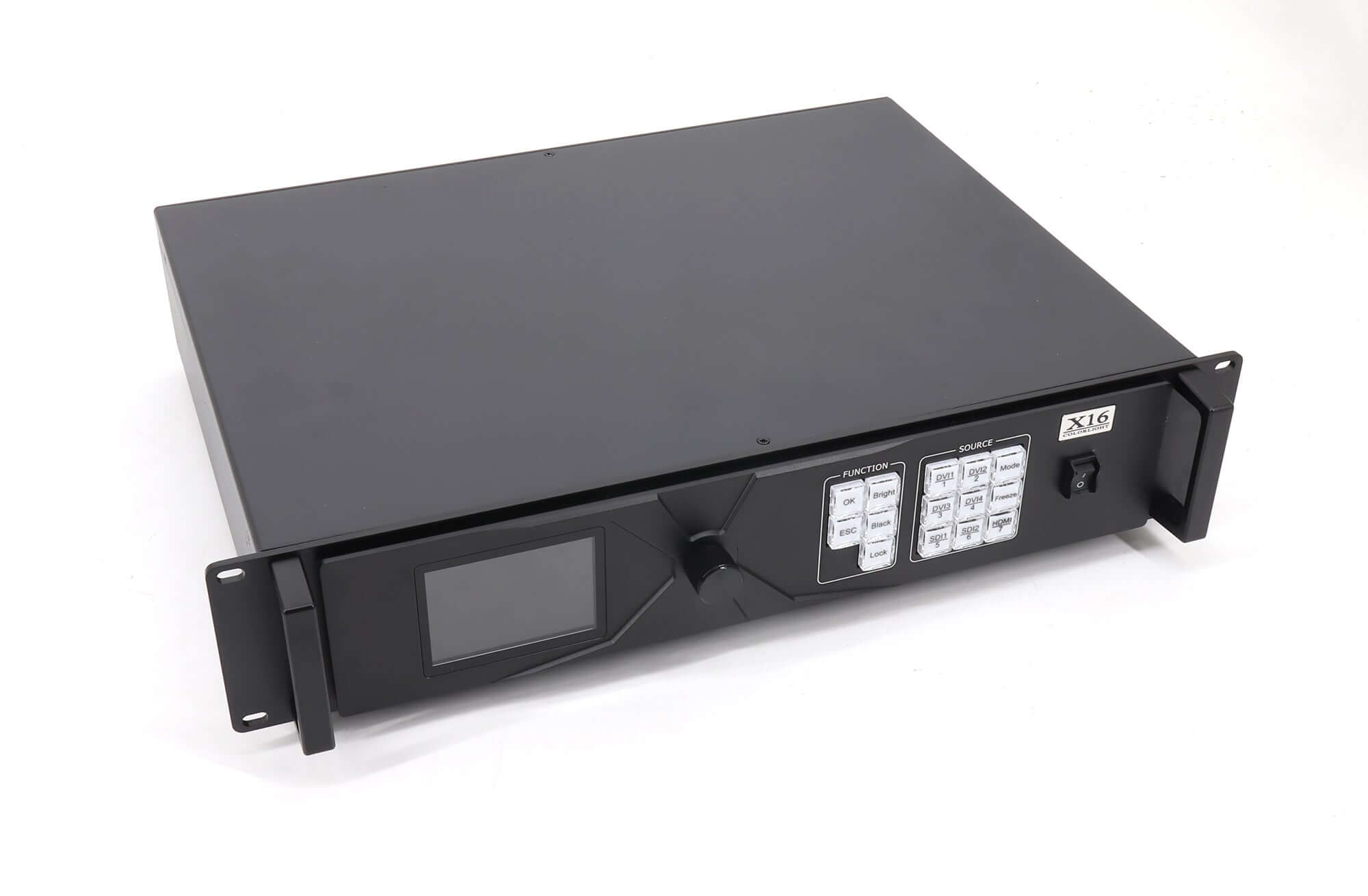

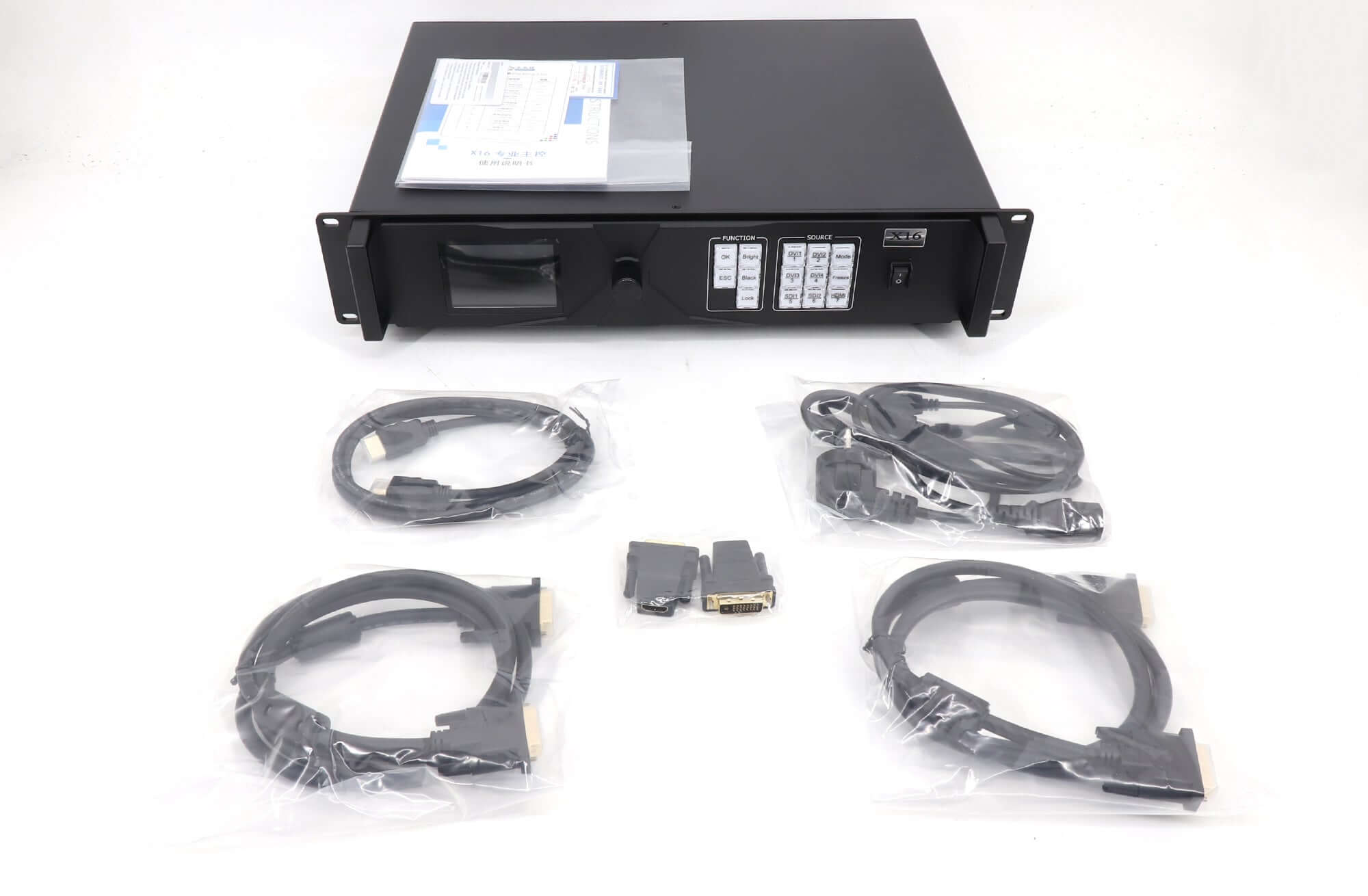

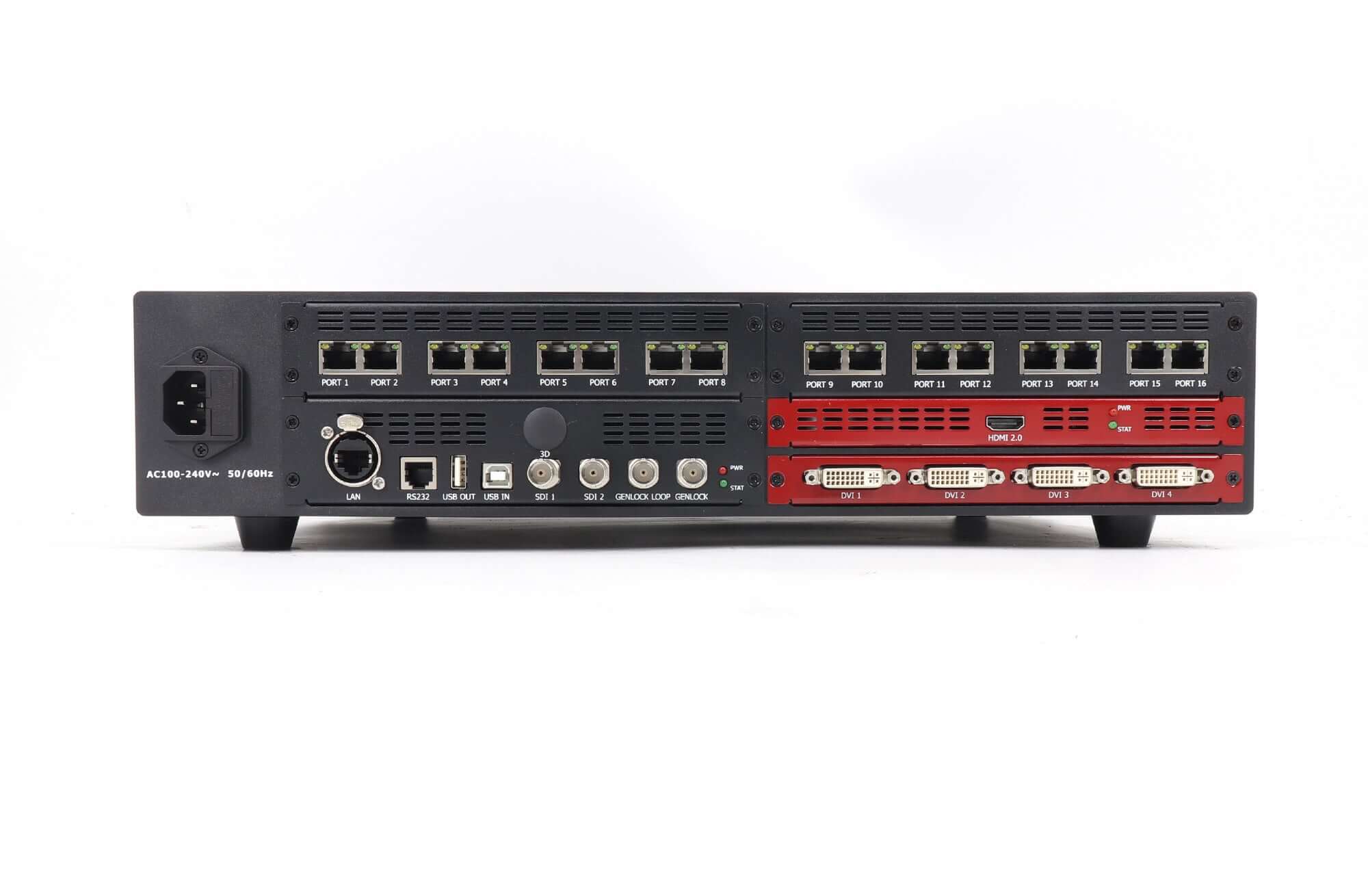

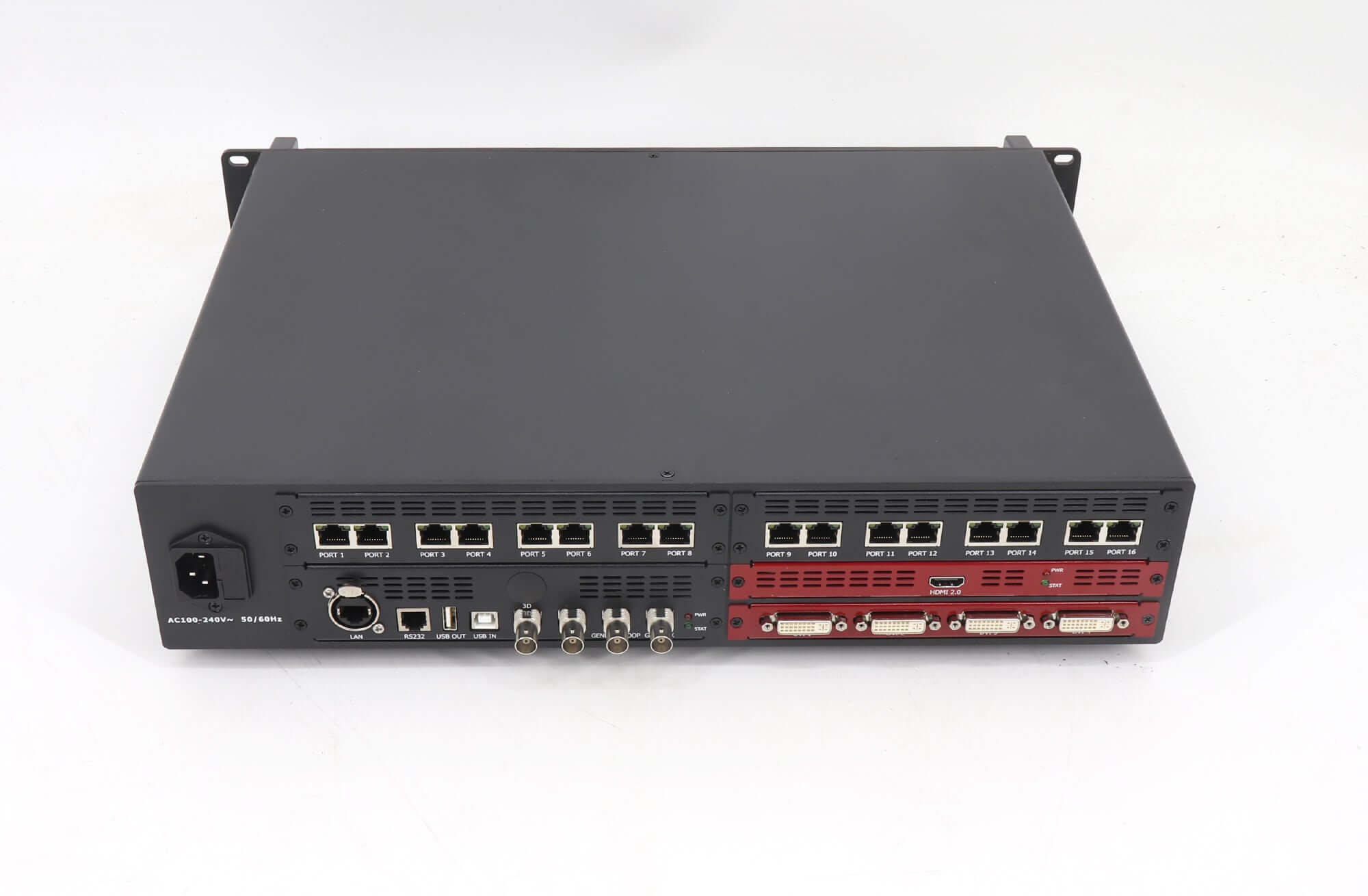

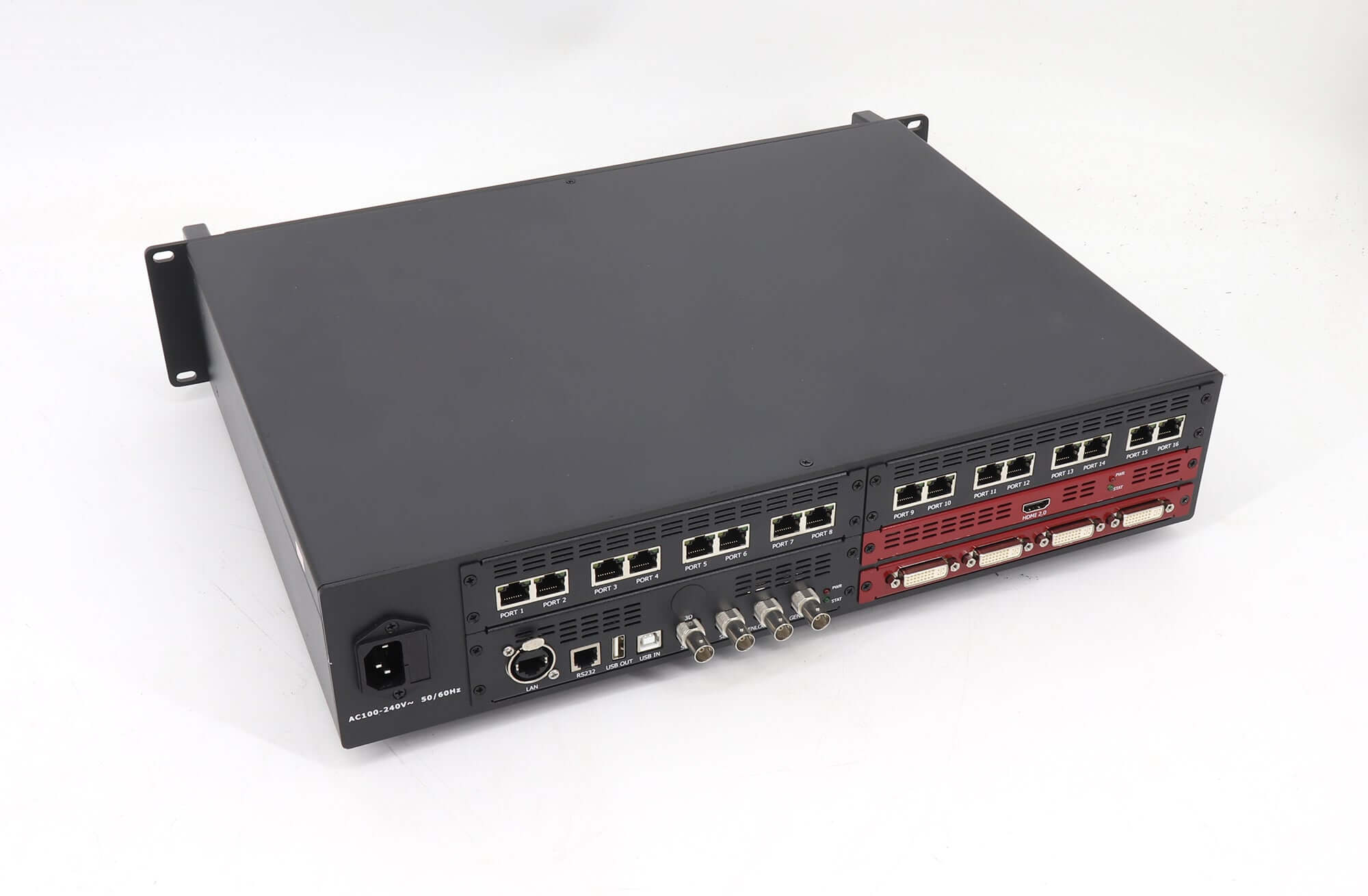

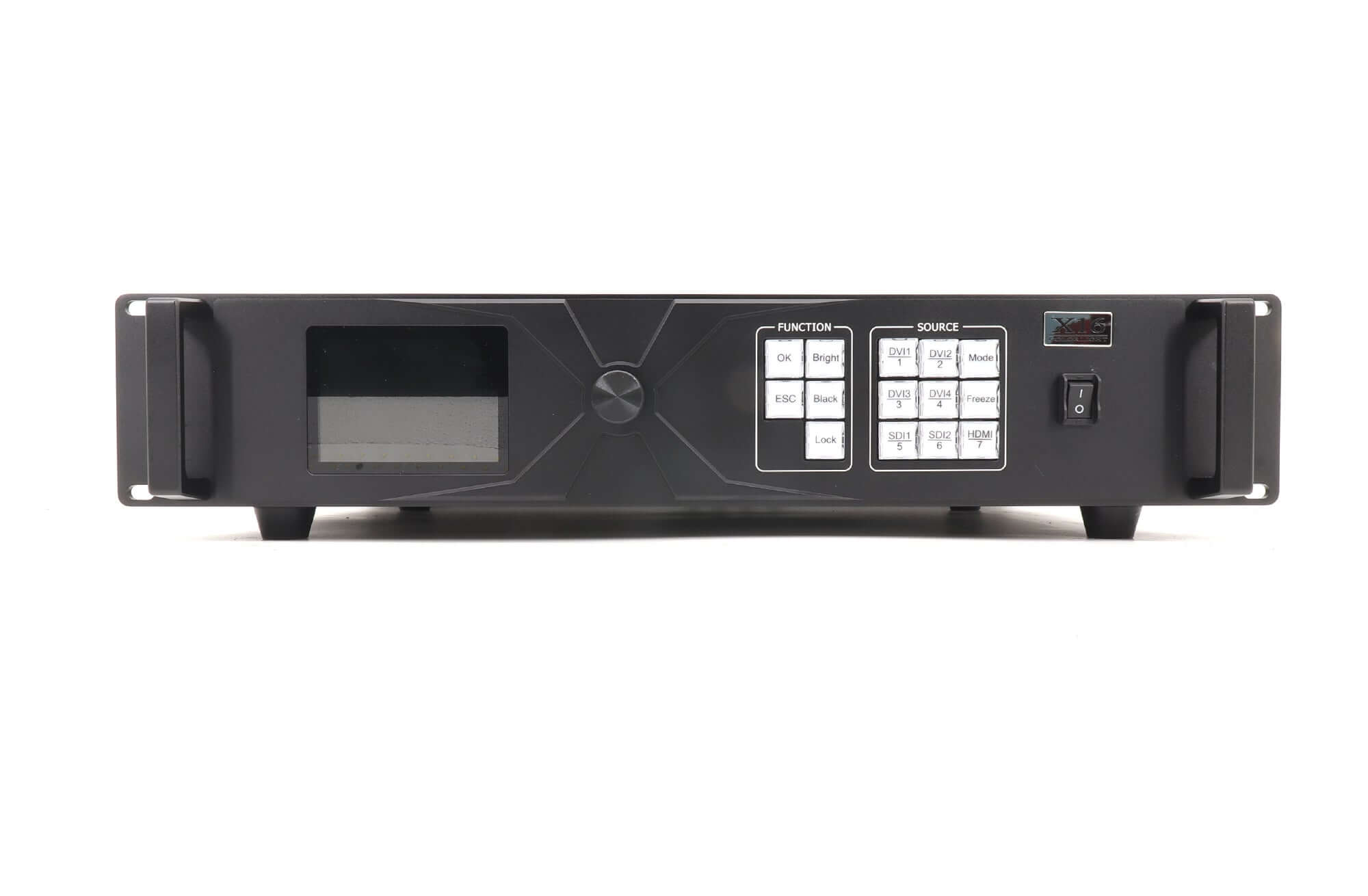

Product photos
Frequently Asked Questions
Does the Colorlight X16 support 4K at 60 Hz?
Yes. The HDMI 2.0 input supports up to 4096 × 2160 at 60 Hz. The DVI and SDI input limits are listed separately in the parameter table.
How many pixels can the X16 control?
Its loading capacity is 8.88 million pixels. The maximum width or height is 8192 pixels, subject to that total capacity.
Can the X16 show several sources at once?
Yes. It supports seven-picture displays with adjustable picture size and position, plus image splicing and scaling.
What is the difference between X16, X16B and X16C inputs?
The standard X16 board configuration is one HDMI 2.0 plus four DVI inputs. X16B is listed with eight DVI inputs and X16C with two HDMI 2.0 inputs as customized alternatives.
Does the X16 have Genlock connections?
Yes. It has a Genlock signal input and a Genlock loop output for display synchronization.
