Sysolution E36 4G Wi-Fi Vehicle LED Controller, 12 HUB75
$ 252.00
The Sysolution E36 is a vehicle LED sign controller with 12 onboard HUB75 ports, Wi-Fi, cellular connectivity and GPS support. It supports local phone/tablet updates, USB uploads and AIPS cloud management, with 8 GB onboard flash.
E36 connected control for vehicle LED signs
The Sysolution E36 combines content storage, network access and direct LED-module connections for vehicle signs. AIPS supports remote publishing, while Wi-Fi AP mode enables local program transfer from phones or tablets. USB uploads and SDK support provide additional content and integration options.
Match the module scan type, HUB75 wiring and screen layout before installation. The specification lists both a 256 × 256 single-card entry and a 96,000-pixel total limit; confirm the required mapping rather than assuming any shape fits. Select cellular bands and sensor accessories for the deployment, and verify the board dimensions because the PDF table and drawing differ.
Technical specifications
| Parameter | Specification |
|---|---|
| Model / use | Sysolution E36 full-color vehicle-sign controller |
| LED connection | 12 onboard HUB75 ports; separate receiving card not required for the documented direct-drive arrangement |
| Documented load entries | 256 × 256 for a single card; maximum total 96,000 pixels. Confirm the supported layout before configuration. |
| Storage / gray levels | 8 GB flash / 65,536 |
| Scan modes | Scan types within 32 scans |
| Communication | 4G/3G, Wi-Fi and USB; Wi-Fi AP function supported |
| Cellular bands in PDF | WCDMA B1/2/5/8; TD-SCDMA B34/39; FDD-LTE B1/3/7; TDD-LTE B38/39/40/41; GSM/GPRS/EDGE B2/3/5/8; CDMA2000/EVDO BC0 |
| GPS | Positioning and fixed-point display supported |
| Audio / camera | Supported |
| Monitoring / information | Screen-content readback and weather display |
| Video formats | AVI, WMV, MPG, MOV, DAT, VOB, MP4 and FLV |
| Animation / images | GIF and SWF; BMP, JPG, GIF, WMF and ICO images |
| Text | TXT and RTF; single-line, multi-line and static text |
| Scheduling / clocks | Timing, countdown, digital and analog clocks |
| Software / development | AIPS cloud platform, EasyBoard configuration and SDK support |
| Working voltage | 4.5–6 V |
| Maximum operating current / consumption | 1 A / 5 W |
| Working temperature | −20 to +60 °C |
| Weight | 138 g |
| Optional accessories | RH1 humidity line, RL1 brightness line, RT1 temperature probe and G10 GPS antenna listed |
| Standard accessories in PDF | One 3 m Wi-Fi antenna and one 3 m 4G antenna |
| Dimensions | PDF size row and dimension drawing do not agree; verify the physical board outline and mounting holes before installation |

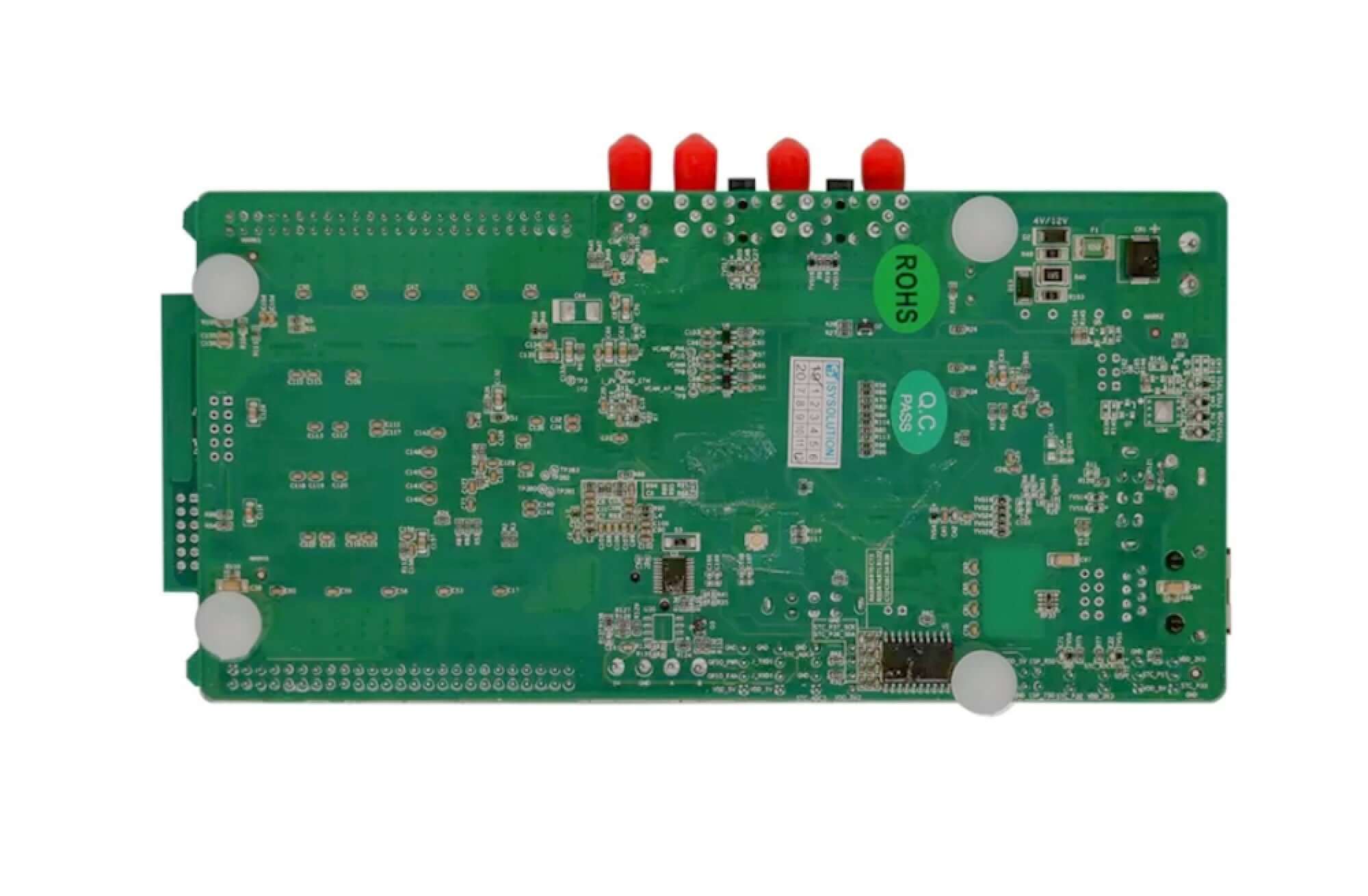

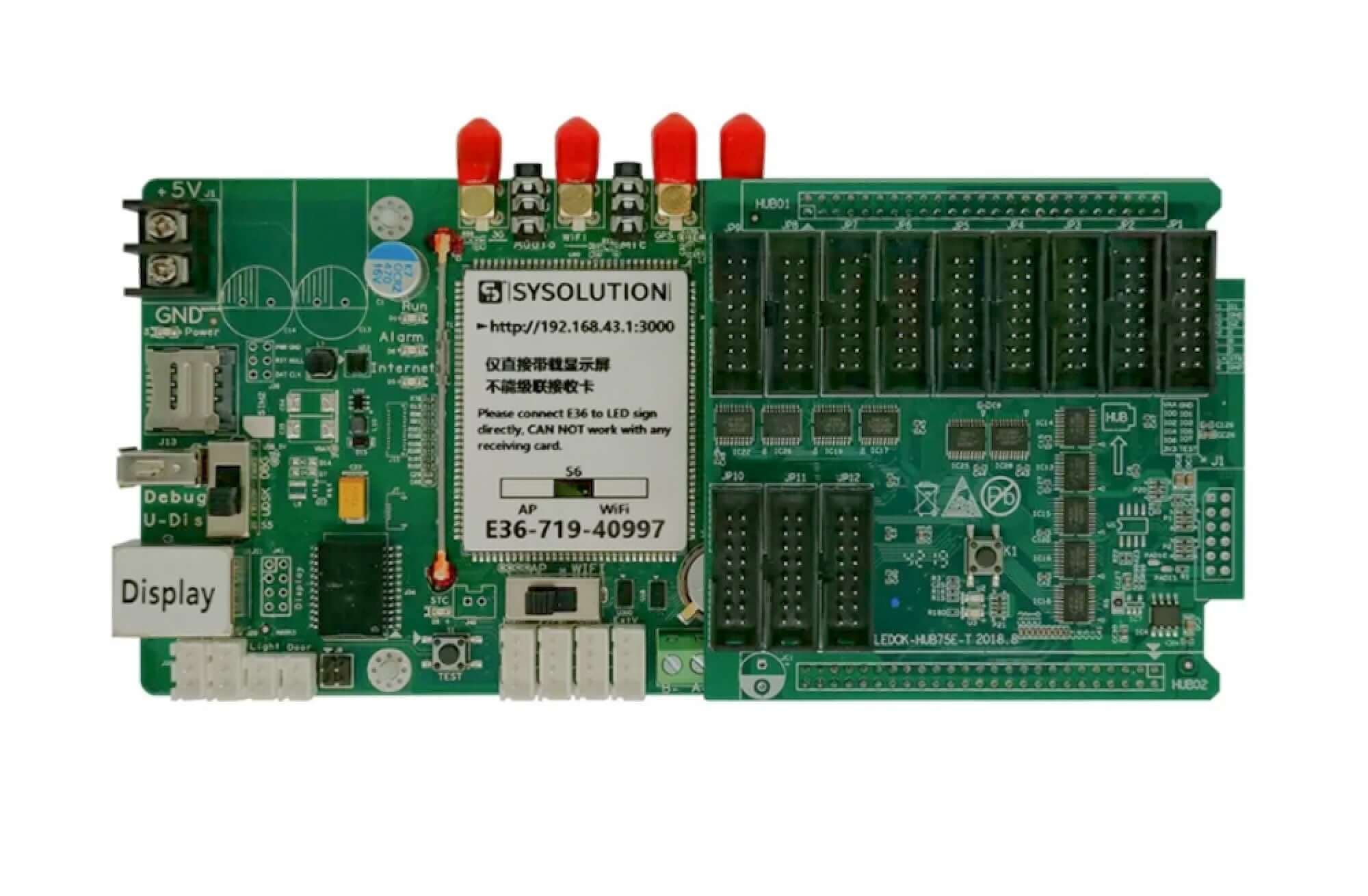

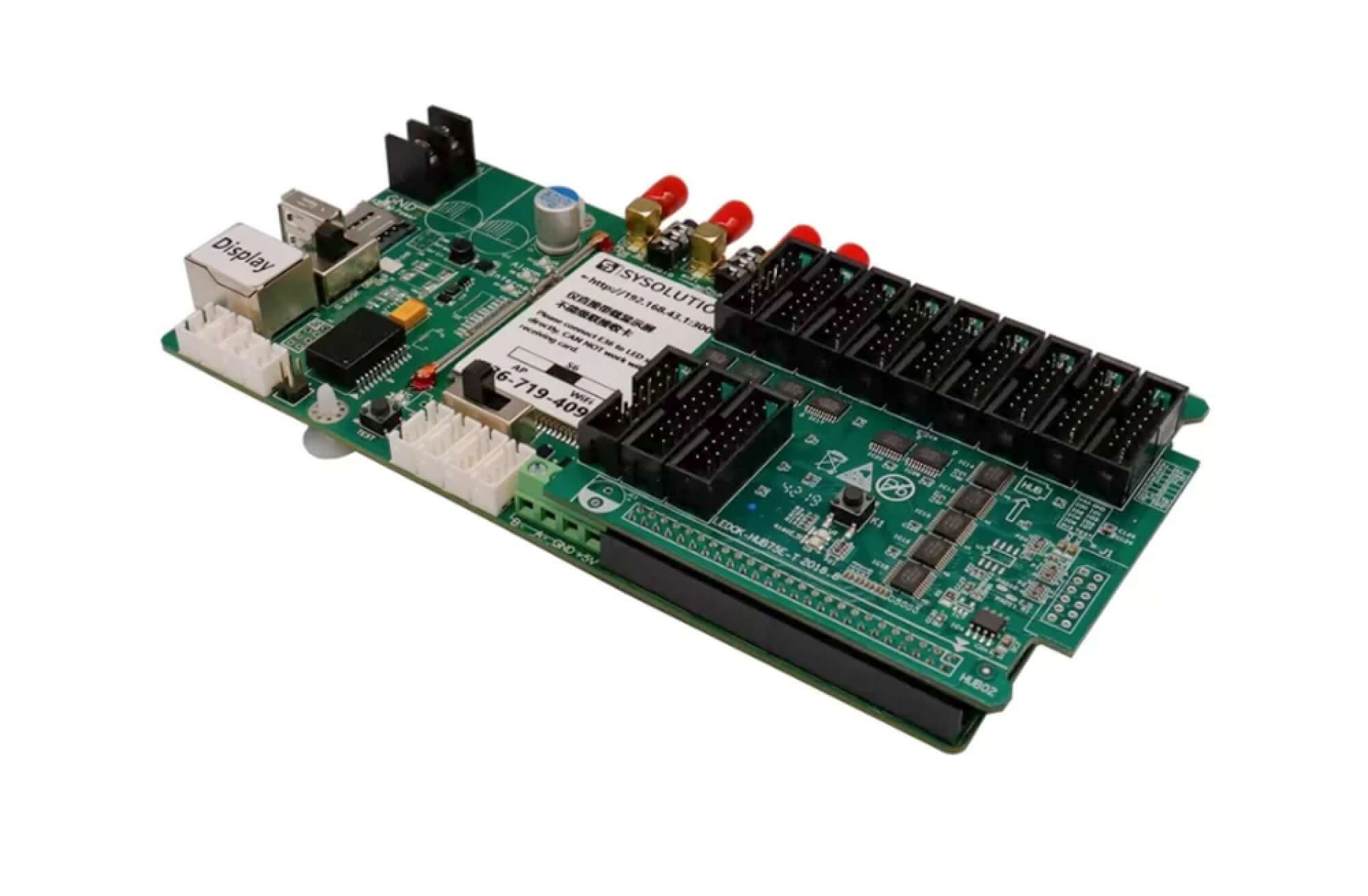

Product images and specification download
Download specification:
Xixun Sysolution E36 Async Control Card Specification
Frequently asked questions
Does the E36 need a separate receiving card?
The E36 specification describes a direct-drive arrangement with 12 onboard HUB75 ports and no separate receiving card. Verify the module pinout, scan type and screen layout for the installation.
What is the E36 pixel capacity?
The PDF lists 256 × 256 for a single card and a maximum total of 96,000 pixels. It does not explain every layout condition, so confirm the exact width, height and port mapping before relying on the total limit.
Can I update a vehicle sign remotely or from a phone?
Yes. The listed functions include AIPS cloud control, local-network program sending from phones/tablets and USB uploads. Wi-Fi AP mode and cellular communication are supported; check the listed bands against the local operator.
Which sensors and GPS accessories are included?
The PDF lists RH1 humidity, RL1 brightness, RT1 temperature and G10 GPS antenna as optional accessories. It separately lists a 3 m Wi-Fi antenna and a 3 m 4G antenna as standard accessories. Confirm the actual package for the order.
What should I check before fitting E36 into an existing enclosure?
Check its 4.5–6 V input requirement, module connections and physical mounting dimensions. The PDF size table and drawing disagree, so obtain the matching mechanical dimensions for the supplied board instead of inferring them from the table.
