Sysolution S50 2-in-1 LED Video Processor, 8 Ethernet Ports
$ 541.00
The Sysolution S50 combines LED video processing and sending through eight Ethernet outputs, with a listed total load of 5.2 million pixels. It supports USB playback, seamless switching and screen-parameter backup. Check the interface and output-limit discrepancies below before ordering.
10000 in stock
S50 video processing and LED sending
The Sysolution S50 provides eight Ethernet outputs for LED display control, together with USB video/image playback and seamless source switching. Input-signal hot backup and screen-parameter backup/readback support operation and equipment replacement.
Confirm the supplied hardware configuration: The original product description and the linked Ver.1.0 PDF disagree about the video inputs. The PDF also gives different maximum width/height limits in its feature and technical sections. These differences are recorded below rather than combined into one specification. The document’s 3840 × 2160 at 60 Hz wording should not be treated as a verified full-frame LED output claim alongside the 5.2-million-pixel limit.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Sysolution S50 2-in-1 LED video processor |
| LED output ports | 8 × RJ45, 1000BaseTX |
| Total LED load | 5.2 million pixels; feature section specifies 60 Hz |
| Per-port load | 650,000 pixels, as listed in the original product description |
| Maximum width / height | Unresolved document conflict: feature section lists 8192 / 4320; technical output table lists 4096 / 2160. These are separate dimension limits, not a guaranteed combined resolution. |
| Video input configuration | Unresolved: original listing states 3 HDMI + 1 DVI inputs; PDF technical table states 2 HDMI, 1 VGA and 1 CVBS input, plus 1 DVI output. Confirm the actual rear panel. |
| HDMI / VGA resolution in PDF | VESA 1920 × 1200 |
| CVBS formats in PDF | PAL / NTSC; 480i and 576i |
| USB playback | 1 USB-A port; hardware video/image playback |
| USB media formats | RM, RMVB, MP4, MOV, MKV, WMV, AVI, 3GP, JPG, BMP and PNG |
| USB media resolution | Video: 1080p and lower; images: 4096 × 2160 and lower |
| Audio output | 1 × 3.5 mm stereo connection; HDMI1, HDMI2 and USB audio sources listed |
| Switching / backup | Seamless input switching and input-signal hot backup |
| Screen configuration | Screen connection, parameter backup and parameter readback |
| Display management | Multi-function card control and brightness adjustment |
| Communication | Type-B interface; USB / RS232 communication listed |
| Power input | 100–240 VAC, 50/60 Hz |
| Maximum power | 15 W |
| Chassis dimensions | 250 × 440 × 66 mm |
| Weight | 3.5 kg |

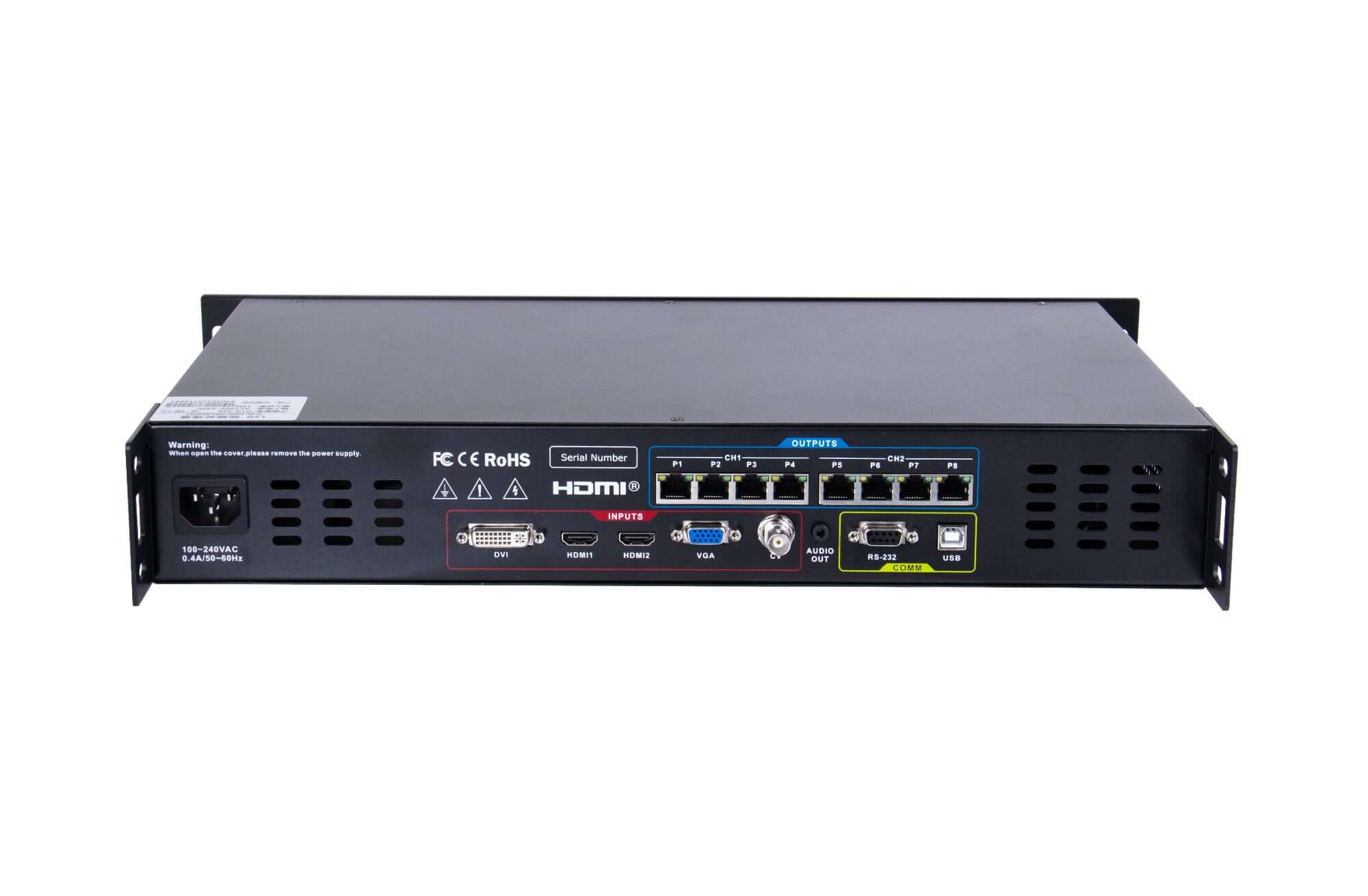

Product images and specification download
Download specification:
Sysolution S50 LED Display Screen 2 In 1 Video Processor Specification（Chinese）
Frequently asked questions
How many pixels can the S50 drive?
The listing and linked specification state a total LED load of 5.2 million pixels through eight Ethernet outputs. The original listing gives 650,000 pixels per port. Plan the LED layout within the total load and confirm the applicable width and height limits for the hardware version.
Does the S50 guarantee 3840 × 2160 LED output at 60 Hz?
This cannot be confirmed from the supplied document. Its feature text places 3840 × 2160 at 60 Hz alongside a 5.2-million-pixel limit, which does not establish a consistent full-frame LED load specification. Confirm the required output layout before purchase.
Does this S50 have three HDMI inputs and one DVI input?
The original listing says so, but the linked PDF technical table instead lists two HDMI inputs, one VGA input, one CVBS input and one DVI output. These sources conflict. Verify the supplied unit’s rear panel and matching specification before choosing cables or source devices.
Can the S50 play videos or pictures from a USB drive?
Yes. The built-in USB player supports the formats listed in the parameter table. The PDF specifies video playback up to 1080p and still images up to 4096 × 2160; these media limits are separate from the LED output load.
Can I back up the screen settings and switch between sources?
Yes. Screen-parameter backup and readback, seamless input switching and input-signal hot backup are listed features. Parameter readback can help when configuring replacement equipment.
