South Creative NDB300PS5 5V 60A 300W LED Power Supply
$ 30.80
Nandian / South Creative NDB300PS5 5V LED display power supply, listed at 300W. Maximum output: 60A at 160–240VAC or 50A at 100–160VAC. Natural air cooling with temperature derating above 50°C.
9996 in stock
300W LED video screen power supply
The South Creative NDB300PS5, also listed as Nandian NDB300PS5, supplies a typical 5V DC output for LED displays. Its 300W specification is accompanied by input-dependent current limits: 60A maximum at 160–240VAC and 50A maximum at 100–160VAC.
For cabinet load planning, start with the actual mains voltage and operating temperature. Natural air cooling and the manufacturer’s derating curve determine the installation conditions to check alongside the module load.
NDB300PS5 specifications
Source: NDB300PS5 V1.0 specification dated 31 October 2018. The current bands overlap at 160VAC exactly as written in the PDF.
| Parameter | Specification |
|---|---|
| Model | South Creative / Nandian NDB300PS5 |
| DC output | 5V typical; 4.8–5.2V listed range |
| Output current at 160–240VAC | 0–60A |
| Output current at 100–160VAC | 0–50A |
| Listed output power | 300W; input-voltage and temperature derating apply |
| AC input | 100–240VAC; 220VAC typical |
| Input frequency | 47–63Hz |
| Efficiency | ≥90% at 220VAC, full load |
| Power factor | 0.95 typical at 220VAC, full load |
| Inrush current | 60A maximum at 220VAC, full load, cold start |
| Load / voltage regulation | ±1% / ±1% |
| Regulation accuracy | ±5% |
| Ripple and noise | ≤200mVp-p at full load; 20MHz bandwidth and the specified output capacitors |
| Cooling | Natural air cooling |
| Operating temperature | −30 to +50°C; derate from 50 to 80°C according to the PDF curve |
| Storage temperature | −40 to +80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Protection functions | Input undervoltage, output current limiting and output short-circuit protection |
Replacement checks
Match the LED modules’ voltage and current requirements, then compare the terminal layout and mounting drawing with the existing cabinet. The listed protection functions do not increase the continuous output rating, and similar model names do not establish mechanical interchangeability.
Frequently asked questions
Is NDB300PS5 a 5V 60A LED screen power supply?
Yes. The specification lists 5V typical output and up to 60A at 160–240VAC input. At 100–160VAC input, the maximum current is 50A.
Can it provide 300W from a 110V AC input?
Do not select the load on the 300W model rating alone. At 110VAC, the applicable output-current band is 0–50A. The 0–60A band is specified for 160–240VAC.
What happens at exactly 160V AC input?
The PDF writes the current bands as 100–160VAC and 160–240VAC, so they overlap at 160VAC. Confirm the applicable limit at that boundary before sizing a load.
Does it need derating in a hot LED cabinet?
Yes. The environmental table lists −30 to +50°C and requires derating between 50 and 80°C. Use the temperature-versus-output curve rather than assuming full output throughout the range.
Where can I check the NDB300PS5 specifications?
The original NDB300PS5 PDF is available in the download section below. It includes electrical characteristics, protection behavior, drawings and derating information for this model.

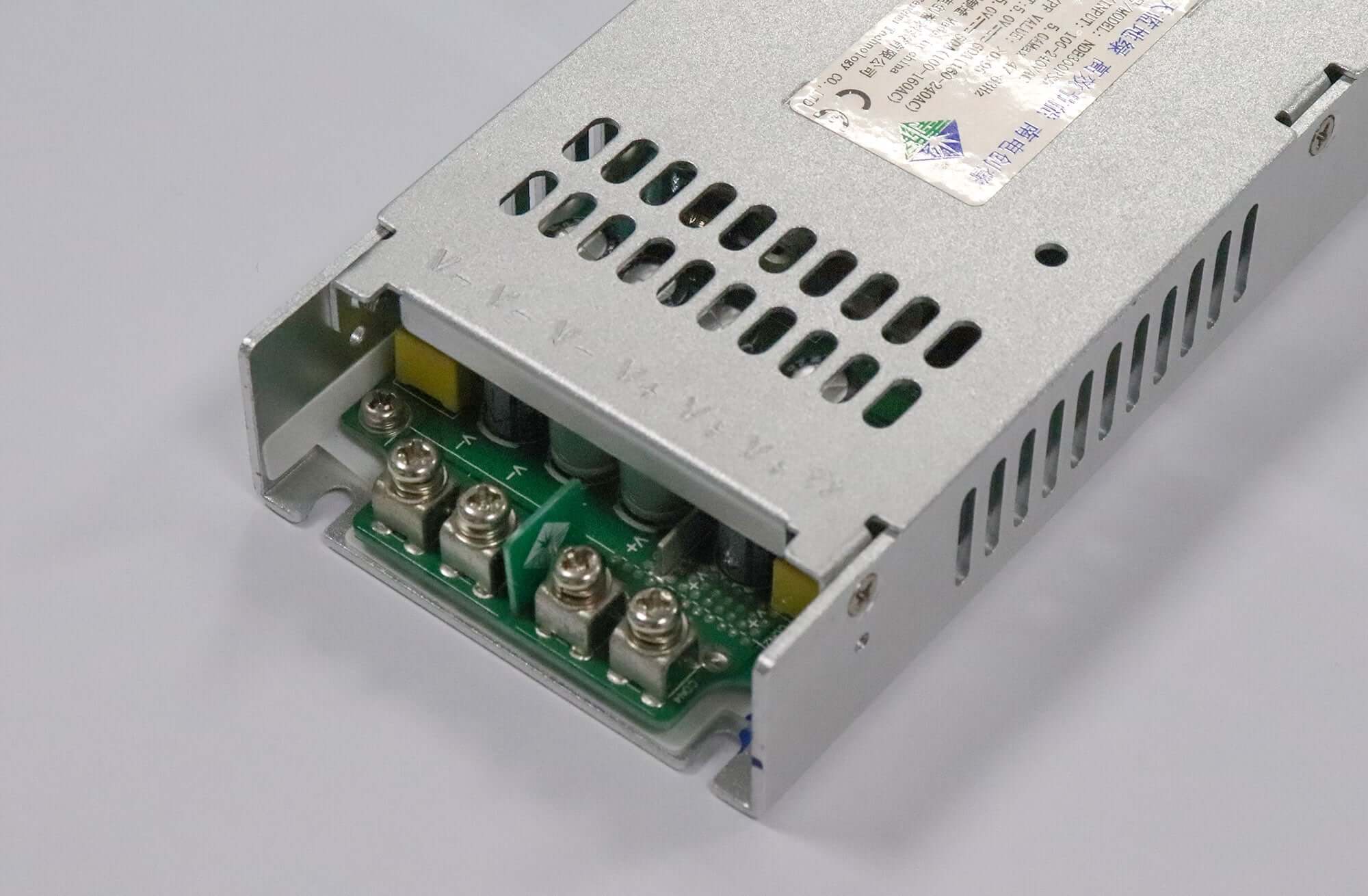

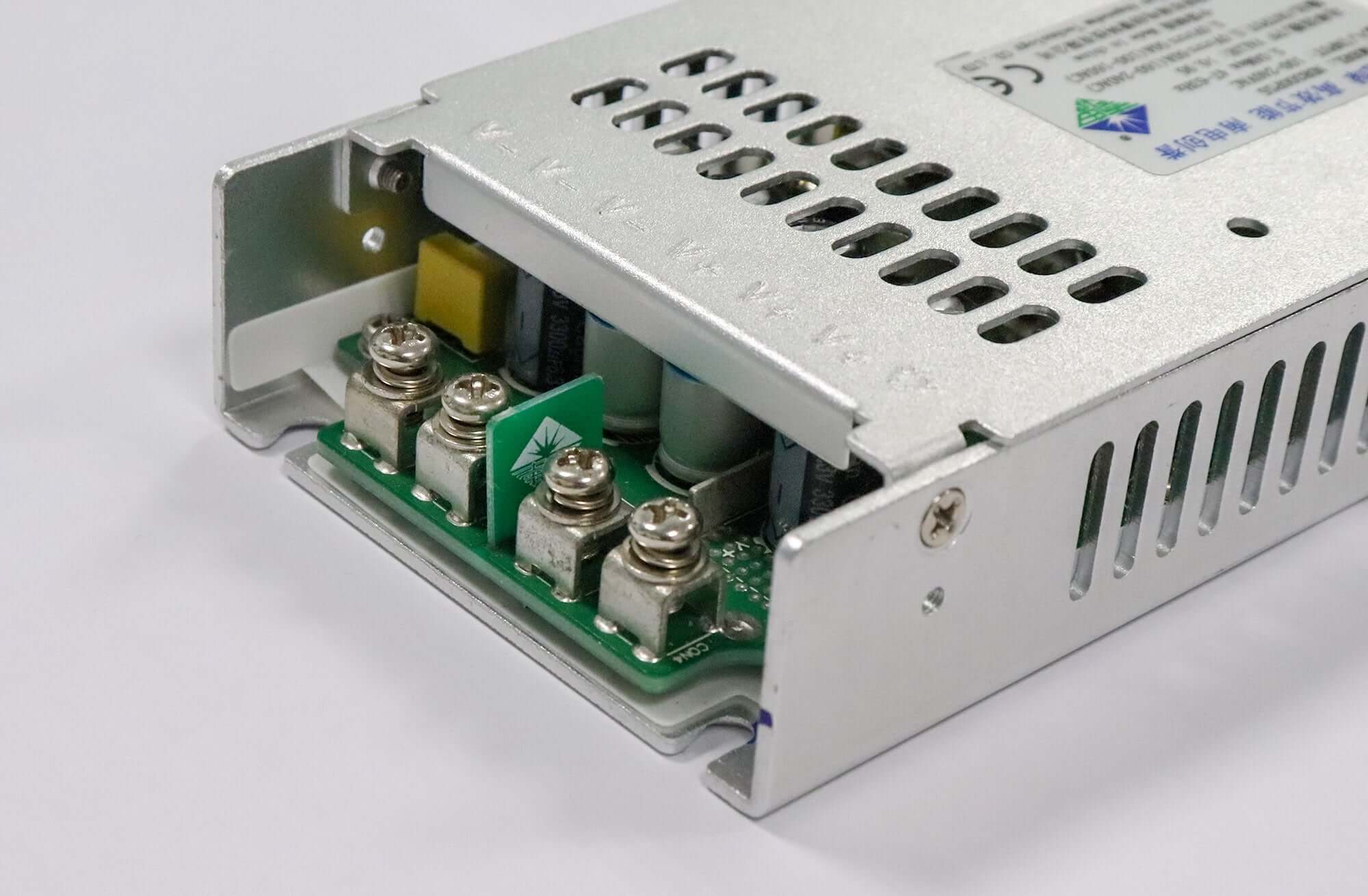

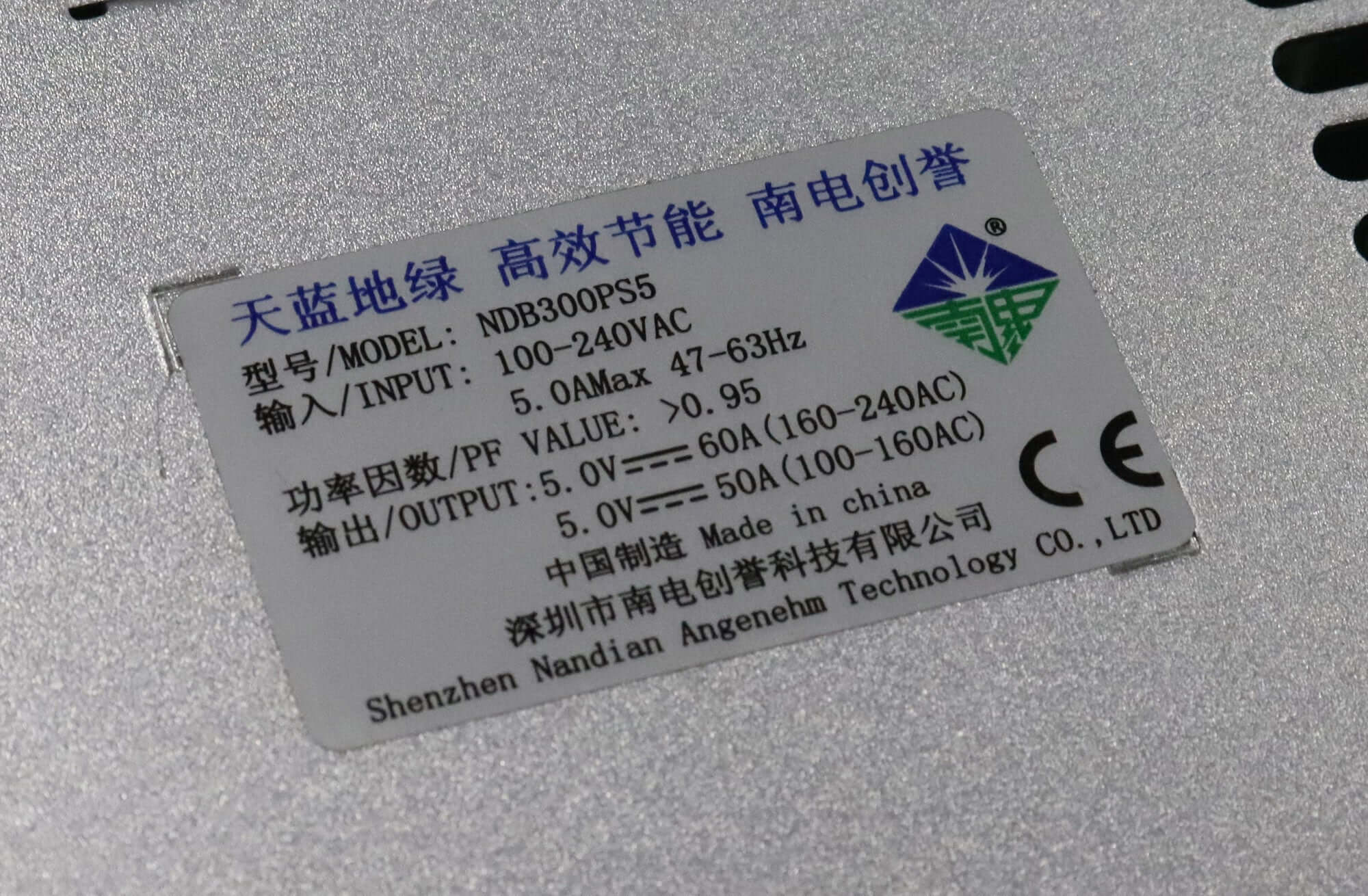

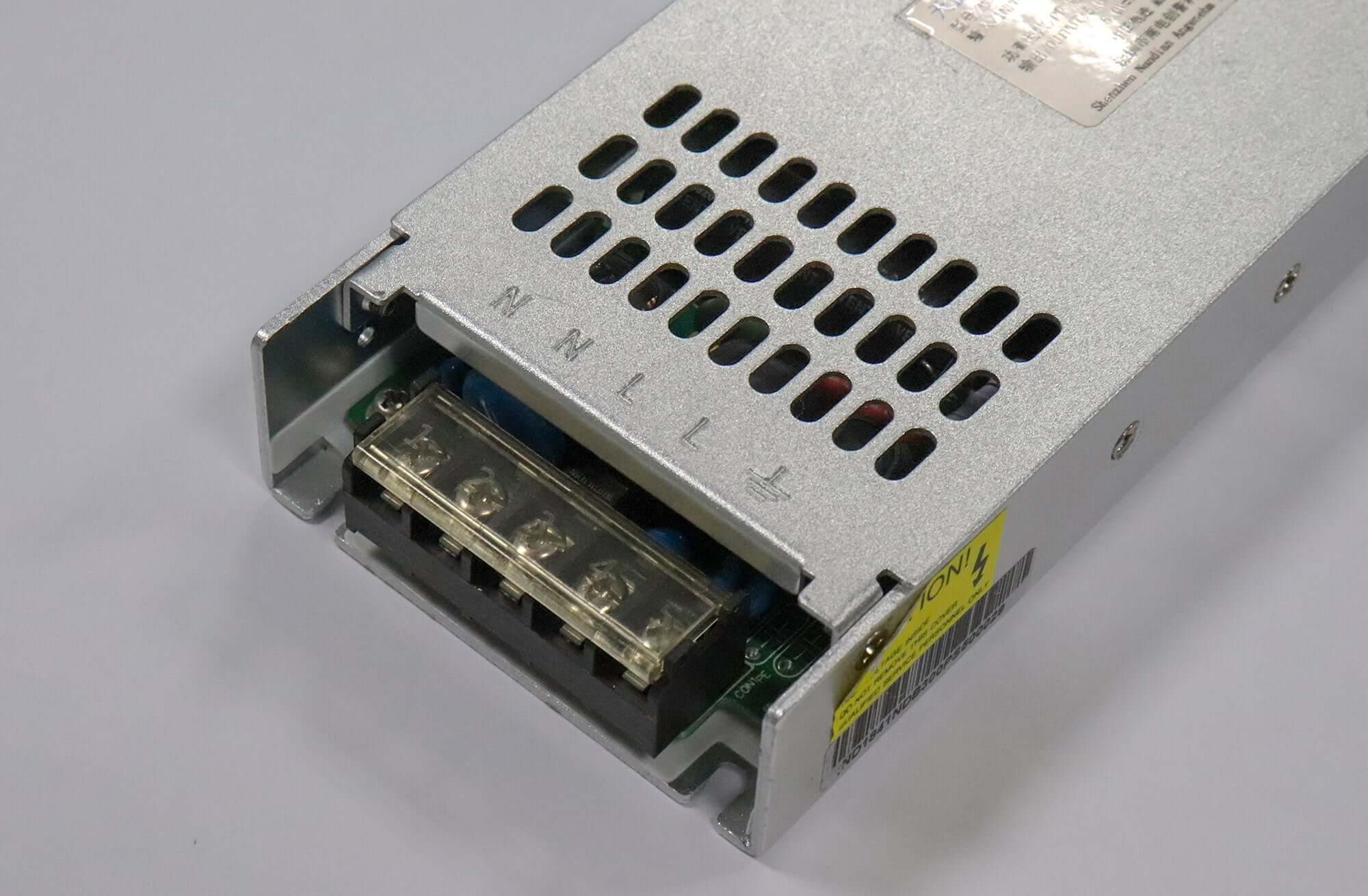

Product images and specification download
Download Specification
South Creative NDB300PS5 300W Power Supply For LED Video Screen Specification
| Weight | 0.6 kg |
|---|
