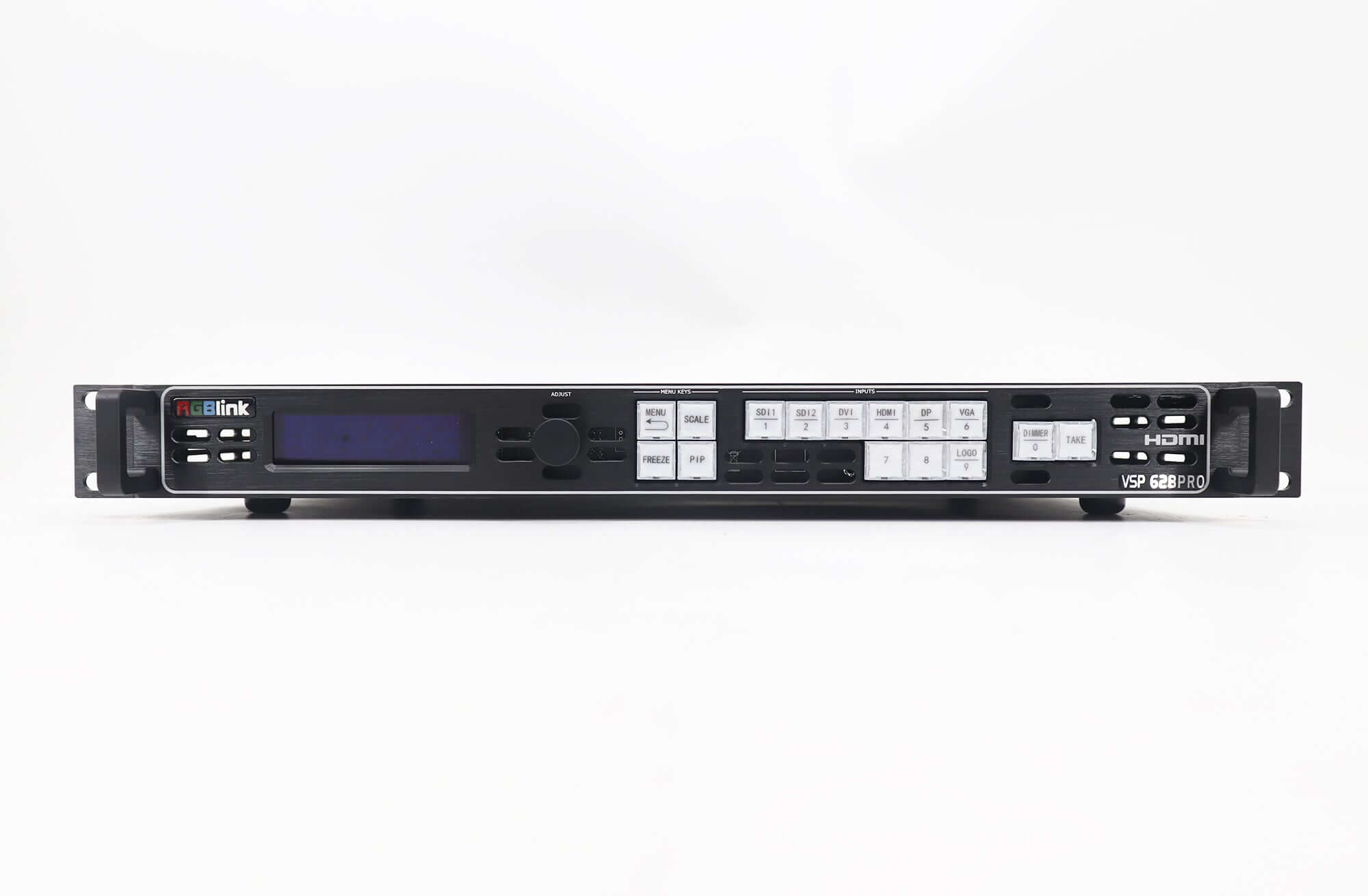

RGBlink VSP628Pro LED Video Processor & Seamless Scaler
$ 2,841.00
The RGBlink VSP628Pro is an LED video processor, presentation switcher and seamless scaler with HDMI, DVI, SDI, VGA and DisplayPort inputs. It supports picture-in-picture, Genlock and configurable output formats; optional modules and the Web interface version must be confirmed before ordering.
10000 in stock
RGBlink VSP628Pro LED Video Processor Overview
The RGBlink VSP628Pro, also written as VSP 628PRO, combines video scaling, scan conversion, presentation switching and transcoding. It accepts multiple video signal types and converts them to supported output formats for an LED display system or presentation setup.
Use this processor when you need to switch between sources, scale an image to the required output, or combine a main image with picture-in-picture. Check the installed modules, source resolution and downstream display controller together when specifying a system.
Key Features
- Seamless source switching: switch between supported inputs for presentations and live video workflows.
- Image layout control: scale, crop, position and mask the image; adjust the size and position of one picture-in-picture window in standard mode.
- Signal setup tools: Genlock, EDID management, LOGO capture and built-in test patterns support system configuration.
- Modular connections: additional input and output formats are available through optional modules. These are not all standard fitted ports.
Inputs, Outputs and Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / model | RGBlink / VSP628Pro (VSP 628PRO) |

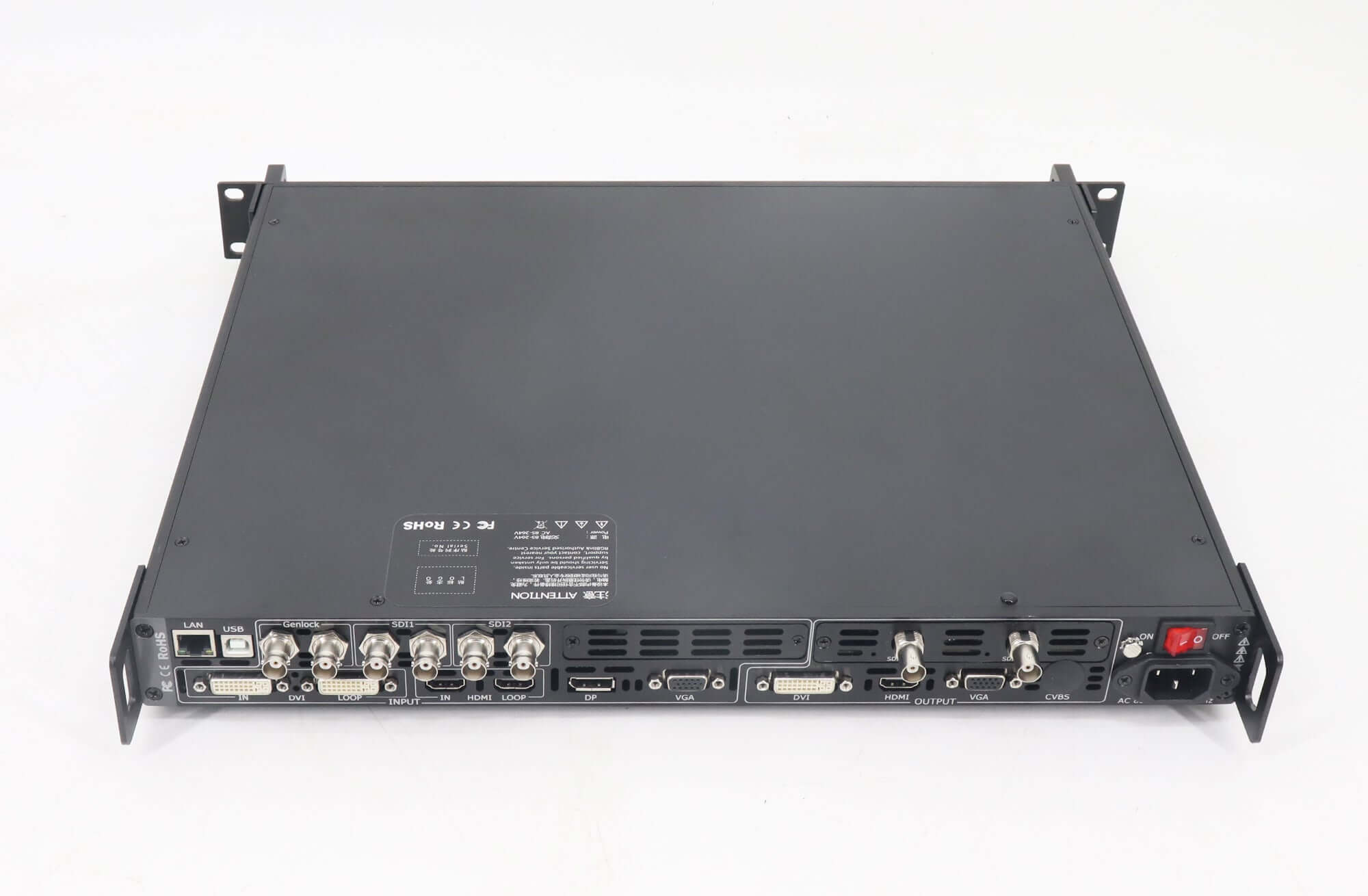

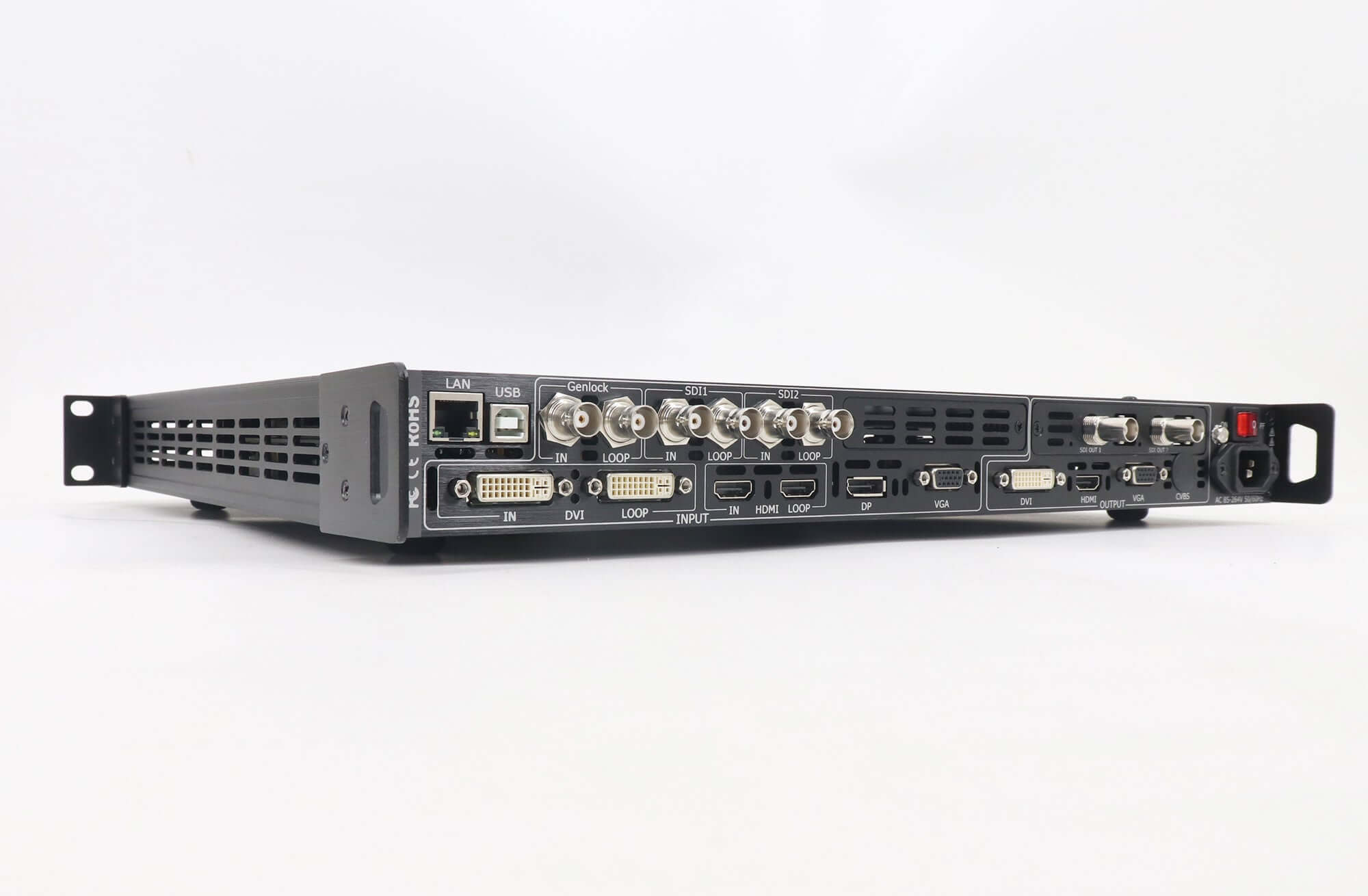

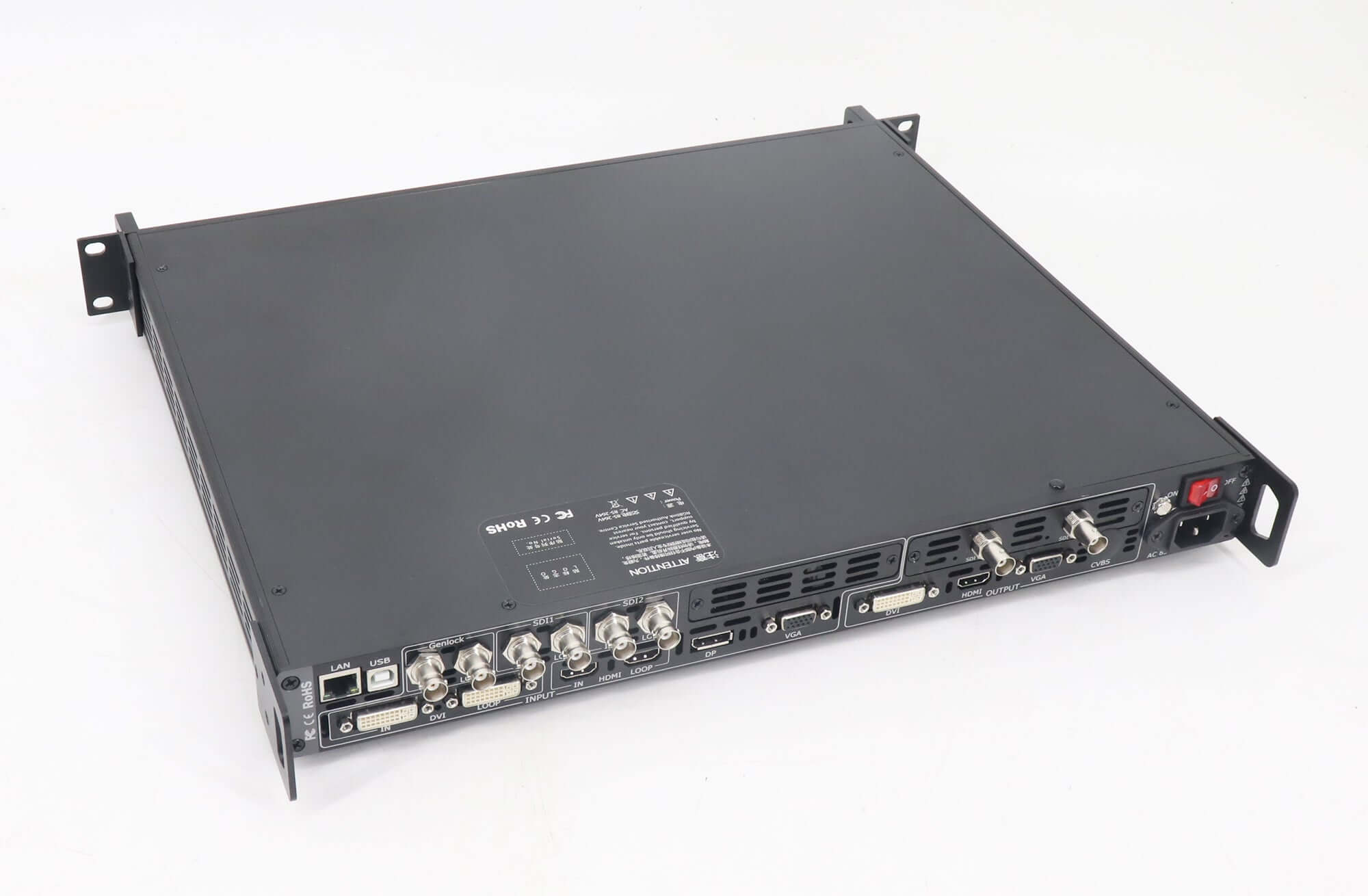

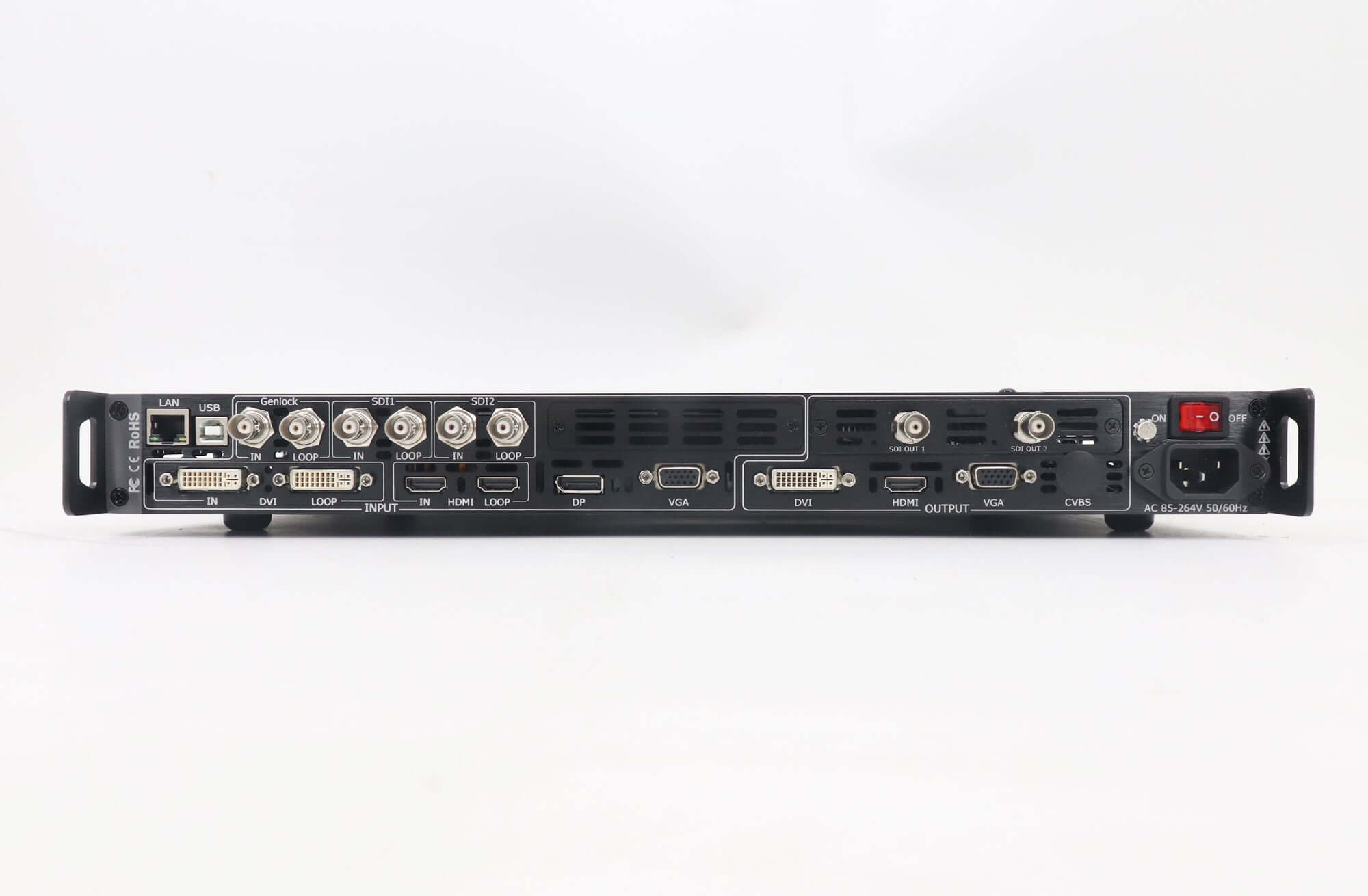

| Standard video inputs | 2 × SDI, 1 × DVI, 1 × HDMI, 1 × VGA, 1 × DisplayPort |
| Synchronization input | 1 × Genlock with loop-through |
| Input loop-through | SDI, DVI and HDMI, as listed in the connector specification |
| Standard outputs | 1 × DVI, 1 × HDMI, 1 × VGA |
| Optional input modules | Dual SDI with loop-through; dual VGA, DVI, HDMI, USB or CVBS modules, depending on the selected option |
| Optional output modules | CVBS output module; dual SDI (OS2) module; Fiber + SDI + HDBaseT module |
| Communication | LAN (TCP/IP), USB 2.0 |
| Output format selection | Standard presets and user-configurable formats; supported resolutions vary by output connector |
| Device dimensions | 480 × 403 × 45 mm |
| Package dimensions | 535 × 455 × 130 mm |
| Net / packaged weight | 3.7 kg / 6.9 kg |
| Operating temperature | 0–45°C |
| Relative humidity | 10–85% |
Configuration note: Optional modules are configuration choices, not a list of accessories included with every unit. Confirm the required connectors and installed options before placing an order.
Choosing a Configuration for Your LED Display
- List each source connector and its resolution and refresh rate.
- Match the processor output to the input accepted by your LED sending system or display.
- Confirm whether you need an optional input module, output module or sender card.
- If browser-based operation is required, confirm the Web interface version. RGBlink documentation distinguishes the standard VSP628PRO from the VSP628PRO with Web Interface.
For configuration assistance, contact LED-Mall with your source devices and display requirements. You can also browse our LED video processors.
Frequently Asked Questions
What does the RGBlink VSP628Pro do?
It switches, scales and converts supported video signals for presentation and display systems. Its role is to prepare the video signal for the connected equipment.
Does the VSP628Pro support HDMI, DVI and SDI?
Yes. Standard inputs include HDMI, DVI and two SDI inputs, alongside VGA and DisplayPort. Standard outputs include HDMI, DVI and VGA; SDI output requires the relevant optional module.

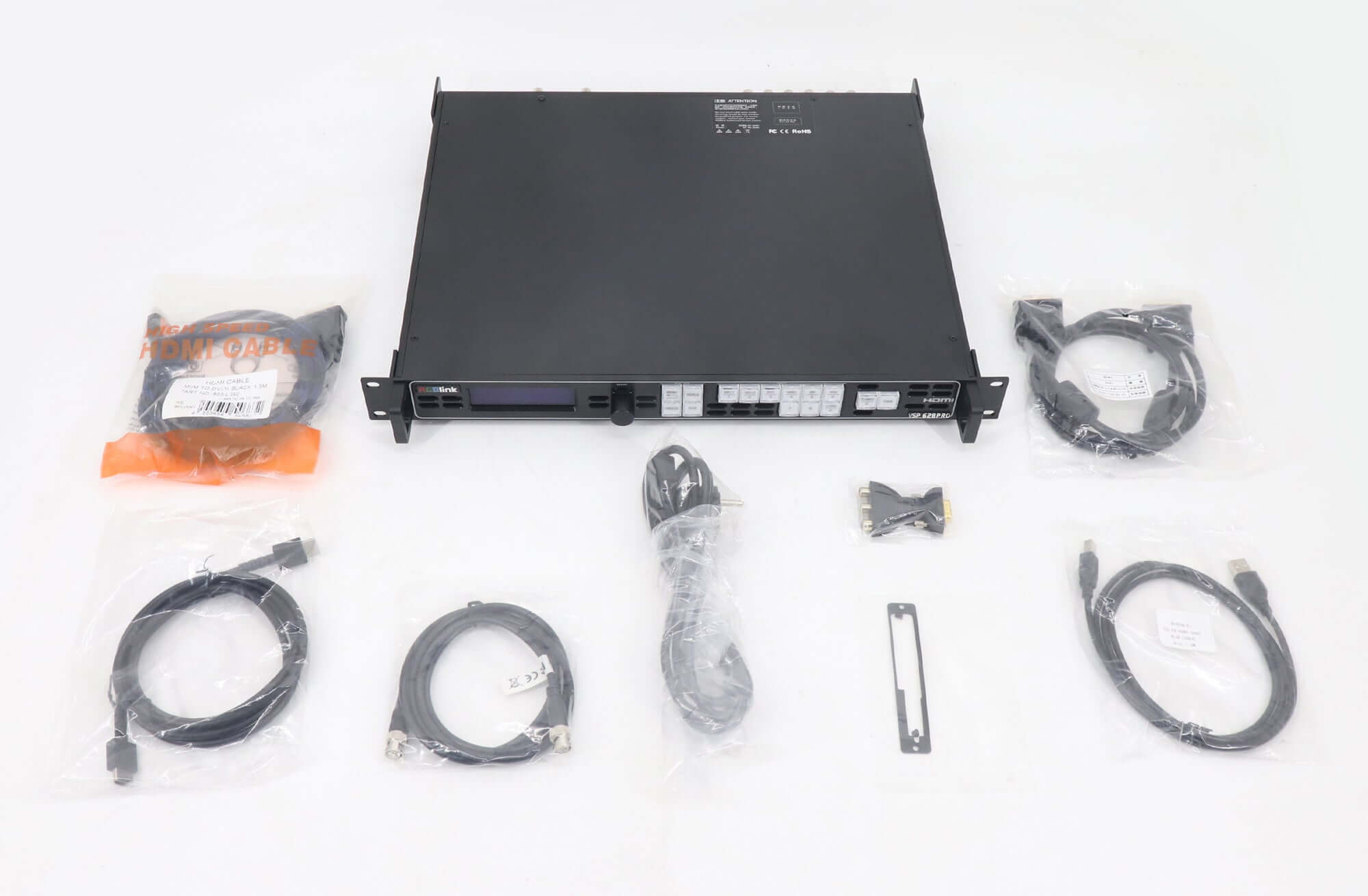

Are a sender card and all optional modules included?
Do not assume they are included. The processor provides a sender-card or output-option slot, and the fitted configuration must be confirmed. Check the sender-card model and compatibility with your LED receiving system before ordering.
Is Web control available on every version?
RGBlink lists a separate VSP628PRO with Web Interface configuration. Confirm that version if you need browser-based control rather than assuming the LAN connector alone provides it.

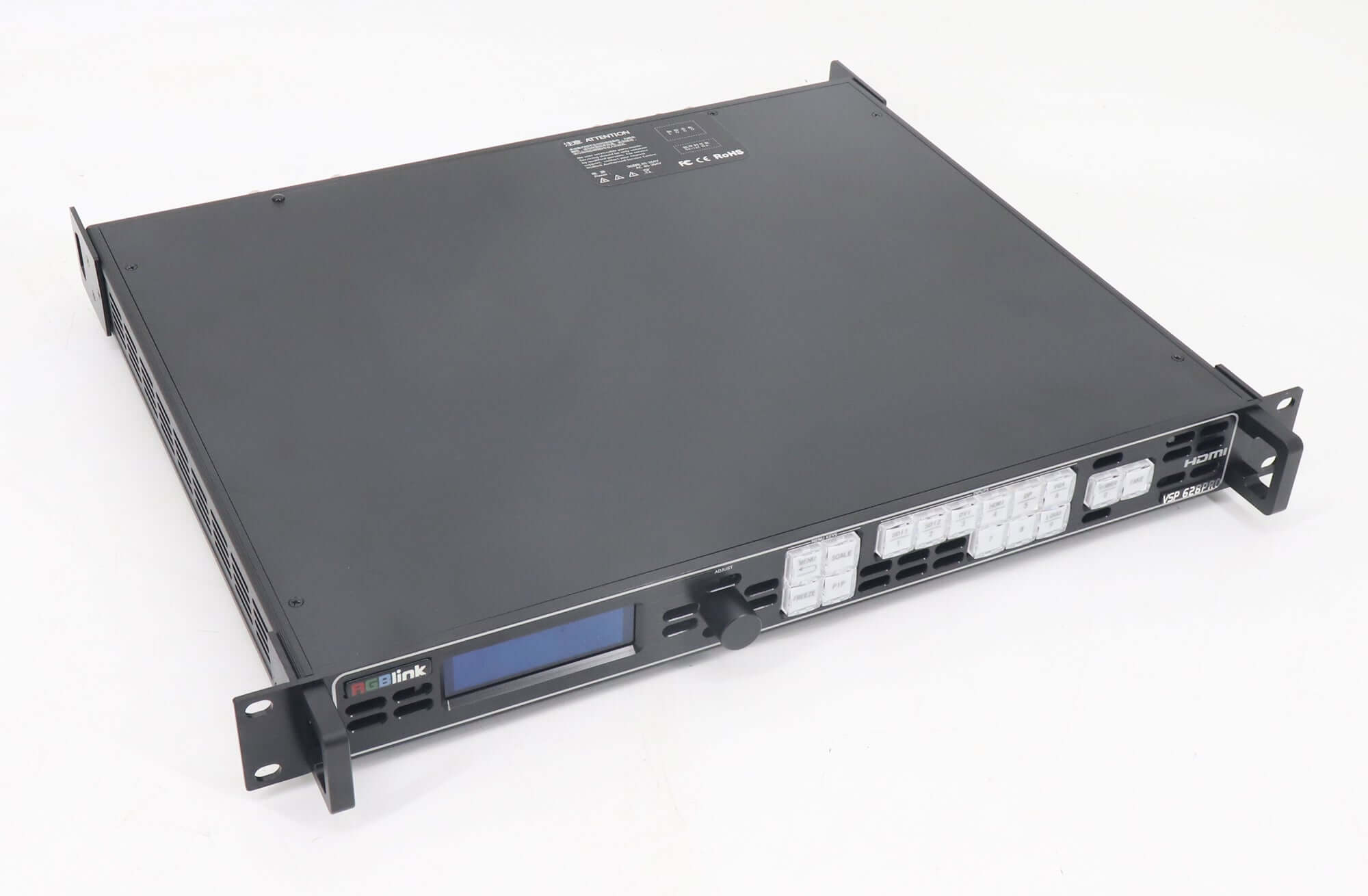

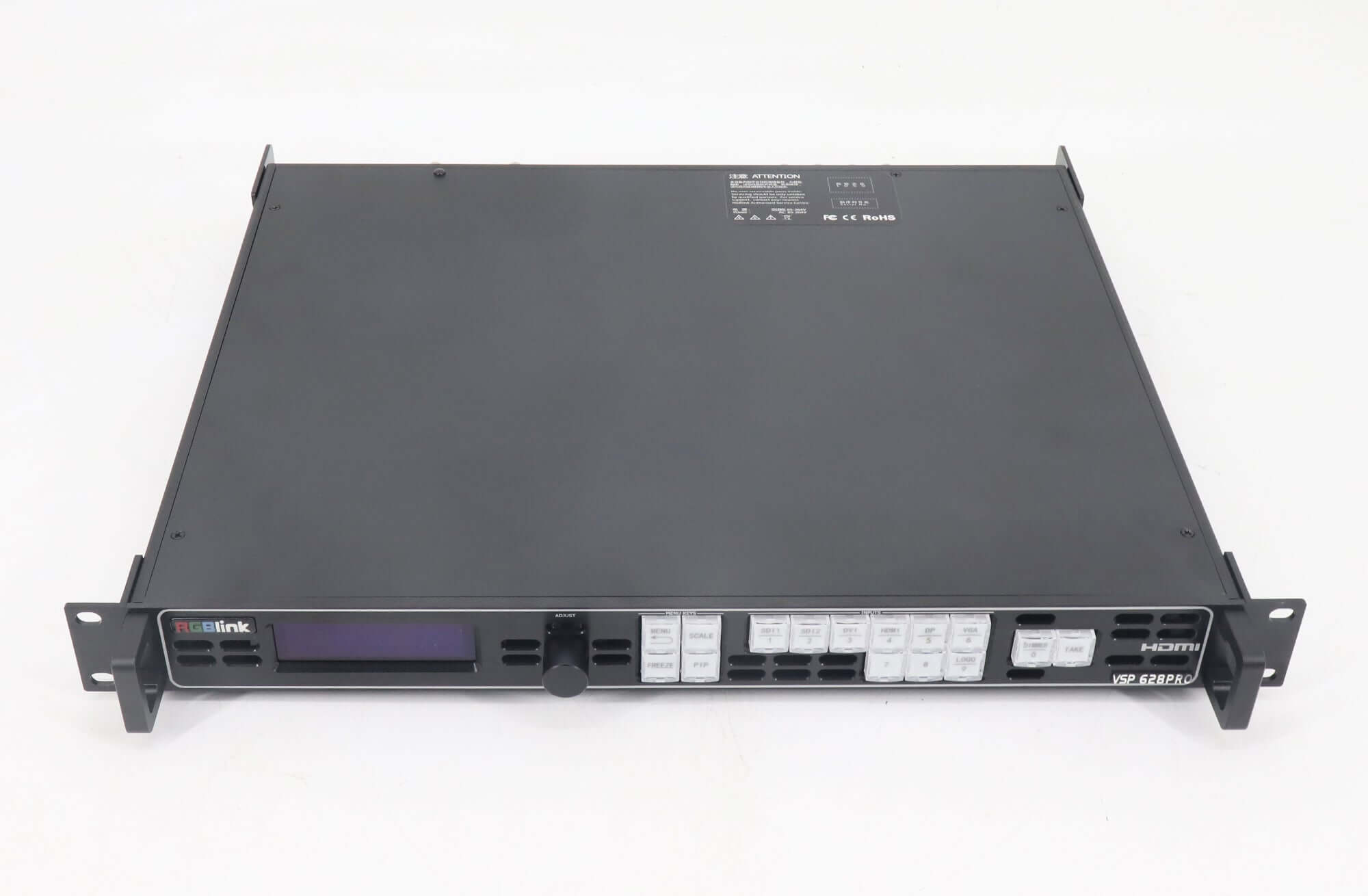

Product Images
Download Specification
| Weight | 7 kg |
|---|
