P10 Outdoor DIP346 LED Module, 160 × 160 mm, 1/4 Scan
$ 17.00

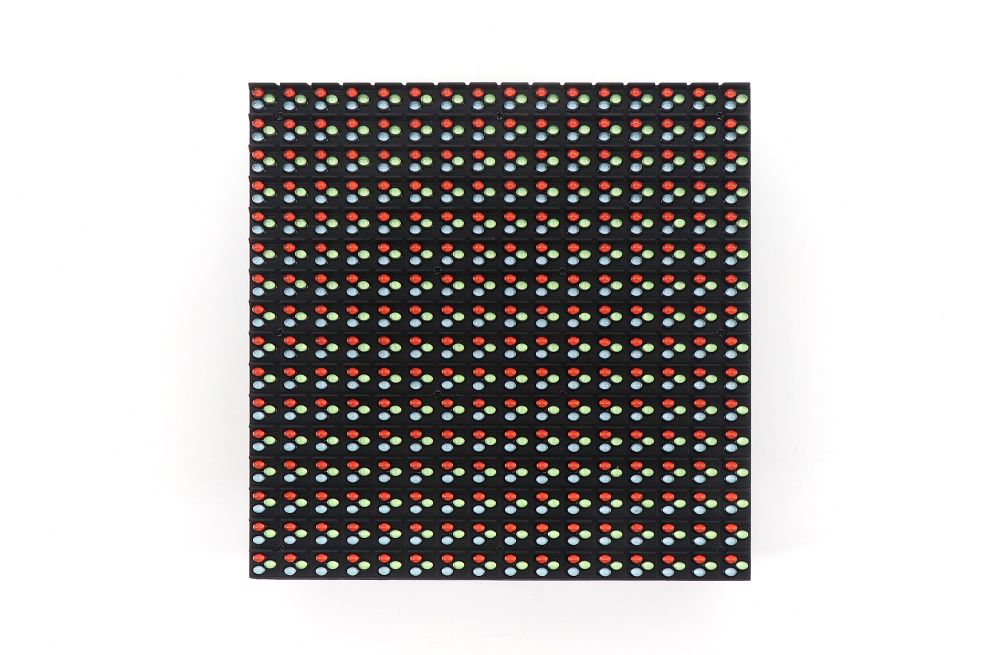

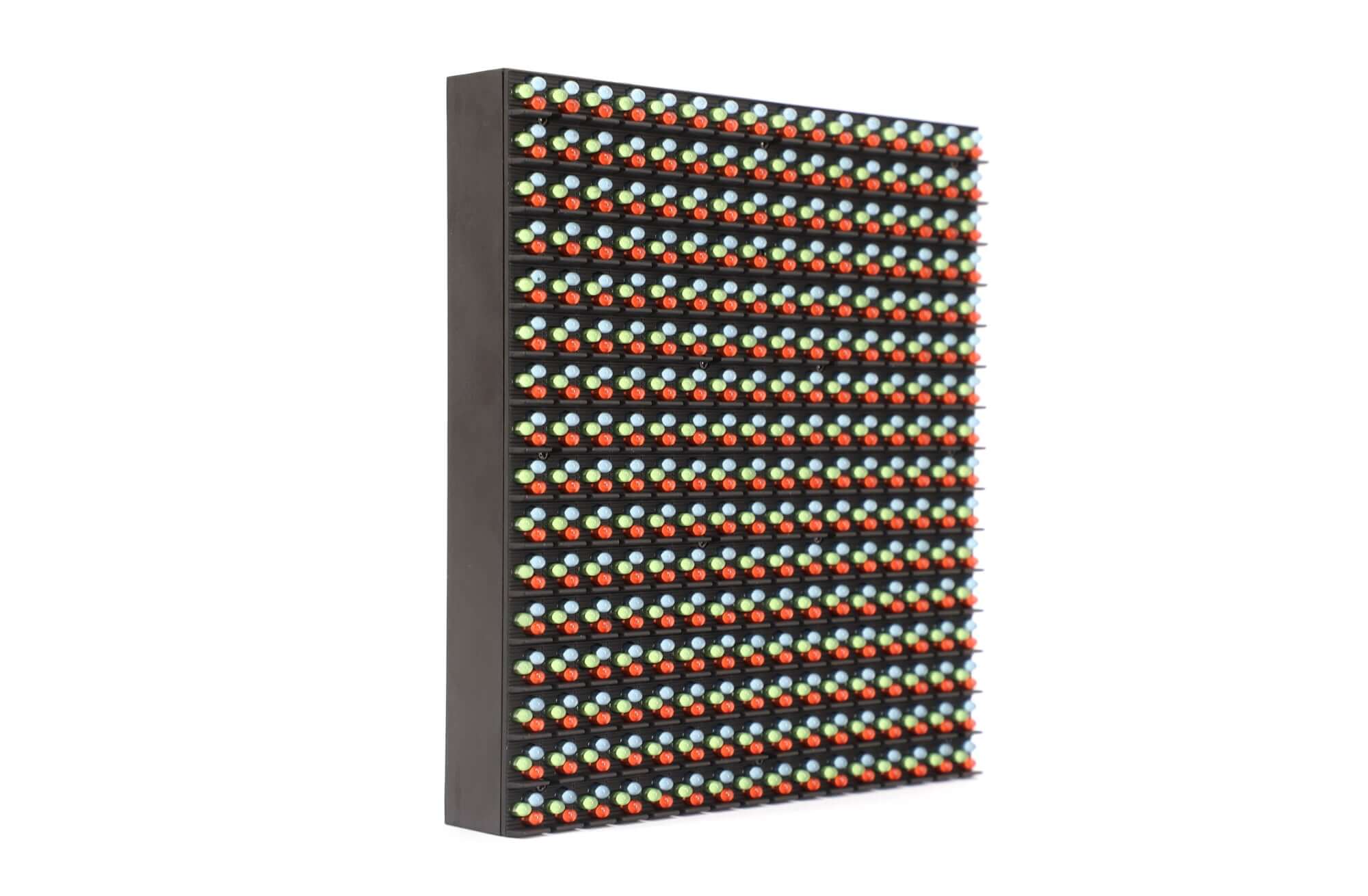

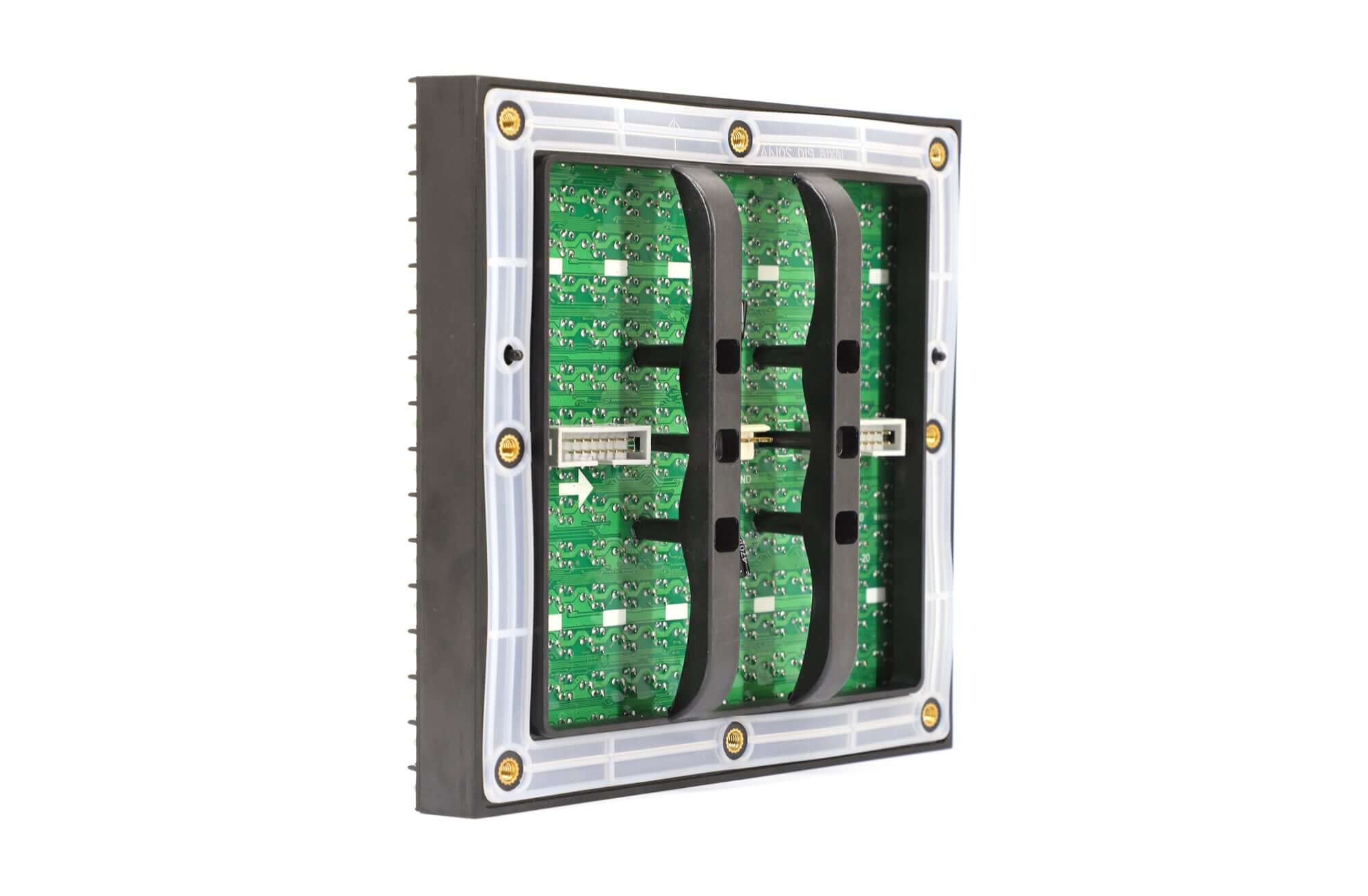

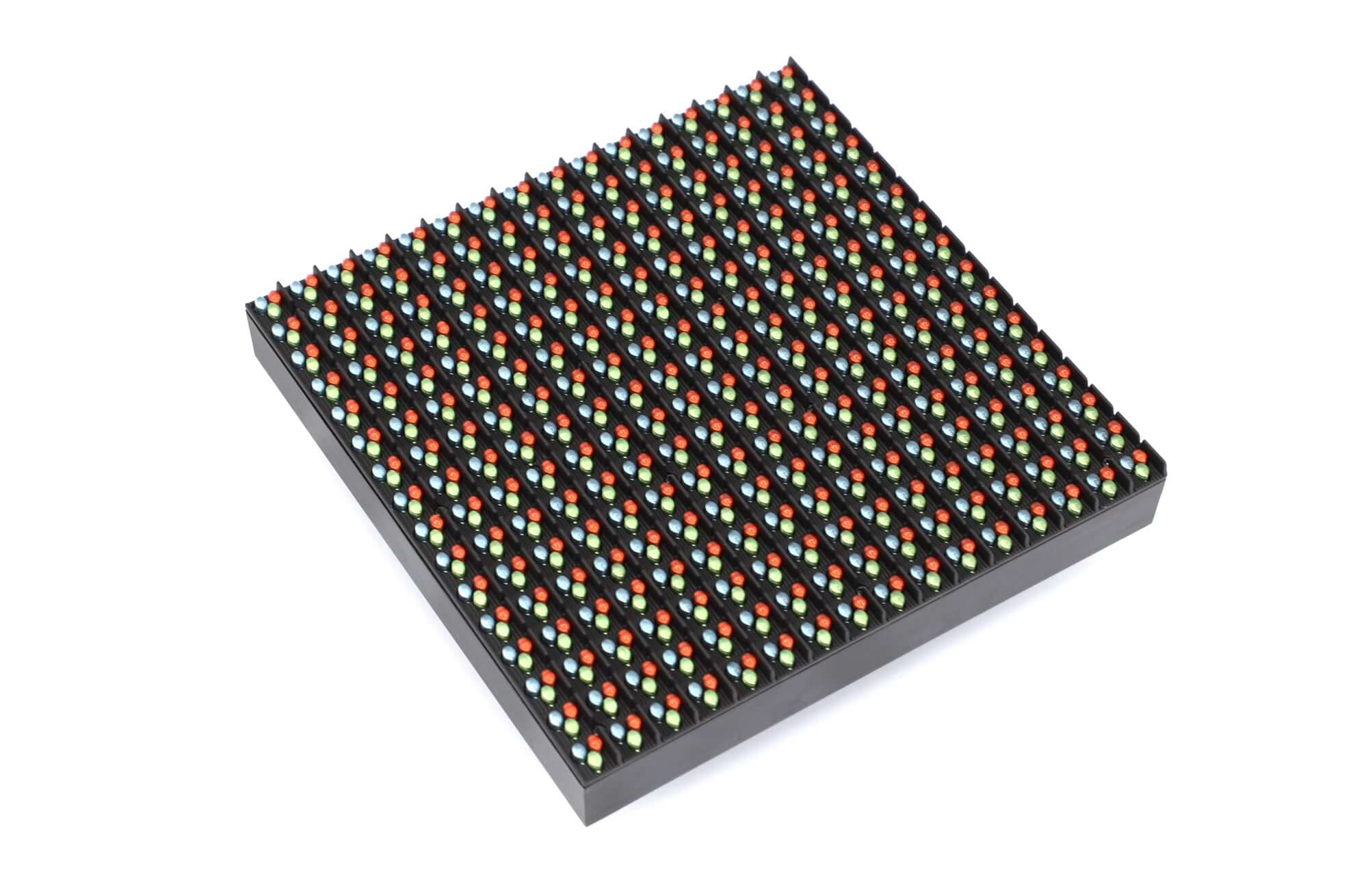

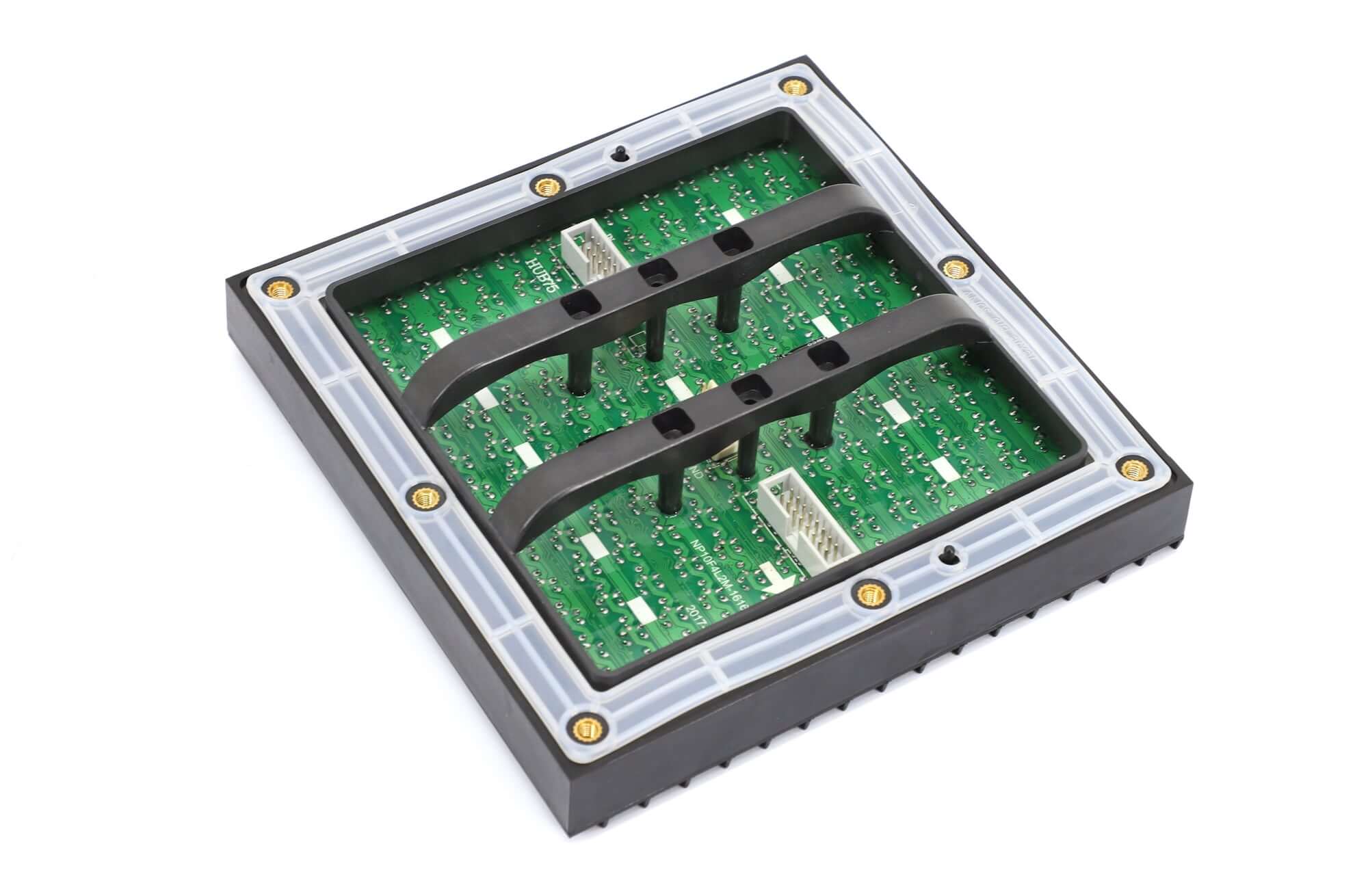

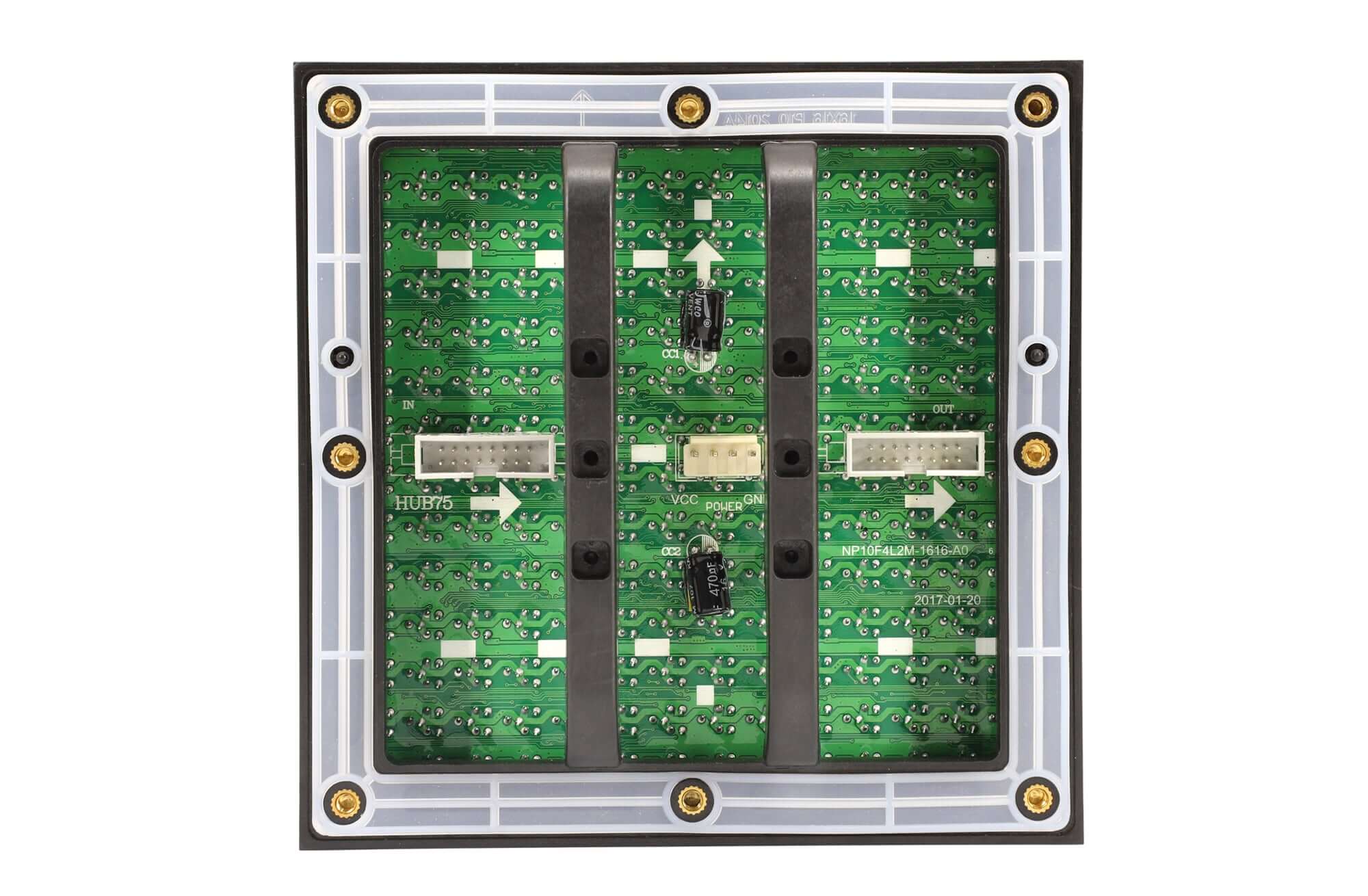

A 160 × 160 mm outdoor P10 board with 16 × 16 pixels and a separate driver board. The module specification lists DIP346, 1/4-duty drive and 30 mm depth.
9902 in stock
For a square P10 installation, check the module outline and the receiver settings together. This listing identifies DIP346 in the module table. The original lamp subtable labels its individual red, green and blue entries SMD3535, so those lamp measurements should be checked against the supplied DIP board.
Technical specifications
LED Lamp Specification | ||||||
Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
Red | SMD3535 | 800-1400mcd | 110/50 | 618-628nm | 25℃,20mA | |
Green | SMD3535 | 1800-3000mcd | 110/50 | 518-528nm | 25℃,20mA | |
Blue | SMD3535 | 400-600mcd | 110/50 | 465-475nm | 25℃,20mA | |
Module Parameter | ||||||
Pixel Pitch | 10mm | |||||
Pixel configuration | DIP346 | |||||
Density | 10,000 pixels/㎡(real pixel) | |||||
Module Resolution | 16pixel(L) * 16pixel(H) | |||||
Module Dimension | 160mm(L) * 160mm(H) * 30mm(D) | |||||
Driving Mode | Constant current, 1/4 duty | |||||
Module Mask | Pure black mask—high contrast screen | |||||
Electricity Parameter | ||||||
Optical Ratings | ||||||
Brightness | ≥8,000 cd/㎡ | |||||
Viewing Angle | 110°(Horizontal); 50°(Vertical) | |||||
Best Viewing Distance | ≥10m | |||||
Gray Grade | 16,384 levels for each color | |||||
Display Color | 4.39 Trillion Color | |||||
Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
Max. Power Consumption | 14 W | |||||
Control System | ||||||
Correction Scale Level | 12bits | |||||
Frame Frequency | ≥60Hz | |||||
Screen Refresh Frequency | ≥1,920Hz | |||||
Gamma Correction | -5.0～5.0 | |||||
Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
Control Distance | 100m(Ethernet cable); 20KM(optical fiber cable) | |||||
Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
Color Temperature | 5000—9300 adjustable | |||||
Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
Reliability | ||||||
Working Temperature | -20～+60 ºC | |||||
Stored Temperature | -30～+70 ºC | |||||
Working Humidity | 10%～90% RH | |||||
Lifetime | 100,000 hours | |||||
MTBF | 5000 hours | |||||
Continuous Working Time | ≥72 hours | |||||
Protection Grade | IP65 | |||||
Out of Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.
Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
Is this the DIP or SMD version of the P10 module?
The product name, module configuration and original PDF filename identify DIP346. The lamp subtable carries a conflicting SMD3535 label. Confirm the lamp package before relying on those individual color measurements.
What are the scan setting and pixel dimensions?
The square board is listed as 16 pixels wide by 16 high with a constant-current 1/4-duty drive.
What is the maximum power draw per square module?
The electrical table gives 14 W maximum. For cabinet layout, the mechanical dimensions are 160 × 160 × 30 mm.
| Weight | 0.8 kg |
|---|
