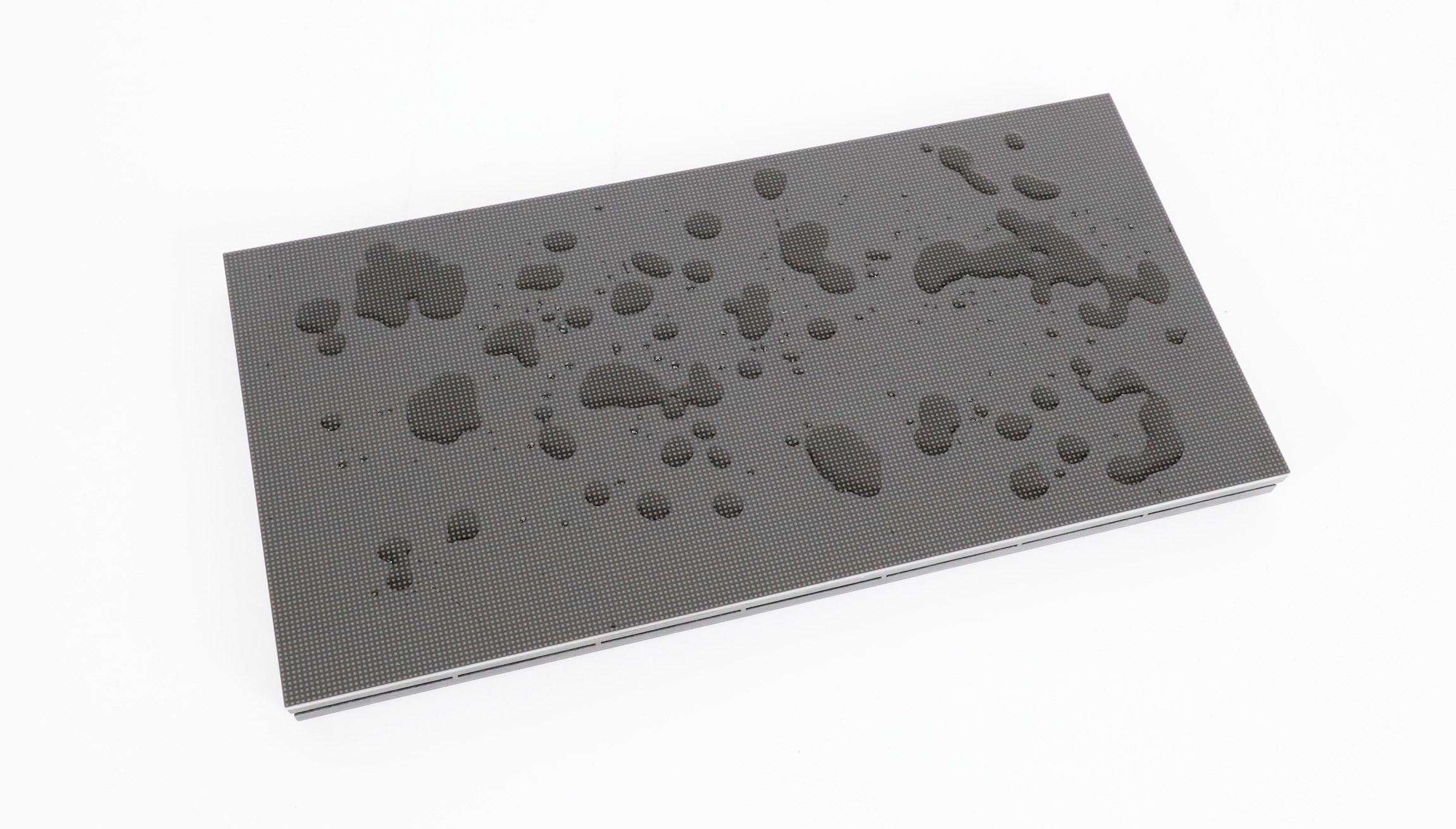

P1.53 GOB Indoor LED Module, 320 × 160 mm
$ 42.60
P1.53 GOB indoor LED module for matched screen projects.
- 320 × 160 mm module format
- 208 × 104 pixel resolution
- SMD1010 model reference
- Confirm the quoted GOB batch specification before ordering
15616 in stock
P1.53 GOB indoor LED module overview
This P1.53 GOB LED module is listed for indoor LED screens with a 320 × 160 mm module format and a 208 × 104 pixel resolution. It is intended for ordering matched modules for a screen project. Confirm the required surface treatment, mounting arrangement and control configuration before placing the order.
The downloadable P1.53 specification identifies model P1.53-HD26S-SMD1010-208×104. Its electrical and optical figures describe that documented module. The listing identifies the product as a GOB version, so request confirmation that the quoted GOB batch uses the same specification before finalizing the screen design.
P1.53 module dimensions and display specifications
| Item | Published specification |
|---|---|
| Pixel pitch | 1.53 mm |
| Module format | 320 × 160 × 15 mm |
| Module resolution | 208 × 104 pixels |
| LED package | SMD1010 |
| Driving mode | Constant current, 1/26 duty |
| Brightness | ≥600 cd/m² |
| Refresh frequency | ≥3,840 Hz |
| Frame frequency | ≥60 Hz |
| Maximum module power consumption | 30 W |
| Grayscale | 14 bits |
| Module viewing angle | 140° horizontal / 140° vertical |
| Protection grade | IP31, for the documented indoor module |
The specification separately lists a frame frequency and a refresh frequency. Keep these values separate when checking a controller configuration or preparing camera requirements. The module table does not establish a complete screen’s input resolution or the number of modules a receiving card can drive.
Plan the cabinet and control system
Use the module’s physical size to plan cabinet dimensions, and use its pixel resolution to calculate the screen’s pixel map. For a rectangular arrangement, multiply 208 by the number of modules across and 104 by the number of modules down. Then check the receiving-card loading limits, scan configuration and wiring layout for that complete arrangement.
HDMI, DVI and SDI in the specification’s control-system section refer to the surrounding video system. Confirm the controller and receiver hardware needed for the source you plan to use. Do not connect a video source directly to a module based only on that list.
| Before ordering | What to confirm |
|---|---|
| Mechanical fit | Cabinet openings, fixing points, module depth and service access |
| Electrical configuration | Module input voltage, connectors, power distribution and the quoted batch’s wiring information |
| Control setup | Driver IC, 1/26 scan, receiver configuration file and screen pixel map |
| Visual consistency | One production batch for the screen and any spare modules ordered with it |

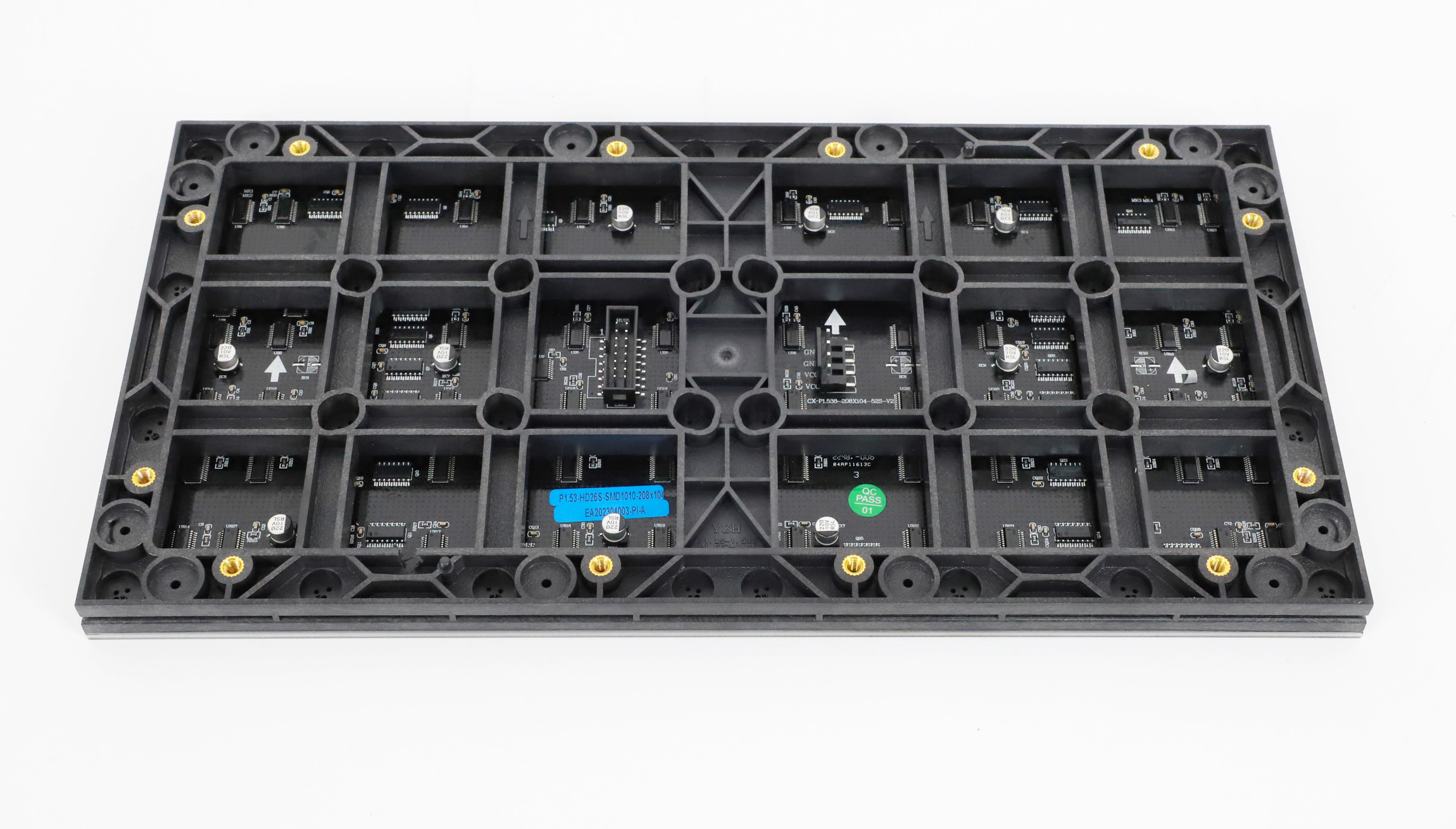

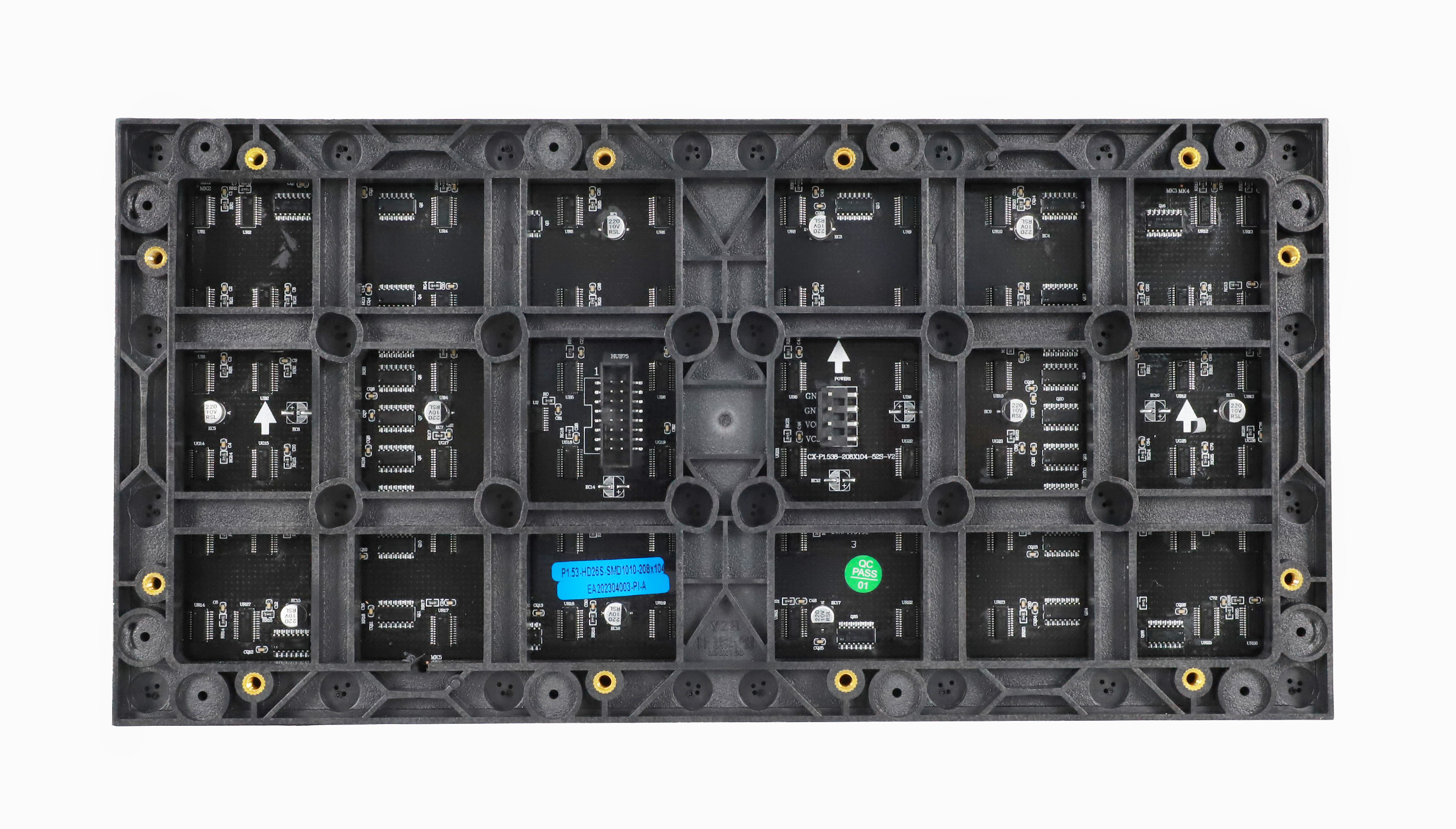

Product images and specification
Download the P1.53 SMD1010 module specification. Use the documented model number when requesting confirmation of the GOB version.
Frequently asked questions
Q1Is P1.53 GOB an outdoor module?
This product is listed for indoor use. The linked specification gives IP31 for its documented module. Check the installation environment and the exact quoted construction before ordering.
Q2Does the PDF confirm every feature of the GOB version?
The PDF identifies the P1.53 SMD1010 model. Confirm the GOB surface treatment and batch-specific details with the sales team using the product images and model reference.
Q3Should spare modules be ordered with the screen?
Request the required spares in the same order and production batch as the screen modules. This follows the listing’s batch-matching requirement and helps avoid mixing modules from separate batches.
Confirm your P1.53 module order
Send the module quantity, cabinet layout, screen pixel dimensions and required GOB version through LED Mall’s contact page. You can also review the indoor LED module category and ordering instructions before requesting a batch-specific quotation.
| Weight | 1.2 kg |
|---|
