Outdoor P5 160x160mm SMD1921 LED Module
$ 15.10
Discontinued — no longer available.
Outdoor P5 160x160mm SMD1921 LED screen module.
- 32 × 32-pixel module resolution
- Constant-current 1/8 scan
- Brightness ≥6000 cd/m²
- Not for replacing modules in an old screen
Out of stock
Outdoor P5 160x160mm module overview

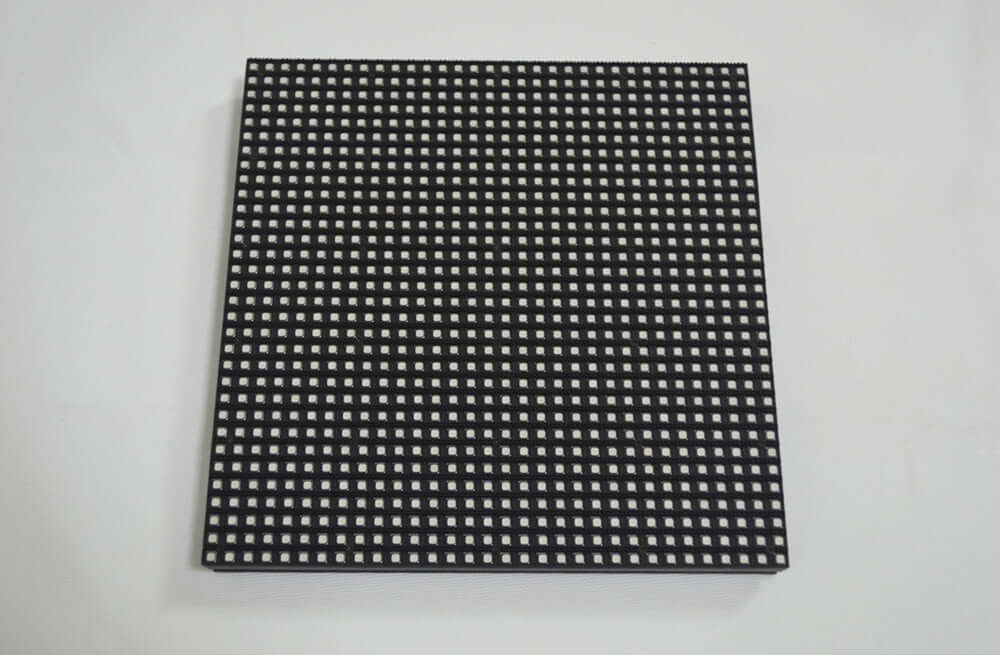

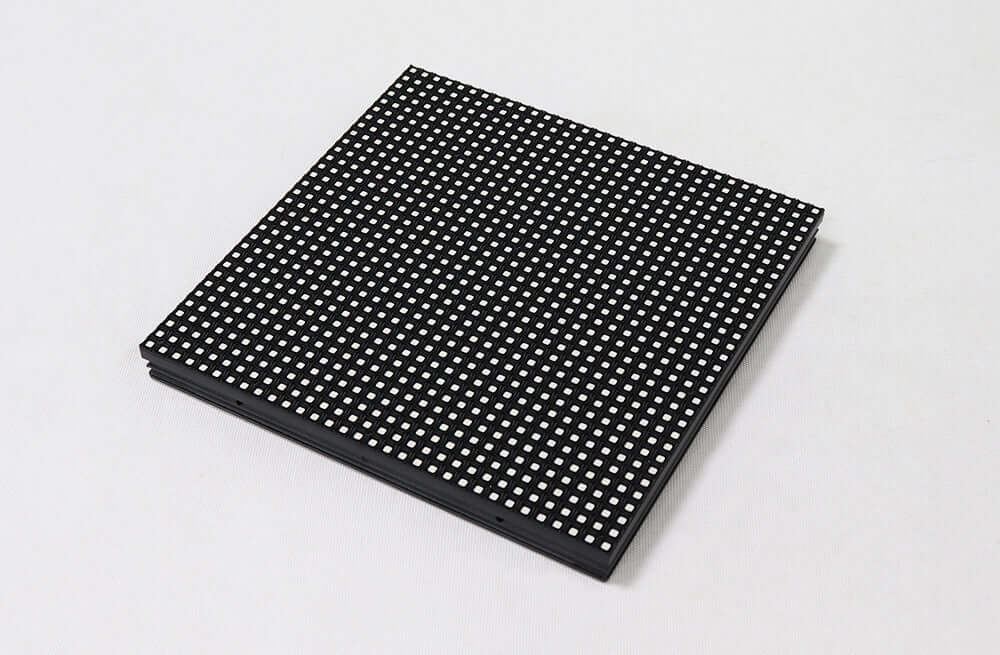

This outdoor P5 LED screen module uses Kinglight SMD1921 LEDs, a 32 × 32-pixel matrix and constant-current 1/8-duty driving. Its original specification lists brightness of at least 6000 cd/m² and a module size of 160 × 160 × 25mm.
Outdoor P5 160x160mm module specifications
| Item | Specification |
|---|---|
| Pixel pitch | 5mm |
| LED configuration | SMD1921 |
| Pixel density | 40,000 pixels/m² |
| Module pixels | 32 (L) × 32 (H) |
| Dimensions | 160 (L) × 160 (H) × 25 (D) mm |
| Driving mode | Constant current; 1/8 duty |
| Mask | Pure black mask for contrast |
Optical and power specifications
| Item | Specification |
|---|---|
| Brightness | ≥6000 cd/m² |
| Viewing angle | 120° horizontal; 120° vertical |
| Viewing distance | ≥5m |
| Grayscale | 14 bit |
| Display colors | 4.4 trillion |
| Brightness control | 100 levels by software or automatically by sensor |
| Maximum power | 25W |
Original LED lamp ratings
The module specification identifies SMD1921 LEDs. Each listed color is tested at 25°C and 20mA, with a 120° viewing angle.
| Item | Specification |
|---|---|
| Red intensity | 450–600mcd |
| Red wavelength | 620–625nm |
| Green intensity | 1000–1400mcd |
| Green wavelength | 516–530nm |
| Blue intensity | 200–400mcd |
| Blue wavelength | 465–475nm |
Display system reference parameters
The following are the original listing’s control-system parameters. Connections and control distances apply to the configured display system; confirm the controller and transmission equipment separately.
| Item | Specification |
|---|---|
| Frame frequency | ≥60Hz |
| Refresh frequency | ≥1920Hz |
| Input signals | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control distance | 100m via Ethernet cable; 20km via optical fiber cable |
| VGA modes | 800 × 600; 1024 × 768; 1280 × 1024; 1600 × 1200 |
| Color temperature | 5000–9300, adjustable, as listed |
| Brightness correction | Pixel by pixel, module by module and cabinet by cabinet |
Environment and reliability
| Item | Specification |
|---|---|
| Working temperature | −20°C to +60°C |
| Storage temperature | −30°C to +70°C |
| Working humidity | 10%–90% RH |
| Listed lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous operation | ≥72 hours |
| Protection grade | IP65 |
| Out-of-control pixel rate | ≤0.01% |

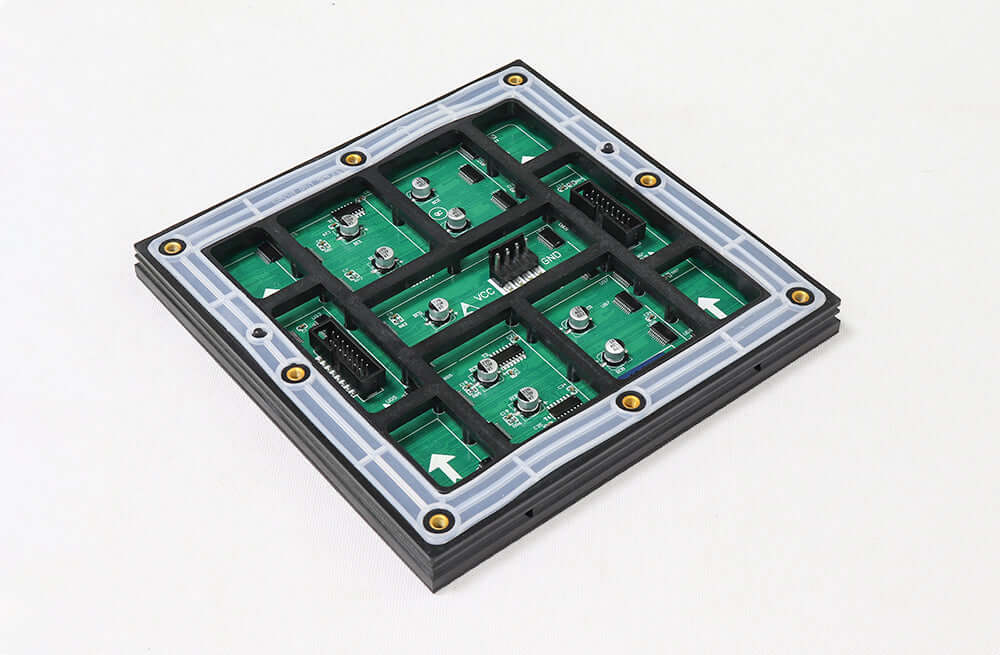

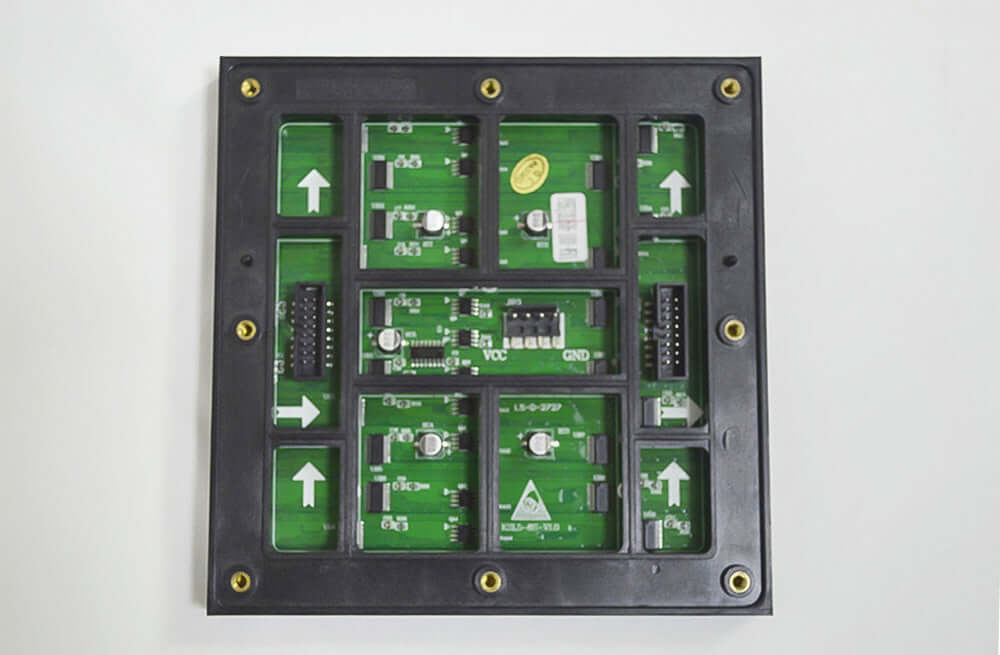

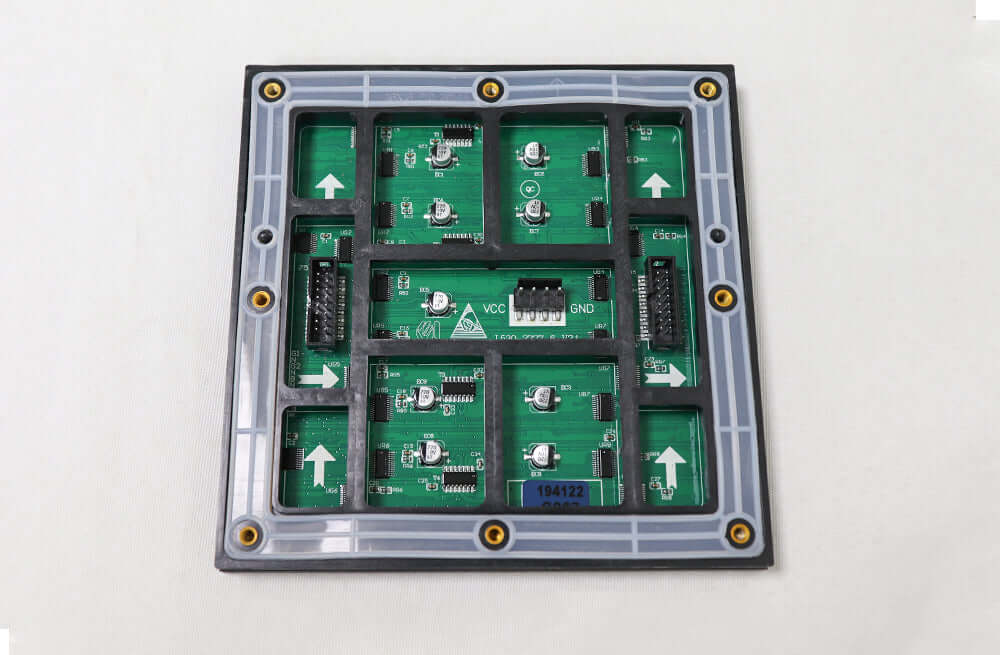

Module design features
- PCB design intended for low heat dissipation and stable operation.
- Plastic-cover mold designed to reduce module gaps and improve screen flatness.
- Kinglight SMD1921 outdoor LEDs.
- LED sorting within a 2.5nm wavelength range and 10% color difference, as stated in the original listing.
- Red, green and blue brightness-ratio control for white balance.
- Constant-current driver IC for display consistency.
Frequently asked questions
Q1Can these modules replace failed modules in my existing old screen?
No. The original listing expressly excludes use as spare parts for an existing old LED display and states that technical support or services are not provided for that use.
Q2Why must modules for one screen come from one batch?
The original purchase notice requires one order for all modules used in a screen to reduce brightness and color differences between batches.
Q3Are destination duties included in the price?
No. The original listing excludes destination tariffs and duties. The buyer is responsible for import customs clearance and local charges.
Discuss your replacement requirements
Send the full model code, existing hardware details and project requirements through LED Mall’s contact page. Review the shipping policy and returns policy when planning an alternative order.
| Weight | 0.8 kg |
|---|
