NovaStar VX600S LED Video Controller | Connections & Manuals
Original price was: $ 1,200.00.$ 1,140.00Current price is: $ 1,140.00.
This product is listed as a NovaStar VX600S all-in-one LED video controller. The original information describes six Ethernet outputs, three windows and switcher functions. The attached files identify VX600 and VX6s, so confirm the supplied model before applying their specifications or instructions.
10000 in stock
VX600S LED Video Controller: Connections and Model Check

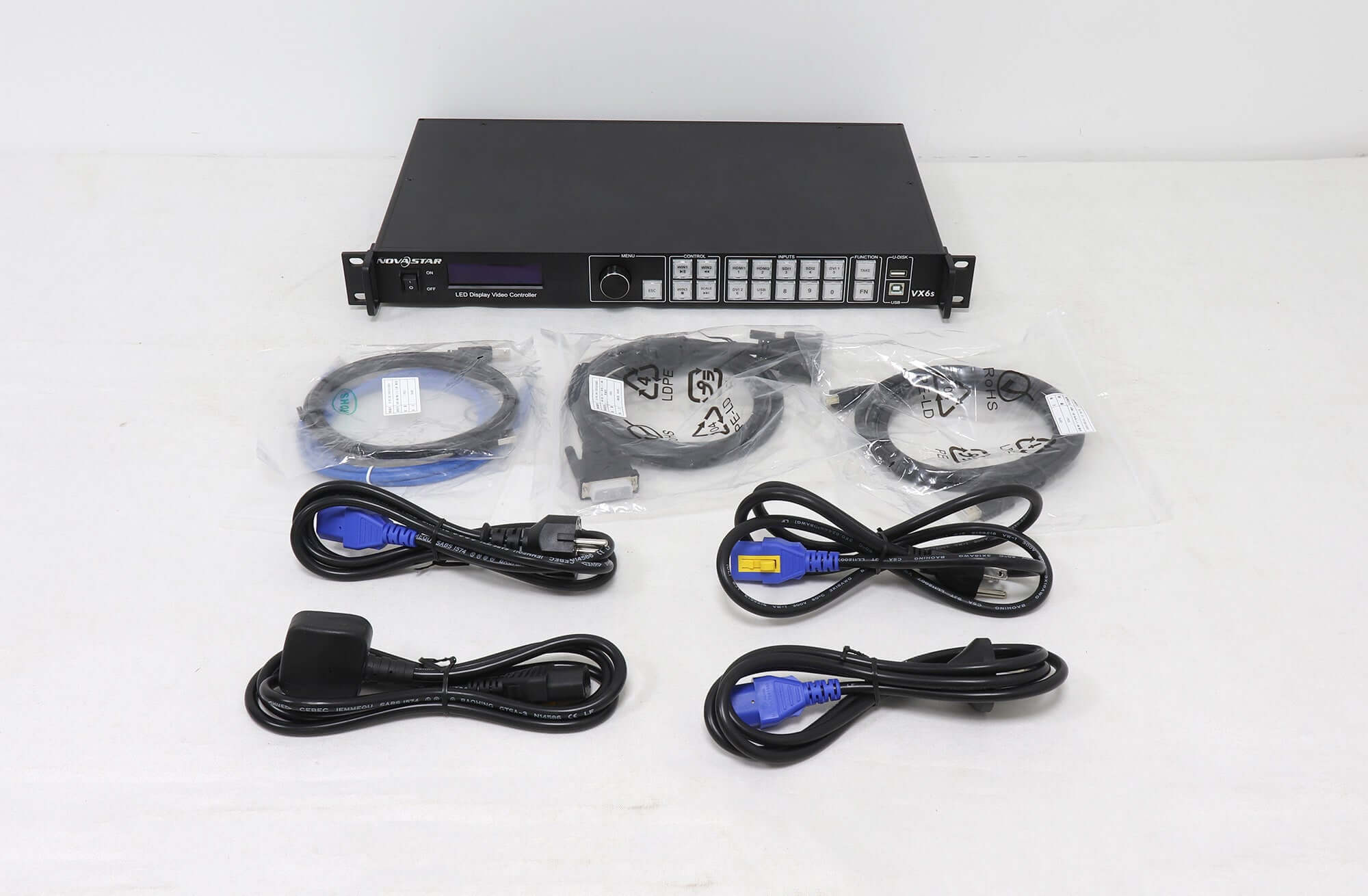

This product is listed as VX600S. Its original description covers video processing, LED sending, preview and switcher functions. The gallery image filenames identify VX6S, while the retained specification is for VX600 and the manual link is labelled VX6s. These model references are not interchangeable.

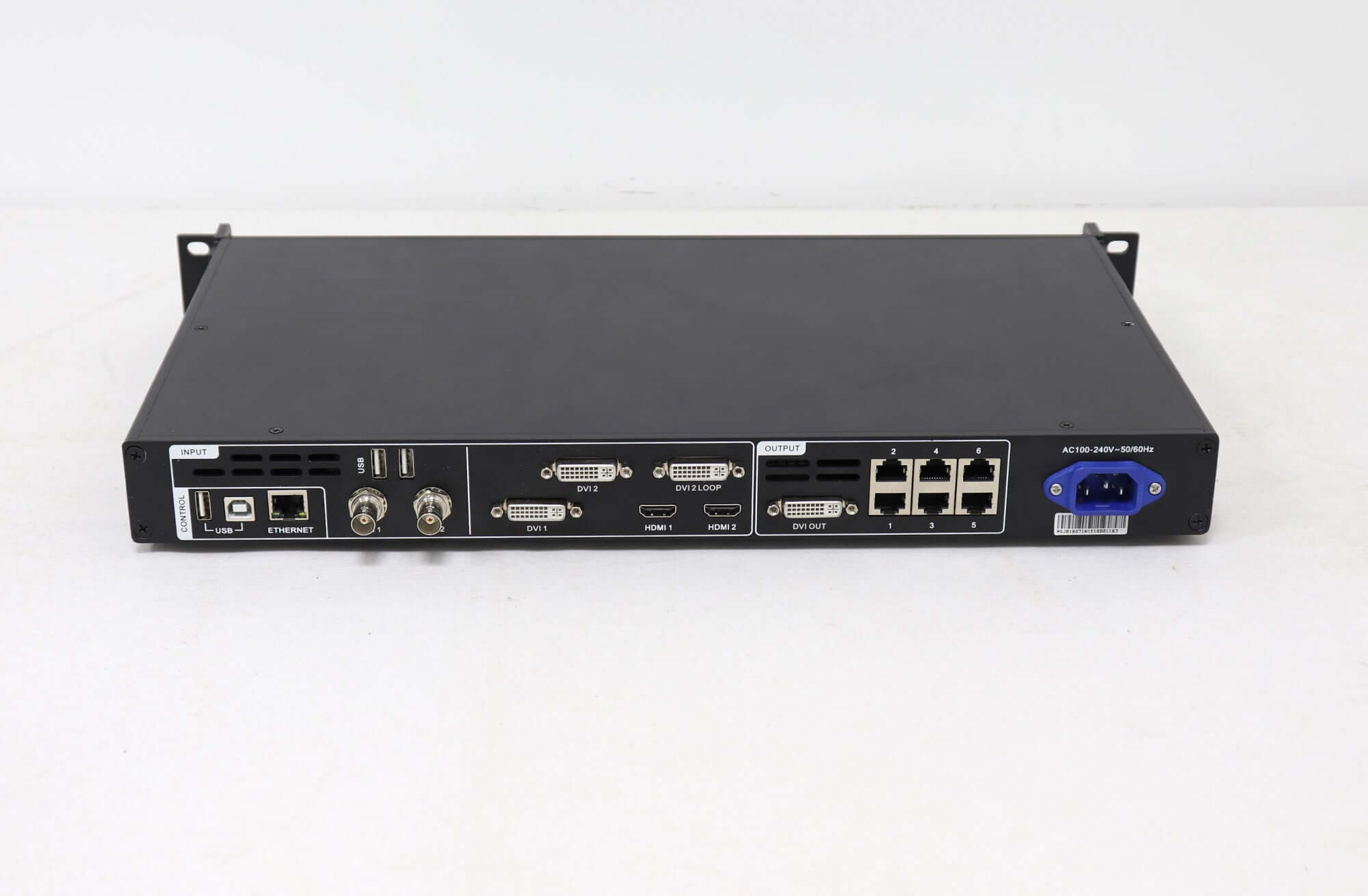

The following table preserves the original listing’s values. It does not establish a verified VX600S hardware specification. Match the supplied unit’s model label and rear panel before choosing a manual, firmware or screen configuration.
| Parameter | Specification |
|---|---|
| 3G-SDI video inputs | 2; up to 1920 × 1080 @ 60 Hz |
| DVI video inputs | 2; up to 1920 × 1200 @ 60 Hz; HDCP listed |
| HDMI video inputs | 2; HDMI 1.3 in the feature list; up to 1920 × 1200 @ 60 Hz; HDCP listed |
| USB media / mouse connections | Original interface table lists 2; media playback and mouse connection |
| U-AUDIO | Original table lists 2 audio output interfaces |
| LED Ethernet outputs | 6 |
| DVI monitor output | 1; preview, including PGM preview as described in the original listing |
| Ethernet control connection | 1; PC communication or network access |
| USB Type-B control | PC control and USB cascade input; quantity not stated |
| USB Type-A control | Device cascade output; quantity not stated |
| Power input | AC 100–240 V, 50/60 Hz |
| Operating temperature | −20°C to +60°C |
| Chassis | 1U standard chassis |
Windows, Switching and Screen Setup
The original feature list describes three windows plus one OSD channel, up to 4096 pixels of output width and 16 saved user scenarios. It also includes quick and advanced screen setup, manual brightness adjustment, custom input resolutions, source backup, multi-device screen splicing and automatic full-screen scaling.
Switcher mode is described with a TAKE function and PGM preview. HDMI or DVI can be selected as the synchronization source, and the front panel is described as having an OLED interface and illuminated buttons. These functions remain attributed to the existing listing until the exact hardware model is confirmed.
USB count note: The original feature summary counts seven source interfaces, including one USB source, while its connection table lists two USB connectors for media and mouse use. A source count and a physical connector count should not be treated as the same measurement.
Choosing the Correct Documentation
The VX600 specification and VX6s manual links below are retained with their model names made explicit. Neither file establishes that the unit sold under this VX600S listing is that model. Use the model label, connector layout and matching document together; do not transfer a pixel-capacity or firmware claim solely because the names are similar.
Frequently Asked Questions
Is VX600S the same model as VX600 or VX6s?
This page’s product name, image filenames and attached document names differ. The available information does not confirm that they are the same model; check the supplied unit’s model label before applying a specification.
How many Ethernet outputs are listed here?
The original product table lists six LED Ethernet outputs and a separate Ethernet control connection. The LED outputs and control port serve different purposes.
Does this listing support three display windows?
The original feature list states three windows plus one OSD channel. That claim is preserved as existing listing information and should be checked against the actual model.
Does the USB count mean one port or two ports?
The original summary counts one USB source among seven source interfaces; its interface table lists two USB connections for media playback and a mouse. Confirm the rear-panel layout before planning connections.
Which specification or manual should I use?
The retained specification filename identifies VX600, and the retained manual filename identifies VX6s. Use a document only when it matches the supplied hardware; these downloads are not labelled as verified VX600S documentation.
Retained PDF Downloads
- VX600 All-in-One Controller Specification V1.3.1 — different model name from this listing.
- VX6s All-in-One Controller User Manual V1.1.1 — original link retained; availability previously could not be confirmed.
| Weight | 10 kg |
|---|
