NovaStar VX2000 Pro 13-Million-Pixel LED Video Controller
NovaStar VX2000 Pro all-in-one controller with 20 Ethernet outputs, up to 13 million pixels, 4K60 inputs and twelve 2K layer resources. Supports Unico control, USB playback and up to 256 presets. Contact sales for specific pricing.
The NovaStar VX2000 Pro combines video processing and LED display control for screens up to 13 million pixels. Its 20 Gigabit Ethernet outputs and four 10G optical ports support large stage, rental and fine-pitch installations. DP 1.2, HDMI 2.0 and 12G-SDI accept inputs up to 4096 × 2160 at 60 Hz.
Multi-source layouts and input mosaic
The processor provides twelve 2K × 1K layer resources. A 4K × 2K layer consumes four resources, a 4K × 1K layer consumes two and a 2K × 1K layer consumes one. Adjust each layer’s size, position, priority and aspect ratio, then save up to 256 presets. Unico can preview the layout stored in a preset.
HDMI mosaic combines two HDMI 2.0 inputs or four HDMI 1.3 inputs, with a maximum mosaic resolution of 4K × 2K. Sources from OPT 1 and OPT 2 can be used independently or combined as a mosaic source. Maximum LED output width is 16,384 pixels and maximum height is 8,192 pixels, within the total 13-million-pixel limit.
Technical specifications
| Parameter | Specification |
|---|---|
| LED output | 20 Gigabit Ethernet ports; up to 13 million pixels |
| Per-port load | 650,000 pixels at 8-bit input |
| Maximum output dimensions | 16,384 pixels wide; 8,192 pixels high, subject to total capacity |
| 4K input connectors | 1 × DP 1.2; 2 × HDMI 2.0; 1 × 12G-SDI with loop; up to 4096 × 2160 at 60 Hz |
| HDMI 1.3 inputs | 4 inputs; up to 1920 × 1080 at 60 Hz |
| Optical ports | 4 × 10G; OPT 1/2 adaptive input/output, OPT 3/4 output |
| Layer resources / presets | 12 × 2K × 1K resources / up to 256 presets |
| Monitor output | HDMI 1.3, fixed 1920 × 1080 at 60 Hz |
| USB playback | USB 3.0; NTFS, FAT32 or exFAT; single-partition drive |
| USB source resolution | Fixed 3840 × 2160 at 60 Hz |
| Audio | Embedded HDMI/DP audio; 3.5 mm independent audio input/output |
| Control | Front panel, NovaLCT, Unico, VICP app and web page control |
| Synchronization | Internal input source or external Genlock; Genlock IN/LOOP |
| Power supply / rated consumption | 100–240 V AC, 50/60 Hz / 82 W |
| Operating environment | 0°C to 50°C; 5%–85% RH, non-condensing |
| Storage environment | −10°C to +60°C; 5%–95% RH, non-condensing |
| Dimensions / net weight | 482.6 × 409.0 × 94.6 mm / 7 kg |
Signal-path and playback conditions
In optical output mode, OPT 1 and OPT 2 send Ethernet outputs 1–10 and 11–20 respectively; OPT 3 and OPT 4 provide copy or backup for those groups. Other optical modes allow input plus output, or input plus loop plus output. Select the port roles for the intended signal path.
USB supports JPG, JPEG, PNG and BMP images and MP4 videos. H.264 decoding reaches 3840 × 2160 at 30 fps; H.265 reaches 3840 × 2160 at 60 fps. The USB source is fixed at 3840 × 2160 at 60 Hz. Input frame rate and bit depth depend on connector, resolution and color sampling; use the PDF’s source-format table for the exact combination.
Zero-frame device delay requires low latency and ByPass mode, where video processing is unavailable. Video controller mode is specified at 1–2 frames with low latency enabled. Cabinets must align at the top of the enclosing rectangle. Low latency and Genlock cannot be enabled together in ByPass mode. Free topology requires specific receiving cards. Enabling 3D halves the output capacity and requires compatible 3D equipment.

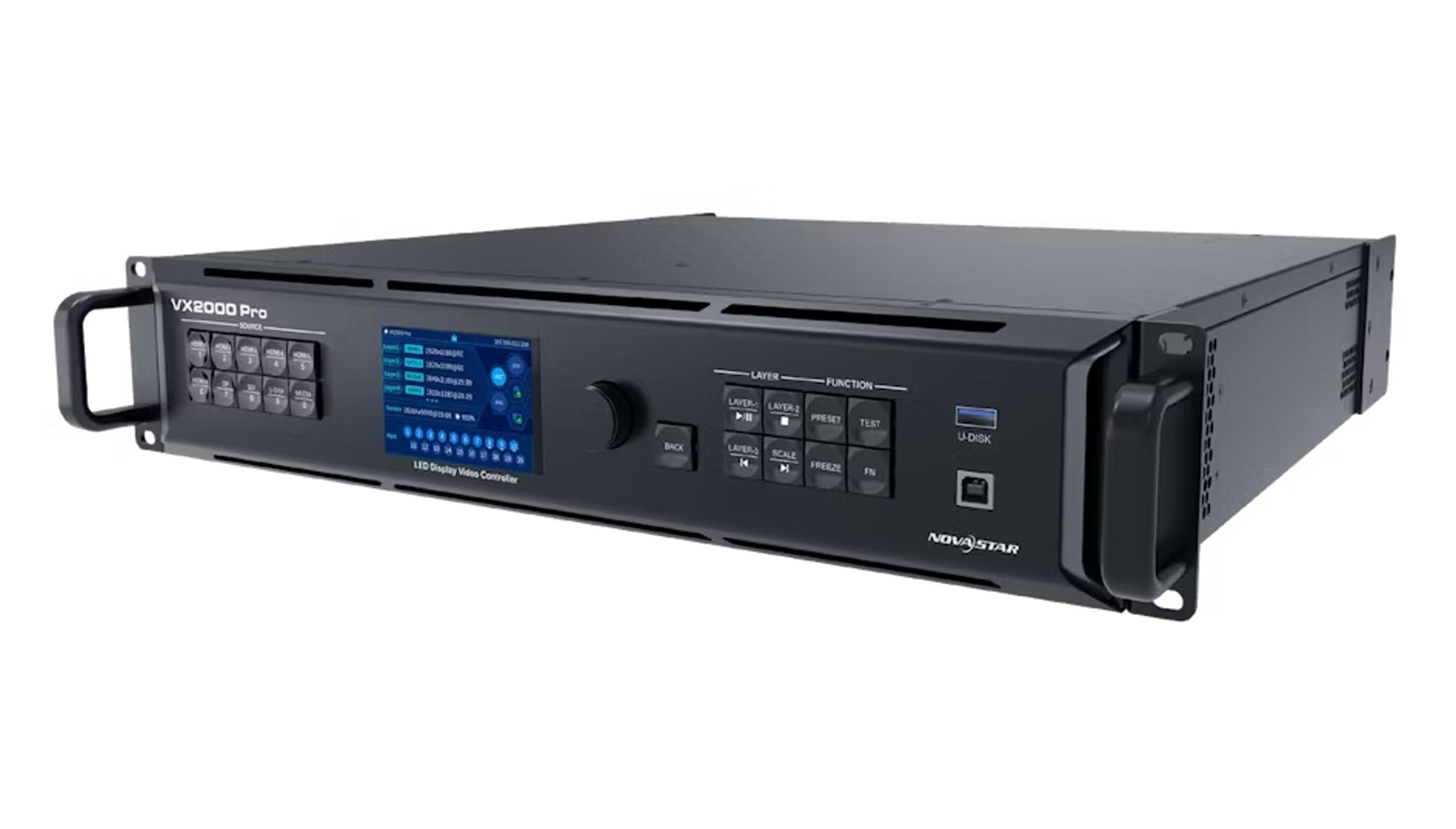

Product image
Specification download
Download the NovaStar VX2000 Pro specifications (PDF)
Frequently Asked Questions
How many pixels can the VX2000 Pro control?
The maximum is 13 million pixels across 20 Gigabit Ethernet outputs. Maximum width and height are 16,384 and 8,192 pixels respectively, while the total screen must remain within the loading limit.
Does it support twelve full 4K layers?
No. It has twelve 2K × 1K layer resources. A 4K × 2K layer consumes four resources, so layer count depends on the chosen sizes and input sources.
Can I control the VX2000 Pro with Unico?
Yes. Unico is one of the documented control options, alongside the front panel, NovaLCT, VICP and web page control. Unico can also preview a saved preset’s layer layout.
Can the VX2000 Pro play 4K video from USB?
Yes, for supported MP4 files: H.264 decoding is specified up to 3840 × 2160 at 30 fps and H.265 up to 3840 × 2160 at 60 fps. Use a single-partition NTFS, FAT32 or exFAT drive. The USB source resolution is fixed at 3840 × 2160 at 60 Hz.
How do I request a VX2000 Pro quotation?
Contact sales for specific pricing and provide the total pixel dimensions, receiving cards, video sources, layer layout and optical or backup requirements. Include any 3D requirements because enabling 3D halves the output capacity.
