NovaStar V1260n LED Video Wall Controller | 16 Outputs
$ 1,663.00
NovaStar V1260n video wall controller with sixteen Ethernet outputs, up to 10.4 million pixels, HDMI 2.0/DP 1.2 4K60 inputs and six independent windows. Includes OSD and ten presets; 3G-SDI is optional.
9999 in stock
The NovaStar V1260n combines video processing and LED display control for large fixed installations. Sixteen Gigabit Ethernet outputs drive up to 10.4 million pixels. HDMI 2.0 and DP 1.2 accept 4K × 2K at 60 Hz, while six independent windows support multi-source display layouts.
Model identification: this listing’s title and linked specification identify V1260n. The older page text and retained URL used V1260. The parameters below are taken from the V1260n V1.0.0 specification; do not assume V1260 and V1260n have identical interfaces.
Windows, overlays and control
The window allocation is two 4K × 2K windows plus four 2K × 1K windows. Each window has independent size, position and priority adjustment. Windows 3–6 cannot select HDMI 2.0 or DP 1.2 as their source. One OSD overlay can display at a time, with up to six OSD items stored; both image and text OSD are supported. A background image does not consume layer resources.
SuperView III processing supports scaling, full-screen display and input cropping. Up to ten custom presets can be recalled, copied or overwritten. V-Can, NovaLCT and the front-panel controls provide configuration options. Device and Ethernet-port backup, internal-source synchronization and pixel-level brightness/chroma calibration support installation setup.
Technical specifications
| Parameter | Specification |
|---|---|
| LED outputs / total capacity | 16 Gigabit Ethernet outputs / up to 10.4 million pixels |
| Per-port capacity | 650,000 pixels at 8-bit input and 60 Hz output |
| Maximum screen dimensions | 16,384 pixels wide; 8,192 pixels high, within total capacity |
| 4K inputs | 1 × HDMI 2.0; 1 × DP 1.2; up to 4K × 2K at 60 Hz or 8K × 1K at 60 Hz |
| HDMI 1.3 inputs | 4 inputs; up to 2K × 1K at 60 Hz |
| Optional SDI input | 1 × 3G-SDI IN/LOOP; up to 1920 × 1080 at 60 Hz; interlaced input and deinterlacing |
| Window resources | 2 × 4K × 2K plus 4 × 2K × 1K |
| OSD / presets | 1 displayed OSD, up to 6 stored OSD items / 10 presets |
| Audio | Embedded HDMI/DP audio; 3.5 mm audio input/output; multifunction-card audio through Ethernet output 1 or 2 |
| Control interfaces | Ethernet for firmware upgrade; USB for USB-drive firmware upgrade; RS232 for central control |
| Power supply / consumption | 100–240 V AC, 50/60 Hz / 50 W |
| Operating environment | 0°C to 50°C; 0%–80% RH, non-condensing |
| Storage environment | −20°C to +60°C; 0%–95% RH, non-condensing |
| Dimensions / net weight | 482.6 × 312.5 × 94.6 mm / 6.4 kg |
The SDI input is optional. HDMI and DP do not accept interlaced signals. Supported color depth and frame rate depend on the input format: for example, the PDF lists HDMI 2.0/DP 1.2 RGB 4:4:4 at 3840 × 2160, 60 Hz for 8-bit and 30 Hz for 10-/12-bit. Check the complete source-format table for other sampling modes. Enabling 3D halves the output capacity and requires EMT200 with compatible 3D glasses.

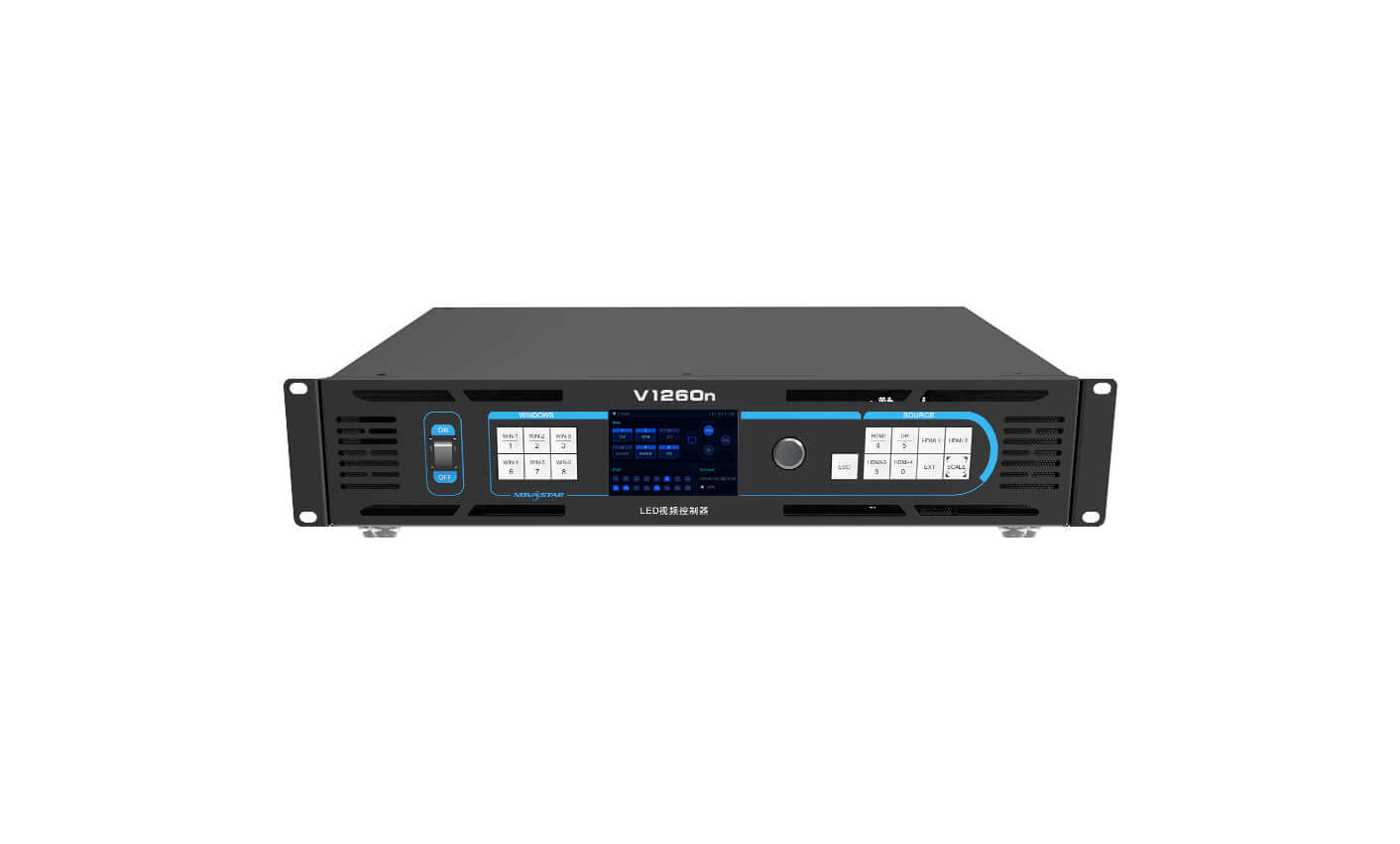

Retained product image
Specification download
Download V1260n specifications (Chinese PDF)
Frequently Asked Questions
Does this page describe V1260 or V1260n?
The current product title and linked manufacturer PDF identify V1260n. The page URL and older copy use V1260. Use the V1260n specification and the actual unit’s label when checking compatibility.
How many LED pixels can the V1260n load?
Up to 10.4 million pixels through sixteen Gigabit Ethernet outputs. Each port is specified for 650,000 pixels at 8-bit input and 60 Hz output. Maximum width and height remain subject to total capacity.
Are all six windows 4K windows?
No. The documented allocation is two 4K × 2K windows plus four 2K × 1K windows. Windows 3–6 cannot use HDMI 2.0 or DP 1.2 as their source.
Is 3G-SDI standard on the V1260n?
The manufacturer lists the 3G-SDI input and loop output as optional. Confirm the fitted configuration if SDI is required.
Does the USB port support media playback?
The specification describes USB for firmware upgrades from a USB drive. It does not list USB video playback for this model; use the documented video input connectors for content.
| Weight | 12 kg |
|---|
