NovaStar TB8 Taurus LED Media Player | Specs & Replacement
$ 480.00
Taurus LED multimedia player with a 2.3-million-pixel load, HDMI synchronous/asynchronous playback, dual Wi-Fi and optional 4G.
This model is listed as discontinued. Recommended alternative: NovaStar TB60.

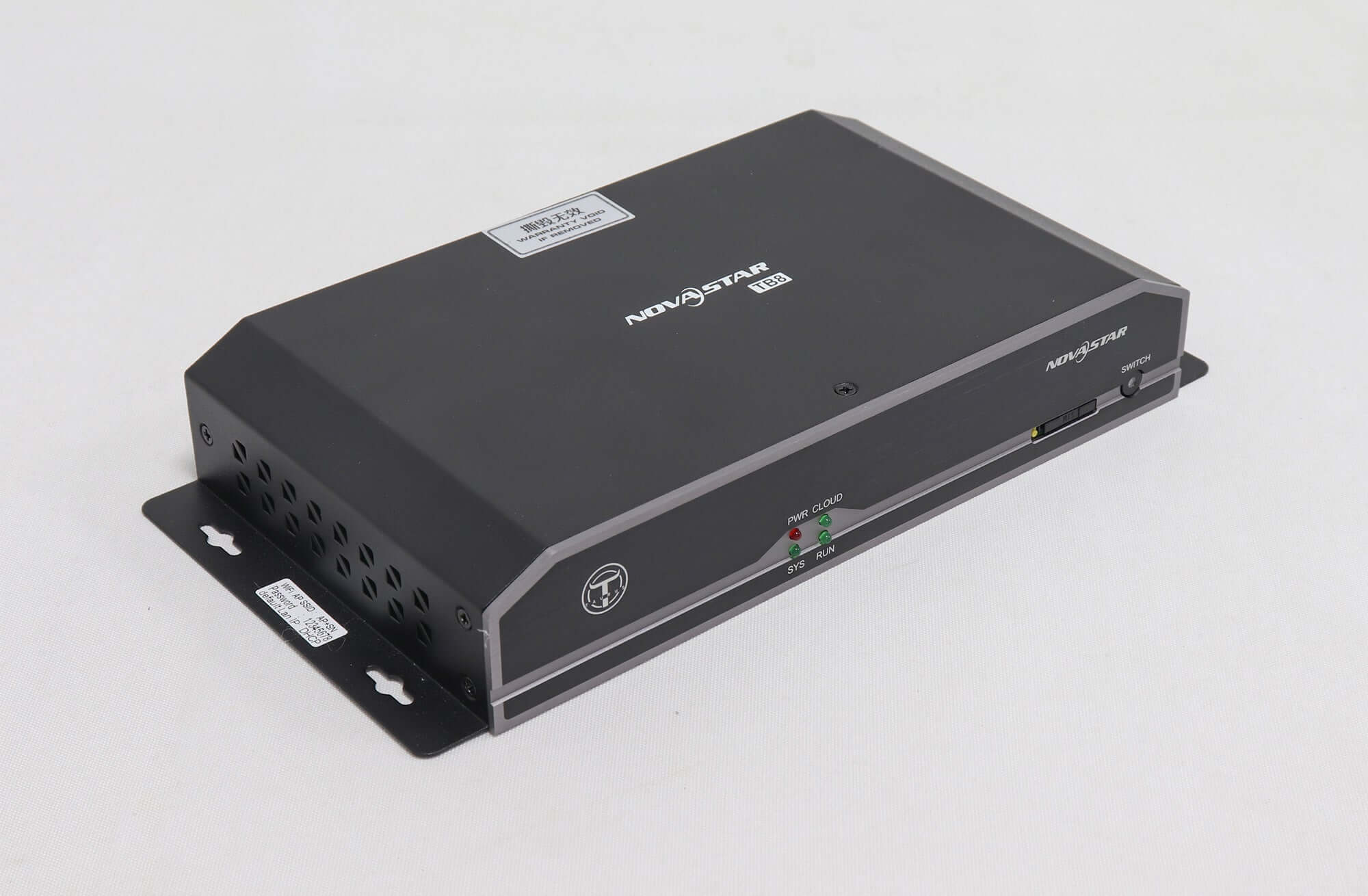

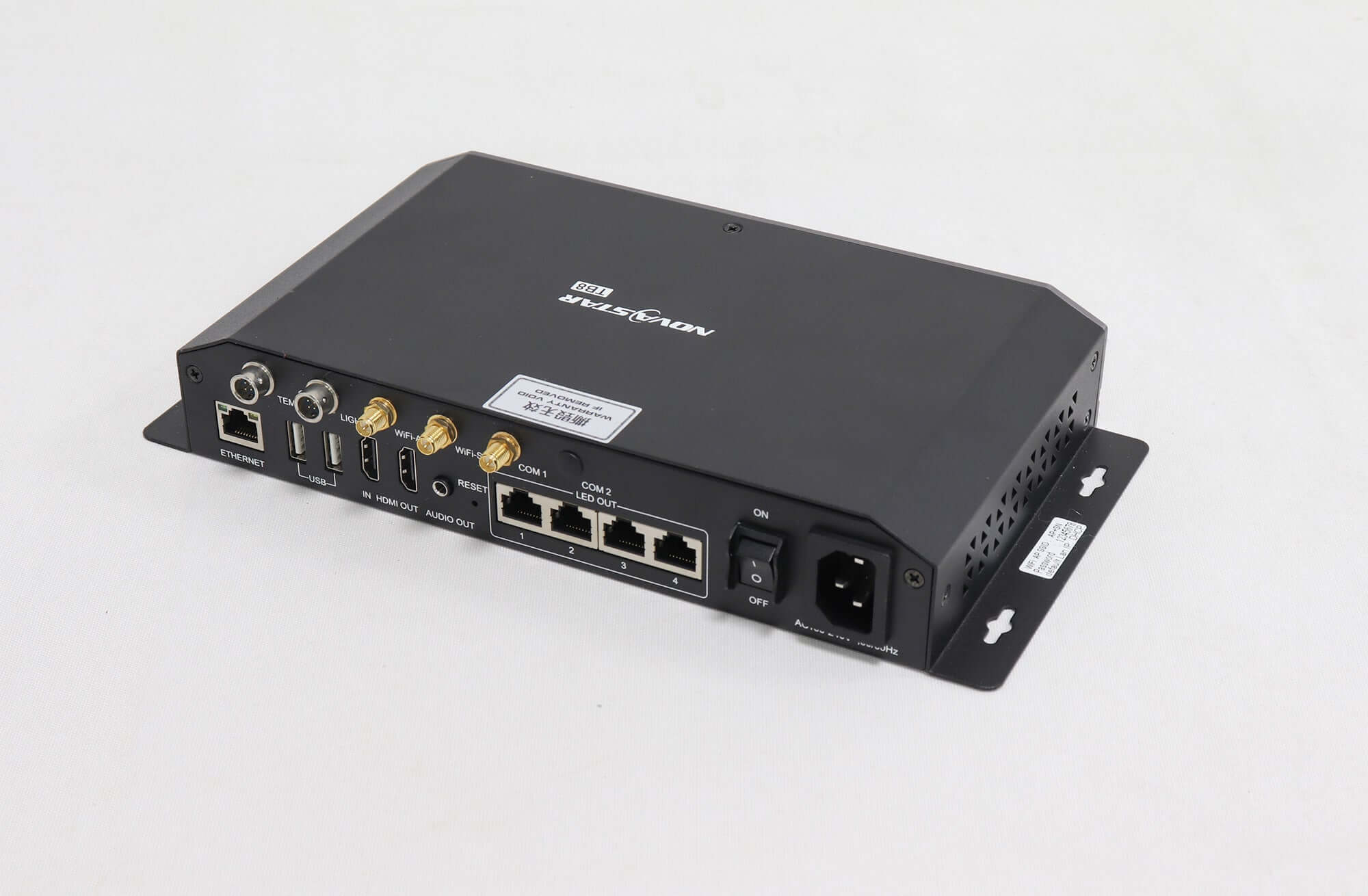

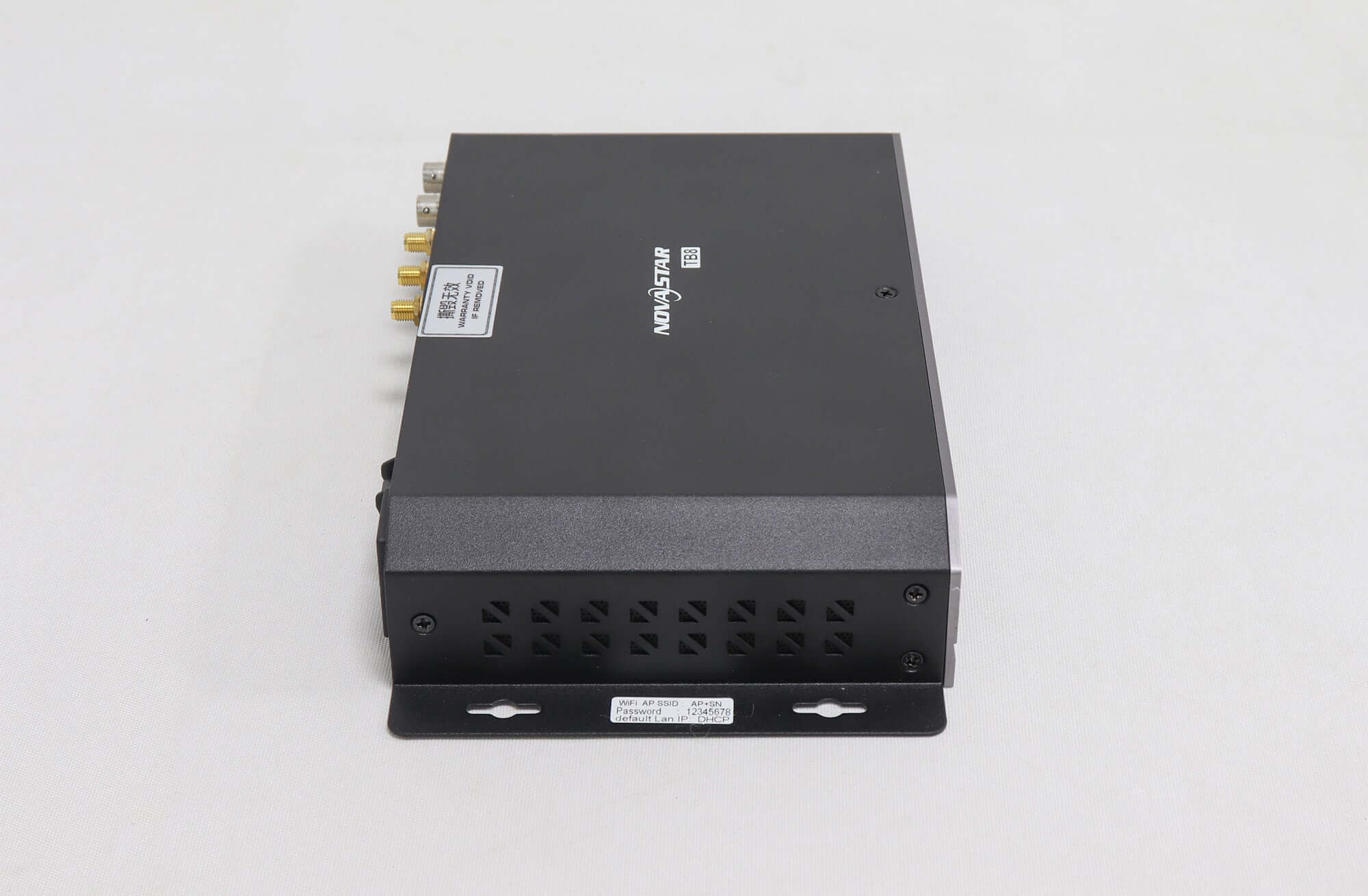

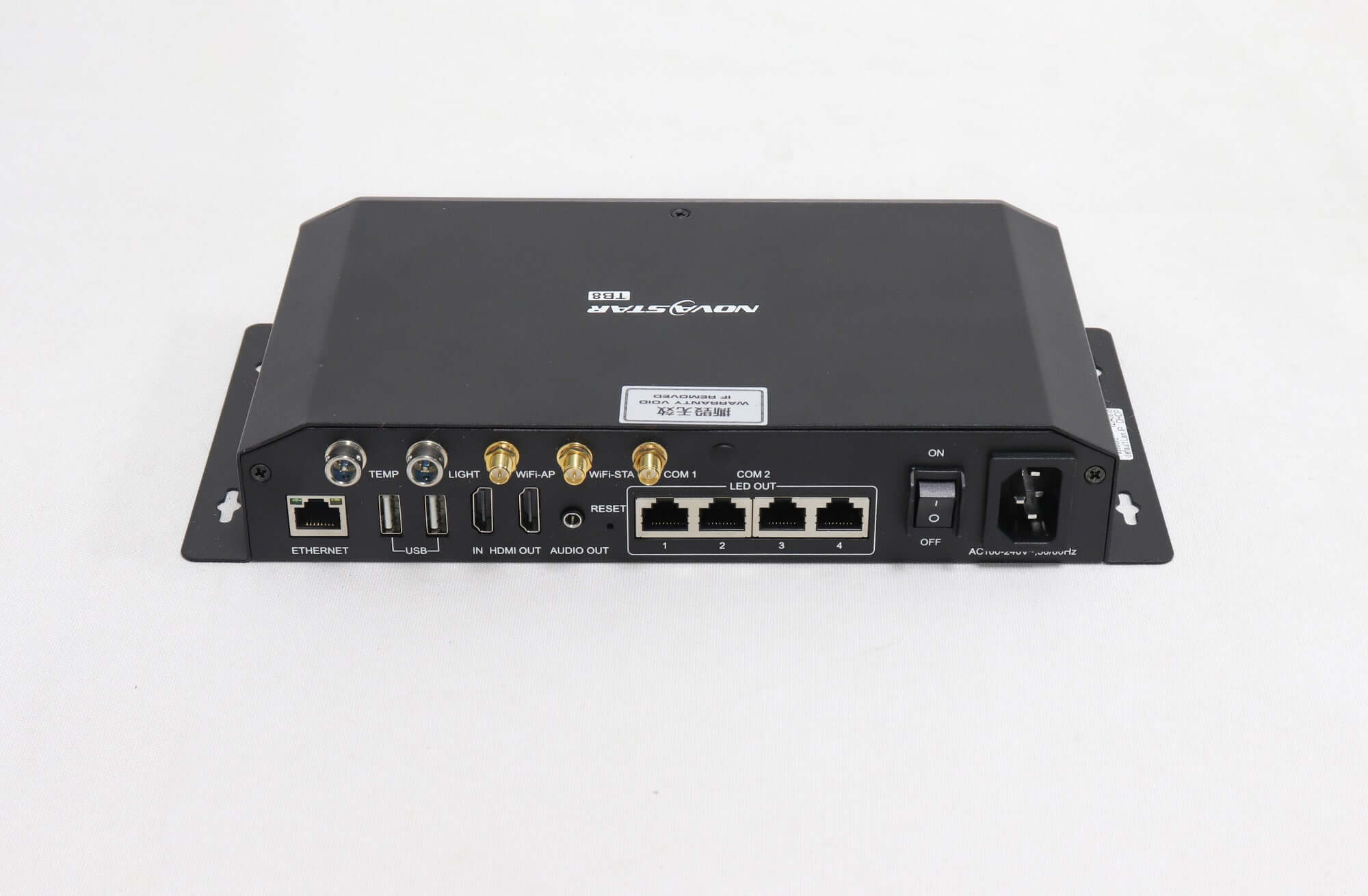

TB8 Taurus Multimedia Player
Product status: this listing marks the NovaStar TB8 as discontinued and recommends the NovaStar TB60 as an alternative. Check the replacement model’s connections and capacity against your project before ordering.
The TB8 is a Taurus-series multimedia player for full-color LED signs. It combines media playback, screen control and LED output for retail displays, advertising screens and other installations that play scheduled content without a permanently connected playback PC.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum LED load | 2,300,000 pixels |
| LED outputs | 4 Ethernet ports |
| Maximum width / height | 4096 / 1920 pixels; within the total load limit |
| Processor | 1.5 GHz eight-core |
| RAM / internal storage | 2 GB / 8 GB |
| Media decoding | H.265 4K hardware decoding and 1080p hardware decoding |
| HDMI | HDMI 1.4 input and output; HDMI Loop supported |
| Network control | Gigabit wired Ethernet; Wi-Fi AP and Sta |
| Cellular option | Optional 4G module selected for local network requirements |
| Sensor ports | Temperature and light sensor ports |
| Audio | Stereo audio output |
| USB | USB 2.0; two-way USB Host interface for USB-drive import |
| Input power / rated consumption | 100–240 V AC, 50/60 Hz / 15 W |
| Dimensions / weight | 278.5 × 148.5 × 45.0 mm / 1352.1 g |
| Redundant backup capacity | 1,300,000 pixels, as stated in the original product listing |
Synchronous and Asynchronous Playback
Asynchronous mode plays the internal video source. Synchronous mode displays HDMI input and can scale the content to fit the screen automatically. Modes can switch manually or on a schedule, and HDMI priority can be set.
For synchronized playback across multiple TB8 units, the clocks must be synchronized and the same program must be playing. The specification recommends a time-synchronization module when the application has demanding synchronization requirements.
Wi-Fi, Publishing and Optional 4G
The TB8 has a permanent Wi-Fi access point and supports Sta mode for connecting to an external router. AP+Sta mode allows local access while supporting network connectivity. Internet connection priority is wired Ethernet, Wi-Fi Sta, then 4G.
The specification lists ViPlex Handy for Android/iOS program editing and publishing, ViPlex Express for Windows, and NovaLCT for Windows screen configuration. It also describes centralized publishing and monitoring through compatible cloud services. Third-party Android applications are not supported.
A 4G module is optional and must match the mobile network requirements of the intended country or region. Verify the installed module and the availability of compatible services when maintaining an existing TB8 system.
Original Specification Download
Download the TB8 Taurus specification V1.2.0 (PDF)
Frequently Asked Questions
What replacement is recommended for the discontinued TB8?
This listing recommends NovaStar TB60. Review its specifications and confirm the screen configuration, connections and deployment requirements before replacing an existing TB8.
What screen capacity does TB8 support?
The specification lists a total load up to 2,300,000 pixels through four Ethernet outputs, with a maximum width of 4096 pixels and maximum height of 1920 pixels. The total pixel limit still applies.
What is the difference between TB8 synchronous and asynchronous modes?
Synchronous mode uses HDMI input. Asynchronous mode uses the internal video source. The TB8 supports manual or scheduled switching and HDMI priority.
Can TB8 connect to Wi-Fi while keeping its hotspot available?
Yes. It supports Wi-Fi AP, Sta and AP+Sta modes. In AP+Sta mode, users can access the player directly while the router connection provides network access.
Is a 4G module required for ordinary network use?
No. Wired Ethernet and Wi-Fi are available. A separately selected 4G module is needed only for cellular connectivity and must suit local network requirements.
