NovaStar TB10 Plus LED Multimedia Player | USB & Wi-Fi
Price range: $ 115.00 through $ 170.00
Compact LED signage player supporting up to 650,000 pixels, USB media playback and simultaneous Wi-Fi AP/Sta. Includes 2 GB RAM and 32 GB storage, sensor connectivity and optional 4G.
Contact sales for specific pricing.
TB10 Plus LED Signage Player
The NovaStar TB10 Plus combines content playback and LED sending for full-color commercial displays. Publish programs from a computer, phone or tablet, play content from USB, or manage screens remotely through compatible cloud publishing and monitoring platforms. It is intended for programmed signage such as retail, shelf, lamp-post and fixed advertising displays.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum LED load | 650,000 pixels |
| Standard maximum width / height | 2048 pixels each, within the total pixel limit |
| Ultra-long-screen solution | Maximum width 8192 pixels; maximum height 2048 pixels; total load remains 650,000 pixels |
| LED output | 1 × Gigabit Ethernet |
| Audio output | 1 × 3.5 mm stereo; 3-pole connector; fixed 48 kHz sample rate |
| Control ports | USB 2.0 Type A, USB Type B and Fast Ethernet |
| Wi-Fi | 2.4 GHz; AP and Sta can operate simultaneously |
| Processor | Quad-core ARM A53 at 1.4 GHz |
| RAM / internal storage | 2 GB / 32 GB |
| Video playback combinations | 1 × 4K, 3 × 1080p, 8 × 720p, 16 × 480p or 20 × 360p |
| Sensor connection | Light sensor or temperature and humidity sensor |
| Input voltage / maximum power | DC 5 V to 12 V / 15 W |
| Operating environment | −20°C to +60°C; 5% RH to 85% RH, non-condensing |
| Storage environment | −40°C to +80°C; 5% RH to 95% RH, non-condensing |
| Dimensions / net weight | 141.2 × 120.0 × 33.5 mm / 465.6 g |
| Protection rating | IP20; protect against water intrusion |
Choosing a Screen Layout and Media Format
The 650,000-pixel load applies to the LED screen. Standard configurations have separate width and height limits of 2048 pixels; the ultra-long-screen solution extends the maximum width to 8192 pixels without increasing the total pixel capacity. 4K hardware decoding describes supported source media, not a 4K LED output.
For media preparation, the decoding table lists H.265 up to 4096 × 2304 at 60 fps and H.264 up to 4096 × 2304 at 30 fps. USB Type A supports playback, firmware upgrades and storage expansion up to 128 GB. Use Ext4 or FAT32; FAT32 has a 4 GB maximum file size. exFAT and FAT16 are not supported.
Network Control and Synchronized Playback
Simultaneous Wi-Fi AP and Sta operation lets the TB10 Plus join a router while keeping its own hotspot available. Use the unit’s SSID label for default connection details. Wired Ethernet has priority over Wi-Fi, followed by optional 4G.
Multi-screen timing uses NTP, GPS with the specified 4G module, or RF with the specified RF module. Enabling synchronized playback halves decoding capability. This feature synchronizes media playback across displays; the TB10 Plus connector list does not include an HDMI input.

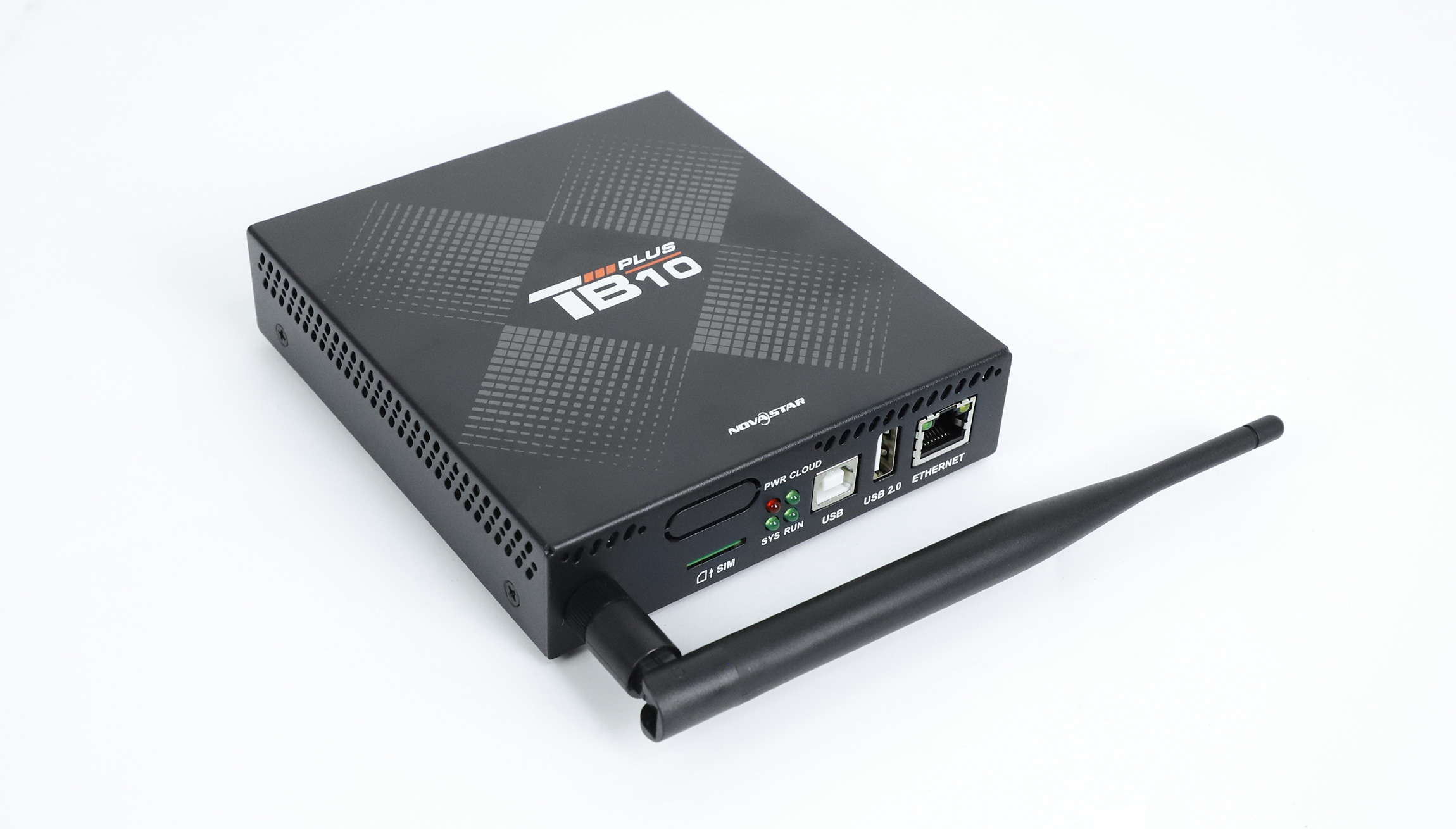

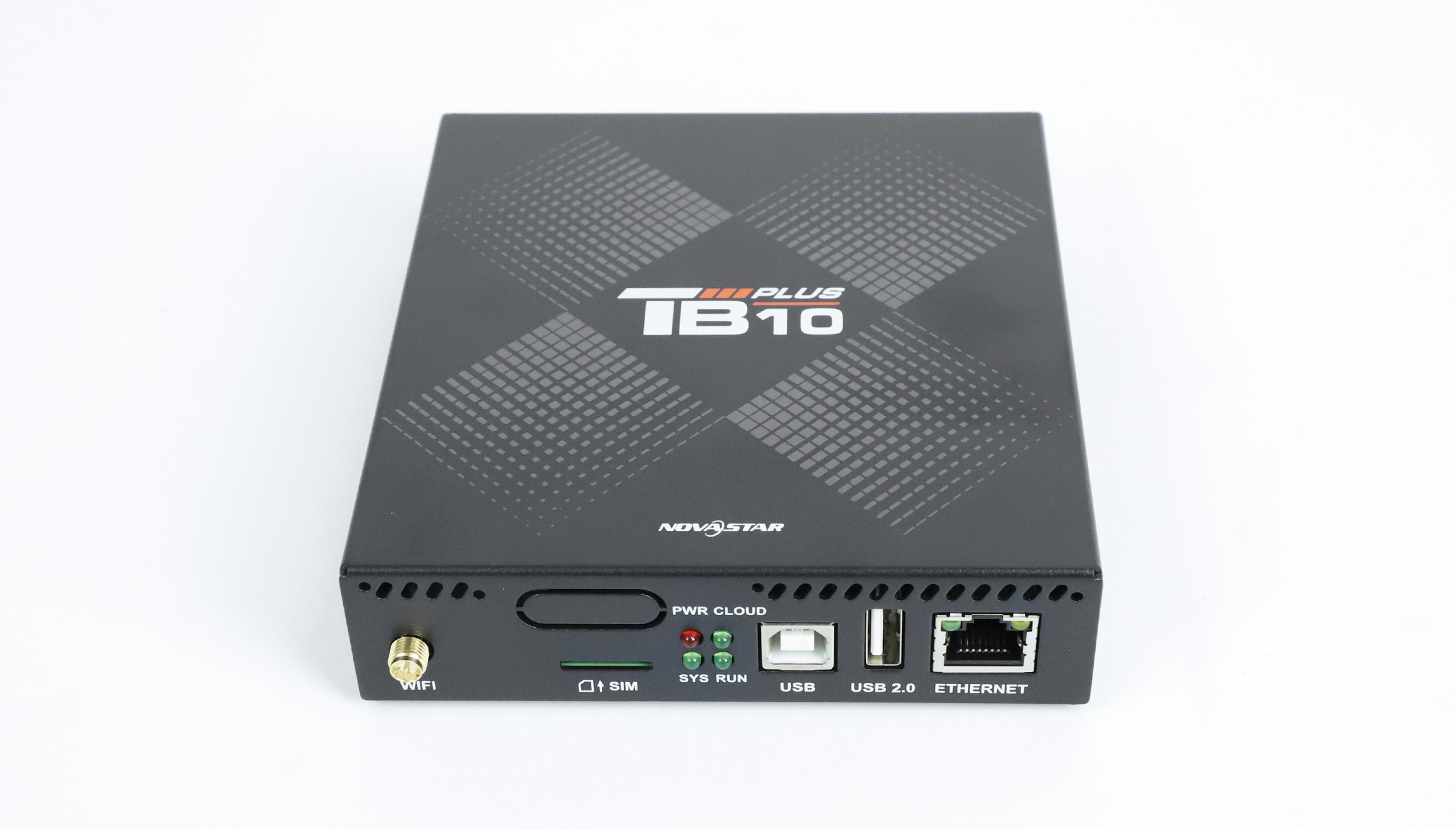

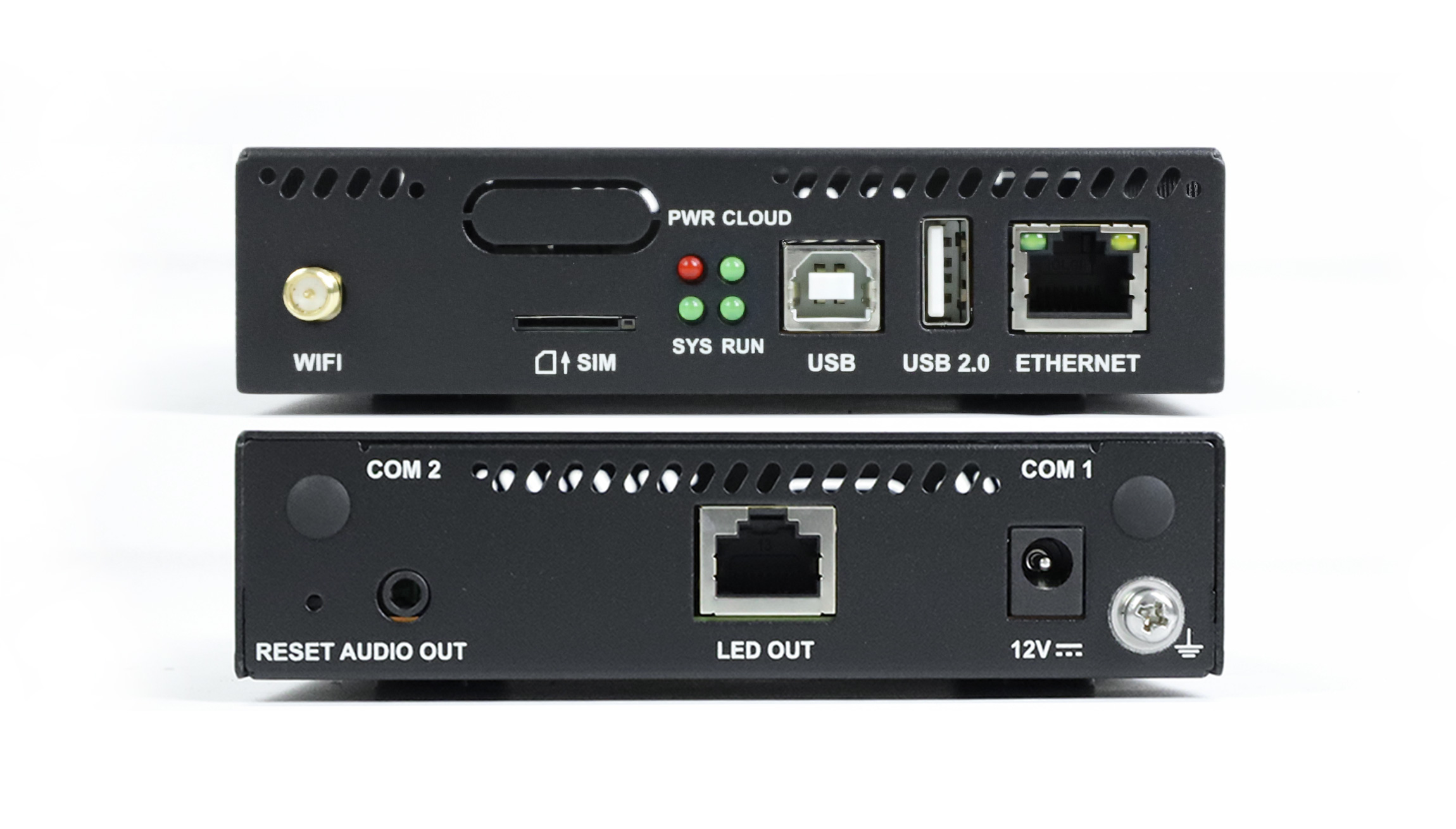

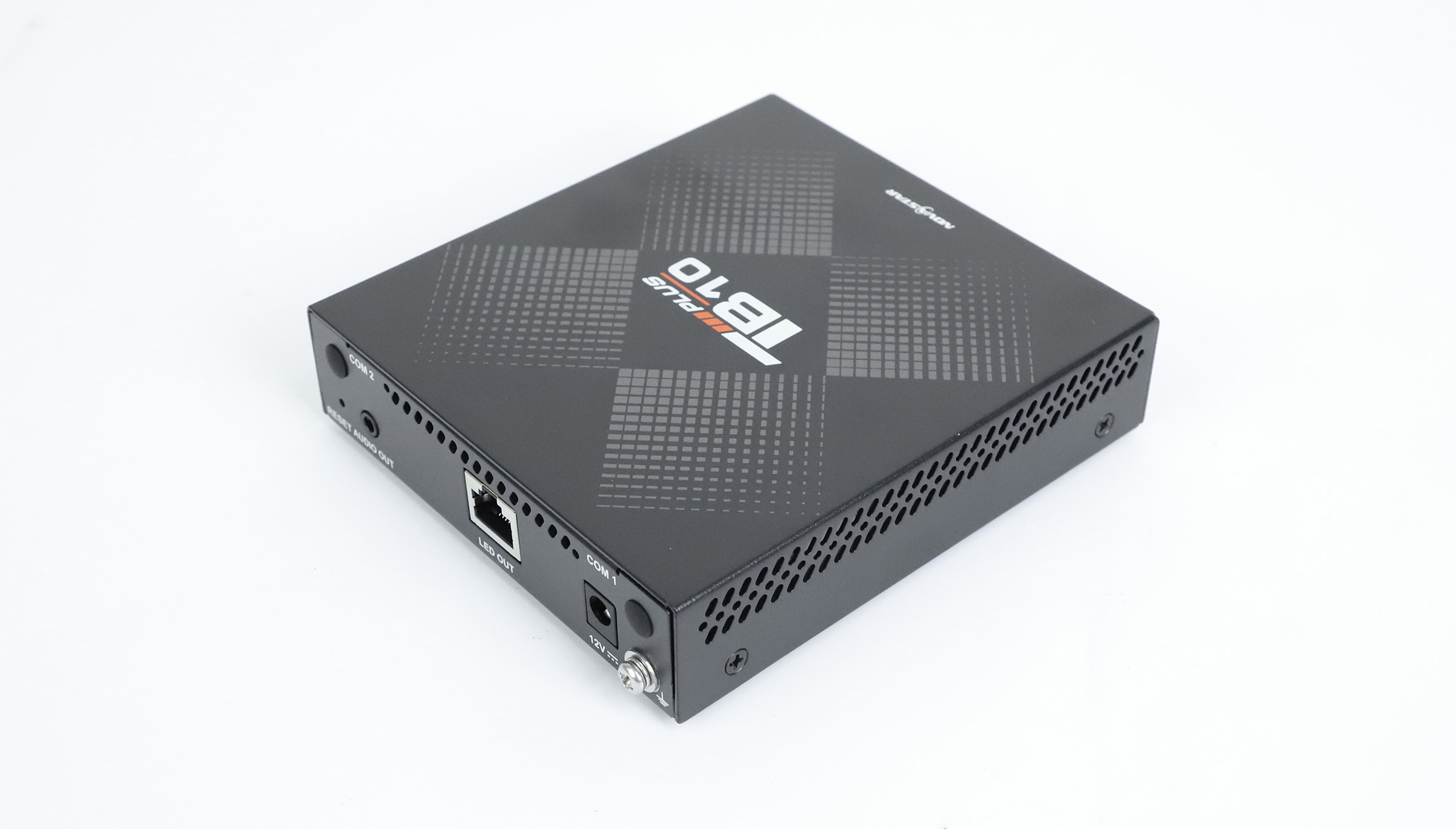

Product Images and PDF Download
Download the TB10 Plus specification (PDF)
Frequently Asked Questions
Does TB10 Plus have an HDMI input?
No HDMI input is listed in the TB10 Plus specification. Its connections support USB playback, content publishing, screen control and LED output. Multi-screen synchronized playback refers to media timing across displays.
What is the maximum screen capacity of TB10 Plus?
The player supports up to 650,000 LED pixels. Standard maximum width and height are each 2048 pixels. The ultra-long-screen solution supports up to 8192 pixels in width, while keeping the same total pixel limit.
Can I use the hotspot and router Wi-Fi connection together?
Yes. The 2.4 GHz Wi-Fi AP and Sta modes can be enabled at the same time, so the player can join a network while its hotspot remains available.
What do I need for GPS or RF synchronization?
GPS timing requires the specified 4G module, and RF timing requires the specified RF module. NTP timing is also supported. The player ships without a 4G module.
Can TB10 Plus play programs from a USB drive?
Yes. Its USB 2.0 Type A port supports USB playback and storage expansion up to 128 GB. Supported file systems are Ext4 and FAT32, with a 4 GB file-size limit for FAT32.
| Weight | 1 kg |
|---|---|
| Novastar | Novastar TB10 Plus, Novastar TB10 Plus with 4G module |
