NovaStar MBOX600 Pro Industrial LED Controller | Intel N97
Price range: $ 710.00 through $ 784.00
The NovaStar MBOX600 Pro integrates an Intel N97 industrial PC with LED sending capability for up to 2,600,000 pixels through four Gigabit Ethernet outputs. It provides HDMI input/output, web management, Wi-Fi and optional 4G/5G expansion; confirm the RAM, SSD and operating-system configuration when ordering.
NovaStar MBOX600 Pro industrial LED controller

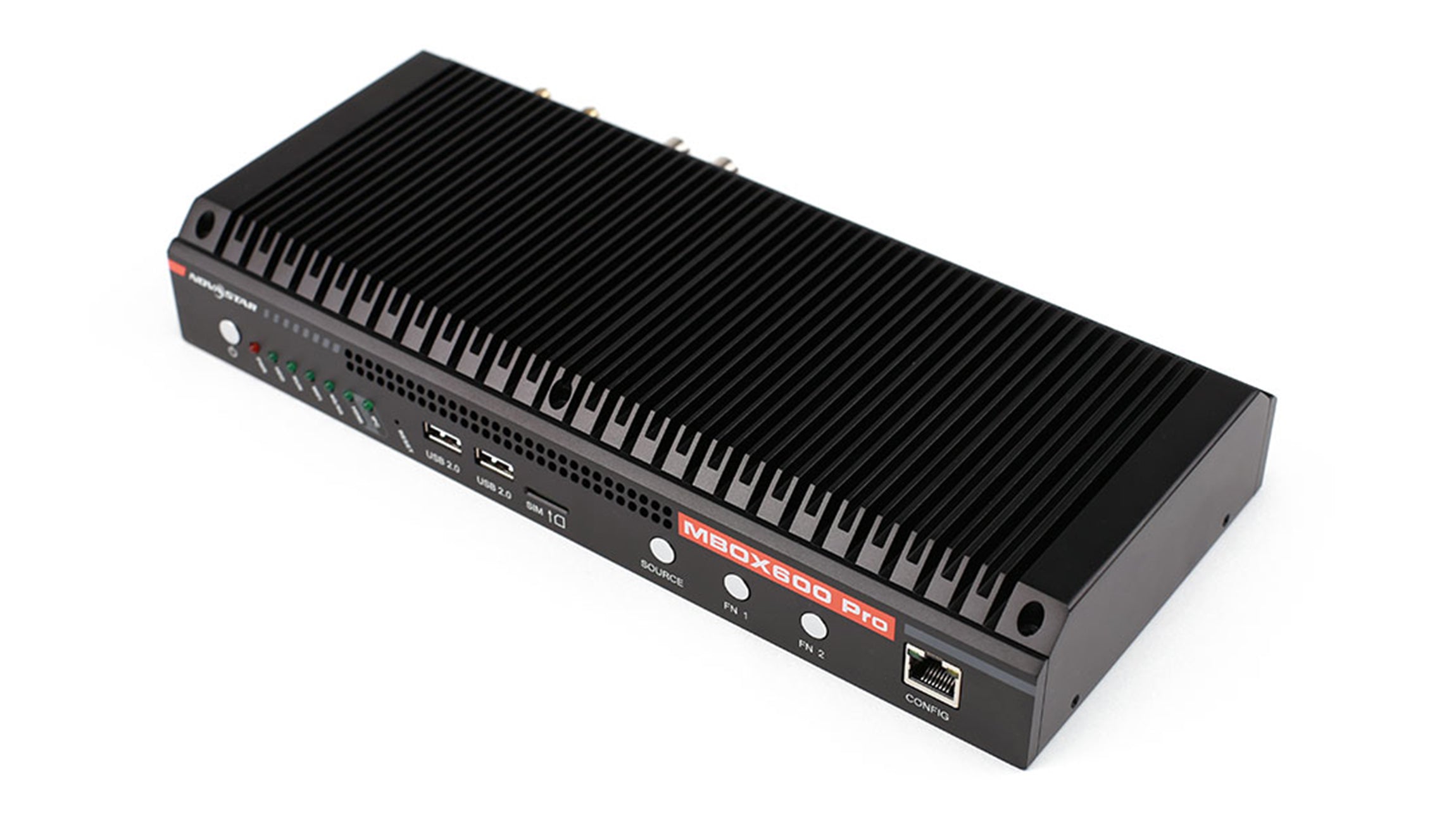

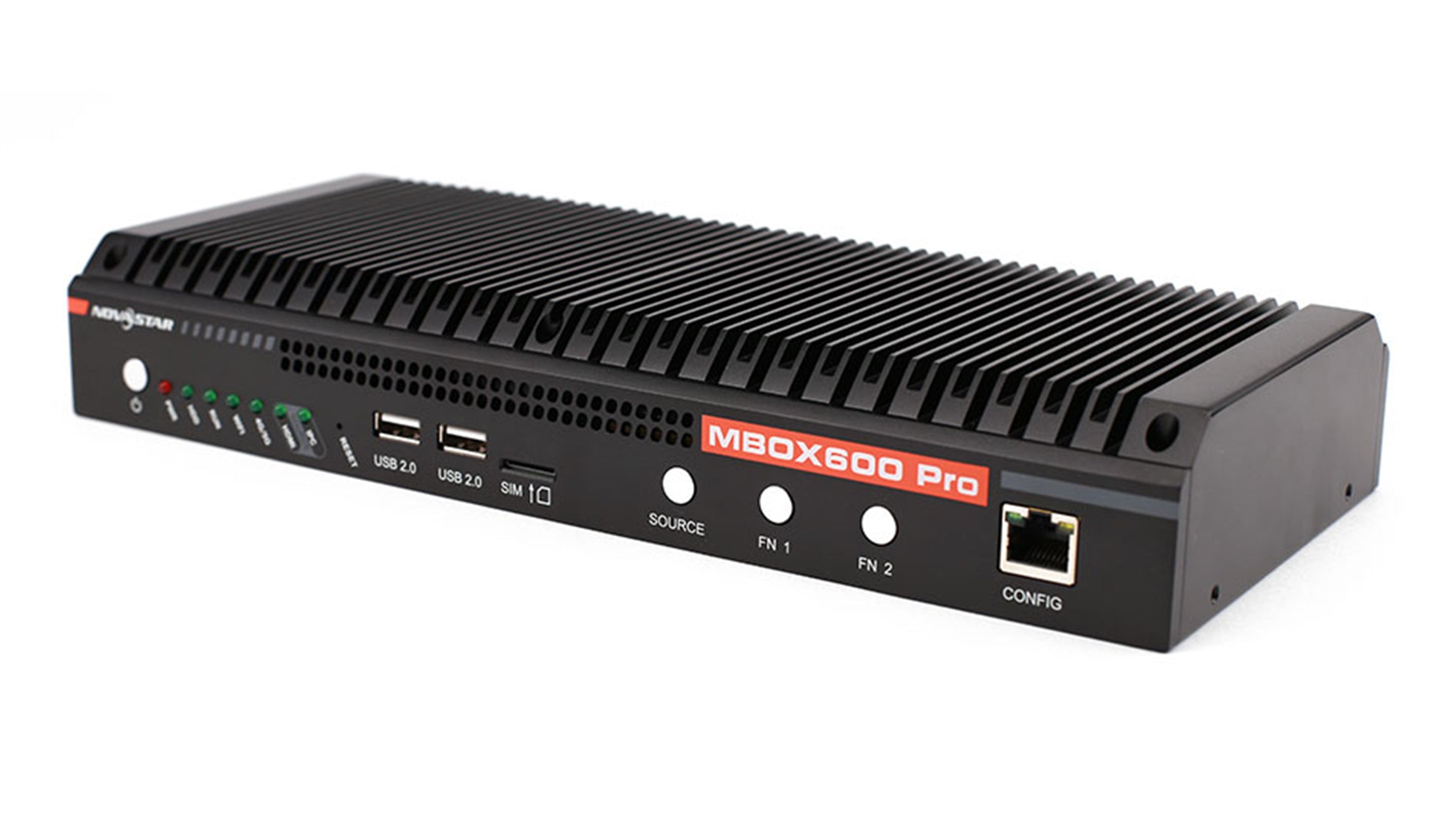

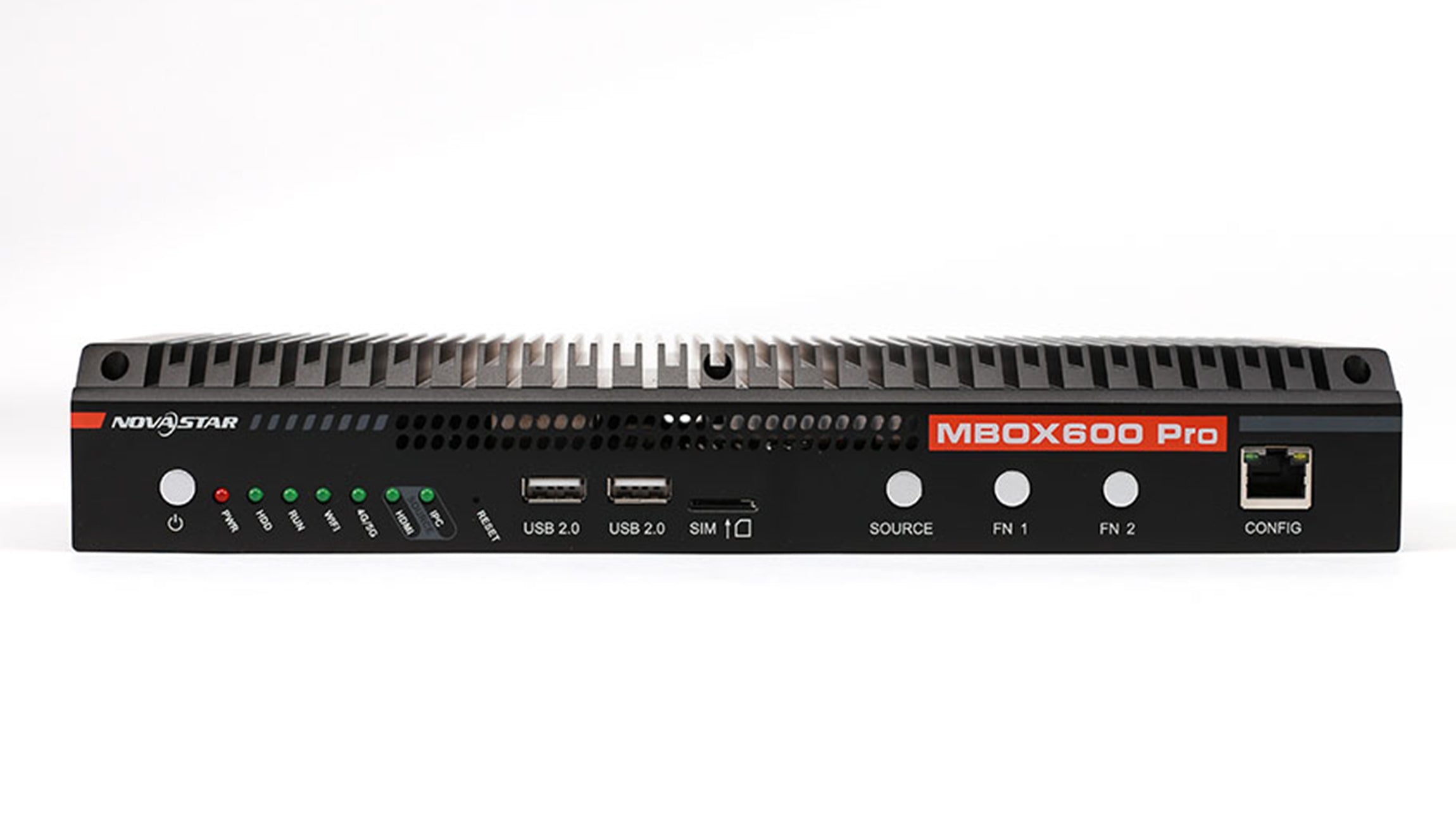

The NovaStar MBOX600 Pro combines an industrial PC and an LED sending controller in one device. Its web application and SNMP monitoring and management support unattended advertising-display installations, including fixed LED screens. The internal source and external HDMI source can be selected using the SOURCE button.
Screen capacity and video connections

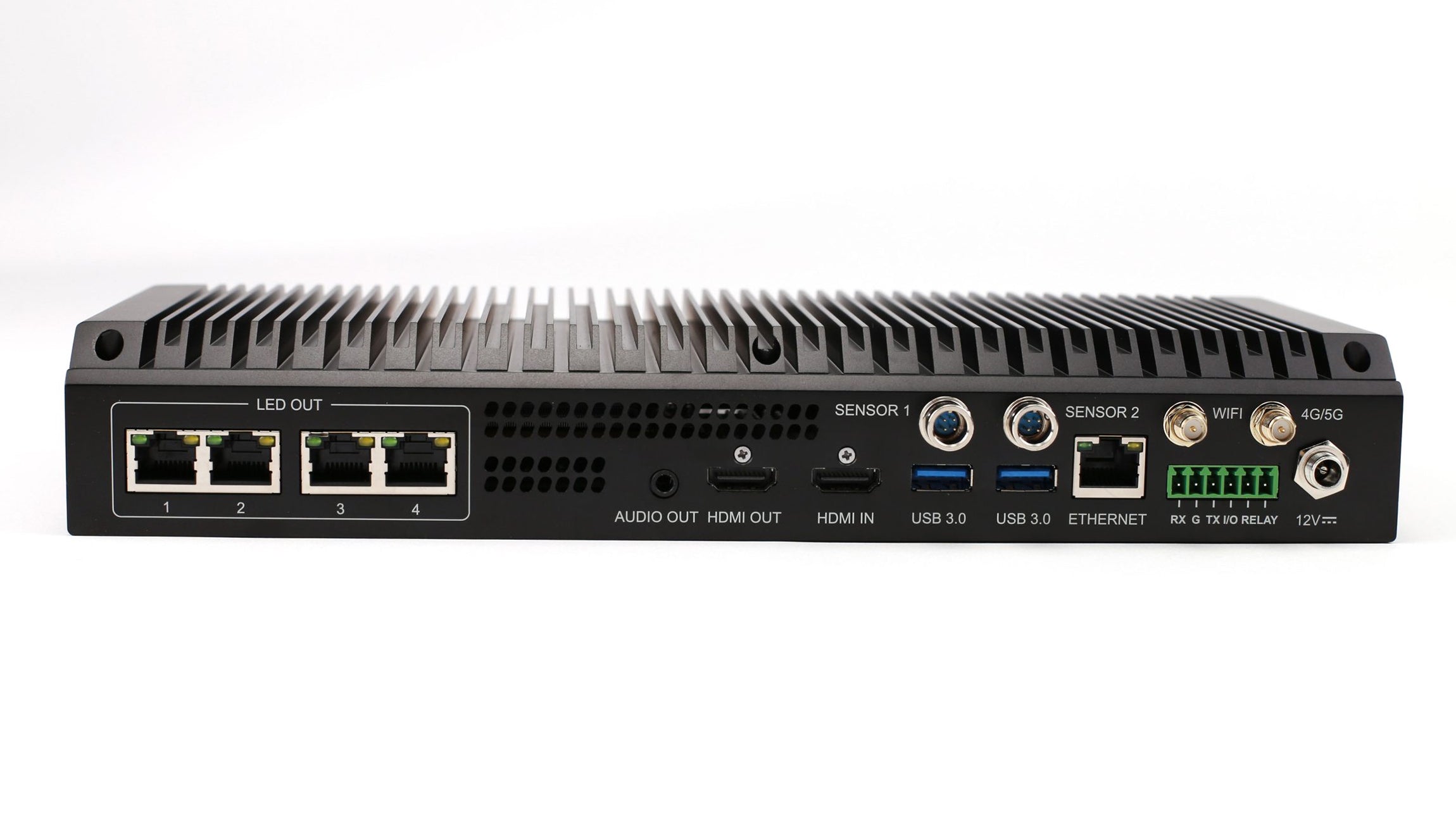

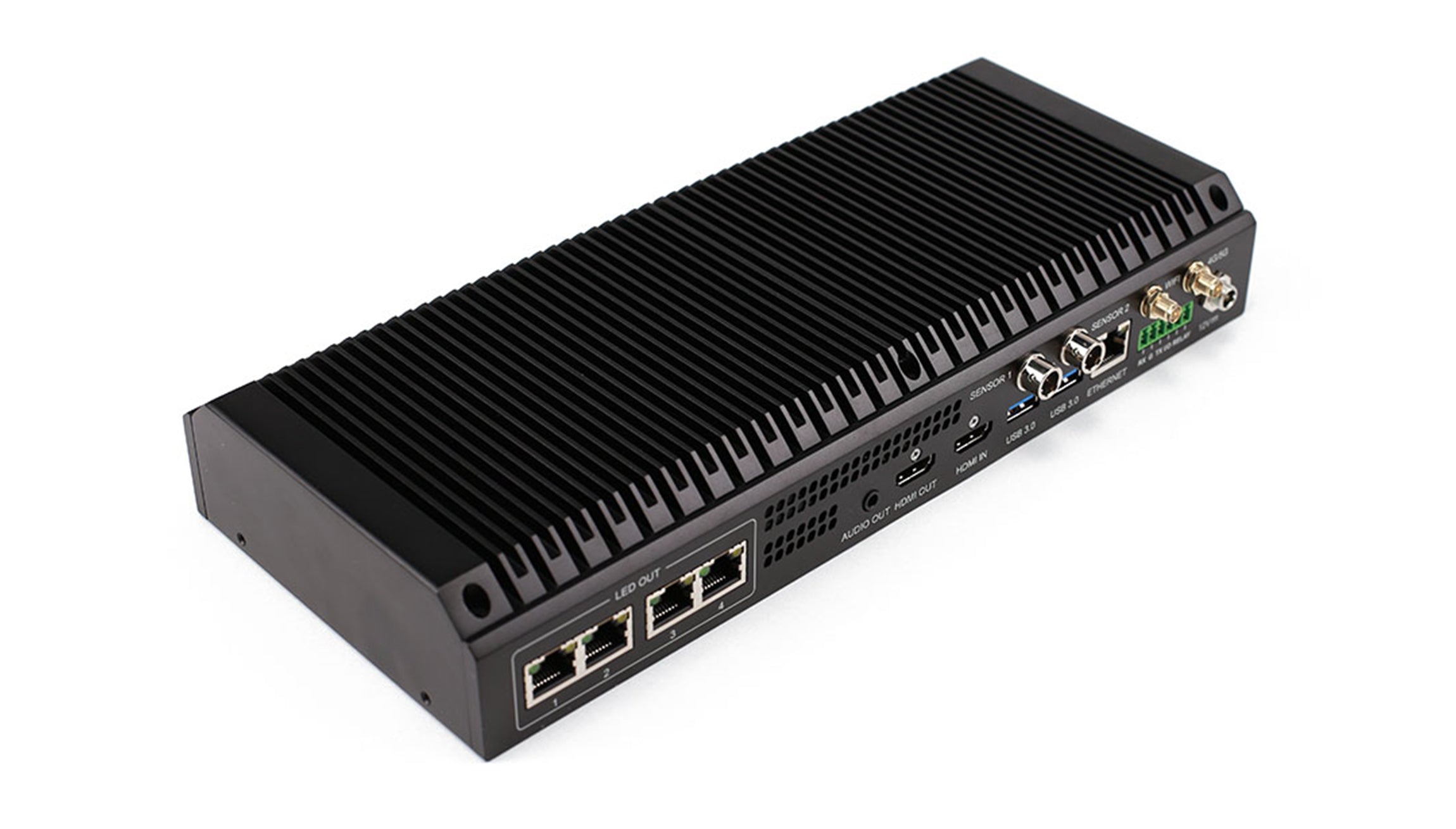

Four Gigabit Ethernet LED outputs support a total of 2,600,000 pixels. With scaling enabled, output width can range from 64 to 4096 pixels and height from 64 to 1920 pixels, while the total must remain within 2,600,000 pixels. The maximum width and height are separate limits and cannot both be used at once.
The HDMI output can connect to a monitor for checking playback, installing software and configuring the controller. The stereo audio output is for headphones or an audio playback connection; the specification does not support headphone input through that connector.
| Parameter | Specification |
|---|---|
| Processor | Intel Processor N97; 4 cores, 4 threads; maximum turbo 3.6 GHz |
| RAM options | 4 GB or 8 GB; configuration-dependent |
| SSD options | 128 GB or 256 GB; configuration-dependent |
| LED output | 4 × Gigabit Ethernet; up to 2,600,000 pixels total |
| Scaled output dimensions | Width 64–4096 pixels; height 64–1920 pixels; total ≤ 2,600,000 pixels |
| HDMI input | 1 × HDMI 1.3; maximum 2048 × 1152 at 60 Hz; minimum 800 × 600 at 60 Hz |
| HDMI input conditions | HDCP 1.4; no interlaced input; custom timing constrained by a 25–160 MHz pixel clock |
| HDMI output | 1 × HDMI 1.3 |
| Audio output | 1 × 3.5 mm stereo output; 3-conductor headphone output |
| Sensors | 2 light-sensor connectors |
| USB | 2 × USB 2.0; 2 × USB 3.0 |
| Network/control | 2 × Gigabit Ethernet ports for communication and remote device-network management; Wi-Fi |
| Mobile networking | 4G/5G module support; module not included |
| Power | DC 12 V, 3 A; connector tolerance ±10%; center positive |
| Rated power consumption | 34 W |
| Operating temperature | −20°C to +60°C |
| Operating humidity | 0%–80% RH, non-condensing |
| Dimensions | 319.0 × 135.3 × 45.5 mm |
| Net weight | 1778.0 g |
Configuration and accessory selection
The specification identifies 9U4A3 as N97 with 4 GB RAM and a 128 GB SSD, and 9U8A4 as N97 with 8 GB RAM and a 256 GB SSD. Windows 10, Windows 11 and Linux configurations appear in its model list. Confirm the complete model, operating system and regional power-accessory version; these options are not all included in a single unit.
A 4G/5G module is purchased separately. The V1.0.2 document also marks FN1/FN2, RS232, I/O and relay functions for implementation in future updates, so they are not presented here as confirmed active functions for every supplied firmware version.
Product image and downloads
Download Specification:
Novastar MBOX600 Pro Industrial Controller Specification
Novastar MBOX600 Pro Industrial Controller User Manual
Frequently Asked Questions
How many pixels can the MBOX600 Pro control?
The four LED output ports support up to 2,600,000 pixels in total. Scaling allows widths from 64 to 4096 and heights from 64 to 1920, but the resulting width × height must stay within that total.
Does the MBOX600 Pro include a 4G or 5G module?
No. The specification states that the device ships without a 4G/5G module. Purchase the required module separately and confirm the mobile-network configuration for the installation.
Which RAM and SSD configuration does the MBOX600 Pro use?
The documented options are 4 GB or 8 GB RAM and 128 GB or 256 GB SSD storage. Model 9U4A3 denotes 4 GB/128 GB, while 9U8A4 denotes 8 GB/256 GB. Confirm the ordered variant and operating system.
Can it display an external HDMI source as well as internal content?
Yes. It has an HDMI 1.3 input and a SOURCE button that switches between the internal source and HDMI source. The HDMI input is specified up to 2048 × 1152 at 60 Hz.
What is the HDMI output used for?
It can connect to a monitor to check LED-display playback and assist with software installation or configuration. The LED screen itself connects through the four Gigabit Ethernet LED outputs.
