Mooncell MTB200 DVI LED Master Controller
$ 112.00
Mooncell MTB200 is a DVI LED sending controller with two Gigabit Ethernet outputs and up to 1.3 million pixels of loading capacity. It provides USB PC communication, front-panel brightness adjustment and backup functions.
9990 in stock
MTB200 DVI input and LED sending control

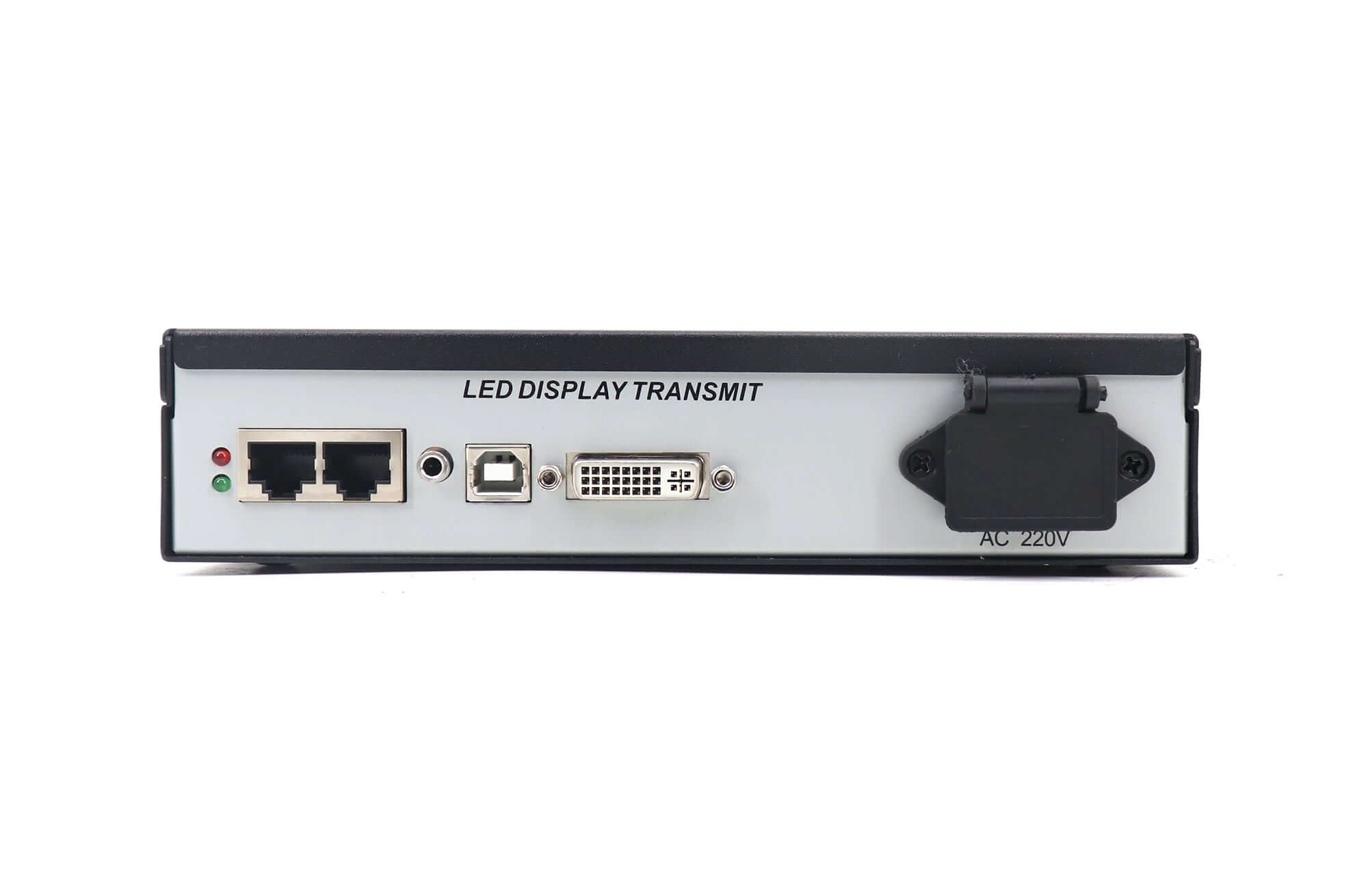

The Mooncell MTB200 is an LED sending enclosure with a DVI video input, a separate audio input and two Gigabit Ethernet outputs. It supports up to 1.3 million pixels in total and provides front-panel brightness adjustment, configuration readback and transmission backup functions.
For a replacement or new installation, match the DVI source timing and receiving-card setup, then check the load assigned to each output. The USB Type-B connection is documented for PC software communication. The specifications below follow the linked MTB200 product PDF.
Technical specifications
| Parameter | Specification |
|---|---|
| Model / type | Mooncell MTB200 LED master controller / sending enclosure |
| Video input | 1 × DVI |
| Audio input | 1 × 3.5 mm audio input |
| LED outputs | 2 Gigabit Ethernet ports |
| Loading capacity | 1.3 million pixels total; 650,000 pixels per port |
| Loading range | Width 128–4096 pixels; height 64–4096 pixels, subject to total capacity |
| Shift range | Horizontal and vertical: 0–4095 pixels |
| Preset resolutions | 1024 × 768, 1280 × 1024, 1366 × 768, 1600 × 1200, 1920 × 1080, 2048 × 1152 and 2560 × 960; custom resolution supported |
| Frame-rate compatibility | 30, 50, 60 and 120 Hz listed generally; resolution/rate combinations are not fully specified. |
| PC communication | USB Type-B; multiple sending cards can be cascaded to one computer |
| Backup | Ethernet-port loop dual backup and dual master-controller backup |
| Monitoring | Sending-card operating parameters/status, configuration readback and Gigabit network error-rate detection |
| Front-panel operation | Digital brightness display, +/− brightness keys and operating-status indicators |
| Power | 100–240 VAC, 50/60 Hz; rated 10 W |
| Operating environment | −20 to 70°C; 10–90% RH, non-condensing |
| Dimensions / net weight | 196 × 181 × 48 mm (L × W × H); 1.8 kg |
Product video, images and specification download
Download the Mooncell MTB200 product specification PDF
Frequently asked questions
How many pixels can Mooncell MTB200 control?
The specification gives 1.3 million pixels in total and 650,000 per Ethernet output. The width and height ranges are separate constraints and do not override the pixel-count limits.
Does MTB200 have HDMI input?
The MTB200 specification lists one DVI video input and one 3.5 mm audio input. It does not list an HDMI input.
Is the USB port for video playback?
The documented USB Type-B port is for communication with PC software. The specification does not describe it as a USB-drive media playback port.
How can I adjust brightness or check the connection?

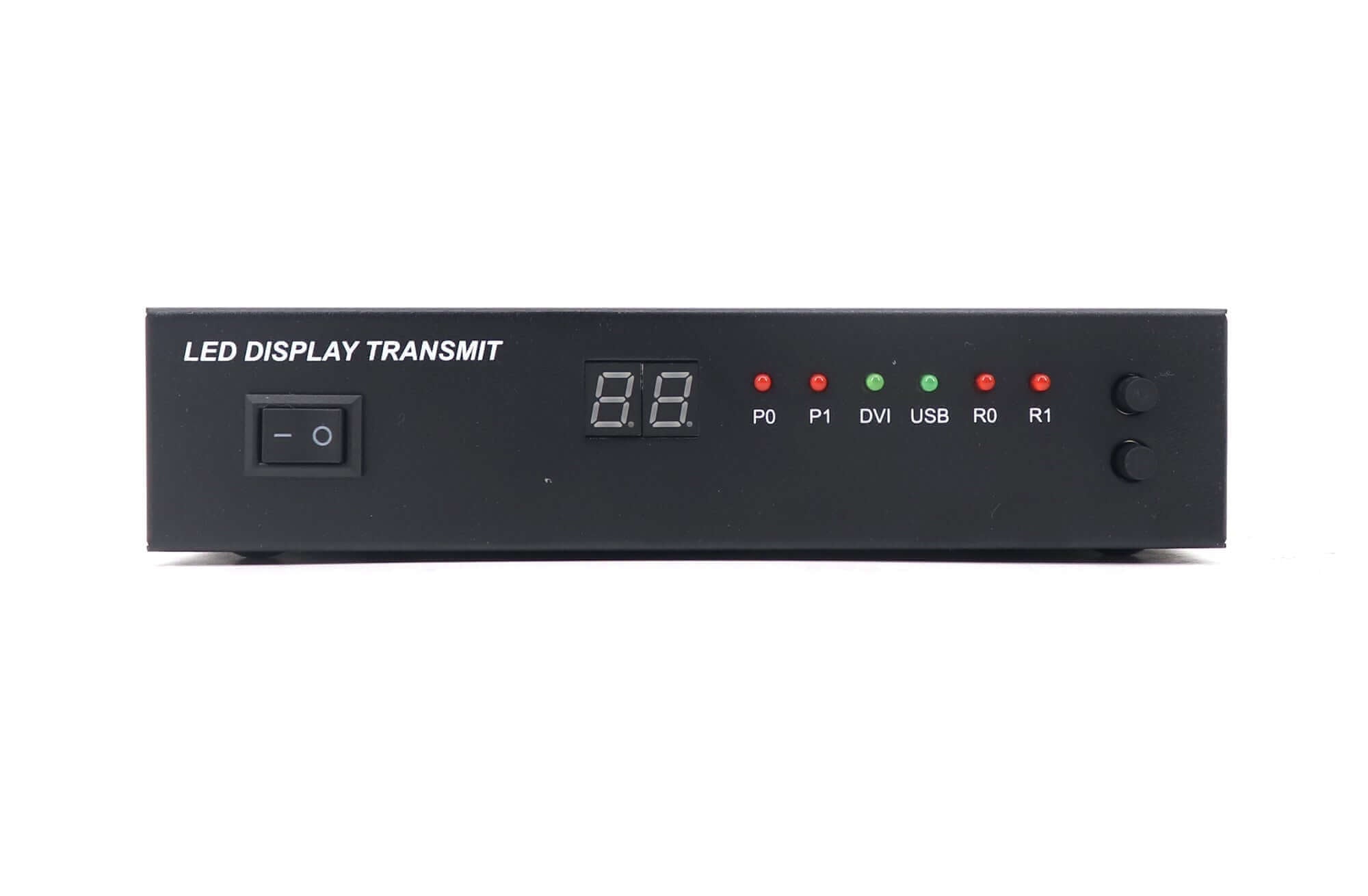

The front panel has a digital brightness display and +/− buttons. The PDF also describes indicators for Ethernet communication, DVI input and USB connection, helping distinguish a missing source from a control-connection issue.
What backup features does MTB200 provide?
The specification lists Ethernet-port loop dual backup and dual master-controller backup, along with configuration readback. The installation must include the appropriate backup connections and controller arrangement.
| Weight | 2.5 kg |
|---|
