Mooncell L708, L712 & L716 HUB75E LED Receiving Cards
Price range: $ 12.90 through $ 16.40
Compare Mooncell L708, L712 and L716 receiving cards with 8, 12 and 16 HUB75E connectors respectively. Model-specific tables distinguish RGB groups, maximum loading and brightness/chroma-corrected loading.
Choose the L7 receiving card for the cabinet wiring
Mooncell L708, L712 and L716 are FPGA receiving cards with HUB75E output connectors. They support point-by-point correction, AutoLED configuration, custom cabinet layouts and network-cable diagnostics, while their connector counts and RGB data groups differ.
The original shared description’s twelve-interface count applies to L712. L708 has eight and L716 has sixteen according to their separate specifications. Use the appropriate correction-load row as well as the maximum-load row when checking a cabinet, and confirm customized monitoring features on the supplied hardware.
Technical specifications
| Parameter | Specification |
|---|---|
| Models | Mooncell L708, L712 and L716 FPGA receiving cards |
| L708 output interfaces | 8 standard HUB75E connectors; up to 16 parallel RGB groups |
| L712 output interfaces | 12 standard HUB75E connectors; up to 24 parallel RGB groups |
| L716 output interfaces | 16 standard HUB75E connectors; up to 32 parallel RGB groups |
| L708 loading | Basic table: maximum 512 × 256 pixels; brightness-corrected 512 × 256; chroma-corrected 512 × 160. The overview writes the maximum as 256 × 512. |
| L712 loading | Maximum 512 × 256 pixels; brightness-corrected 512 × 256; chroma-corrected 512 × 160 |
| L716 loading | Maximum 768 × 256 pixels; brightness-corrected 768 × 256; chroma-corrected 512 × 160, per the V3.3 document |
| Scan support | 1–64 scan, listed for all three models |
| Cascade quantity | Up to 1000 cards, as listed in each PDF; system bandwidth and screen configuration still need to be matched. |
| Correction | Point-by-point brightness and chroma correction with correction software |
| AutoLED display functions | Refresh-priority or grayscale-priority settings, rotation in multiples of 90°, and image scaling |
| Configuration | Custom output-data interfaces, complex cabinet/module layouts, receiving-card number detection and configuration readback through AutoLED |
| Diagnostics / backup | Network error-rate monitoring, receiving-card communication monitoring and network-cable loop backup |
| Customized monitoring | Voltage, temperature and power-supply-status detection are identified as customized functions. |
| Input / rated current / rated power | All three PDFs: DC 3.5–5.5 V; 0.6 A; 3 W |
| Operating environment | −20 to 70°C; 10–90% RH |
| Storage temperature | −25 to 125°C, as listed in the PDFs |
| Board dimensions | 144.02 × 91.19 mm for all three documented models |
| Net weight | L708: 82.1 g; L712: 100.8 g; L716: 106.7 g |
| Document versions | L708: update history through V3.2; L712: V3.5 / hardware V2.0; L716: V3.3. Match the actual board revision when replacing a card. |
Product images and specification download
Mooncell L708 Series receiving card Specification

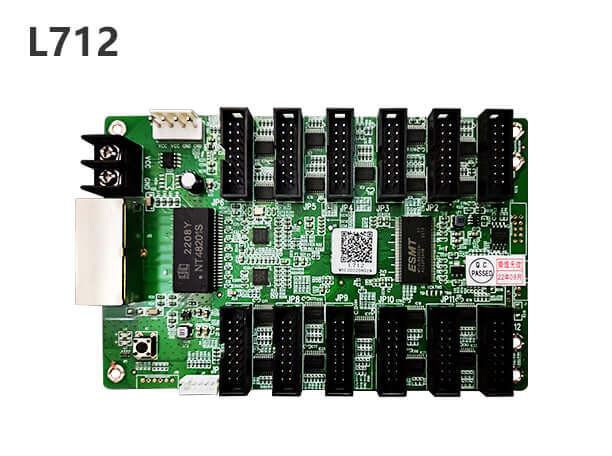

Mooncell L712 Series receiving card Specification

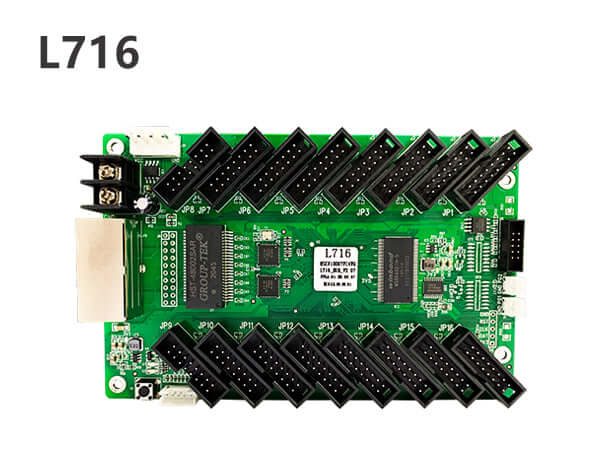

Mooncell L716 Series receiving card Specification
Frequently asked questions
How do L708, L712 and L716 differ?
Their HUB75E connector and RGB-group counts differ: L708 has 8 connectors and 16 groups, L712 has 12 and 24, and L716 has 16 and 32. The L716 document also lists a larger maximum and brightness-corrected load.
Does chroma correction reduce the documented load?
The parameter tables list 512 × 160 pixels for chroma-corrected loading on all three models. Brightness-corrected loading is 512 × 256 for L708/L712 and 768 × 256 for L716.
Can the display be rotated or arranged as complex cabinets?
The documents describe rotation in 90° increments, scaling, custom output data and complex module/cabinet arrangements using AutoLED. The configuration must match the actual modules and wiring.
Are voltage and temperature monitoring standard?
Those monitoring functions, along with power-supply-status detection, are marked as customized in the specifications. Confirm the required hardware configuration before relying on them.
Can I replace one L7-series card with another without changing settings?
Do not assume an unchanged setup. Check the exact model, hardware revision, HUB75E pinout, RGB-group count, scan mode, correction load and cabinet wiring. Retain the existing configuration and use the model-specific PDF during replacement.
