MEAN WELL RSP-320-24 24V 13.4A PFC Power Supply
$ 35.00
MEAN WELL RSP-320-24 is a 24V, 13.4A enclosed AC/DC power supply rated at 321.6W. It combines active PFC with a 30mm profile and a built-in fan with speed control.
10000 in stock
24V AC/DC power for LED equipment
The MEAN WELL RSP-320-24 converts AC input to a single 24V DC output. The model-specific rating is 13.4A and 321.6W. It is suitable for equipment designed for a 24V supply, subject to the load, mounting and thermal requirements of the installation.
RSP-320-24 specifications
| Parameter | Specification |
|---|---|
| Rated DC voltage | 24V |
| Rated current | 13.4A |
| Rated power | 321.6W |
| Voltage adjustment | 20–26.4V |
| Input voltage / frequency | 88–264VAC / 47–63Hz |
| Typical efficiency | 89% |
| Maximum ripple and noise | 150mVp-p; datasheet test conditions apply |
| Dimensions (L × W × H) | 215 × 115 × 30mm |
| Working temperature | −30°C to +70°C; refer to derating curve |
| Cooling | Built-in DC fan with speed control |
| Power factor correction | Built-in active PFC |
Cabinet integration
Check that the connected equipment requires 24V before selecting this model. The adjustable output is intended for matching the permitted voltage of the load; it does not make this supply a replacement for every RSP-320 voltage version.
Leave the fan airflow unobstructed and review the derating curves for the expected ambient temperature and input voltage. The series offers short-circuit, overload, overvoltage and overtemperature protection. Conformal coating is optional and requires confirmation of the ordered version.
Frequently asked questions
How much current does the RSP-320-24 supply?
The rated current is 13.4A at 24V DC, corresponding to the datasheet rated power of 321.6W.
Can the output voltage be adjusted?
Yes. The specified adjustment range is 20–26.4V. Set the voltage within the limits permitted by the connected equipment.
Does the RSP-320-24 require a cooling fan?
It includes a DC fan with speed control. The installation must provide an unobstructed airflow path.
Can it deliver full power at 70°C?
Do not assume full output across the whole temperature range. The specified working range is −30°C to +70°C, with load limits defined by the datasheet derating curve.

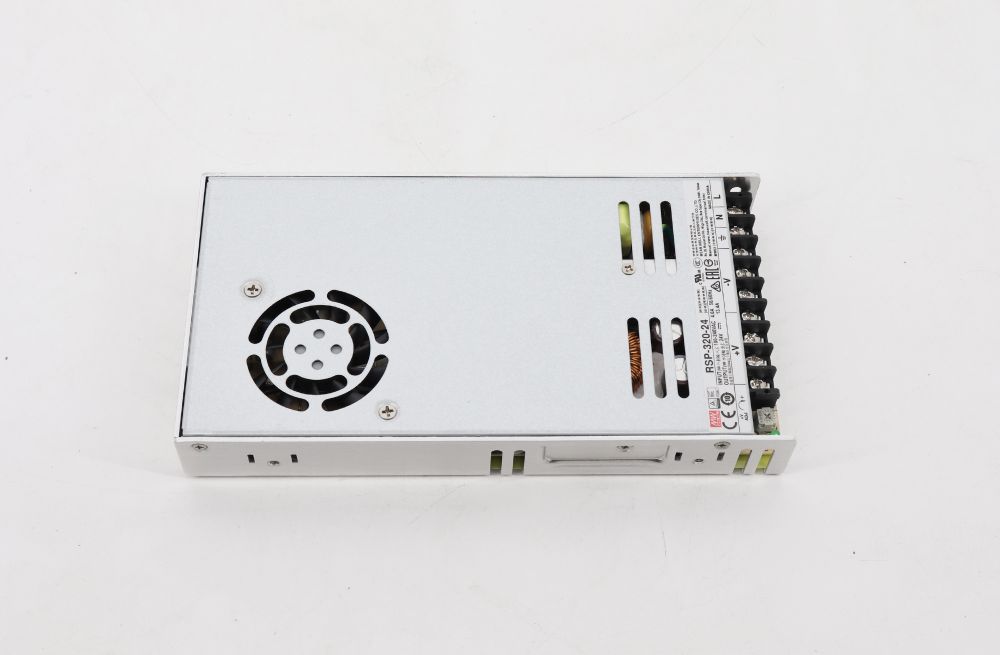

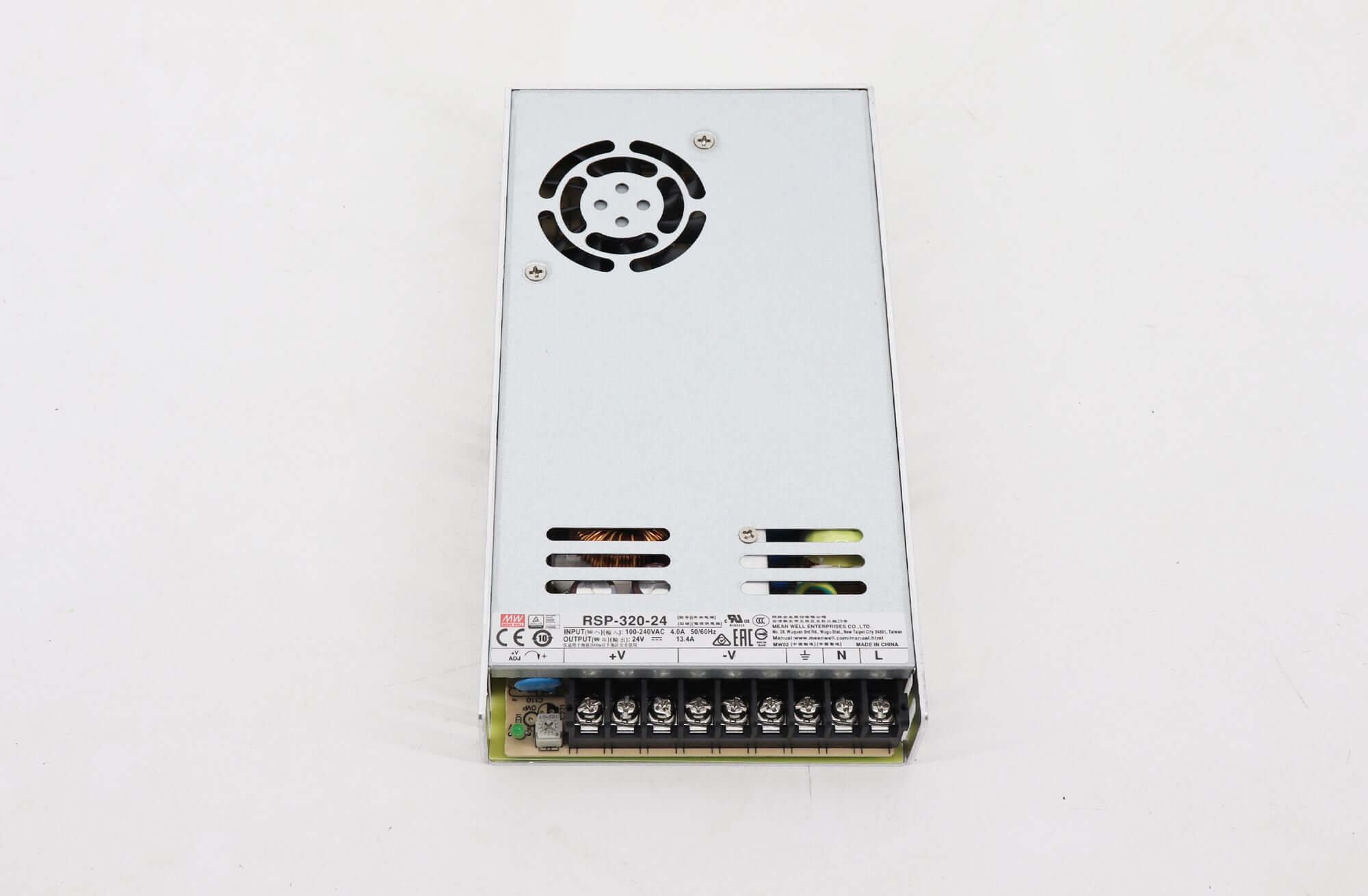

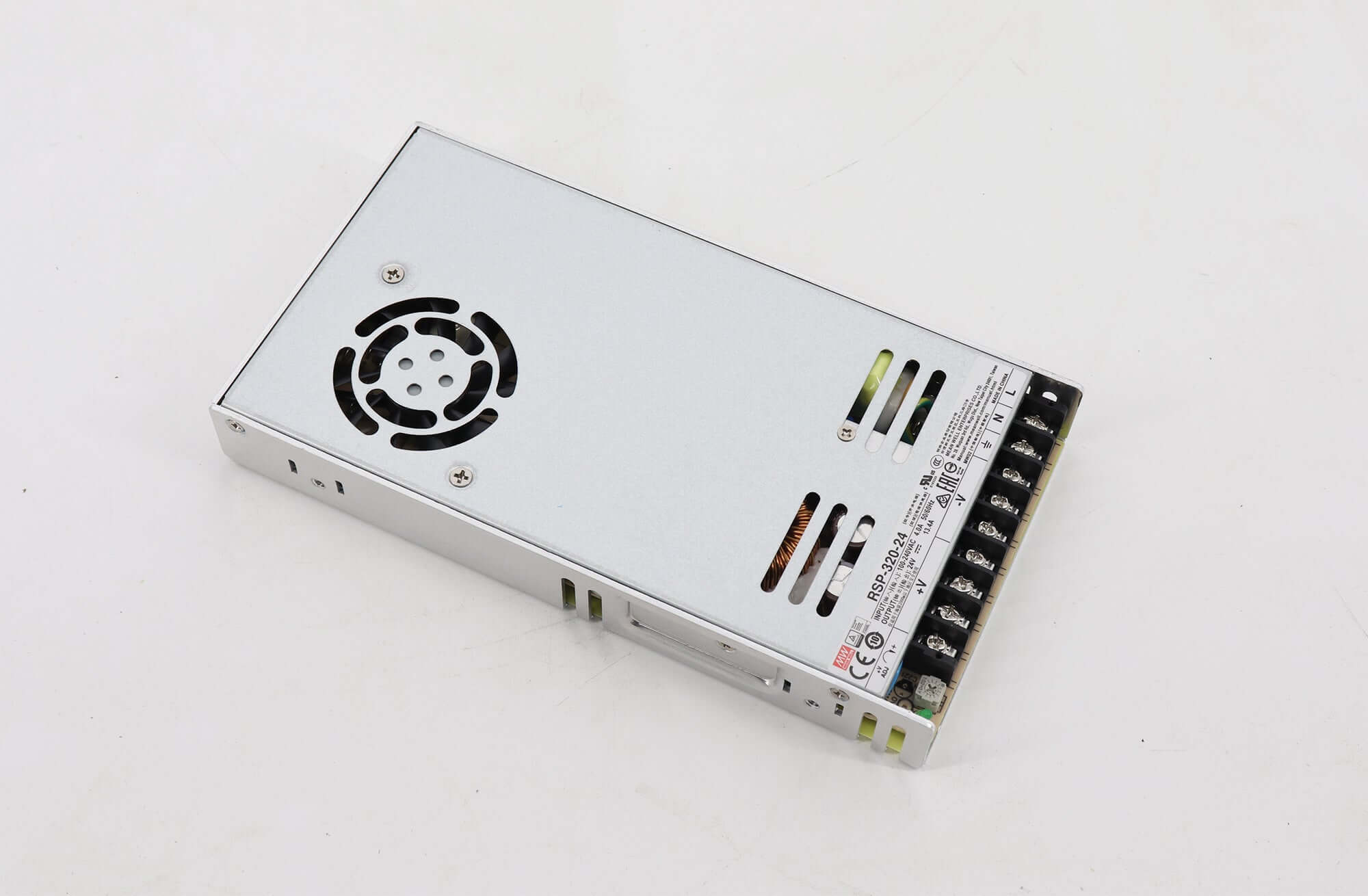

Product images and specification download
Meanwell RSP-320 Series LED Screen Display AC to DC Power Supply Specification
| Weight | 1.03 kg |
|---|
