MEAN WELL RS-15-5 5V 3A 15W Enclosed Power Supply
$ 7.50
MEAN WELL RS-15-5 is a compact 5V, 3A, 15W single-output power supply. It uses free-air convection cooling and measures 62.5 × 51 × 28mm.
10000 in stock
Compact 5V supply for low-power equipment
The MEAN WELL RS-15-5 supplies 5V DC at a rated 3A, with 15W rated power. Its small enclosed format is intended for integration into equipment with a matching 5V load. Check the available mounting space and total current requirement before selecting it.
RS-15-5 specifications
| Parameter | Specification |
|---|---|
| Rated output | 5V DC, 3A |
| Rated power | 15W |
| Voltage adjustment | 4.75–5.5V |
| AC input | 85–264VAC, 47–63Hz |
| Typical efficiency | 77% |
| Maximum ripple and noise | 80mVp-p; datasheet measurement conditions apply |
| Dimensions (L × W × H) | 62.5 × 51 × 28mm |
| Working temperature | −20°C to +70°C; apply derating curve |
| Cooling | Free-air convection |
| No-load power consumption | Less than 0.5W |
Matching the supply to the load
The 3A rating makes this a different choice from higher-current 5V supplies used for larger LED loads. Use the load specification and the temperature derating curve to determine whether this model has sufficient capacity.
The specification PDF provides the terminal layout, mounting drawing and operating conditions. Allow ventilation around the enclosure when installing it.
Frequently asked questions
What is the output of the RS-15-5?
It is rated at 5V DC, 3A and 15W.
How large is the RS-15-5 enclosure?
The manufacturer specifies 62.5 × 51 × 28mm, in length × width × height order. Check the PDF drawing for mounting details.
Is it suitable for every 5V LED screen?
No. The connected equipment must match the voltage and stay within the available current and thermal limits. Check the total load before choosing a 15W supply.
Does it need a cooling fan?
The supply uses free-air convection. Its enclosure still needs ventilation and must be installed within the datasheet operating conditions.

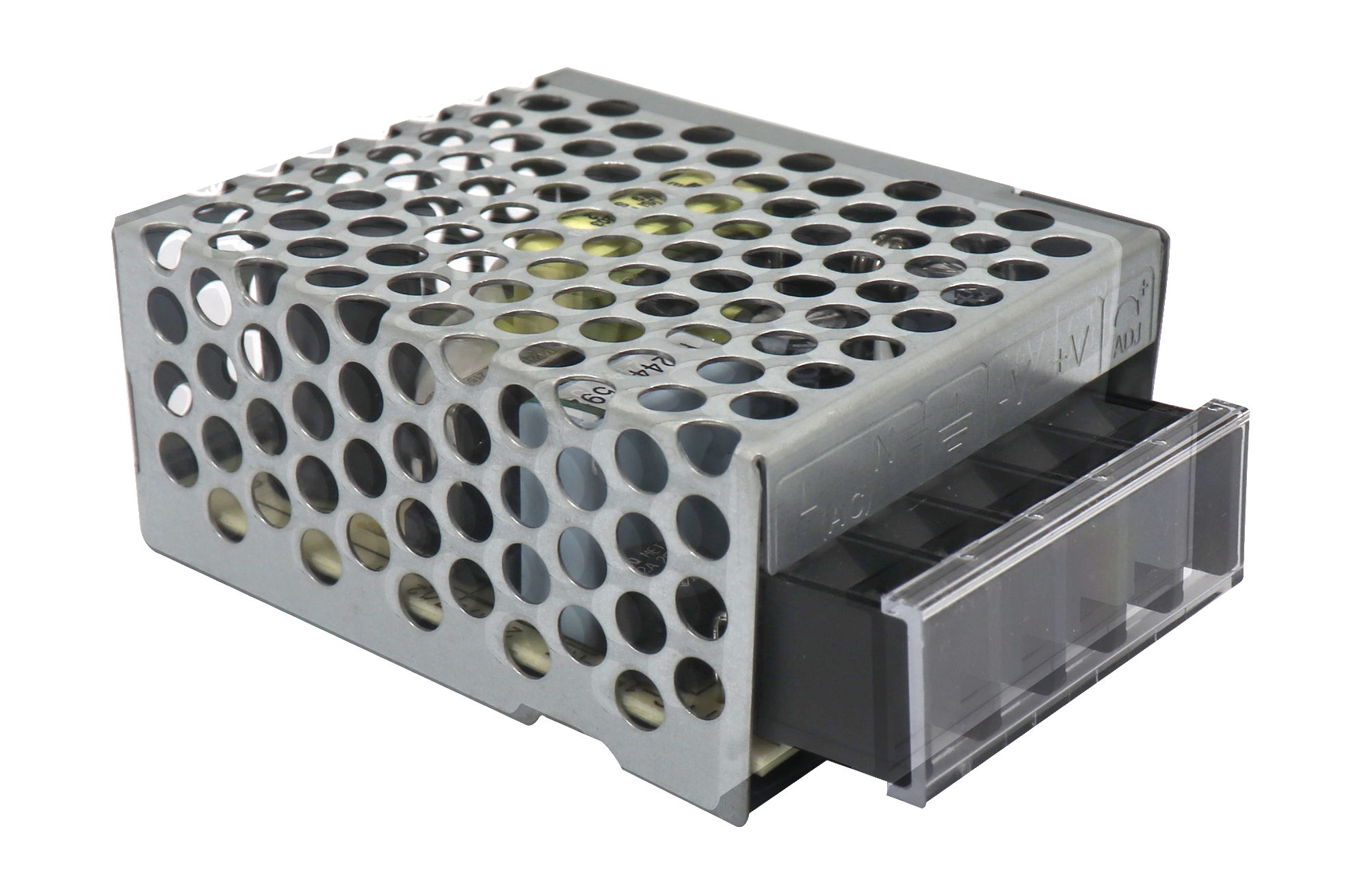

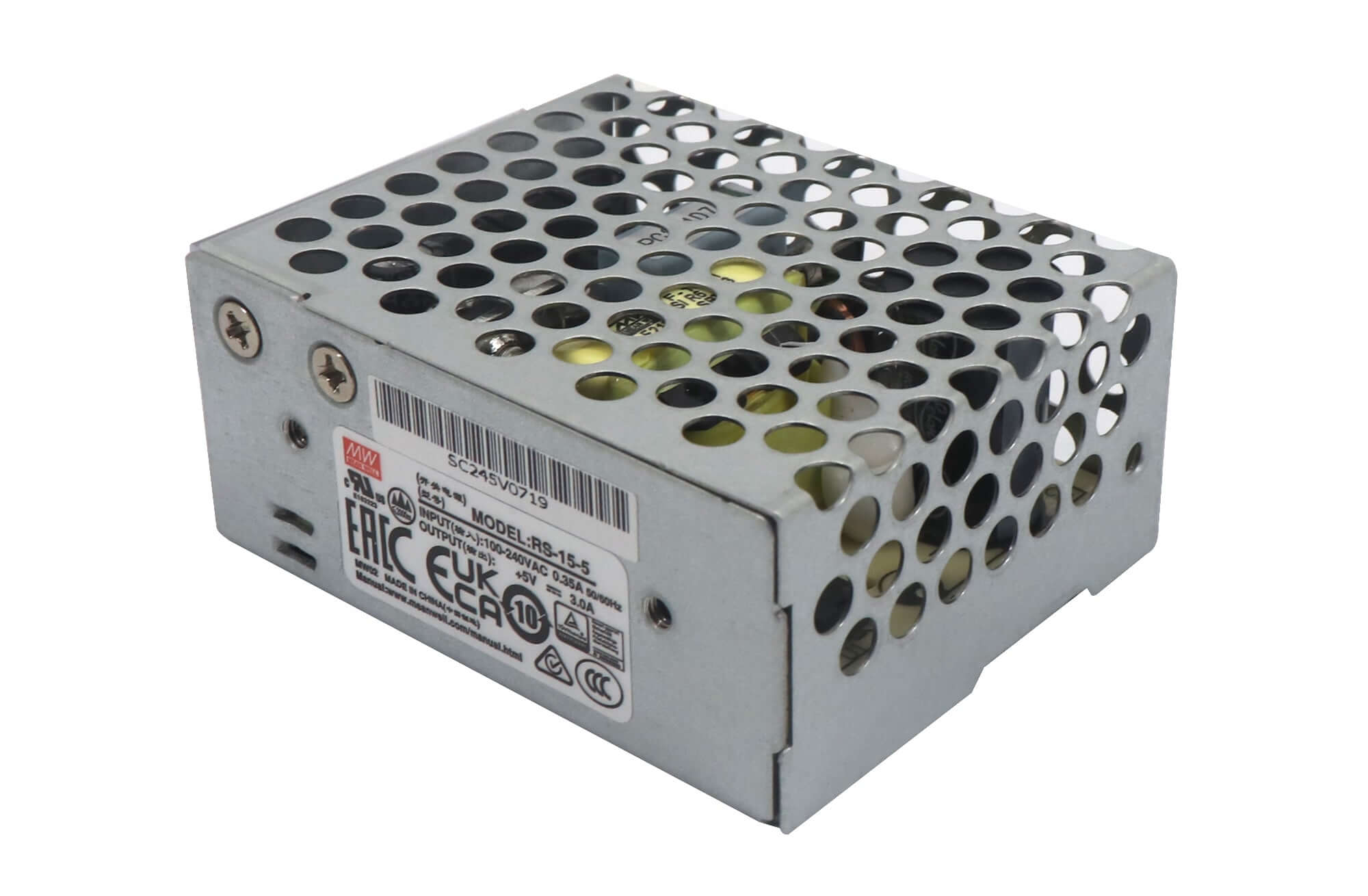

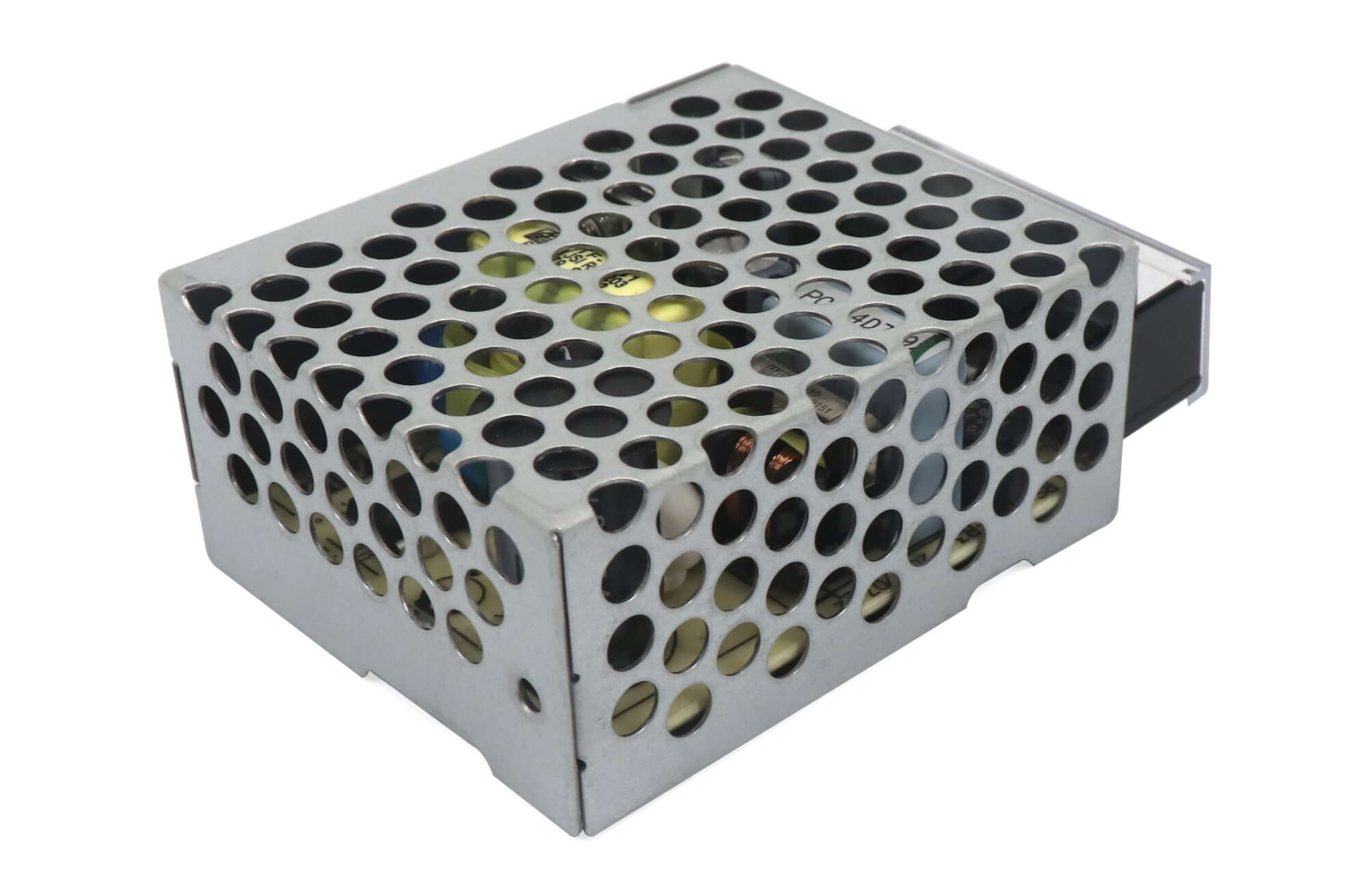

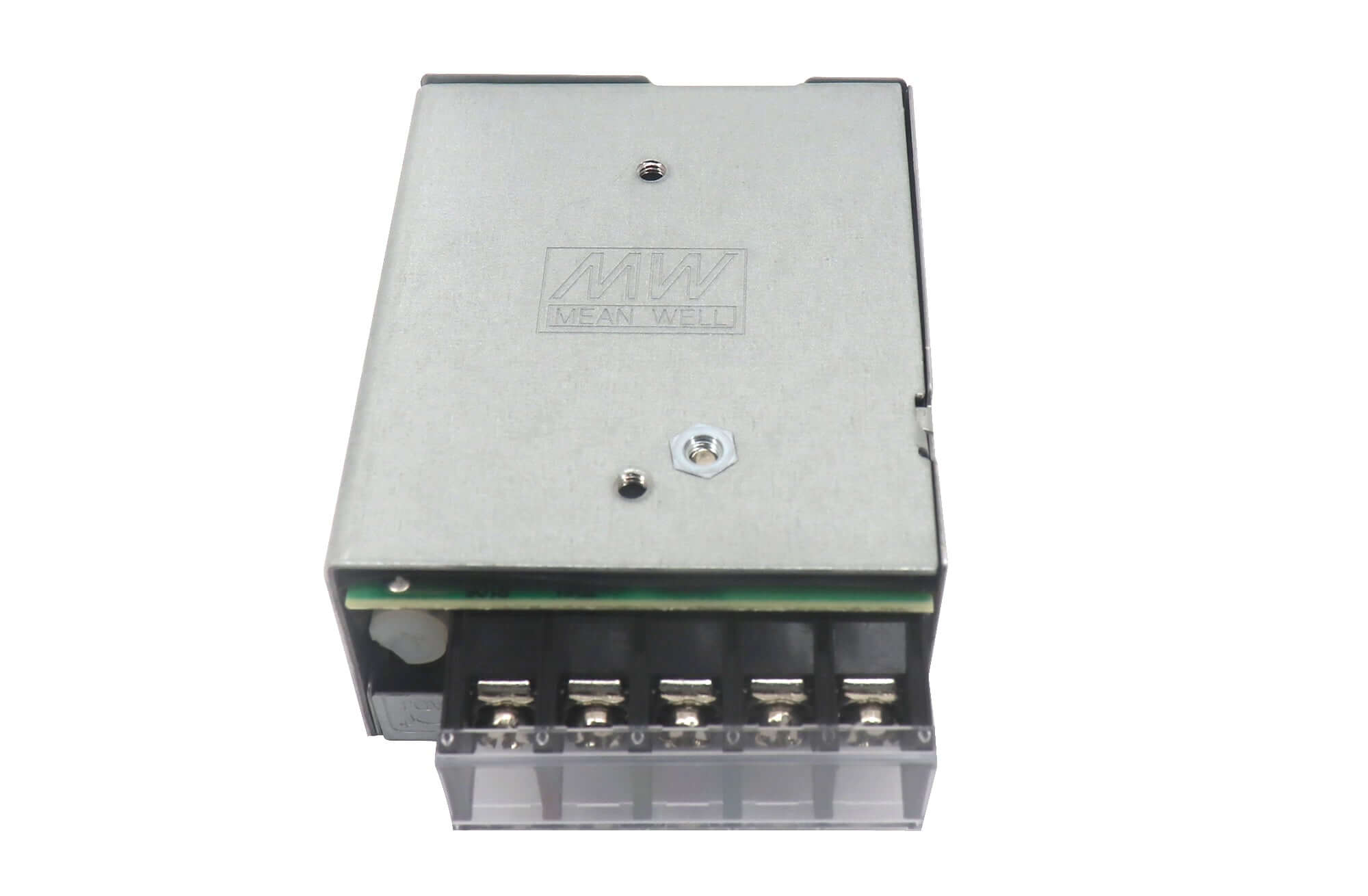

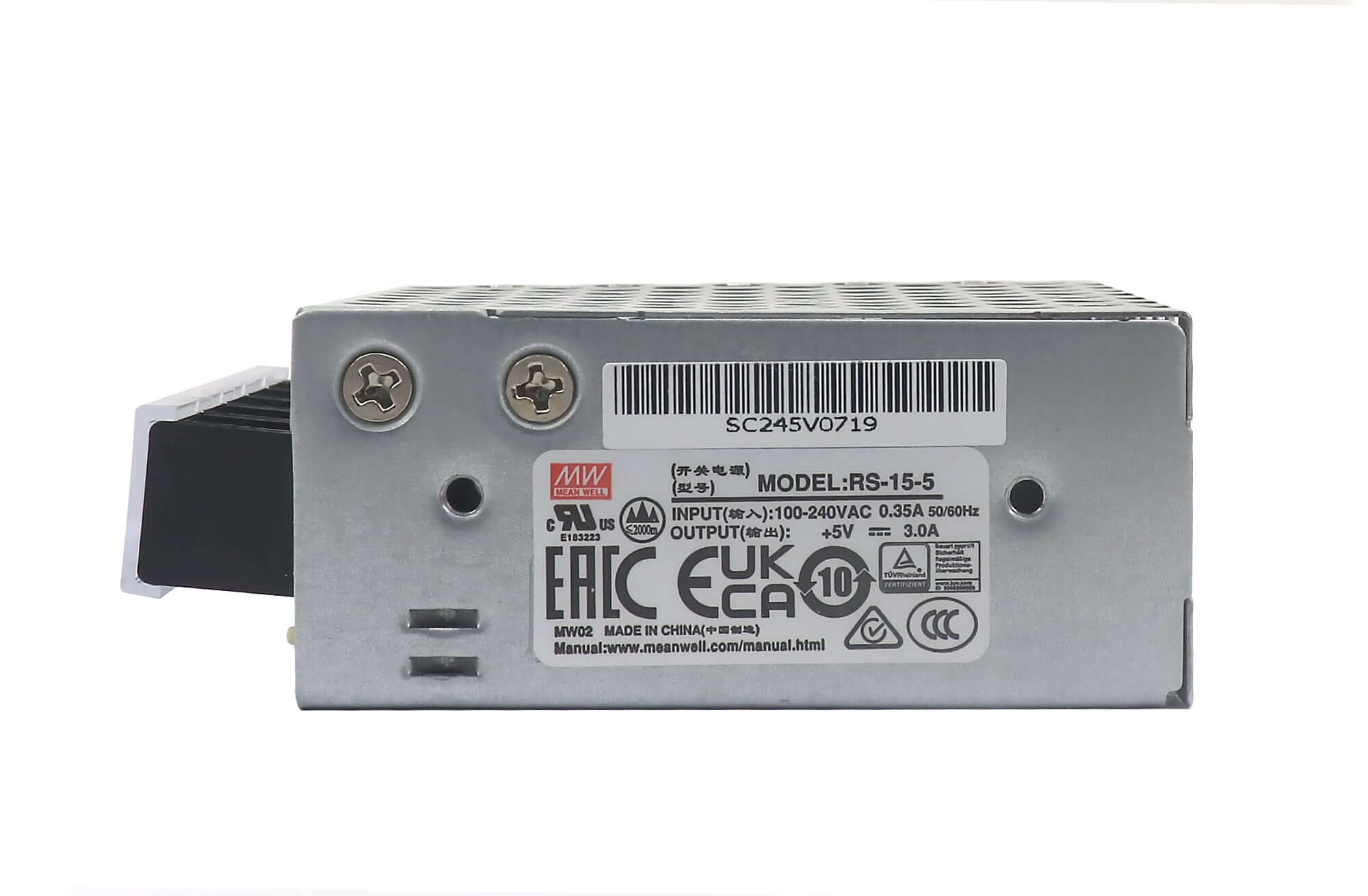

Product images and specification download
Meanwell RS-15-5 Single-output Enclosed Power Supply for LED Screen Specification
| Weight | 0.39 kg |
|---|
