Video wall mosaic, switching and backup
The Magnimage LED-W4000 is an 8K × 2K video processor with mosaic, HDMI switcher and backup operating modes. It supports synchronized cascading, custom output resolution and touchscreen operation for configuring multi-screen displays.
Choose the input and output configuration
The base model provides DVI, DP, HDMI and SDI inputs. Optional 4K/60 Hz expansion modules add DP 1.2 and HDMI 2.0 connections. One module is identified as LED-W4000-DH and two as LED-W4000-2DH; either DP or HDMI is used on each module at one time.
Use either DVI output mode or HDMI output mode. The manual states that these modes are mutually exclusive, and each A/B output pair carries the same signal.
Image control and operation
- HDR10 and 10-bit processing; HDCP 1.4 and 2.2 support.
- Up to 20 saved presets, with loading and timed tasks.
- Brightness, gamma, contrast, saturation and color-temperature adjustment.
- Built-in test patterns, pixel RGB inspection, logo and chroma key functions.
- PC control through network or RS232, and USB upgrading.
- HDMI switcher mode supports 4K preview/switching between two three-layer compositions.
Port and hardware specifications
Port | Quantity | Resolution |
| DVI | 4 | 3840×1080/60Hz and EDID management |
| DP | 4 | 3840×1080/60Hz、3840×2160/30Hz and EDID management |
| HDMI | 3 | 3840×1080/60Hz and EDID management |
| SDI | 1 | 480i/60Hz 576i/50Hz 720p/60Hz 1080i/50Hz/60Hz 1080p/50Hz/60Hz(3G SDI) |
Extend Input Indication | ||
Port | Quantity | Resolution |
| DP1.2 | 2 | 4096×2160/60Hz、7680×1080/60Hz and EDID management |
| HDMI2.0 | 2 | 3840×2160/60Hz and EDID management |
| Each group extendable 1xDP, 1xHDMI, 1xHDMI loop, maximum 2 groups | ||
Output Indication | ||
Port | Quantity | Resolution(single output) |
| DVI | 4×2 | 1024×768/60Hz 1280×1024/60Hz 1024×768/120Hz |
| 1280×720/59.94Hz 1280×720/60Hz 2048×1920/60Hz | ||
| 1600×1200/60Hz 1600×1200/60Hz-reduced 1680×1050/60Hz | ||
| 1920×1080/59.94Hz 1920×1080/60Hz 1920×1080/50Hz | ||
| 1920×1200/60Hz 1920×1280/60Hz 2048×1152/60Hz | ||
| 1024×1280/60Hz 1536×1536/60Hz and EDID | ||
| HDMI | 2×2 | 1920×1080/60Hz 1920×1080/120Hz 3840×1080/60Hz |
| 3840×2160/30Hz 3840×2160/60Hz 4096×1280/60Hz | ||
| 4096×1280/30Hz 4096×2160/60Hz 2560×1080/120Hz | ||
| 2560×1440/90Hz and EDID | ||
| Genlock | IN×1、OUT×1 | |
Input power supply | 100-204V AC 50/60Hz | |
| Power consumption | 90W | |
| Operating temperature | 0~45°C | |
| Overall dimension(L×W×H) | 482.6×446.3×92.5mm | |
Voltage information requires confirmation: the original product table lists 100–204 V AC, 50/60 Hz. The linked user manual’s safety instructions state 100–240 V AC, 50/60 Hz. These values conflict; confirm the rating on the supplied unit before connecting power.
Frequently asked questions
Does the base LED-W4000 include the 4K 60 Hz expansion inputs?
The manual identifies these as expansion modules. LED-W4000-DH has one module and LED-W4000-2DH has two. Confirm the supplied version.
Can DVI and HDMI outputs operate together?
No. The manual specifies mutually exclusive DVI and HDMI output modes. Use the selected output type for the display setup.
Are the A and B output ports independent screens?
Each A/B pair carries the same output signal. Count the independent output channels when planning the mosaic.
What working modes are available?
Mosaic mode, HDMI switcher mode and backup mode are supported. Backup mode includes input hot backup or manual backup.
How many presets can I save?
The LED-W4000 supports saving and loading up to 20 presets, together with timed tasks.

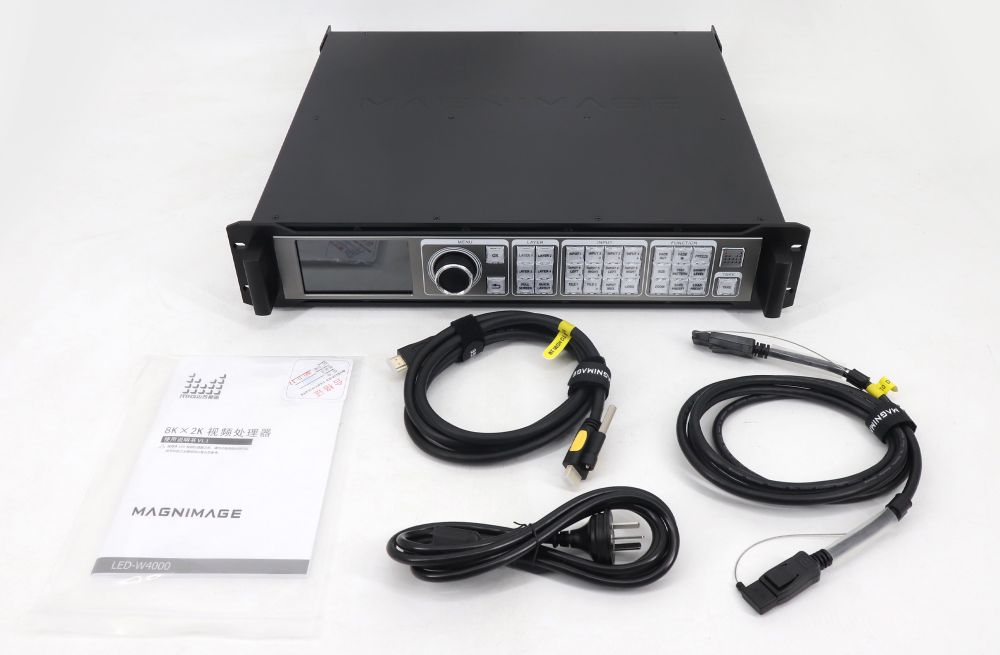

Product images and diagrams
