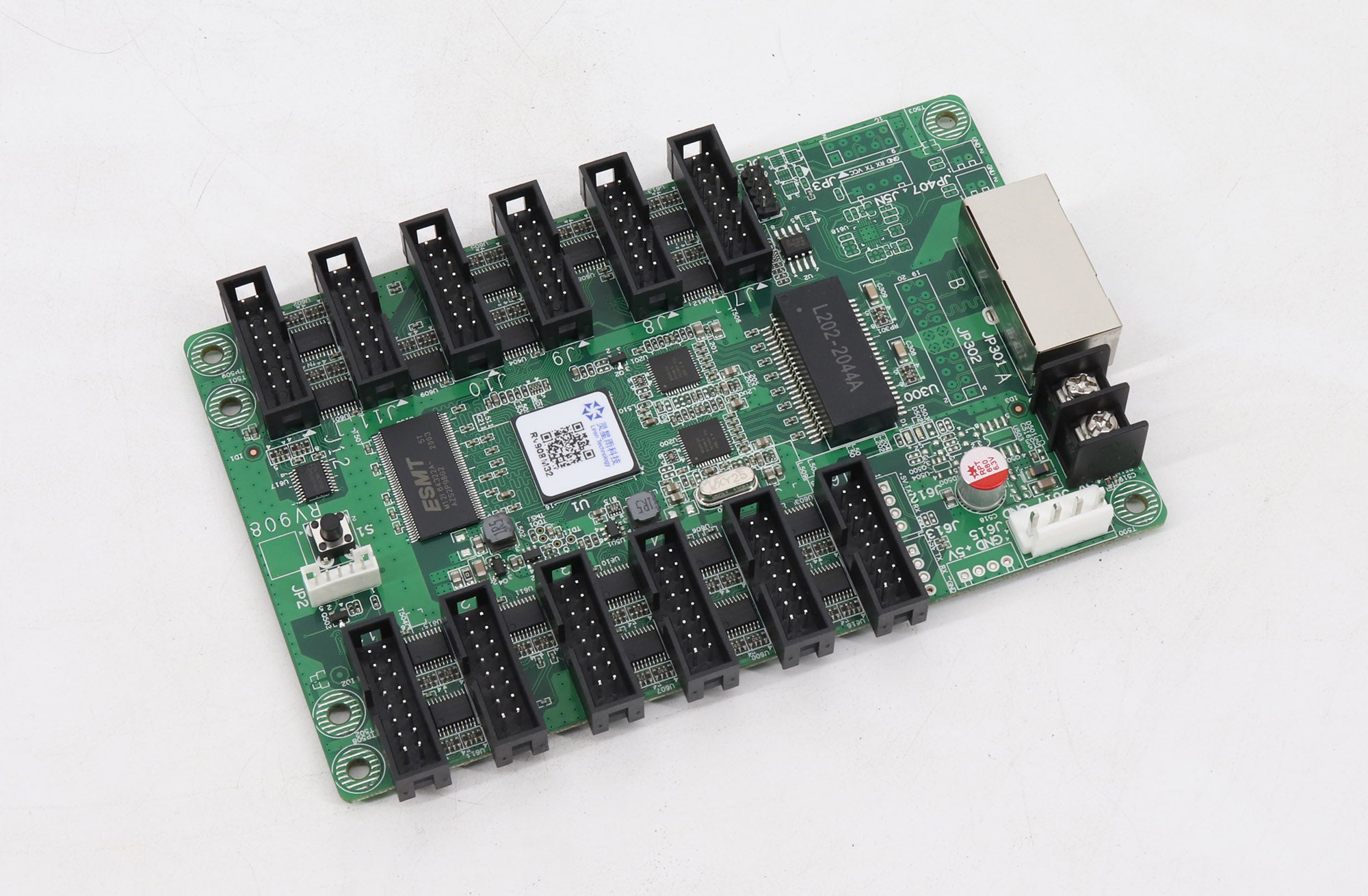

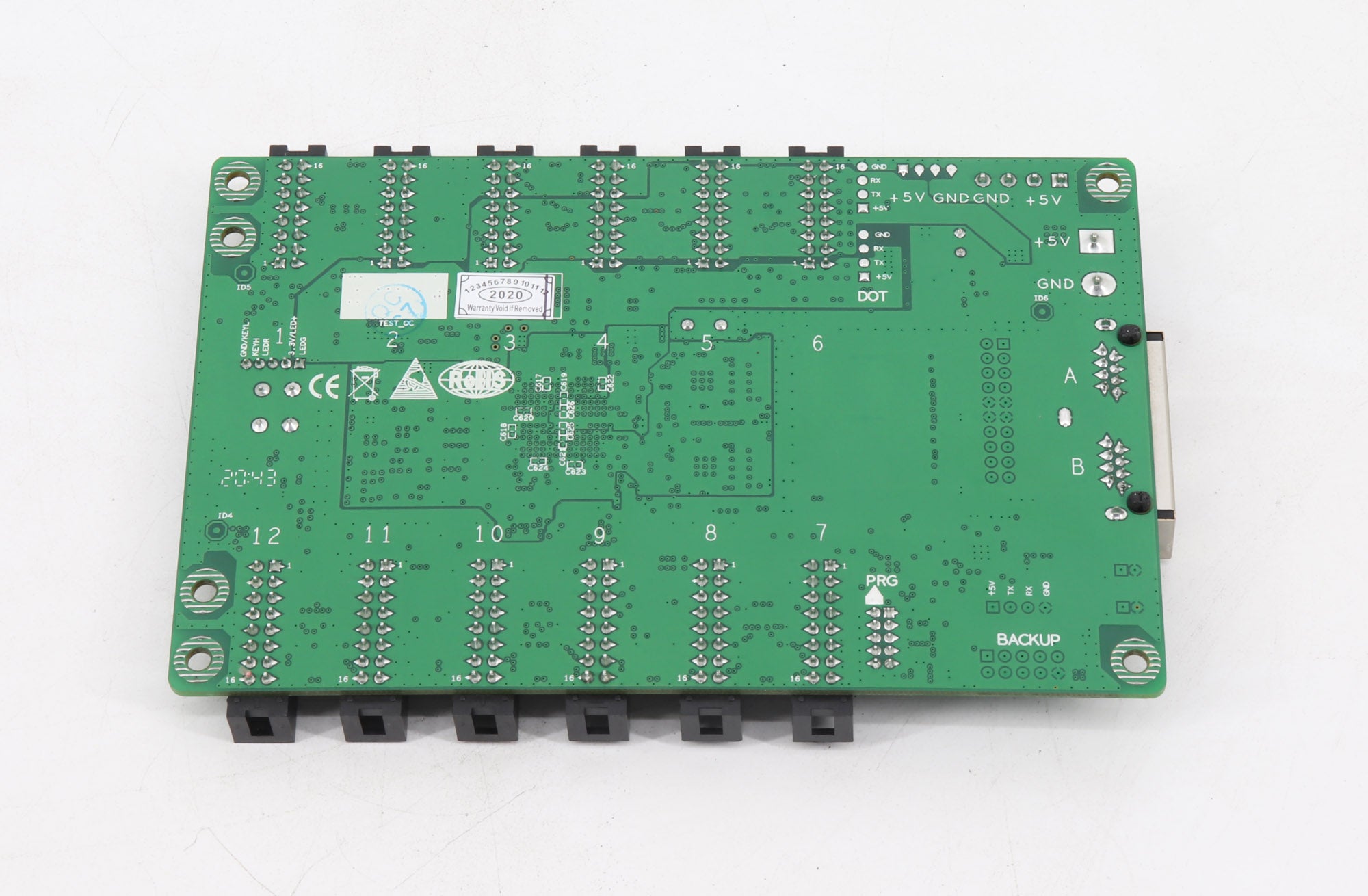

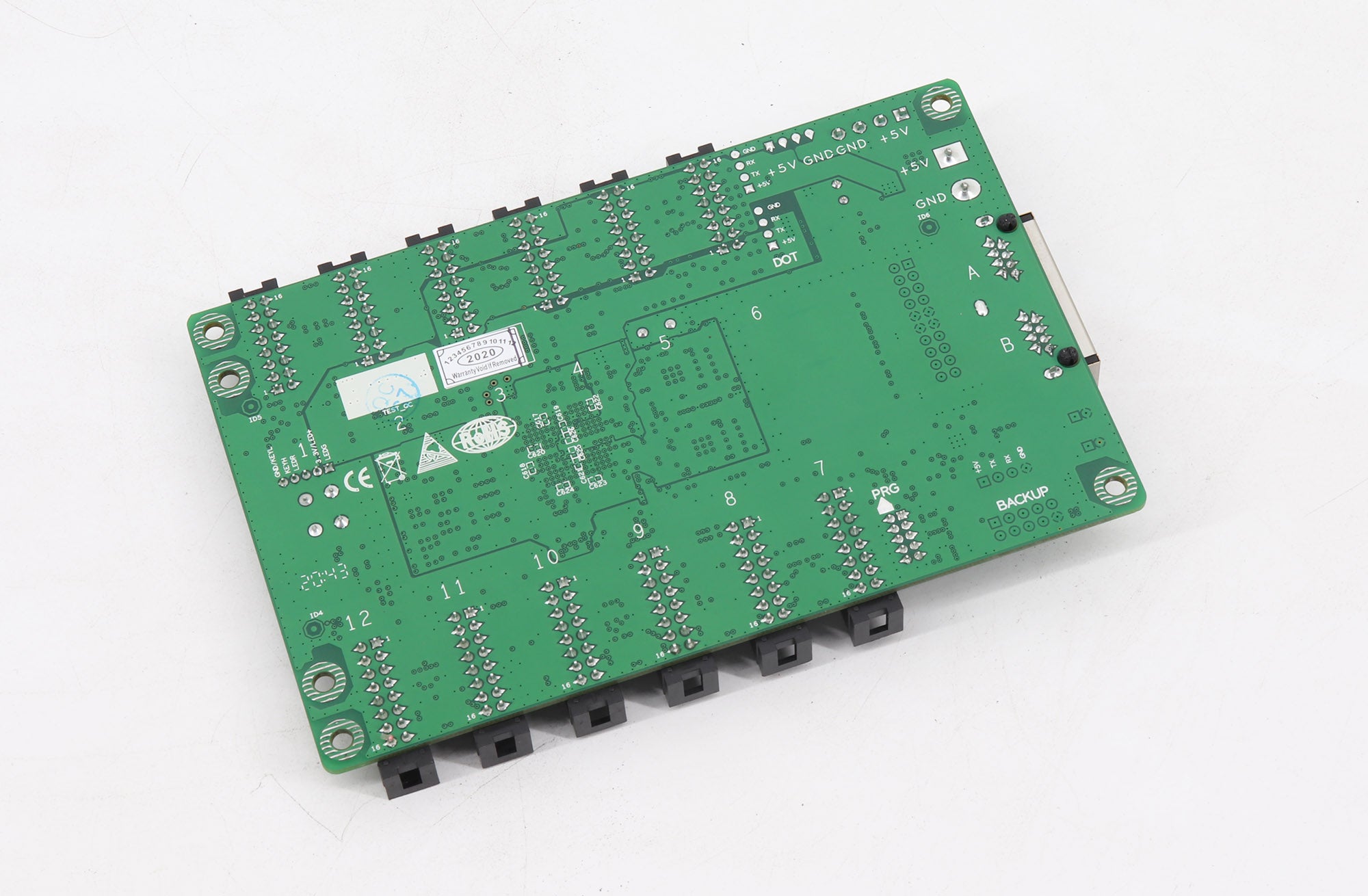

Linsn RV908M32 1/32-Scan LED Receiving Card
Original price was: $ 13.50.$ 13.00Current price is: $ 13.00.
Linsn RV908M32 LED receiving card supports 1/32 scan, 24 RGB data groups, brightness calibration, configuration readback and network cable testing.
9925 in stock
The Linsn RV908M32 is a receiving card for compatible 1/32-scan LED modules. Its manufacturer specification lists 24 RGB data groups, brightness calibration and configuration readback. Select it by the exact module pinout and scan requirements rather than assuming all RV908 variants are interchangeable.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | RV908M32 |
| Scan support | 1/32 scan |
| RGB data output | 24 groups |
| Manufacturer listed maximum | 384 × 512 pixels; recommended loading depends on screen design |
| Calibration | Pixel brightness calibration; single-card color-space conversion |
| Configuration | Configuration file readback |
| Decoding | 138 and 595 serial decoding |
| Diagnostics | Network cable BER test |
LINSN RV908M32 1/32 Duty LED Display Receiving Card Specification
Frequently asked questions
Does the RV908M32 support 1/32-scan modules?
Yes. This model is listed for 1/32 scan. Confirm the module wiring and driver configuration before installation.
Can I replace an RV908T or RV908H without checking settings?
Do not assume a direct swap from the family name. Compare the board connectors, scan requirements and saved cabinet configuration for the exact versions.
What is the RV908M32 listed pixel capacity?
Linsn lists a maximum of 384 × 512 pixels and notes that recommended loading depends on the LED screen design.
| Weight | 0.35 kg |
|---|
