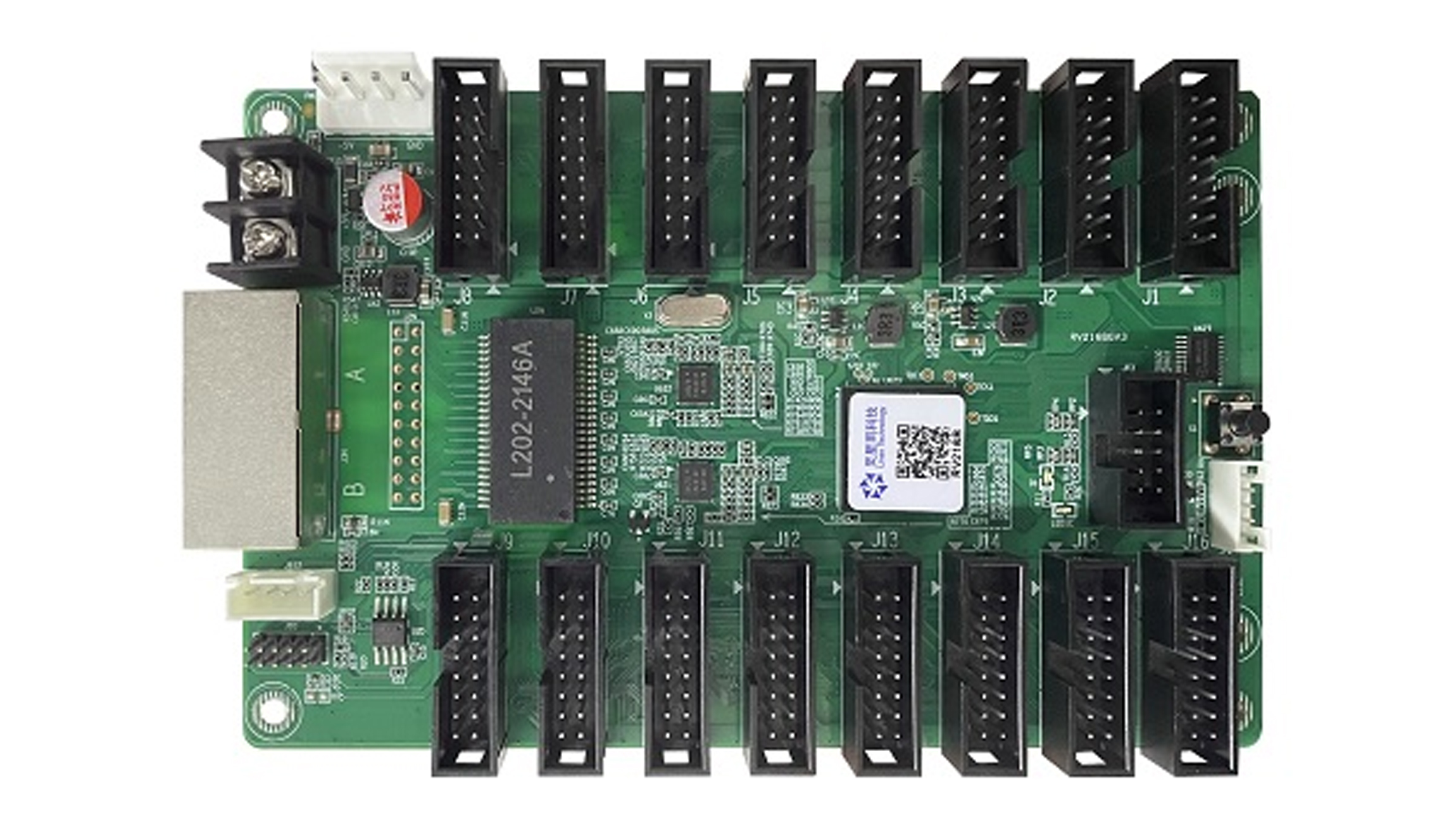

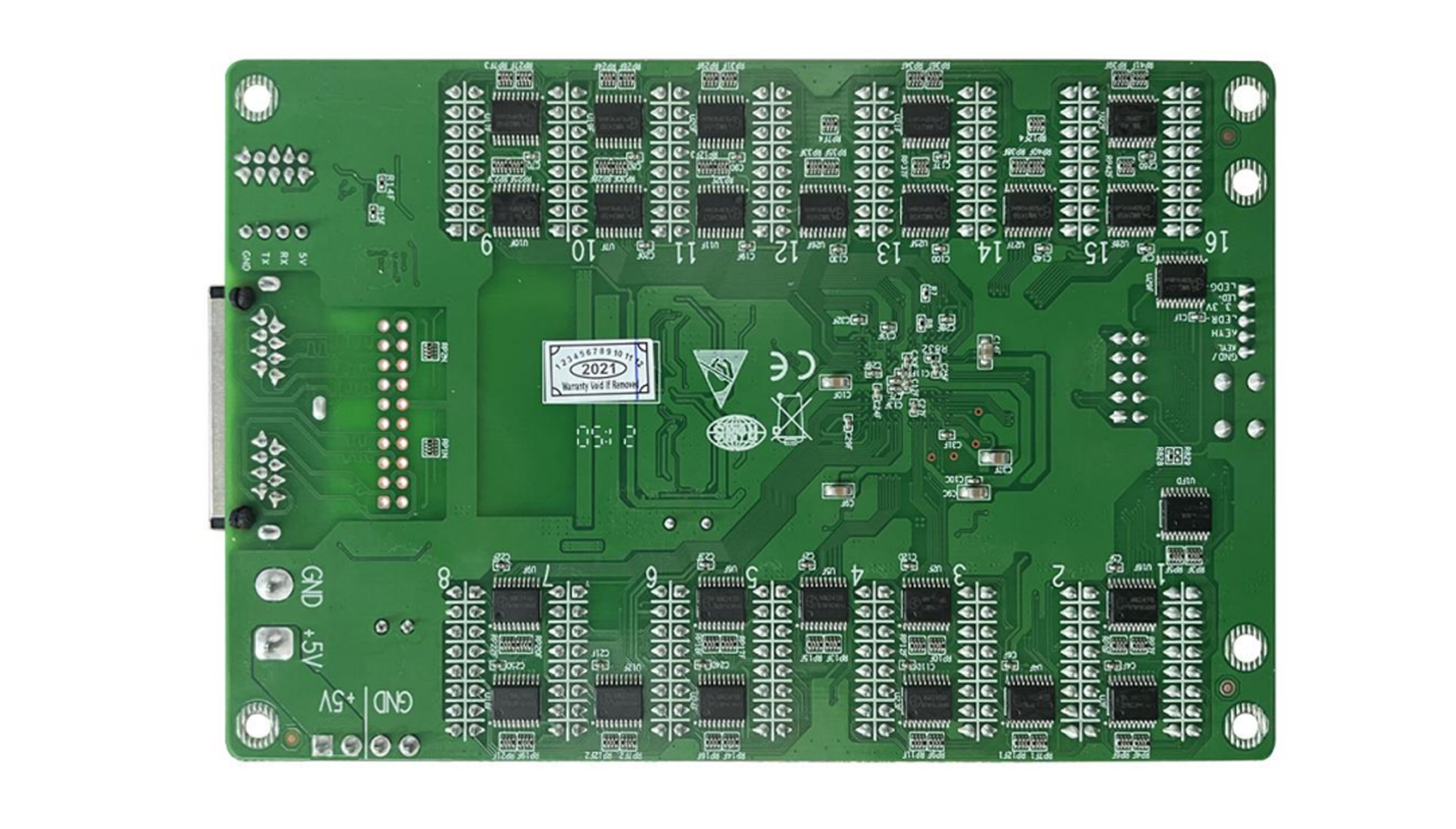

Linsn RV216 LED Receiving Card with 16 HUB75 Connectors
$ 15.00
The RV216 connects LED modules directly through 16 on-board HUB75-type connectors. One card supports 32 RGB data groups and up to 512 × 512 pixels, depending on the screen design.
1000 in stock
The integrated HUB connectors remove the need for a separate hub card in a compatible cabinet. For servicing, the RV216 supports configuration file readback and dual-card backup. Pixel-level brightness calibration and color space conversion are available on the receiver.
Technical specifications
| Parameter | Specification |
|---|---|
| Module connections | 16 standard HUB75-type connectors |
| Data output | 32 groups of RGB data |
| Maximum load | 512 × 512 pixels; recommended load depends on the pixel design |
| Decoding | 138 decoding and 595 serial decoding |
| Backup | Dual receiving cards |
Download Specification:
Linsn RV216 LED Screen Receiving Card Specification
Frequently asked questions
Does the RV216 require an additional hub card?
No. The HUB75-type connectors are built into the receiver. Check the module pinout for compatibility.
Can every cabinet run at the maximum pixel load?
512 × 512 is the stated maximum per card. Use the load recommended for the actual LED screen design.
Can I recover the receiver configuration?
Yes. The RV216 supports reading its configuration file back from the installed card.
