Linsn Mini913K LED Receiving Card with Cabinet Monitoring
$ 15.00

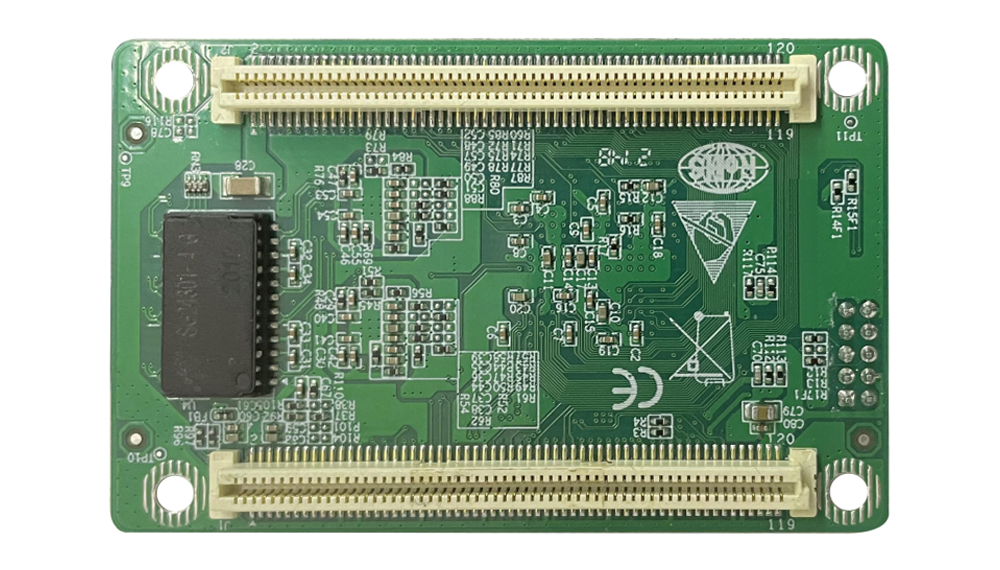

The Mini913K uses a high-density BTB connector and supports up to 512 × 512 pixels. Cabinet diagnostics include flat-cable checks and faulty pixel detection with dedicated driver ICs.
11000 in stock
The Mini913K lets a technician check the data link, read back a configuration file and monitor conditions inside an LED cabinet. It can report temperature, humidity, smoke, voltage, door status and fan speed, and supports an LCD monitor.
Technical specifications
| Parameter | Specification |
|---|---|
| Connection | High-density board-to-board (BTB) connector |
| Output modes | 32 RGB groups or 64 serial groups |
| Maximum load | 512 × 512 pixels per card |
| Driver types | Standard and PWM driver ICs |
| Color processing | 18-bit processor; single-card color space conversion |
| Backup | Dual network cable and dual power supply hot backup |
Download Specification:
Linsn Mini913K Receiving Card Specification
Frequently asked questions
Does faulty pixel detection work with every driver IC?
No. The module must use dedicated ICs that support this detection function.
Can the Mini913K check both network and flat cables?
Yes. It supports a bit error rate test for the network cable and a separate flat-cable detection function.
Where can module calibration data be stored?
The Mini913K supports storing calibration data on a flash IC on the module. Configuration file readback is also supported.
| Weight | 0.3 kg |
|---|
