The Linsn L4 supports synchronous HDMI display and asynchronous program playback. The manufacturer’s V3.1 specification identifies two network ports: one output and one backup. The older listing also mentions HDMI output and 4G, which are not confirmed in that specification; check the supplied hardware before relying on either function.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | L4 |
| Listed capacity | Up to 1.3 million pixels; check the selected output/backup arrangement |

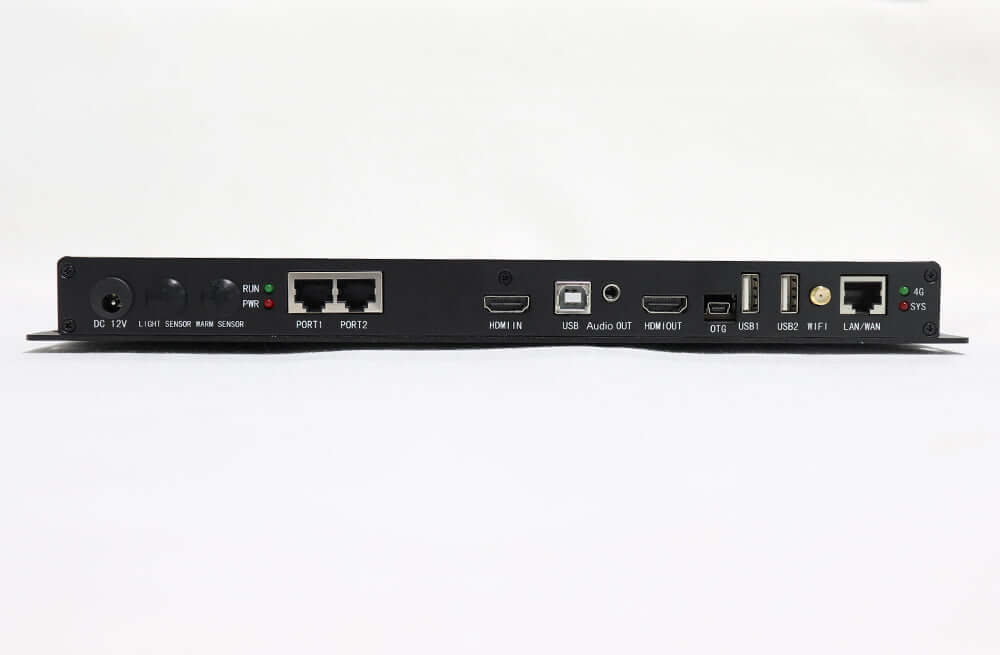

| Network ports in V3.1 | 2: one display output and one backup |

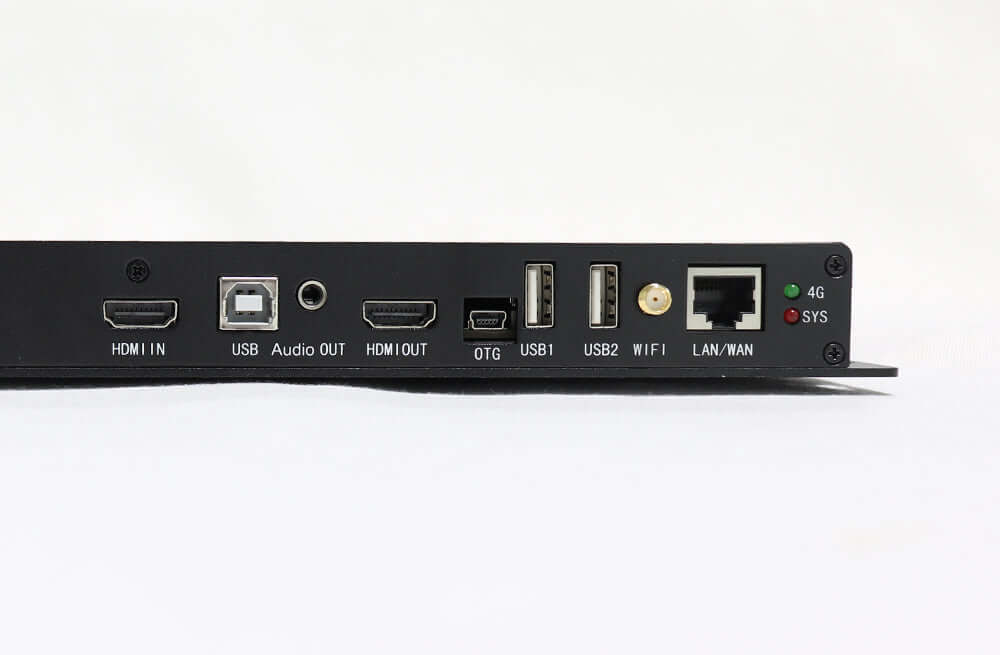

| Confirmed video input | HDMI |
| Program delivery | USB flash drive, LAN, Wi-Fi and Wi-Fi hotspot |

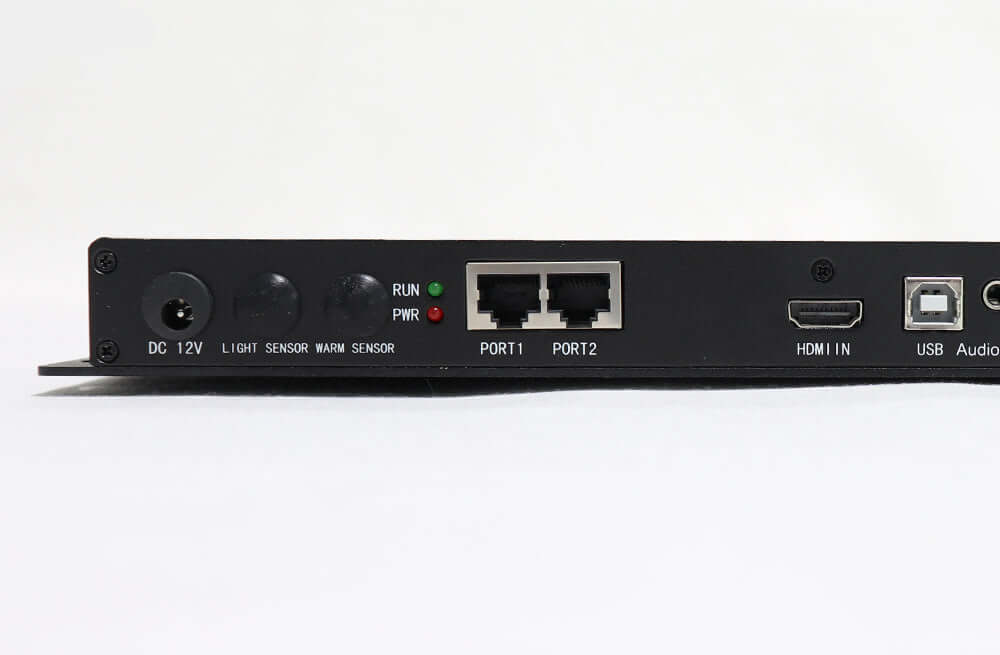

| Sensor support in V3.1 | Temperature and brightness |
| Original scan / grayscale values | Static through 1/32 scan; up to 16-bit / 65,536 levels |
| Original refresh limits | Up to 3840 Hz scanning; up to 6000 Hz static |

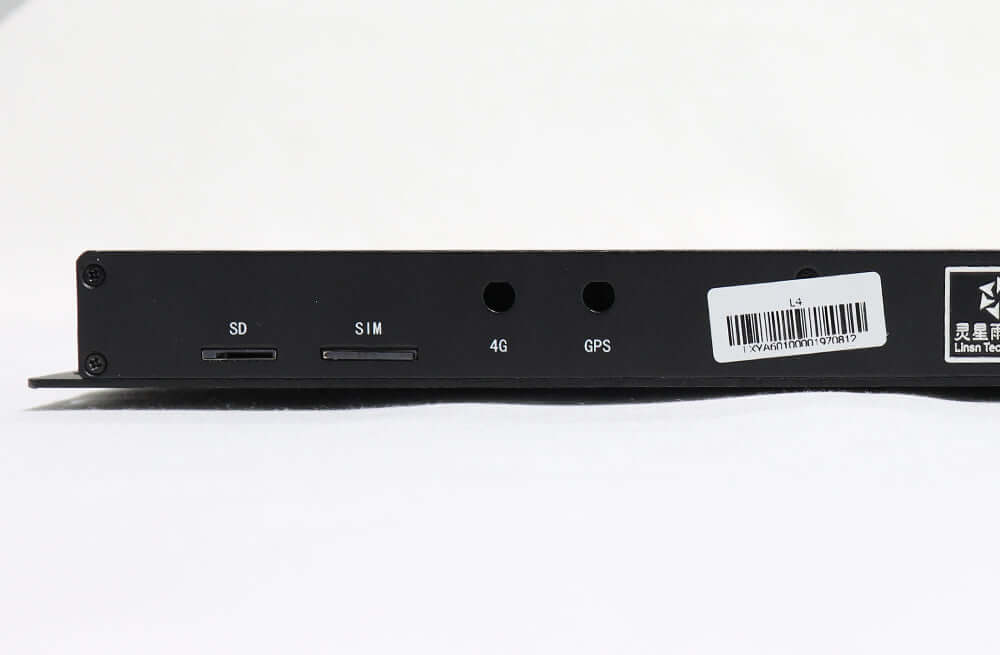

| Unresolved older claims | HDMI output and 4G require version confirmation |



Linsn L4 Asynchronous LED Wall Sending Box Specification
Frequently asked questions
Does L4 support both synchronous and asynchronous operation?
Yes. It supports HDMI synchronous input and program playback through USB flash drive or LAN.
Can both network ports be treated as separate display outputs?
The V3.1 specification lists one display output and one backup port. Confirm the usable loading for the intended arrangement.
Does every L4 include HDMI output and 4G?
Those functions appear in the older listing but are not confirmed in the manufacturer’s V3.1 feature list. Check the exact supplied hardware and options before ordering.
