P1.53 GOB Flexible LED Module, 320 × 160 mm
$ 48.30
P1.53 GOB indoor soft flexible LED module.
- 320 × 160 mm module format
- SMD1212 LEDs
- Magnetic mounting for curved iron cabinets
- Confirm bend limits and the quoted GOB batch
15155 in stock

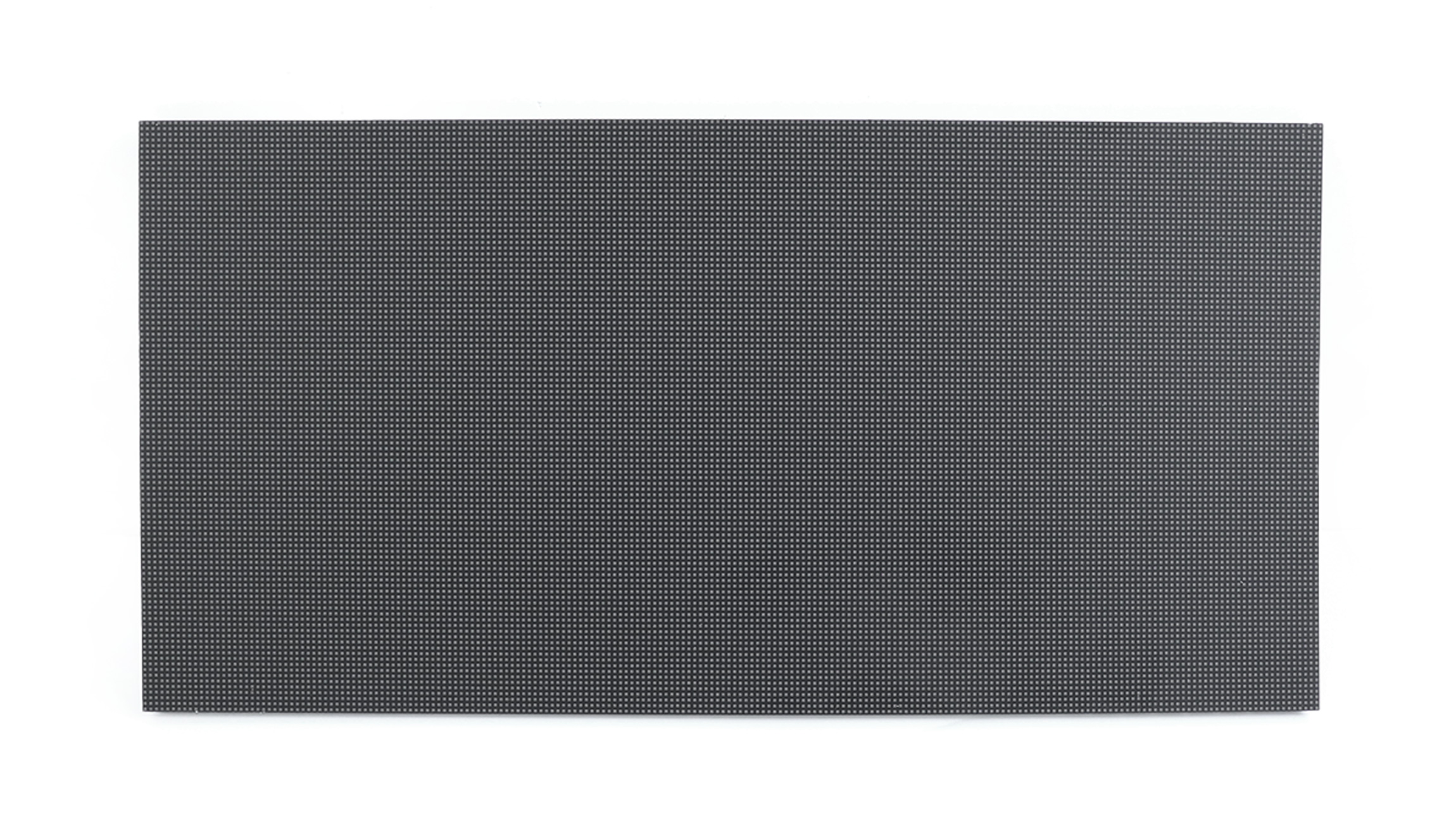

P1.53 GOB flexible LED module overview
The P1.53 GOB flexible LED module has a 320 × 160 mm format and is listed with SMD1212 LEDs for indoor screens. Its magnetic soft-module construction is intended for curved iron cabinets. Check the cabinet structure and the exact module version together before ordering a complete screen.
A flexible module needs a supporting cabinet designed for the required shape. Module dimensions alone do not establish the finished screen radius, mounting strength or service clearance. Send a cabinet drawing and describe whether the display surface curves inward or outward when requesting a configuration check.
Module selection at a glance
| Selection item | This listing |
|---|---|
| Pixel pitch | P1.53 |
| Module format | 320 × 160 mm |
| LED package | SMD1212 |
| Listed construction | Indoor GOB soft flexible module, magnetic mounting |
| Cabinet application | Curved iron cabinet; confirm the actual drawing and mounting arrangement |
Plan a curved cabinet before ordering
Two modules arranged side by side have a nominal combined module width of 640 mm and height of 160 mm before cabinet borders or assembly allowances. Use these physical dimensions for an initial layout. For a curved assembly, distinguish the distance measured along the display surface from the straight-line span between its ends.

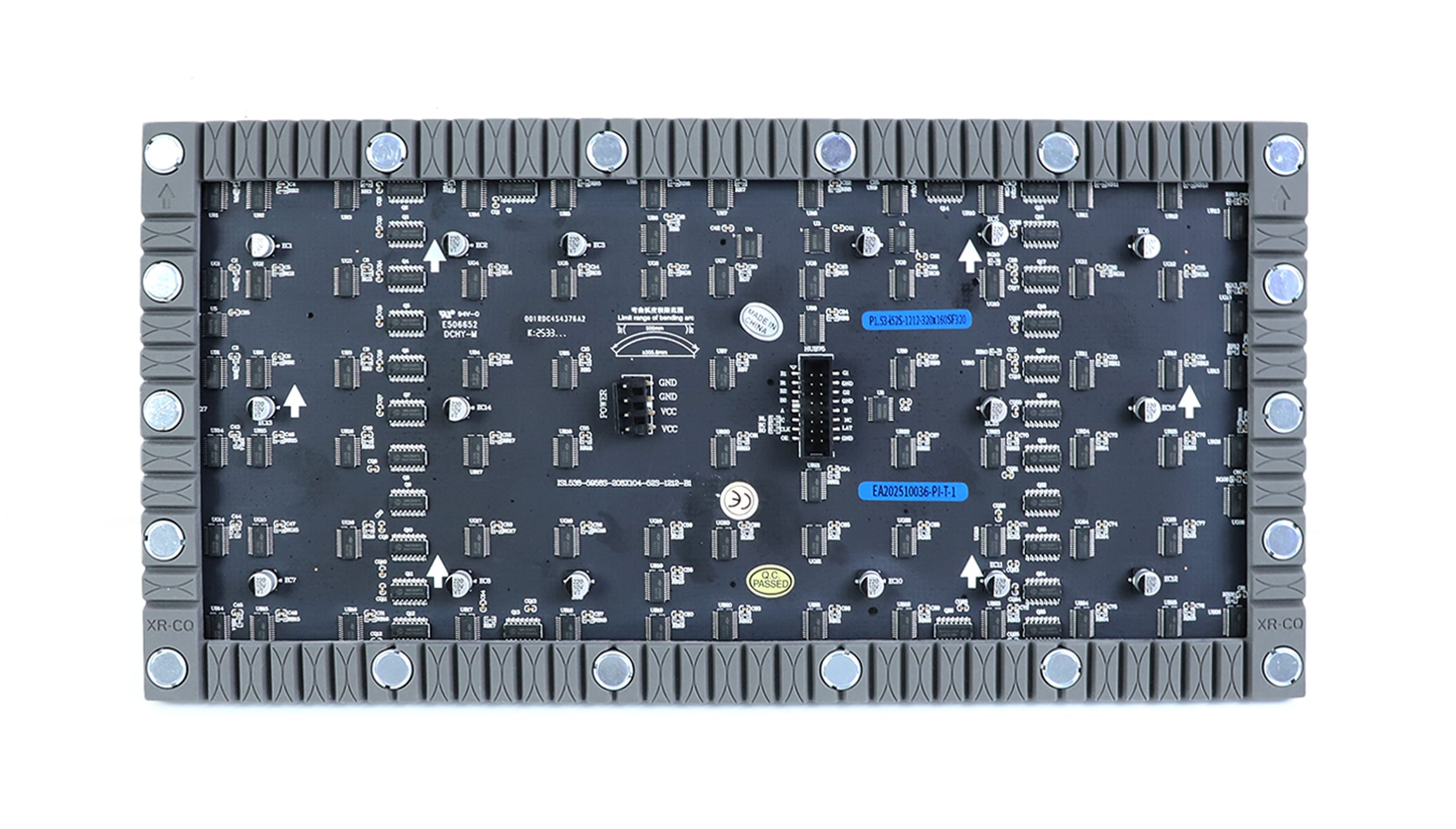

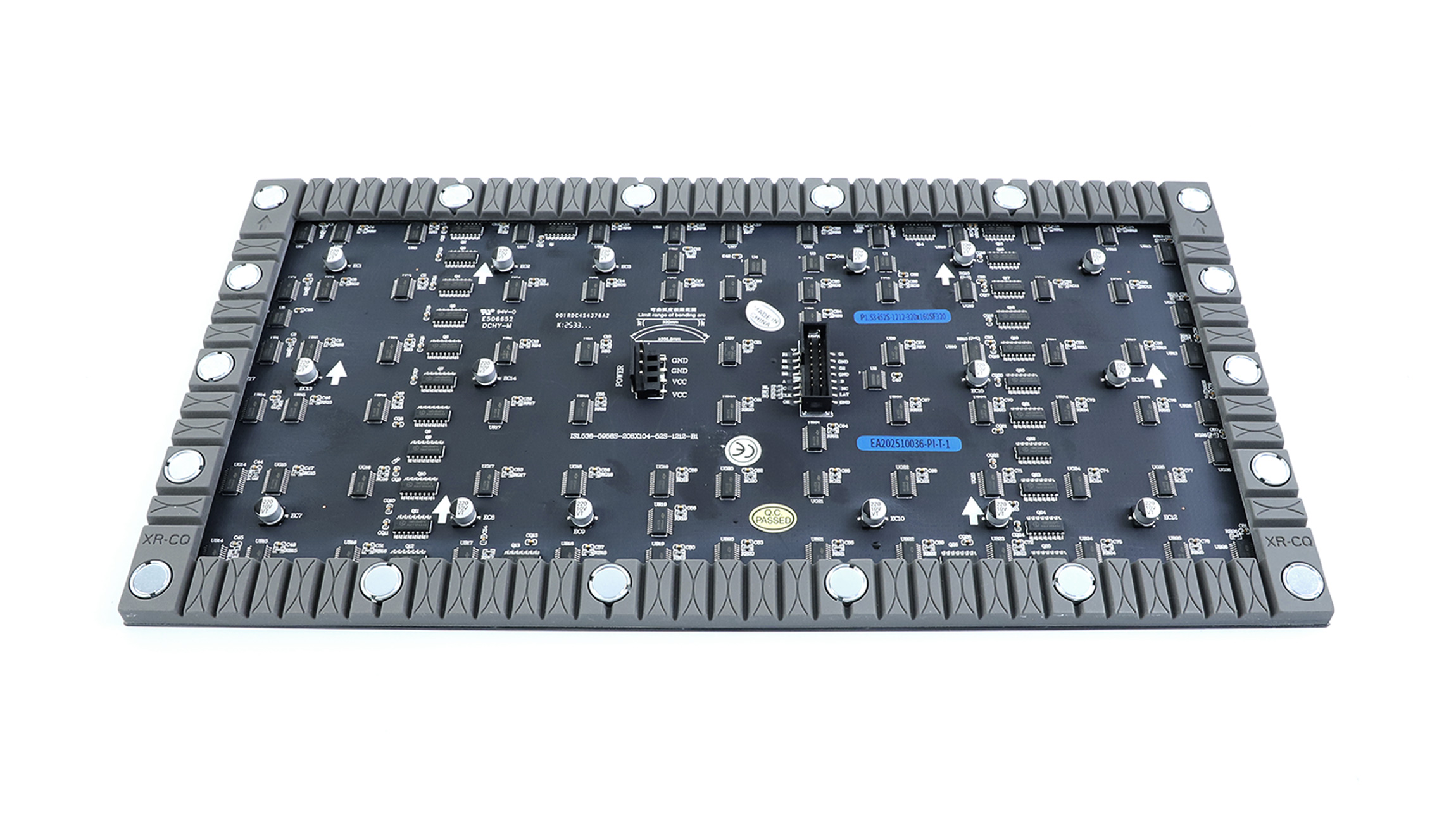

Request the allowable bending direction and minimum radius for the quoted batch. Also confirm magnet positions, cable routing, module input requirements, receiver configuration and access for maintenance. The GOB surface treatment and the control configuration should be confirmed for the same batch supplied in the order.
Product images and specification
Download the linked P1.53 SMD1212 EA-Flex specification. Request confirmation that the document matches the GOB version and production batch quoted for your project.
Frequently asked questions

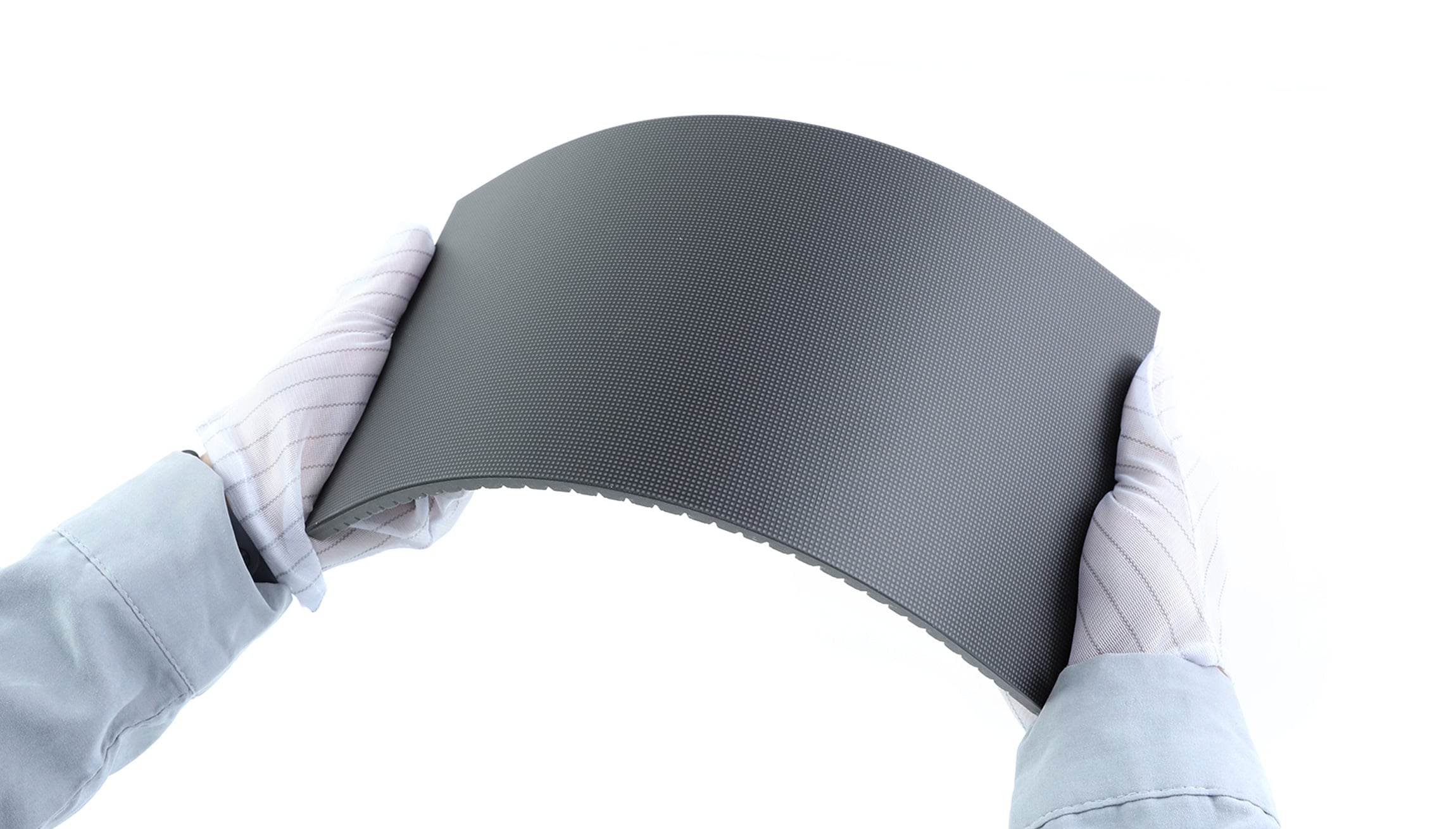

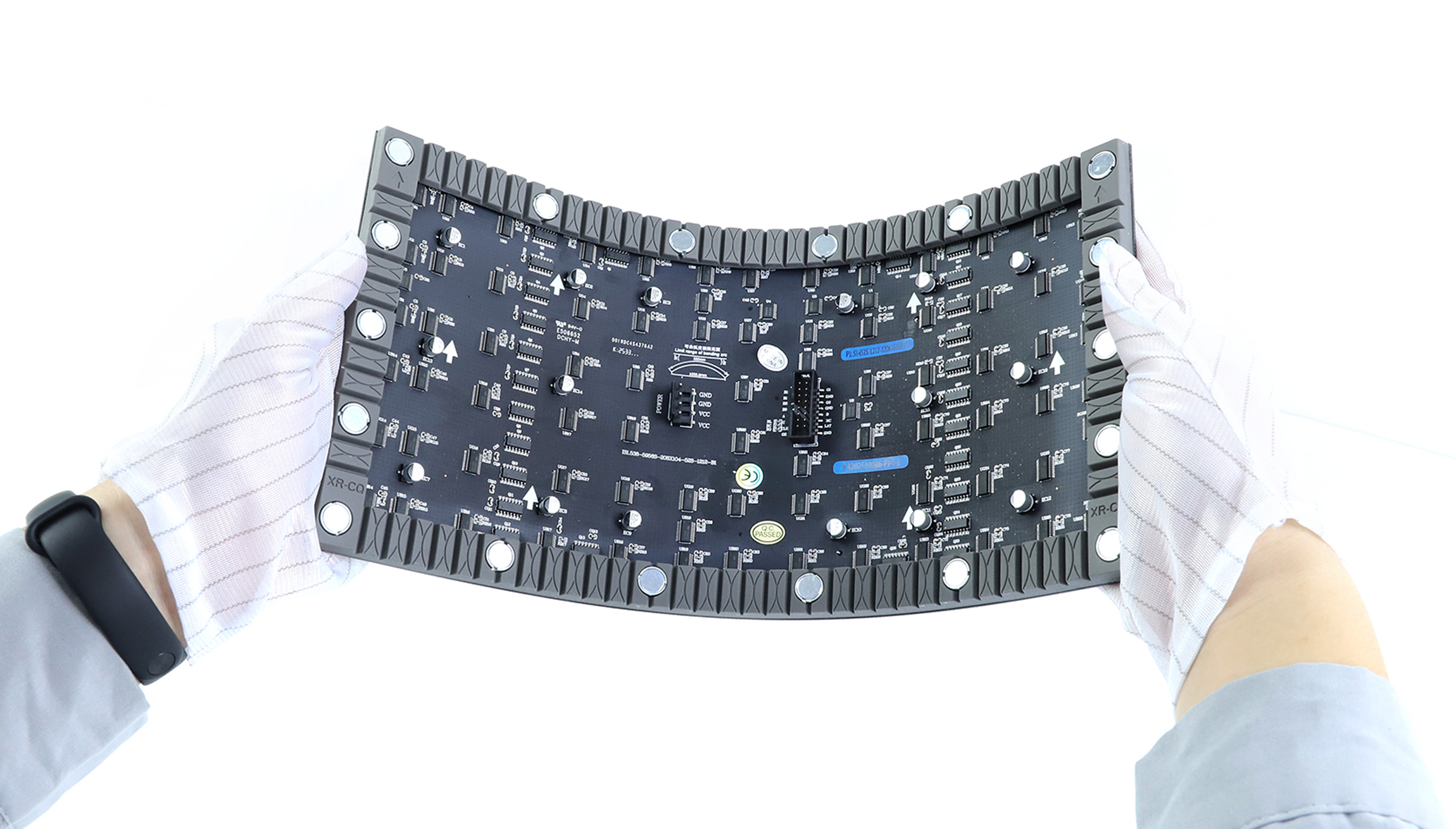

Q1Can this P1.53 GOB module form a curved display?
The product is listed as a magnetic soft flexible module for curved iron cabinets. Confirm the curve direction, required radius and cabinet mounting drawing before choosing the module.
Q2Does a 320 × 160 mm size define the screen pixel map?
No. Physical dimensions describe the module footprint. Request the exact module pixel resolution and receiver configuration for the quoted batch before preparing the complete screen pixel map.
Q3Can it replace any existing P1.53 module?
The listing does not support using these modules as replacement parts for an existing old display. Matching pixel pitch alone does not confirm matching fixings, connectors, control settings or color.
Discuss your P1.53 flexible screen layout
Send the module quantity, cabinet drawing, curve direction and spare-module requirement through LED Mall’s contact page. Compare the physical formats in the flexible LED module category before finalizing the order.
| Weight | 1 kg |
|---|
