HX05 LED Vacuum Tool for Front Screen Maintenance
$ 135.00
The HX05 is a vacuum tool for front maintenance of LED screens and module replacement. Review the operating steps, 100–240V charger input, 26V/1A charger output and listed 20-minute continuous discharge duration.
999 in stock
Vacuum tool for front access to LED screen modules
The HX05 LED vacuum tool is designed for front maintenance of indoor and outdoor rental LED screens. It helps technicians access modules for replacement, inspection and other service work without extensive screen disassembly.
Confirm suitability for the module surface and front-service design before selection. The original product video, schematic images and specification download are retained below to support the operating instructions.
Operating instructions
- Hold the tool handle and use the oval-shaped button to adjust the gear.
- Align the suction cup with the center of the module.
- Press the switch lightly once to turn on the working state.
- Press the switch a second time to turn it off.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | HX05 |
| Tool type | Vacuum front-maintenance tool for LED screens |
| Listed application | Indoor and outdoor rental LED screen maintenance |
| Charger input voltage | 100–240 V |
| Charger output | 26 V / 1 A |
| Listed continuous discharge duration | 20 minutes |
| Power | 350 W |
| Listed standby consumption | 10 μA |
| Operating temperature | −20 to +45°C |
| Operating humidity | 15–85% RH |
Product images and specification download
Original product video

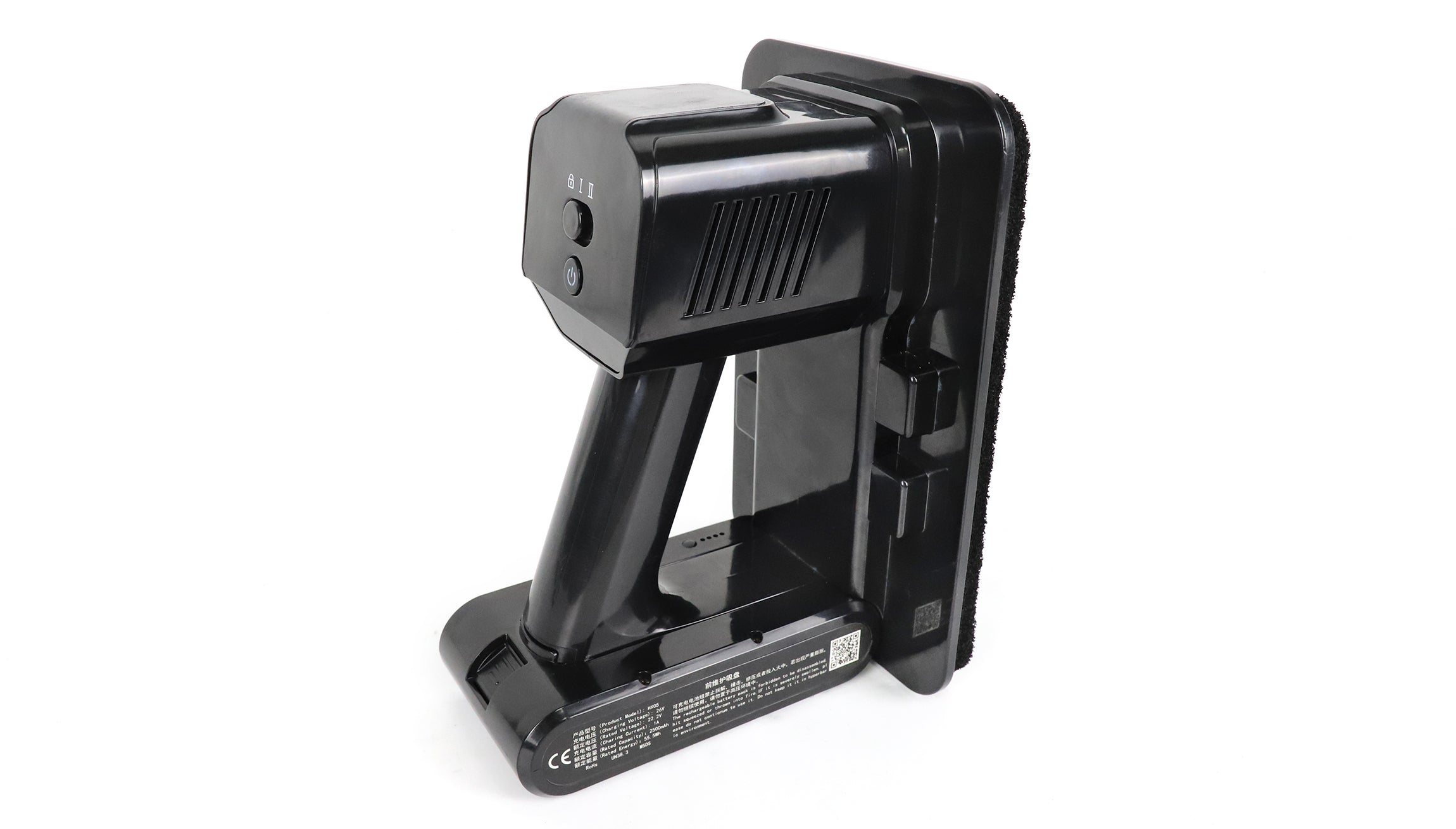

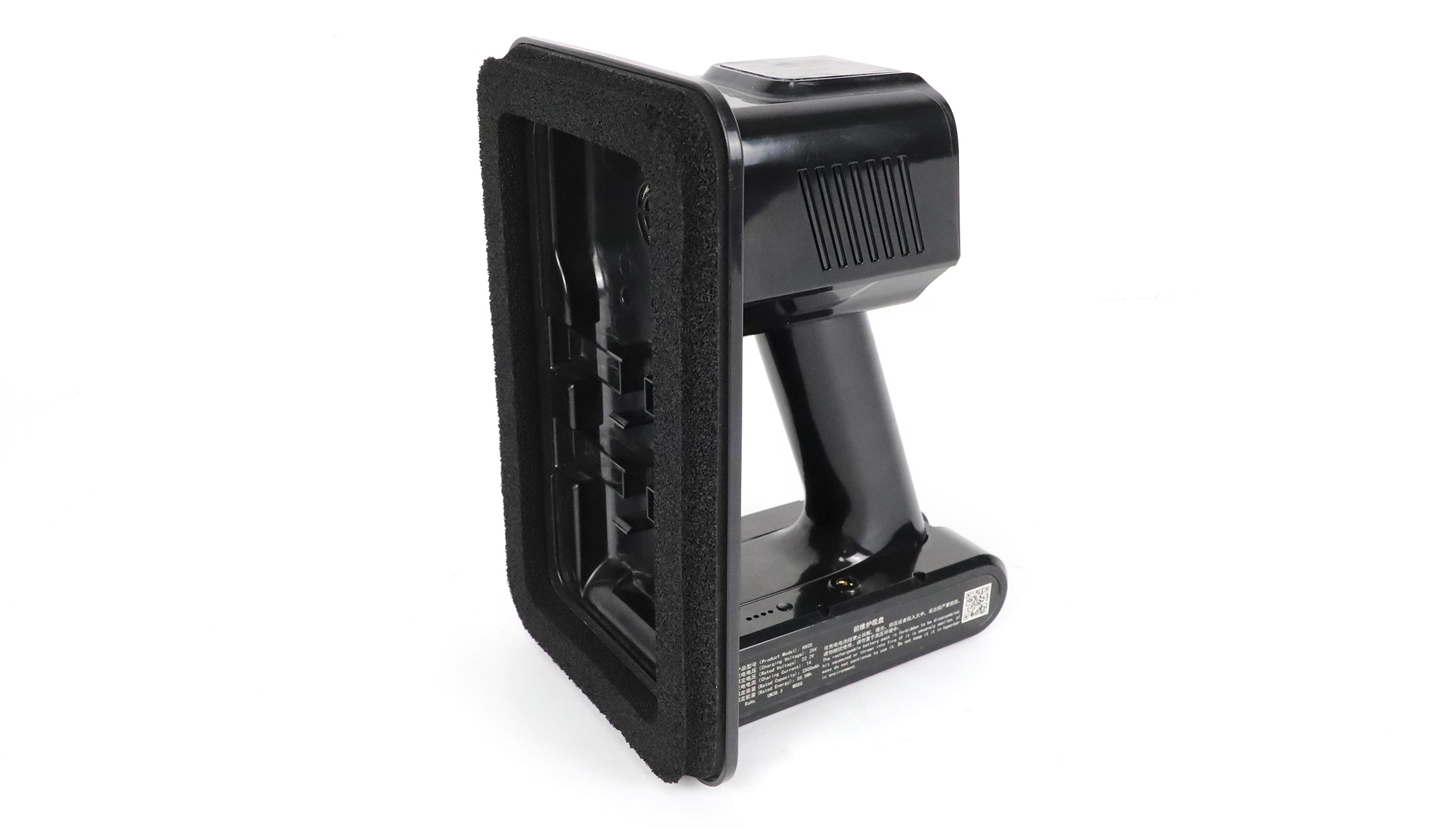

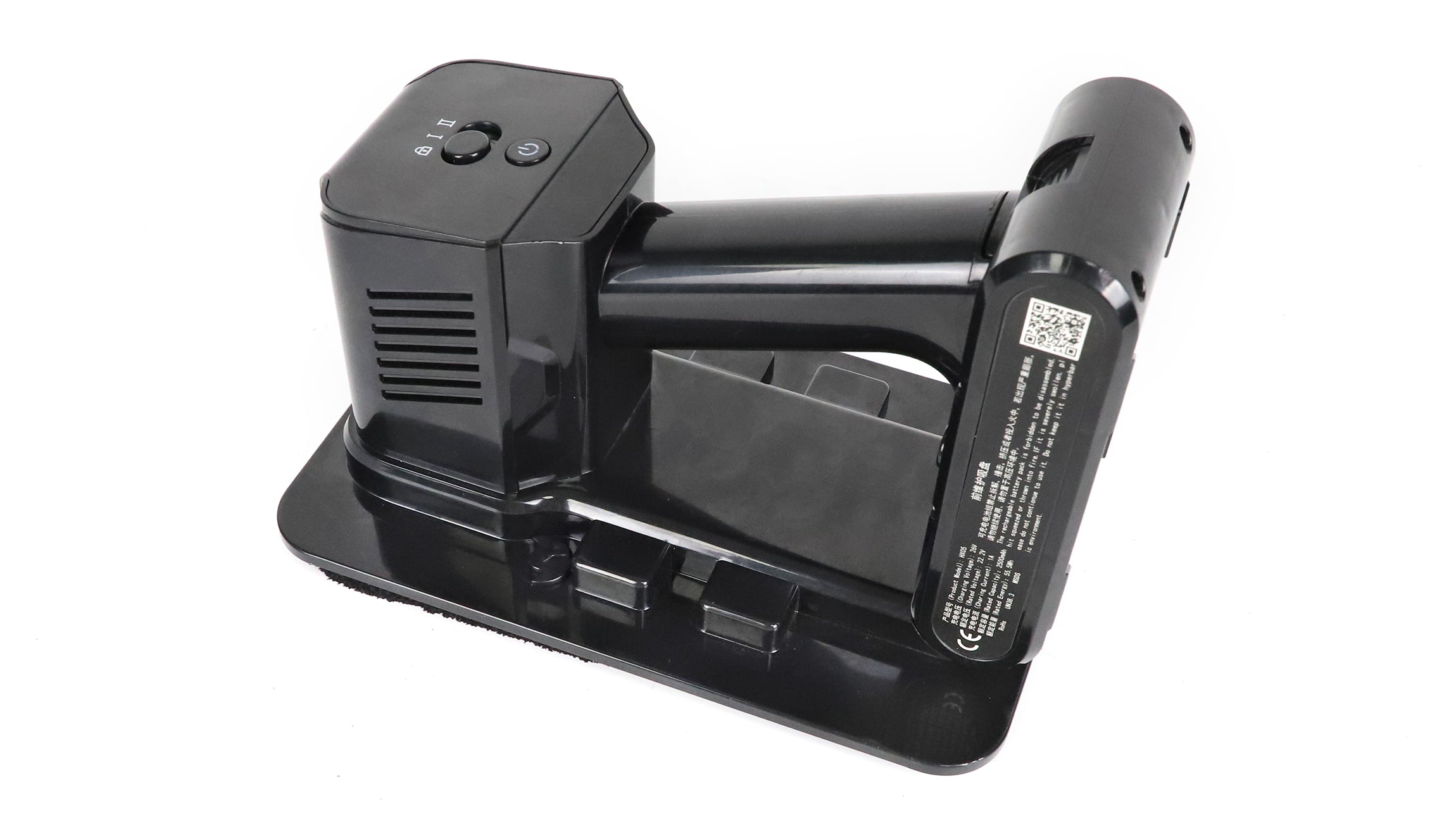

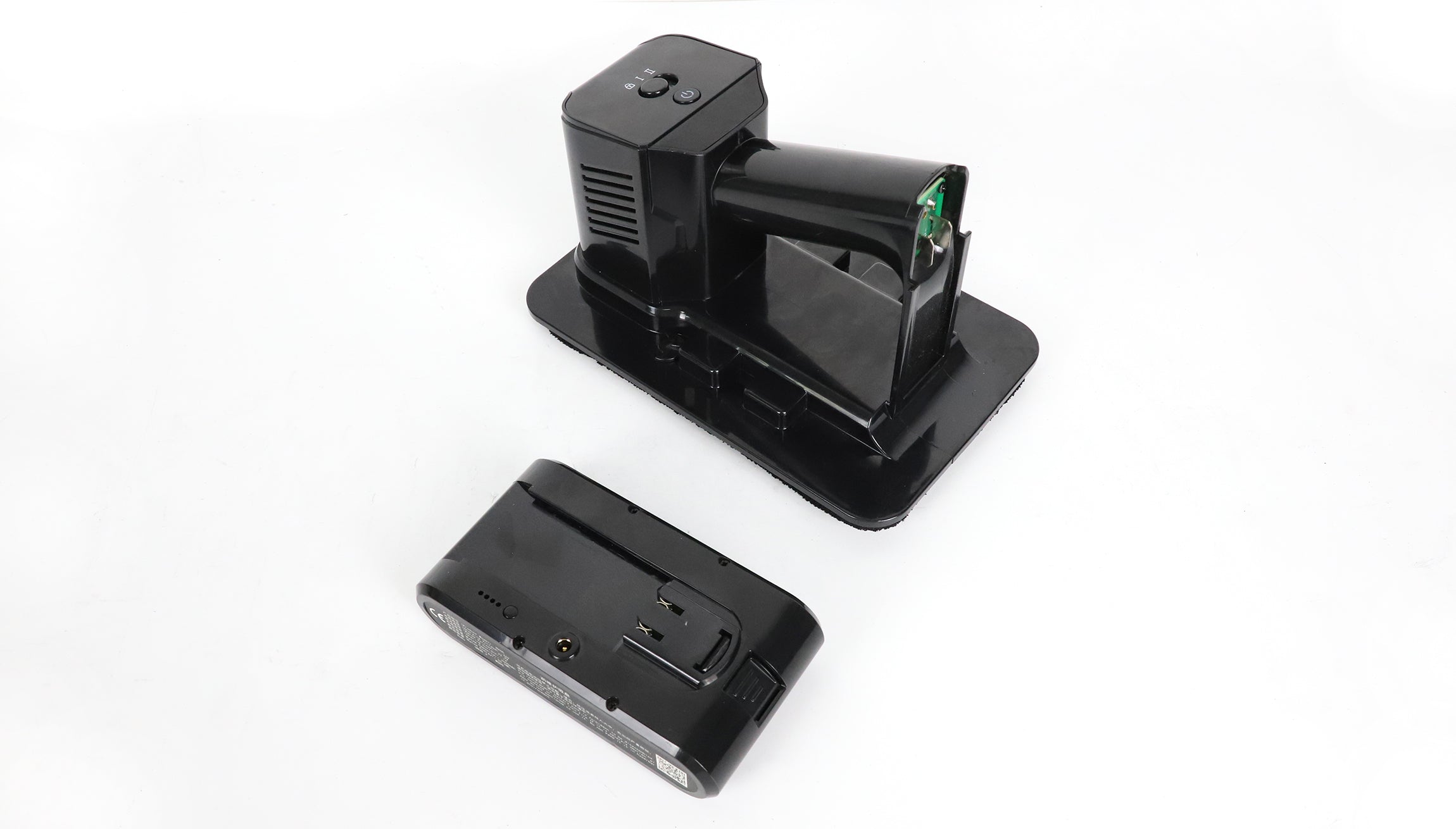

Product schematic and images
Download specification:
HX05 LED Screen Vacuum Front Maintenance Tool Specification
Frequently asked questions
What is the HX05 LED vacuum tool used for?
It is intended for front maintenance of LED screens, including access for module replacement and troubleshooting. It is a handling and maintenance tool; it does not repair failed LEDs by itself.
How do I switch the tool on and off?
Hold the handle, use the oval button to select the gear and align the suction cup with the center of the module. The original instructions specify pressing the switch once to turn it on and pressing it again to turn it off.
What charger specifications are listed?
The charger input is listed as 100–240V, with an output of 26V/1A. Use the charger arrangement specified for the HX05.
How long is the listed continuous discharge duration?
The product information states 20 minutes of continuous discharge. It does not specify a battery-capacity value on this page.
Is the HX05 confirmed for every LED module or pixel pitch?
No universal module or pixel-pitch compatibility is specified here. Confirm that the module surface and front-service construction are suitable for this vacuum tool before selection.
| Weight | 4.5 kg |
|---|
