HX02 II Rechargeable LED Display Front Maintenance Tool
$ 170.00
The HX02 II is a discontinued rechargeable suction tool for servicing small-pitch LED modules from the front. The manual and demonstration below are provided for owners.

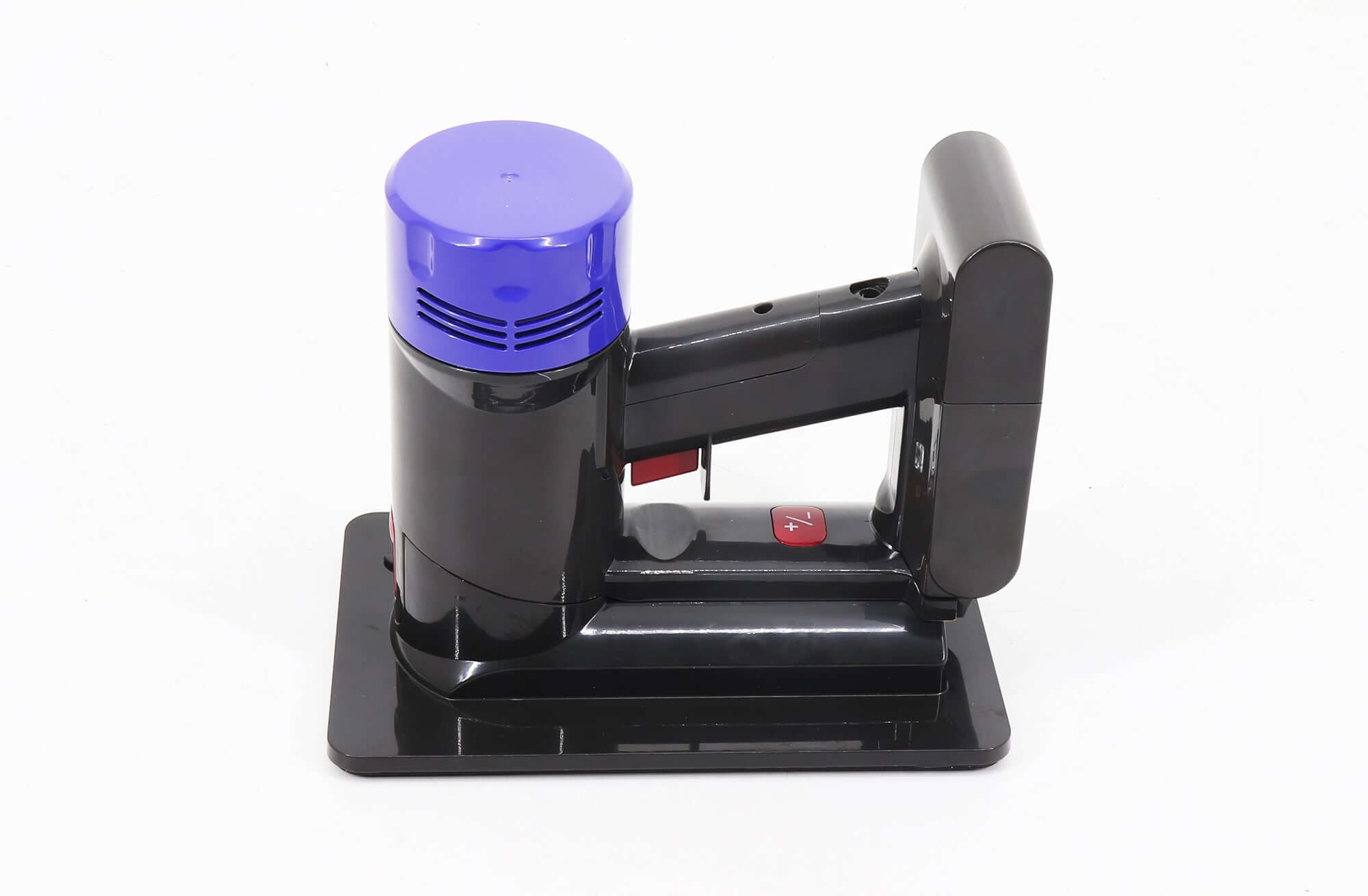

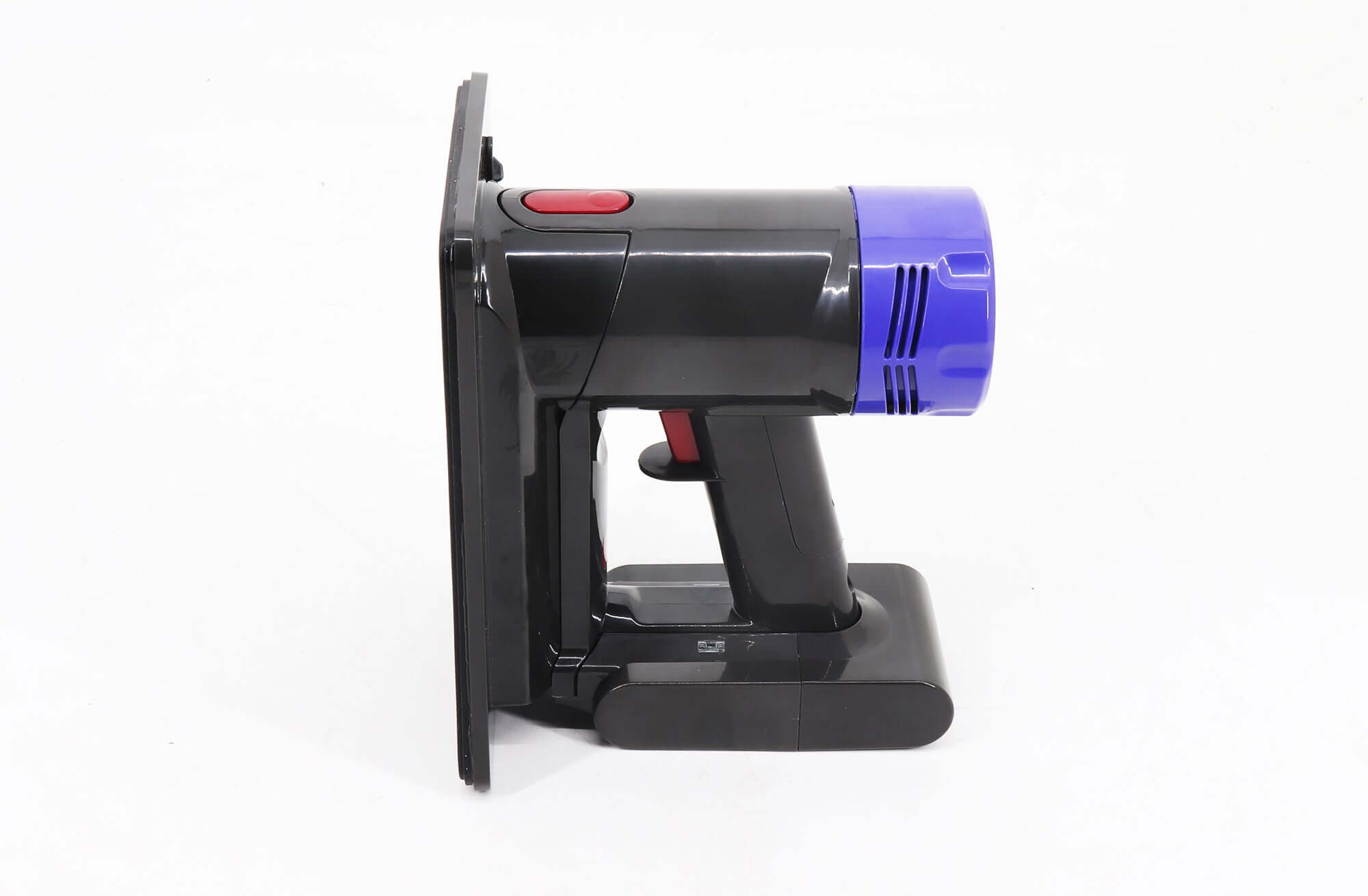

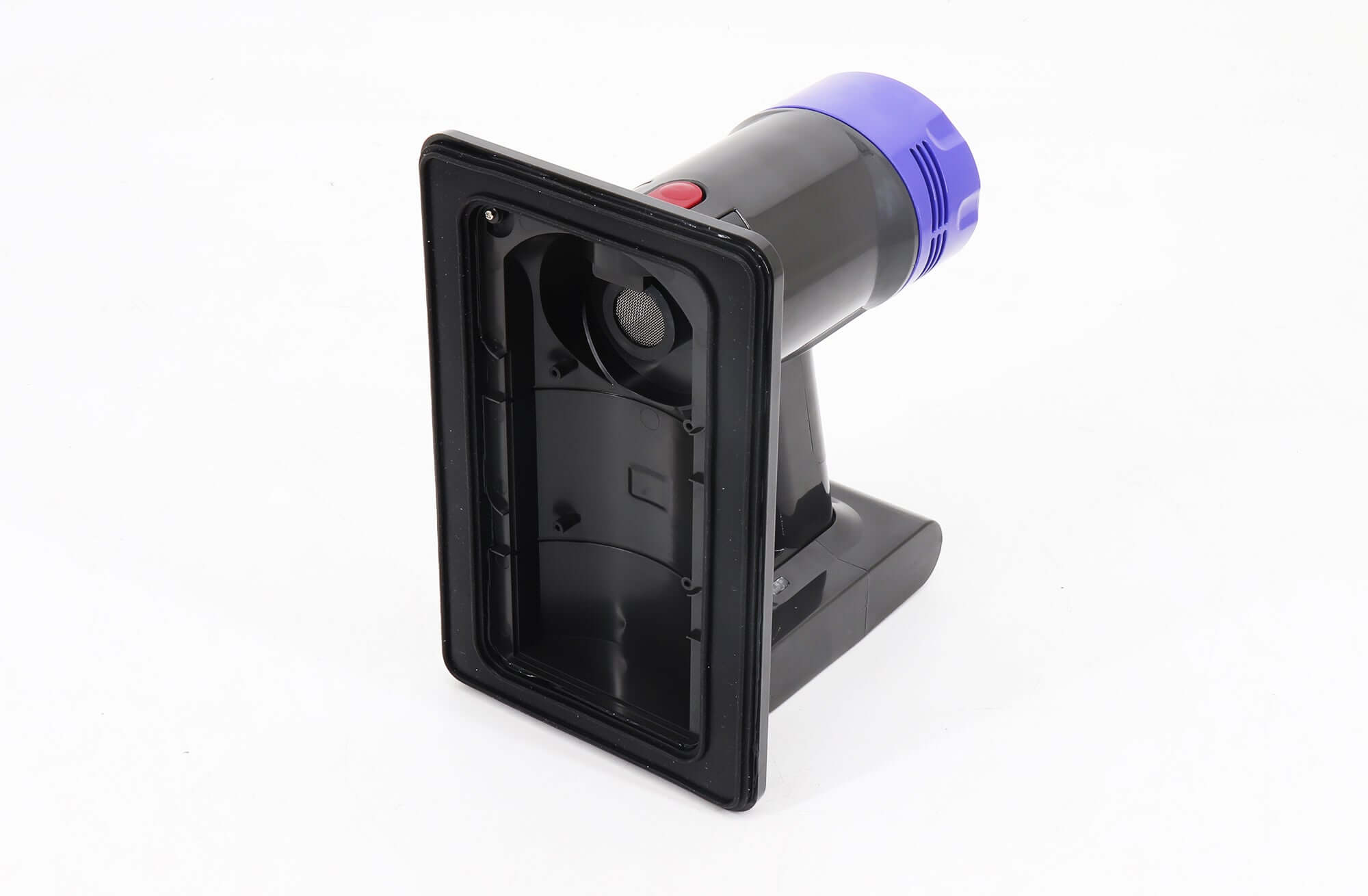

The HX02 II lifts a module from the display face with a suction cup. Its high and low settings control suction. The original listing recommends the HX03Pro as an alternative; check module fit and cup dimensions before choosing a replacement.
Rechargeable HX02 II specifications
| Parameter | Specification |
|---|---|
| Net weight | 1.1 kg |
| Dimensions (L × W × H) | 175 × 139 × 216 mm |

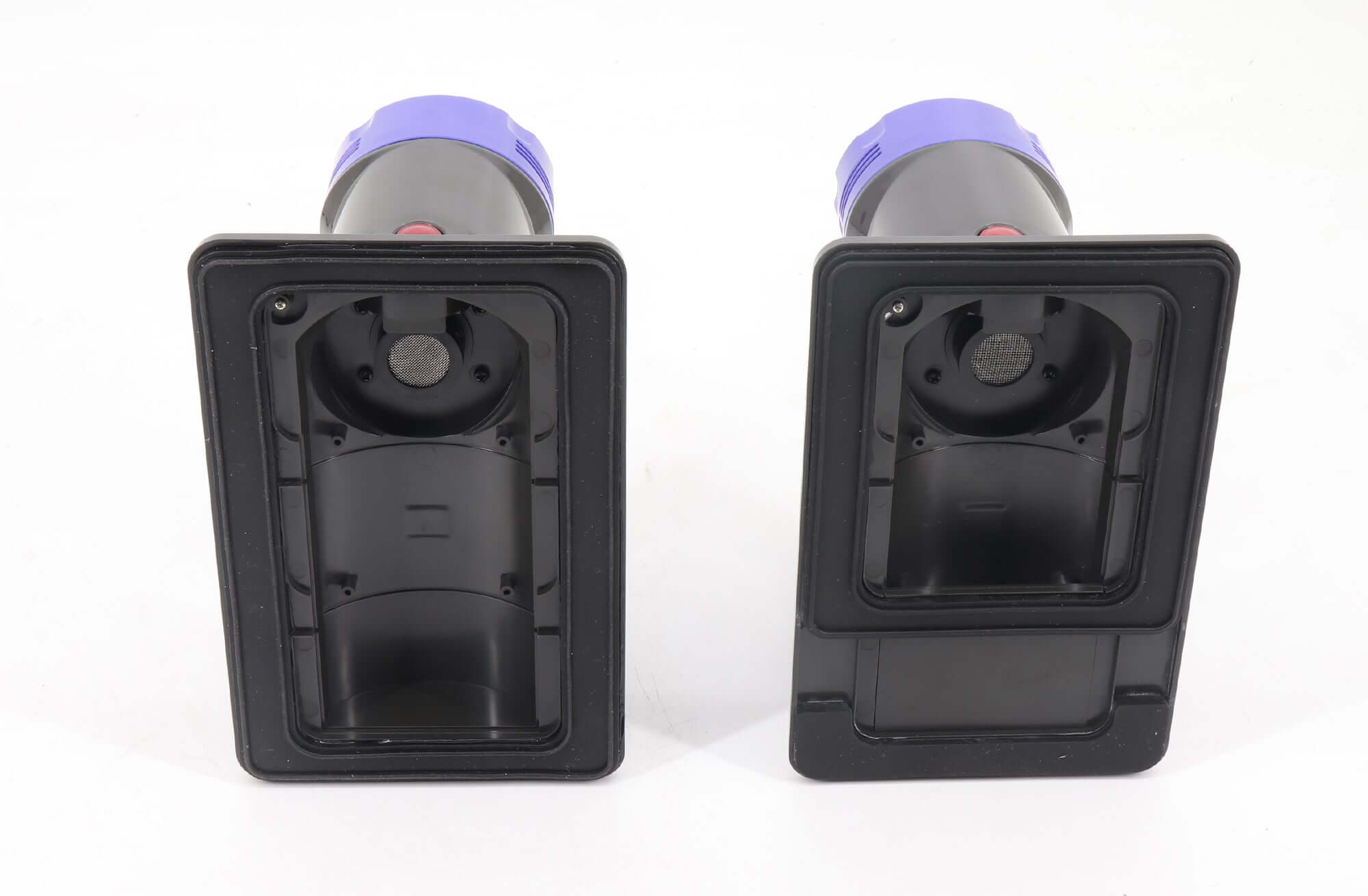

| Suction cup sizes | 135 × 213 mm; 135 × 150 mm; 135 × 90 mm |
| Charger input | 100–240 V |
| Charger output | 26 V, 0.8 A |
| Continuous discharge | 20 min in laboratory testing; varies with conditions |
| Standby current | 10 µA |
| Working environment | −20 to 45 °C; 15–85% RH |
Demonstration and manual
Download the HX02 II front service tool manual (PDF).
Frequently asked questions
Which modules is the HX02 II designed for?
The manual identifies small-pitch, front-service LED modules. Check that the chosen cup fits the module face and that the display manufacturer allows suction removal.
Is the rechargeable version rated at 300 W?
The manual lists 300 W under the separate 220 V, 50 Hz plug-in version. For the rechargeable version, it gives the charger output as 26 V at 0.8 A.
Can I operate the tool while charging?
The manual allows this for emergencies and advises against routine use while charging because it can shorten battery life.
Is the HX02 II still in production?
No. The HX02 II is discontinued. Owners can still use the manual to identify controls, check charger specifications and compare suction cups.
| Weight | 3.5 kg |
|---|
