Huidu HD-R5S Plus Mini LED Receiving Card
$ 10.80
Huidu HD-R5S Plus is a compact LED receiving card with a high-density connector interface, 32 RGB parallel data groups and support for static through 1/128-scan modules. Includes pixel calibration, monitoring and configuration-backup functions.
10000 in stock

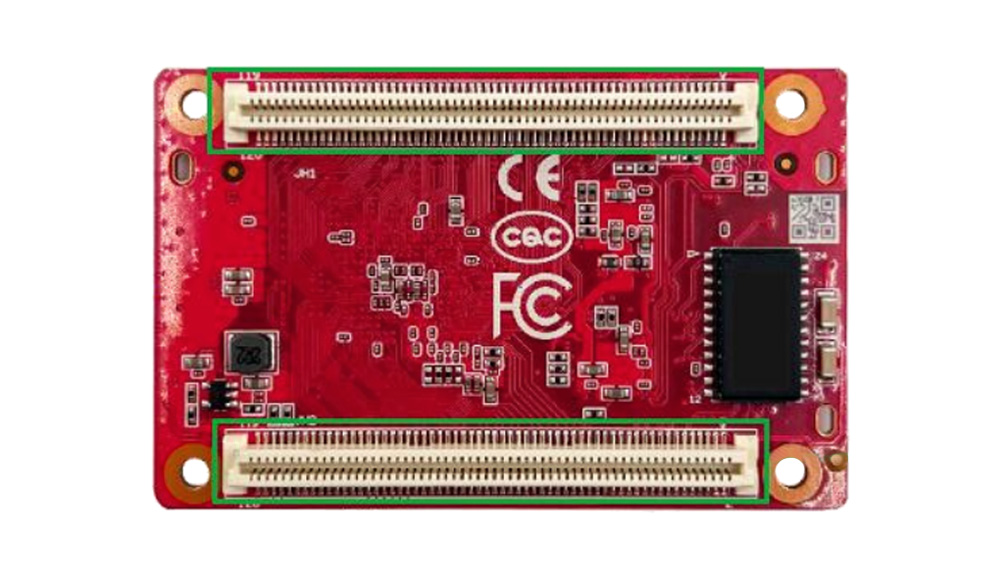

HD-R5S Plus Mini Receiving Card
The Huidu HD-R5S Plus is a compact LED receiving card with a high-density connector interface. It supports synchronous and asynchronous playback boxes, asynchronous sending cards, synchronous sending cards and video processors, with support for conventional driver chips and mainstream PWM modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum load range | 512 × 512 at 60 Hz; actual capacity depends on interface count and module resolution |
| Capacity stated in product overview | 260,000 pixels; see loading note below |
| Data groups | 32 groups of RGB parallel data or 64 groups of serial data, expandable to 128 |
| Scan modes | Static through 1/128 scan |
| Communication | Gigabit Ethernet |
| Network cable distance | Cat5e or Cat6 within 80 m |
| Grayscale levels | 256 to 65,536 |
| Rotation | 0°, 90°, 180° or 270° |
| Multi-card layout | Arbitrary receiver-card sorting; nanosecond-level synchronization stated in the product information |
Loading note: the product information lists both 512 × 512 at 60 Hz and a 260,000-pixel overview figure. These are not numerically identical. Confirm the supported load for the actual module and interface configuration before finalizing a screen design.
Calibration, Monitoring and Backup
- Smart setup and screen-wiring configuration support different module wiring arrangements, with data-group exchange and offset adjustment.
- The built-in display test checks module brightness uniformity and flatness.
- With a grayscale correction system, point-by-point brightness and color calibration supports bright/dark line adjustment. Independent RGB gamma adjustment is also supported.
- Monitor card temperature and voltage without external monitoring devices, and record running time.
- Store configuration parameters in the factory area for restoration. Receiver-card backup supports switching to the backup card if the primary card fails.
- For LED boards with Flash memory, correction coefficients can be stored and read back.
Product Images and Specification
Download Specification:
Huidu HD-R5S Plus LED Mini Receiver Card Specification
Frequently Asked Questions
Which scan modes does the HD-R5S Plus support?
It supports static modules and scan modes through 1/128, including conventional driver chips and mainstream PWM chip modules.
What is the maximum load of the R5S Plus?
The load-range specification is 512 × 512 at 60 Hz, depending on interface count and module resolution. The overview also gives 260,000 pixels; confirm the applicable configuration rather than treating these figures as identical.
Can the receiving card rotate the displayed image?
Yes. Rotation in 90-degree steps is supported: 0°, 90°, 180° and 270°.
Does it support pixel calibration?
Yes. In conjunction with the grayscale correction system, it supports point-by-point brightness and color correction, bright/dark line adjustment and independent RGB gamma adjustment.
What cable type and distance are specified?
The listed communication distance is within 80 m using Cat5e or Cat6 network cable.
| Weight | 0.3 kg |
|---|
