Huidu HD-R508T LED Receiving Card – 8 HUB75E, 128 × 512
Original price was: $ 13.00.$ 10.40Current price is: $ 10.40.
HD-R508T is a full-color LED receiving card with eight HUB75E interfaces and dual Gigabit Ethernet ports. It offers recommended loading of 65,536 pixels (128 × 512) and supports static to 1/64 scan.
HD-R508T LED Panel Receiving Card
The Huidu R508T connects compatible sending equipment to LED modules through eight HUB75E interfaces. It supports common driver IC modules and most PWM IC modules, with multi-card cascading in any sequence.
| Parameter | Specification |
|---|---|
| Recommended loading | 65,536 pixels (128 × 512) |
| Module-width limits | Outdoor ≤256 pixels; indoor ≤128 pixels |
| Module interfaces | 8 × HUB75E |
| Network interfaces | 2 × 1 Gbps Ethernet |
| Supported sending equipment | Dual-mode sending box; asynchronous sending card; synchronous sending card; VP-series video processor |
| Scan modes | Static to 1/64 scan |
| Module support | Common IC modules and most PWM IC modules |
| Grayscale | 256–65536 |
| Cable distance | Within 80 m using Super Cat5 or Cat6 cable |
| Power connections | 2 × 5 V DC |
| Input voltage | 4–6 V |
| Power | 5 W |
Screen Configuration and Testing
Data-group exchange and data-group offset settings help configure the screen layout. Smart settings include point drawing and tracing, with support for different screen-unit alignments. The integrated screen test checks brightness uniformity and module flatness.
Use the recommended loading range together with the module-width limits when planning a cabinet. Match the module driver IC and scan mode to the receiver configuration before connecting multiple cards.

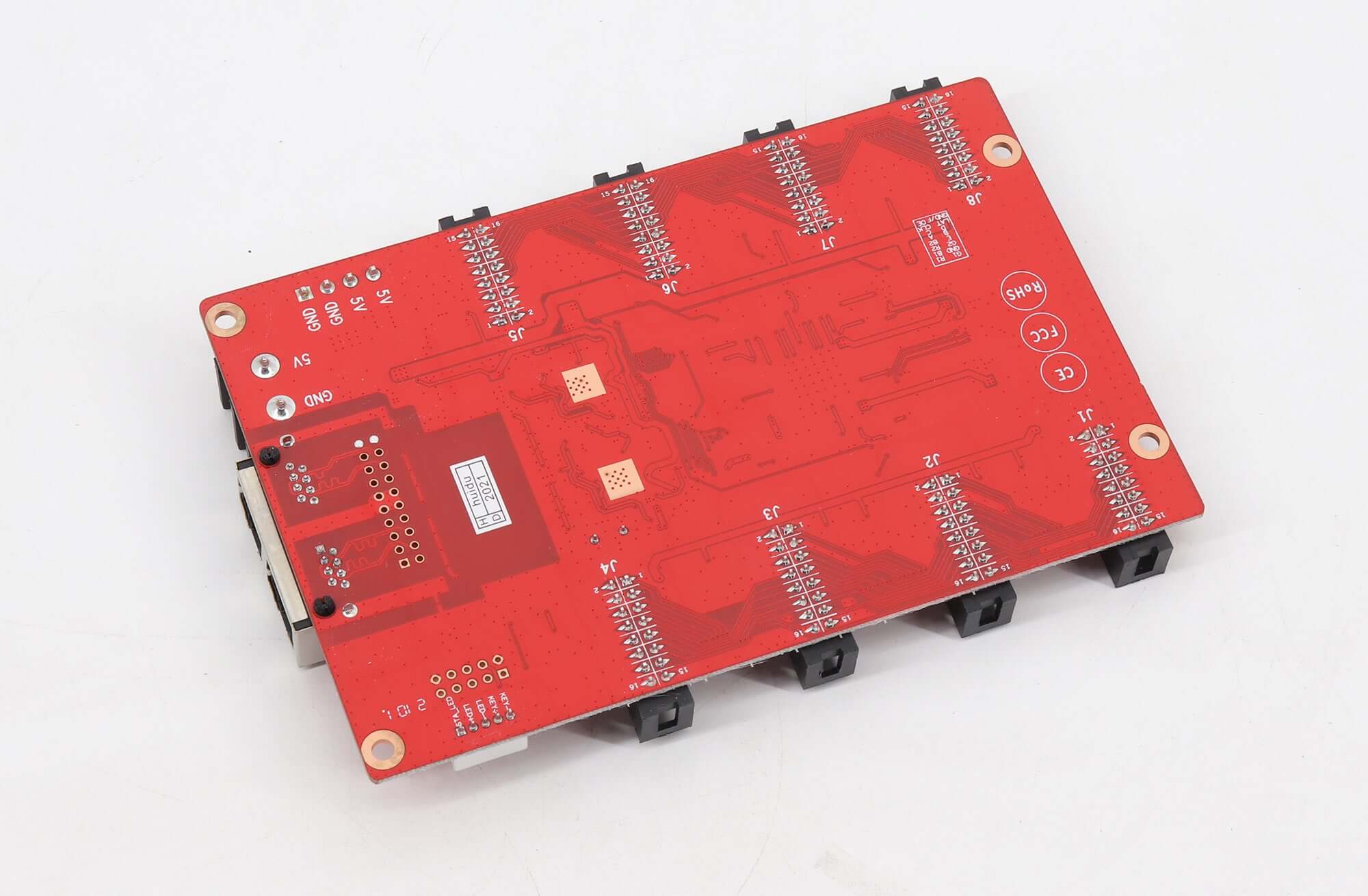

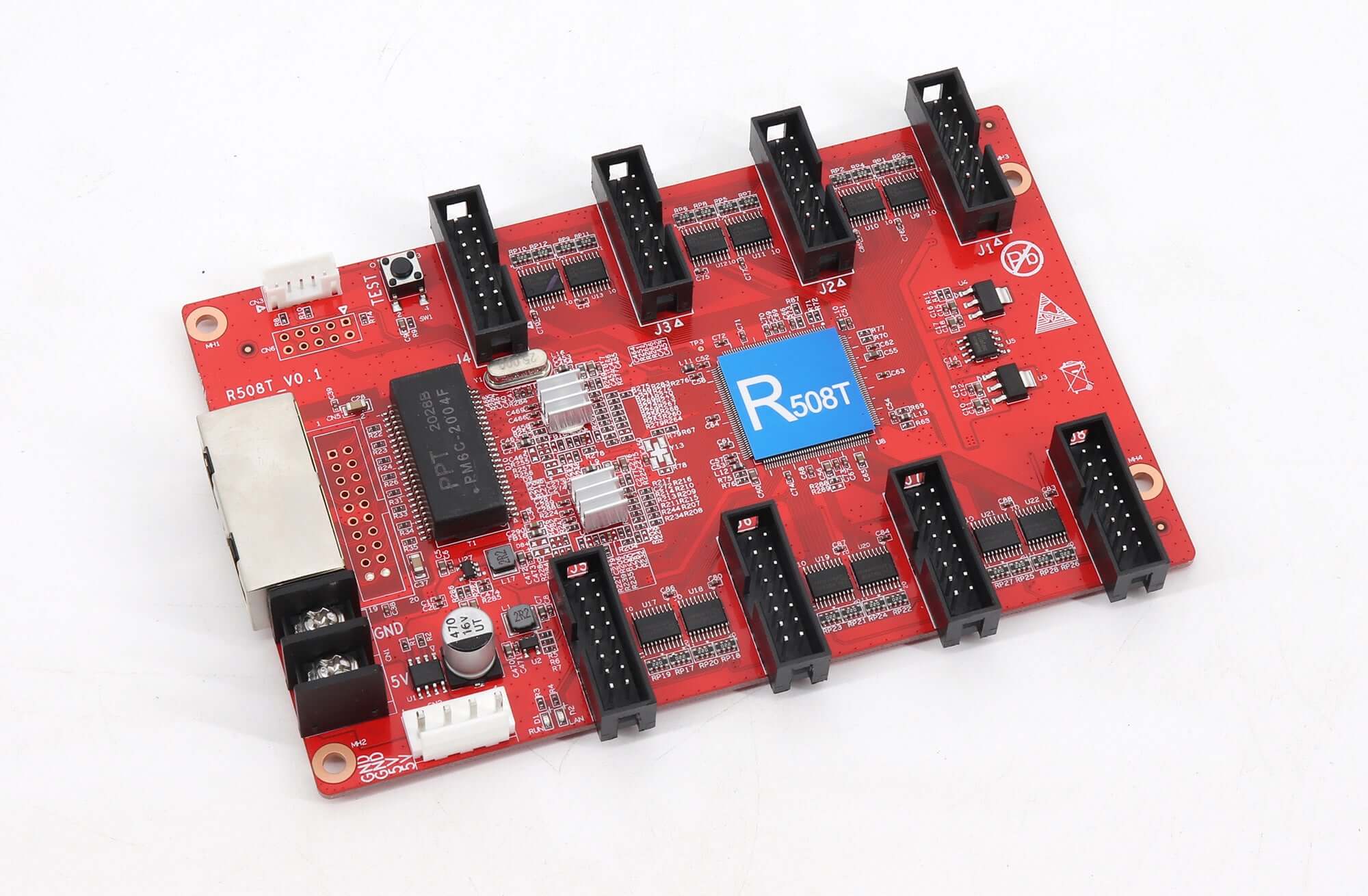

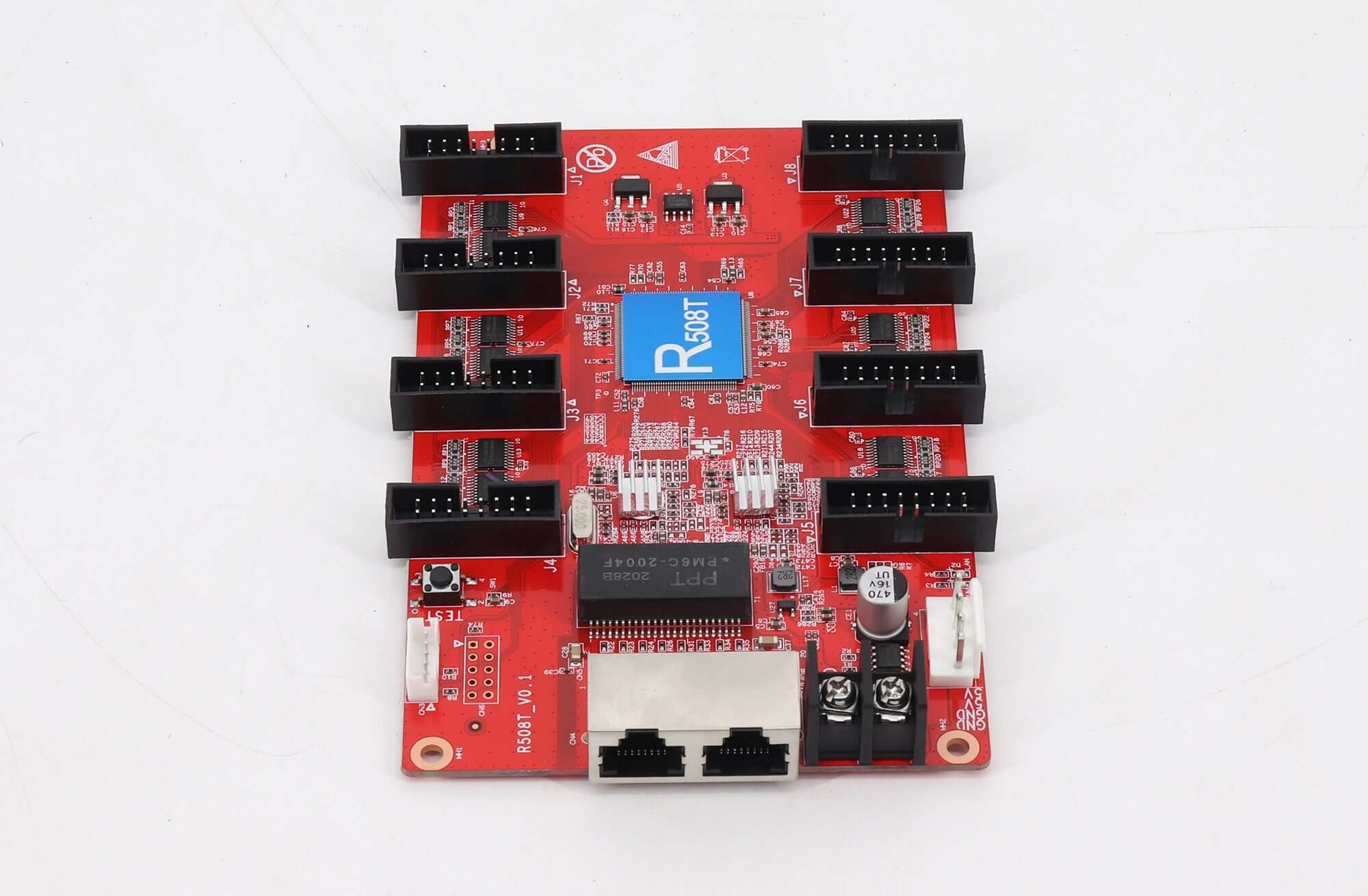

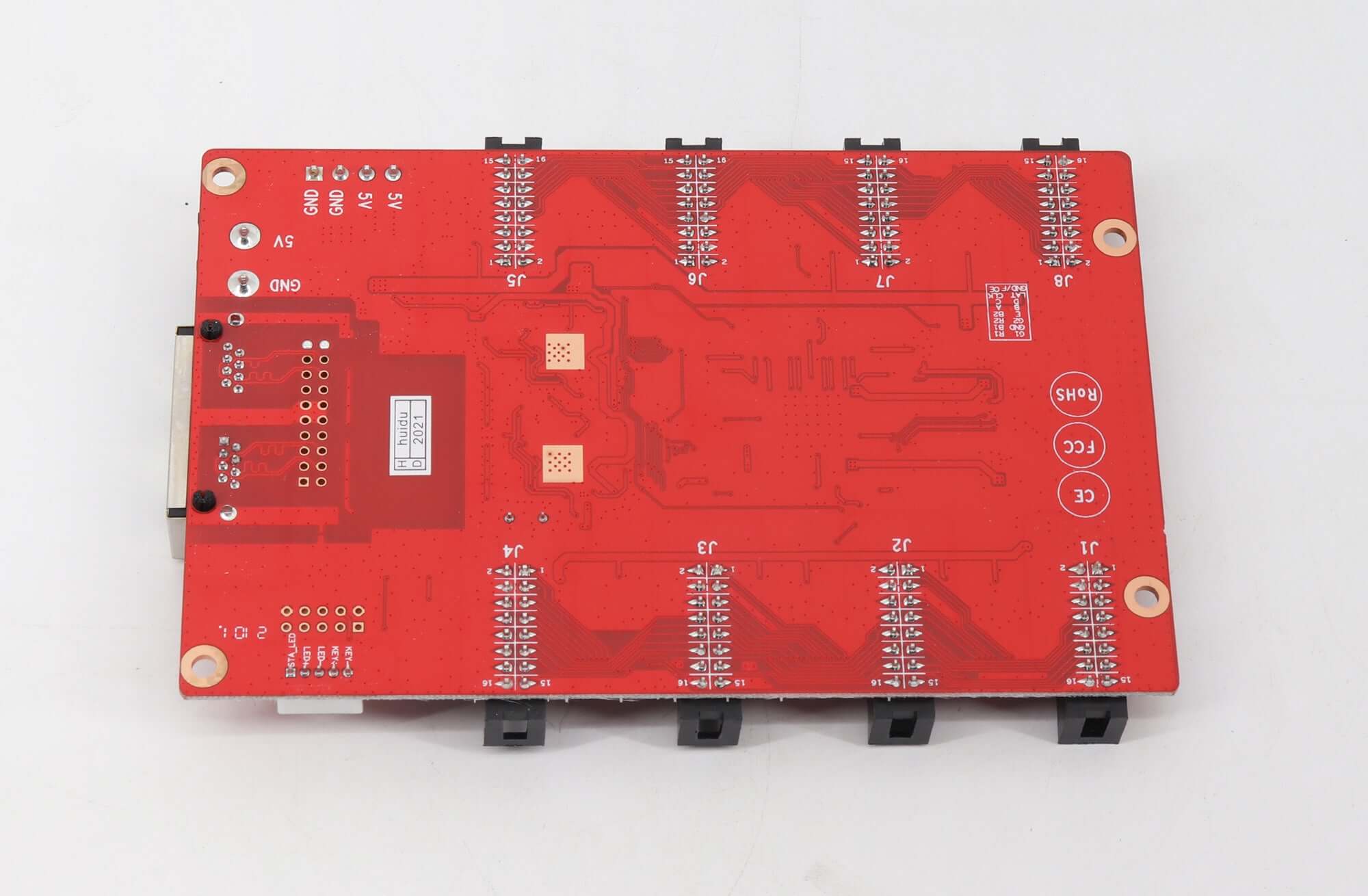

Product Images
Specification Download
Download the HD-R508T V0.1 specification (PDF)
Frequently Asked Questions
How many pixels can HD-R508T control?
The recommended loading is 65,536 pixels, arranged as 128 × 512. The listed module-width limits are 256 pixels outdoors and 128 pixels indoors.
How many HUB75E interfaces does R508T provide?
It provides eight HUB75E module interfaces and two 1 Gbps Ethernet ports.
Which LED module scan modes are supported?
HD-R508T supports static modules and scanning modes up to 1/64 scan. It supports common driver IC modules and most PWM IC modules.
Can R508T receiving cards be cascaded?
Yes. The card supports multi-card cascading, and the receiving cards can be arranged in any sequence.
What is the specified network cable distance?
The listed distance is within 80 meters using Super Cat5 or Cat6 network cable.
| Weight | 0.4 kg |
|---|
