Huidu HD-C16C LED Control Card – Wi-Fi & 10 HUB75E
$ 67.00
HD-C16C combines asynchronous playback, sending and receiving functions. It provides 10 HUB75E outputs, 4 GB memory, Wi-Fi app management, optional 4G and a relay for remote power switching. HDPlayer and LedArt are listed management options.
514 in stock
HD-C16C asynchronous control for full-color LED screens
The Huidu HD-C16C stores and plays content for LED displays, with Wi-Fi app management and remote control through an Internet or LAN connection. Sending and receiving functions are integrated; HD-R series receiving cards can also be added for a larger screen configuration.
This model uses 10 HUB75E outputs. The related HD-C16 uses two 50-pin HUB connections, so the two versions should not be treated as interchangeable when checking module wiring.
HD-C16C specifications
| Parameter | Specification |
|---|---|
| Module output | 10 HUB75E lines |
| Memory | 4 GB; USB flash-drive expansion supported |
| Video | HD hardware decoding; 60 Hz frame-rate output |
| Dimension limits | Maximum width 8192 pixels; maximum height 512 pixels |
| Wireless management | Wi-Fi; mobile-app control |
| Internet option | Optional 4G networking module |
| Audio output | Standard 3.5 mm audio interface |
| Power switching | 1 relay group for remote power on/off |
| Management software | HDPlayer and LedArt; web-based cloud management |
| Controller identification | Automatic identification by controller ID; no manual IP setup required |
Control range: the HD-C16C V0.1 specification dated April 8, 2021 lists 384 × 320 in its system-function table. The original marketing description also uses “120,000 pixels”; that does not equal 384 × 320 (122,880). Use the model-specific manual’s layout for configuration. The separate width and height limits do not describe a simultaneous 8192 × 512 screen area.
Updating programs and managing displays
Use HDPlayer on a computer or LedArt on a mobile device. Wi-Fi provides local wireless management, while the optional 4G module supplies an Internet connection for remote deployments. Multiple displays can be managed over the Internet or a LAN. The onboard relay supports remote power switching.

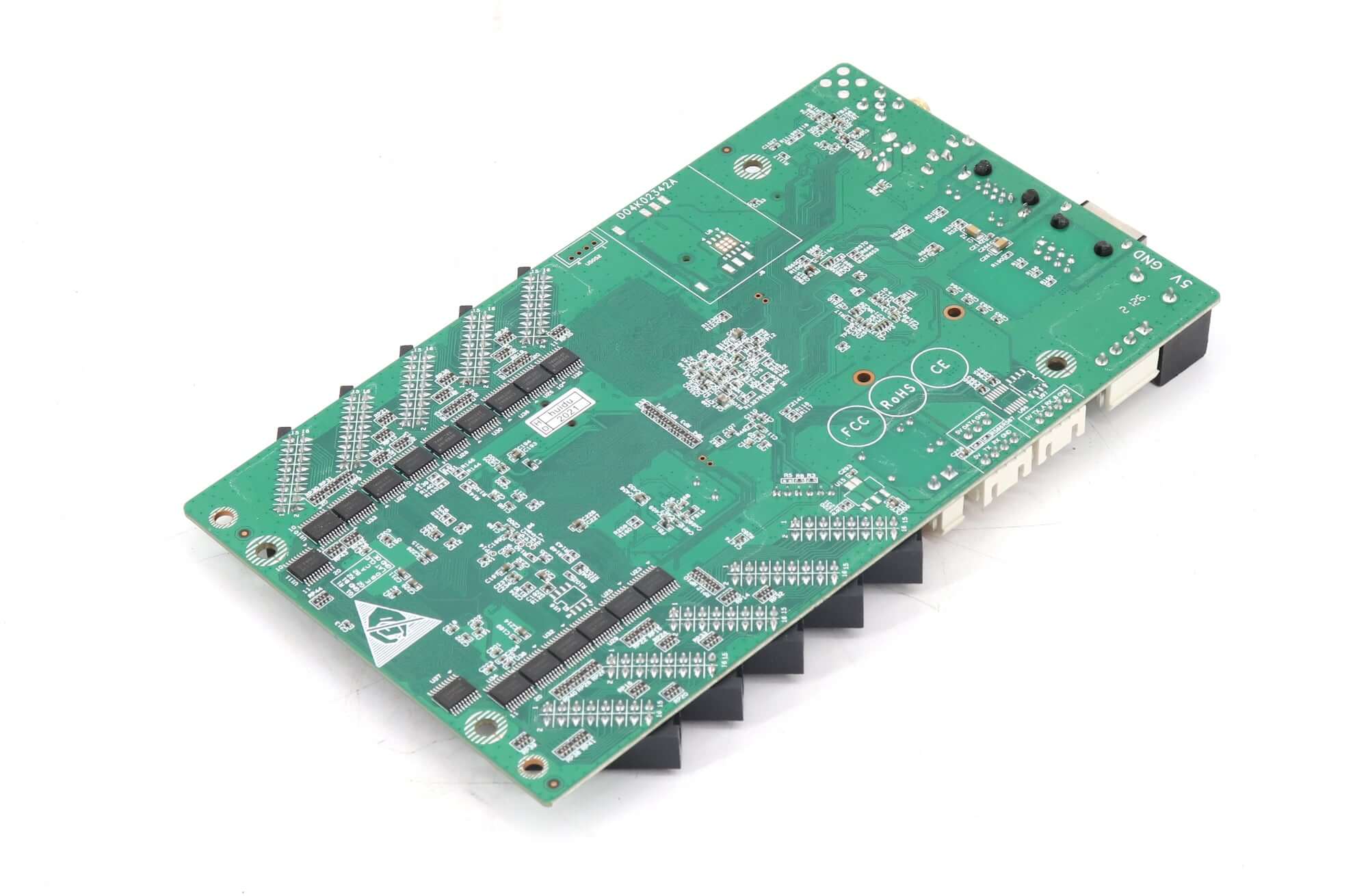

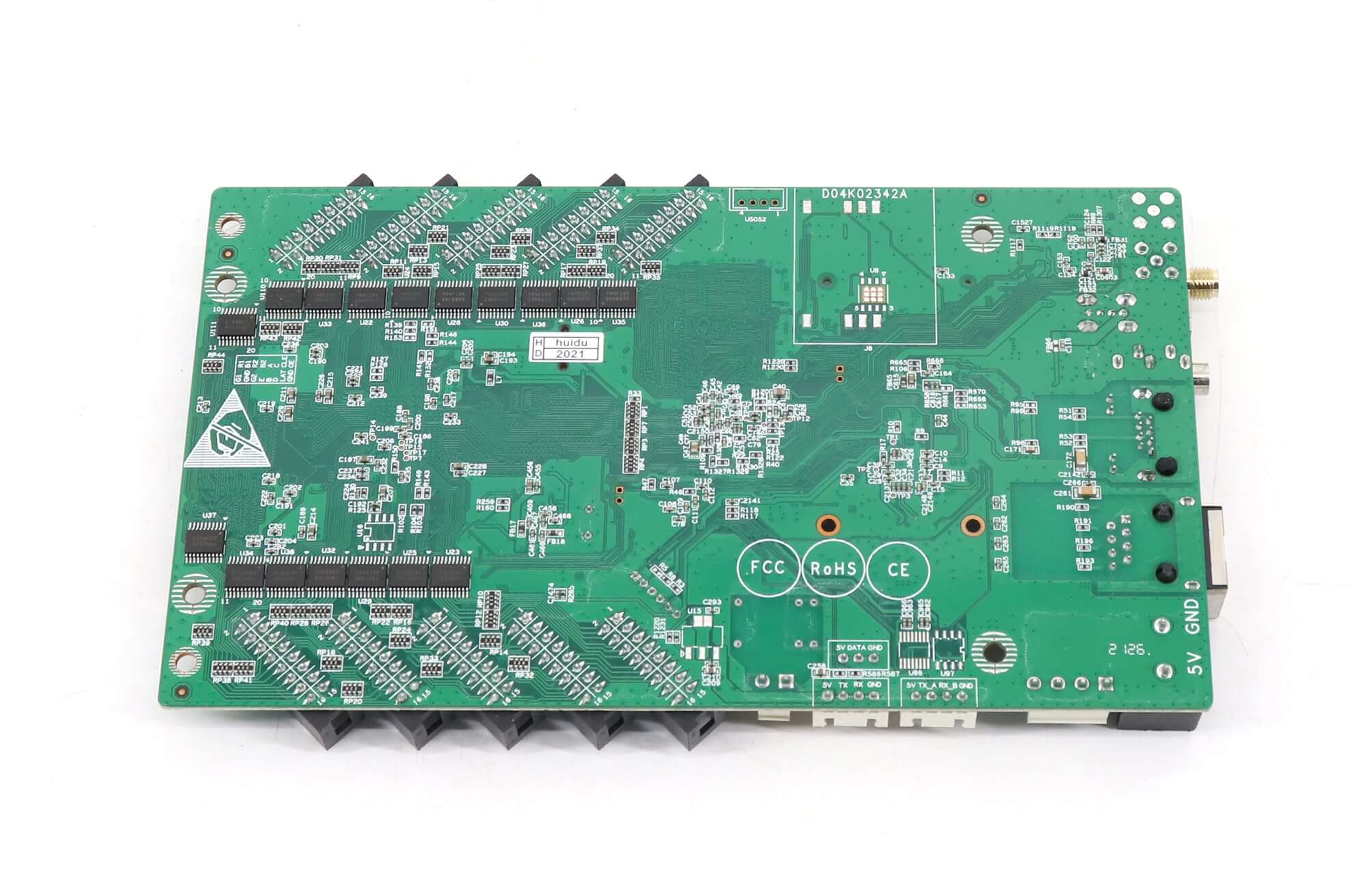

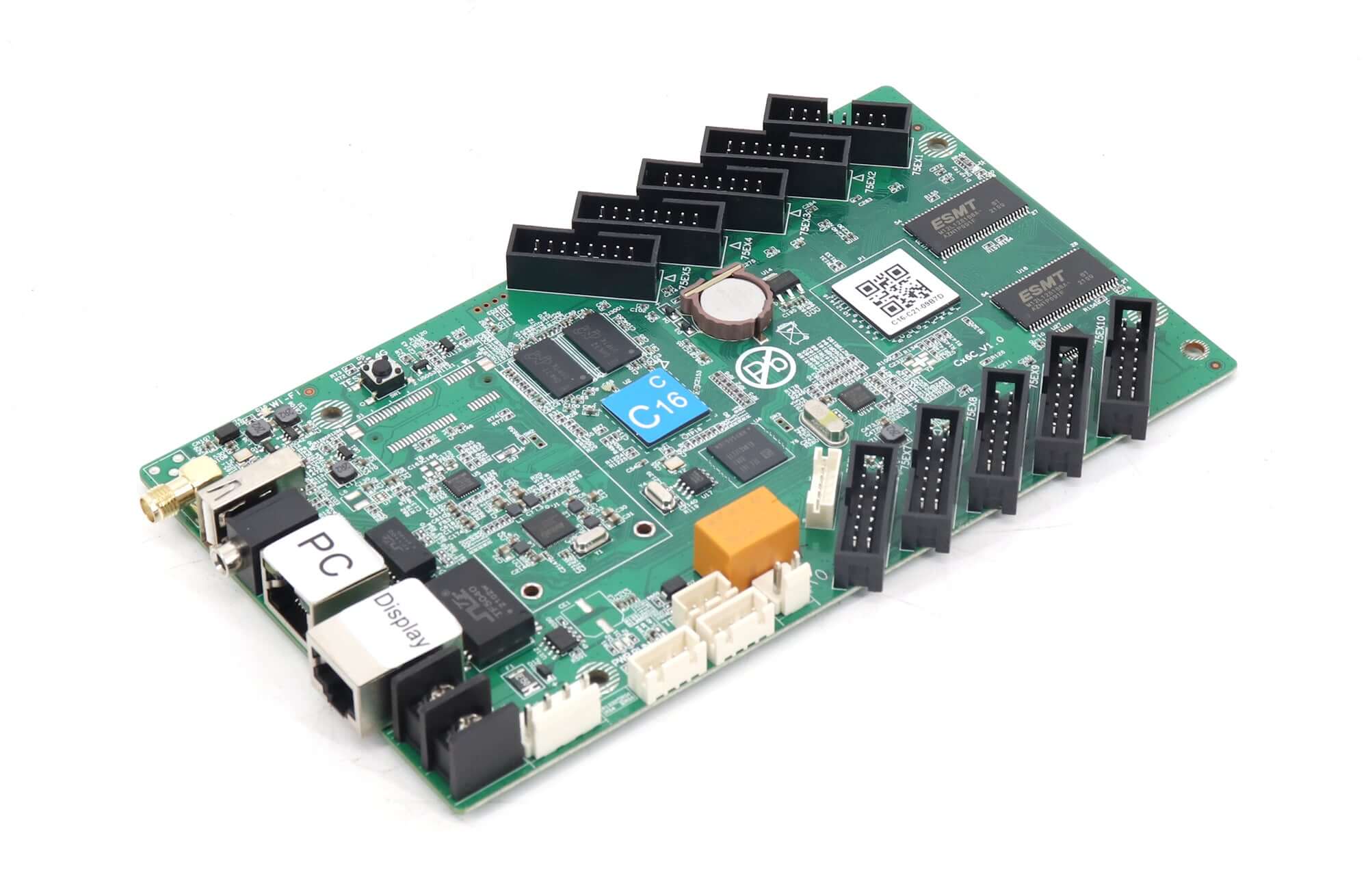

Product views
Download specifications
HD-C16C V0.1 specification PDF — site copy
Original specification link
The original download link is retained, but it currently returns a page-not-found message. Use the available site copy above.
Frequently Asked Questions
What is the difference between C16 and C16C?
This listing describes two 50-pin HUB connections on C16 and 10 HUB75E outputs on C16C. Check the exact model and wiring before replacing a card.
Which software works with HD-C16C?
HDPlayer is listed for computer management and LedArt for mobile control. The controller also supports web-based cloud management.
Does HD-C16C have Wi-Fi or 4G?
Wi-Fi is included in the listed features. A 4G networking module is optional.
What control range does the C16C specification list?
The HD-C16C V0.1 system-function table specifies 384 × 320. The original marketing description also says 120,000 pixels; refer to the model-specific PDF when planning the layout.
Can C16C switch the LED screen power remotely?
The product features list one relay group for remote power on/off control.
